Infiniti G35 (V35) Sedan. Manual - part 688

EXL-194

< ON-VEHICLE REPAIR >

[XENON TYPE]

AFS CONTROL UNIT

AFS CONTROL UNIT

Exploded View

INFOID:0000000000962543

Removal and Installation

INFOID:0000000000962544

REMOVAL

1.

Remove the instrument driver lower panel. Refer to

IP-11, "Exploded View"

.

2.

Remove the instrument finisher A. Refer to

IP-11, "Exploded View"

.

3.

Remove AFS control unit mounting bolt.

4.

Disconnect AFS control unit connector.

5.

Remove AFS control unit.

INSTALLATION

Install in the reverse order of removal.

1.

AFS control unit

JPLIA0102ZZ

STEERING ANGLE SENSOR

EXL-195

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

STEERING ANGLE SENSOR

Removal and Installation

INFOID:0000000000962545

Refer to

SR-7, "Removal and Installation"

.

EXL-196

< ON-VEHICLE REPAIR >

[XENON TYPE]

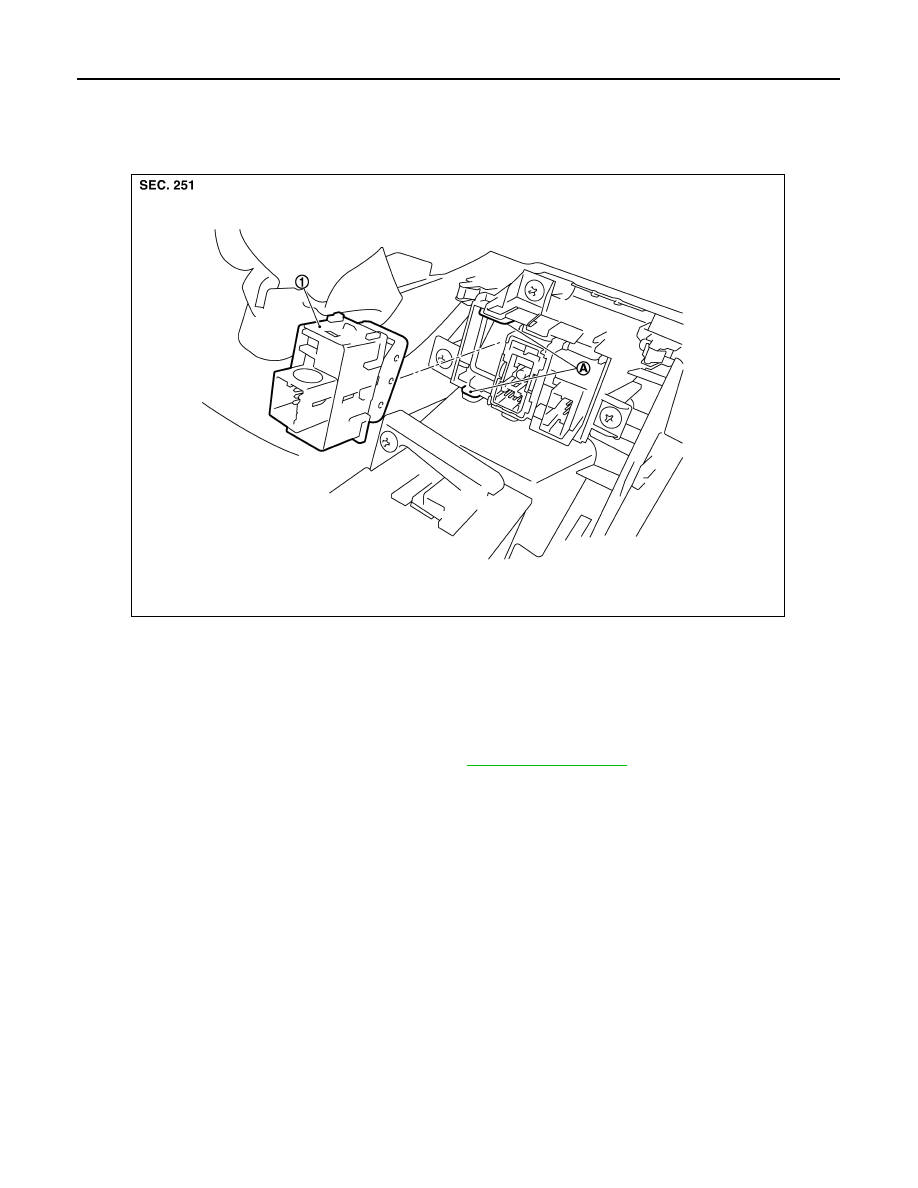

AFS SWITCH

AFS SWITCH

Exploded View

INFOID:0000000000962546

Removal and Installation

INFOID:0000000000962547

REMOVAL

1.

Remove the instrument driver lower panel. Refer to

IP-11, "Exploded View"

.

2.

Widen the pawl. And then remove AFS switch.

INSTALLATION

Install in the reverse order of removal.

1.

AFS switch

A

Pawls

JPLIA0103ZZ

HEIGHT SENSOR

EXL-197

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

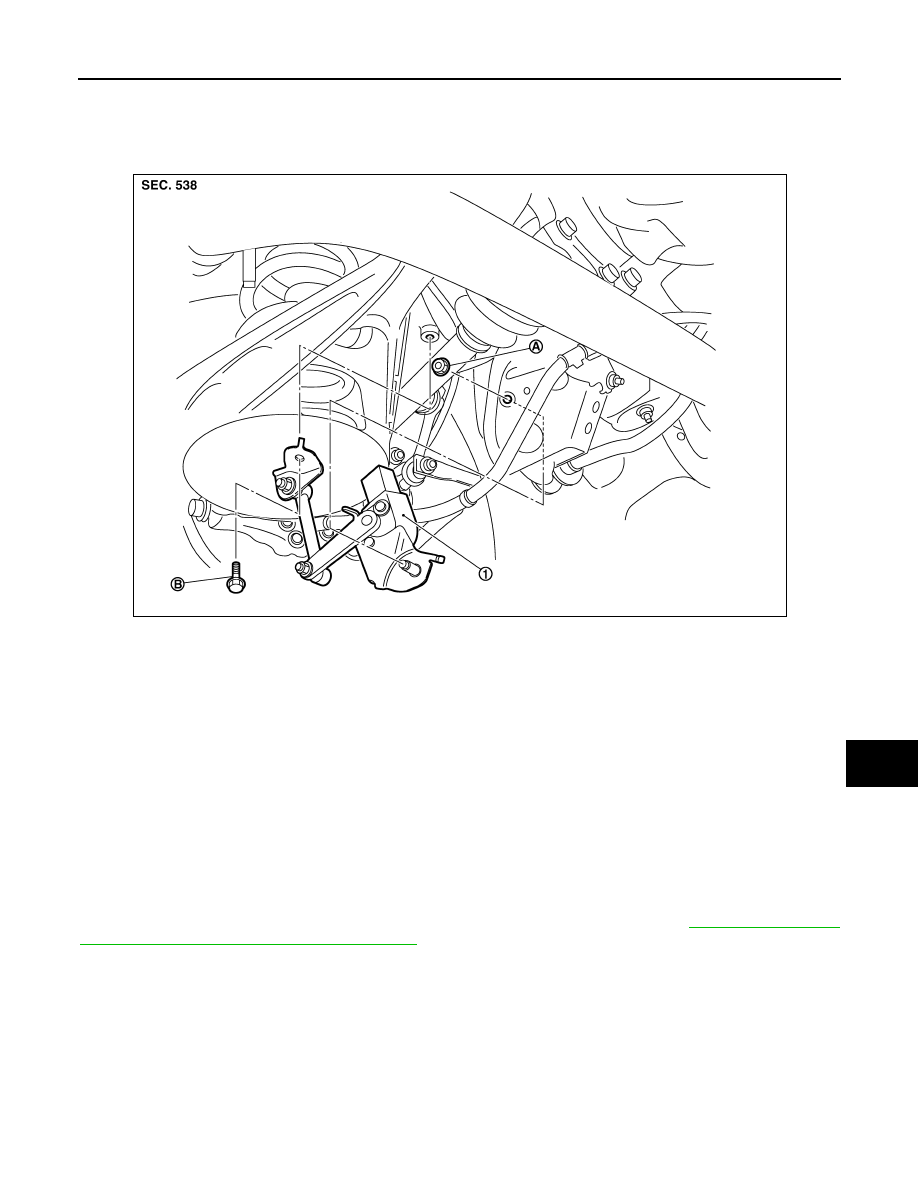

HEIGHT SENSOR

Exploded View

INFOID:0000000000962548

Removal and Installation

INFOID:0000000000962549

REMOVAL

1.

Remove the height sensor mounting nut.

2.

Remove the height sensor lever link bracket mounting bolt.

3.

Disconnect the height sensor connector.

4.

Disconnect the height sensor.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Perform the levelizer adjustment when removing the height sensor. Refer to

EXL-8, "LEVELIZER

ADJUSTMENT : Special Repair Requirement"

.

1.

Height sensor

A

Height sensor mounting nut

B.

Height sensor lever link bracket
mounting bolt

JPLIA0104ZZ
