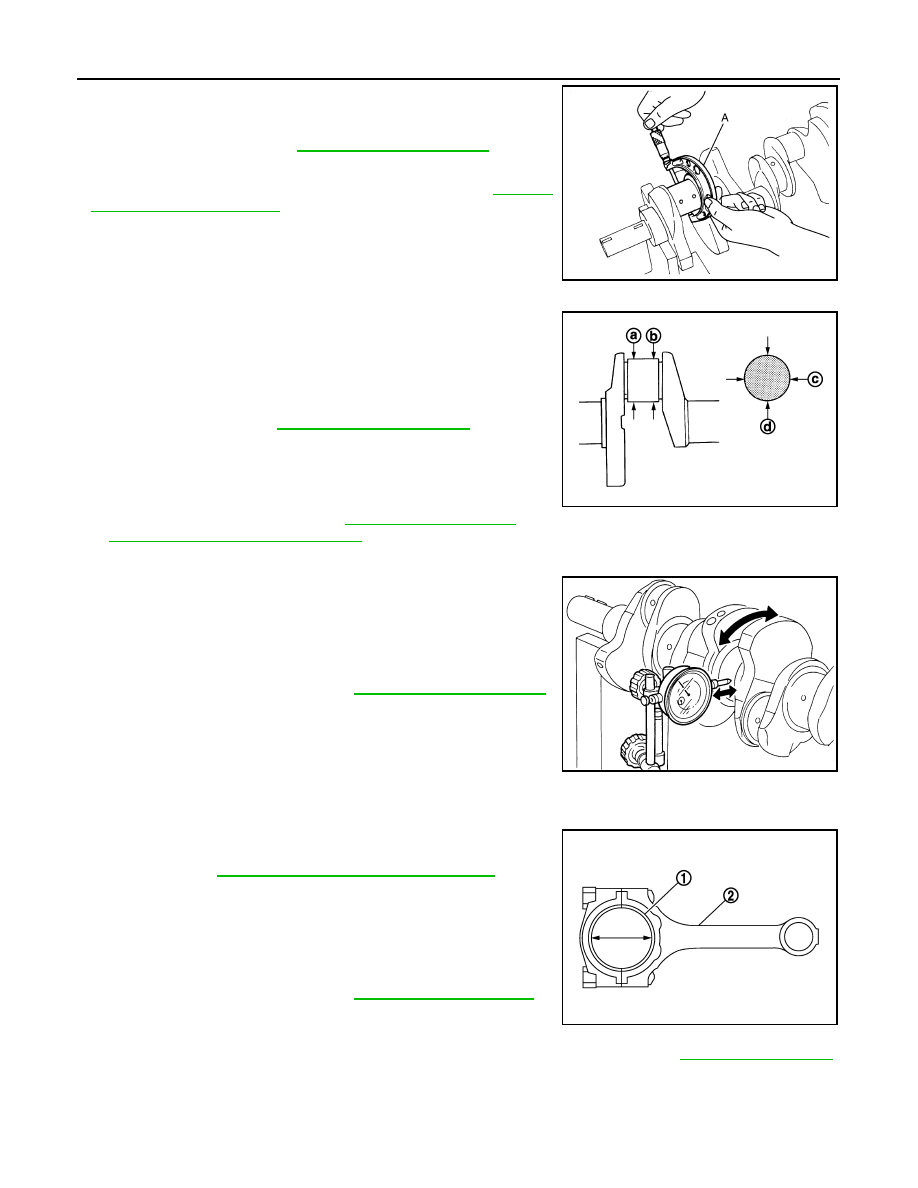

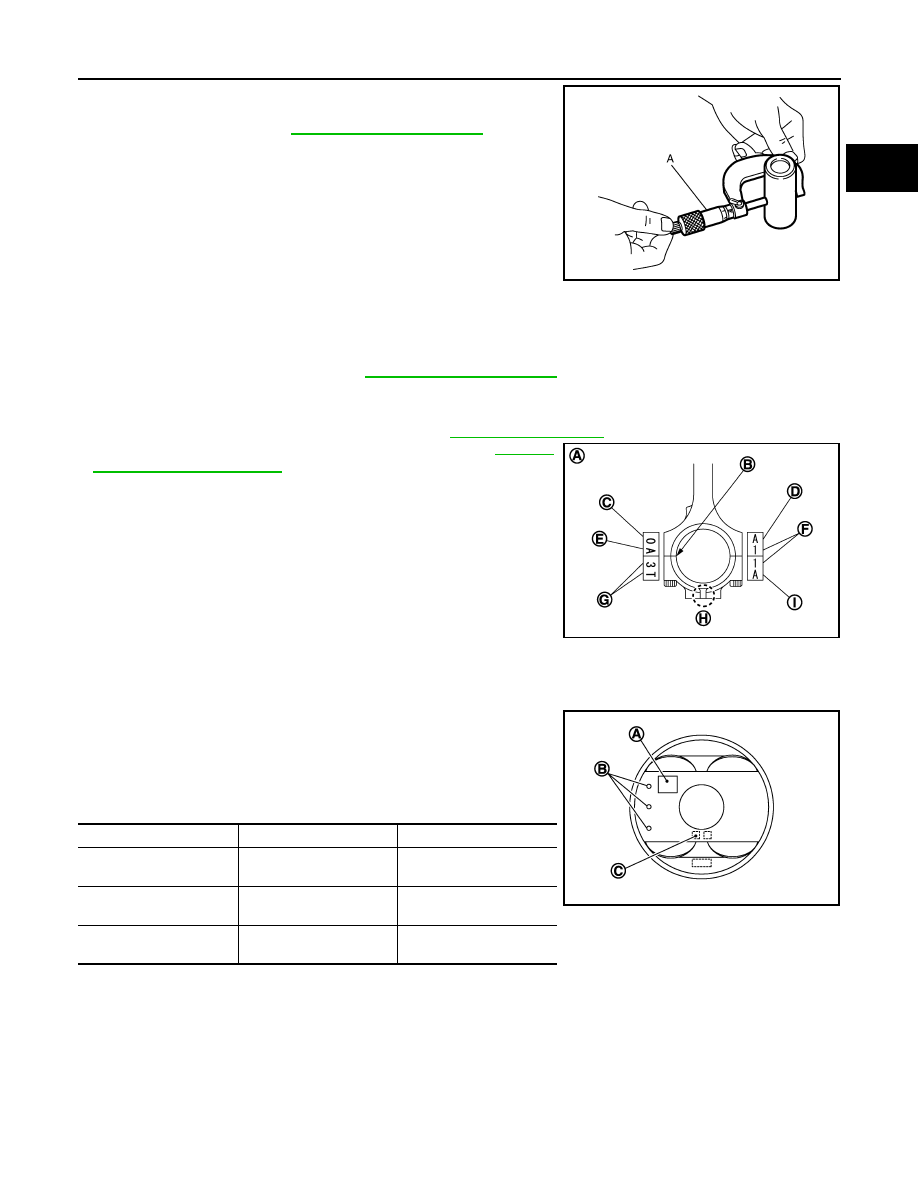

CYLINDER BLOCK EM-127 < DISASSEMBLY AND ASSEMBLY > C D E F G H I J K L M A EM N P O Measure the outer diameter of piston pin with a micrometer (A). Connecting Rod Bushing Oil Clearance (Connecting rod bushing oil clearance) = (Connecting rod bushing inner diameter) – (Piston pin outer diame- • If the calculated value exceeds the limit, replace connecting rod assembly and/or piston and piston pin assembly. • If replacing piston and piston pin assembly, refer to • If replacing connecting rod assembly, refer to to select the connecting rod bearing. Factory installed parts grading: • Service parts apply only to grade “0”. Unit: mm (in) *: After installing in connecting rod CYLINDER BLOCK DISTORTION • Using a scraper, remove gasket on the cylinder block surface, and also remove engine oil, scale, carbon, or other contamination. CAUTION: Be careful not to allow gasket flakes to enter engine oil or engine coolant passages. Standard : Refer to JPBIA0218ZZ Standard and limit : Refer to A : Sample codes B : Bearing stopper groove C : Small-end diameter grade D : Big-end diameter grade E : Weight grade F : Cylinder No. G : Management code H : Front mark I : Management code A : Piston grade number B : Front mark C : Piston pin grade number Grade 0 1 Connecting rod bushing 22.000 - 22.006 22.006 - 22.012 Piston pin hole diameter 21.993 - 21.999 21.999 - 22. 005 Piston pin outer diameter 21.989 - 21.995 21.995 - 22.001 JPBIA0208ZZ JPBIA0267ZZ |
