CYLINDER BLOCK

EM-123

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

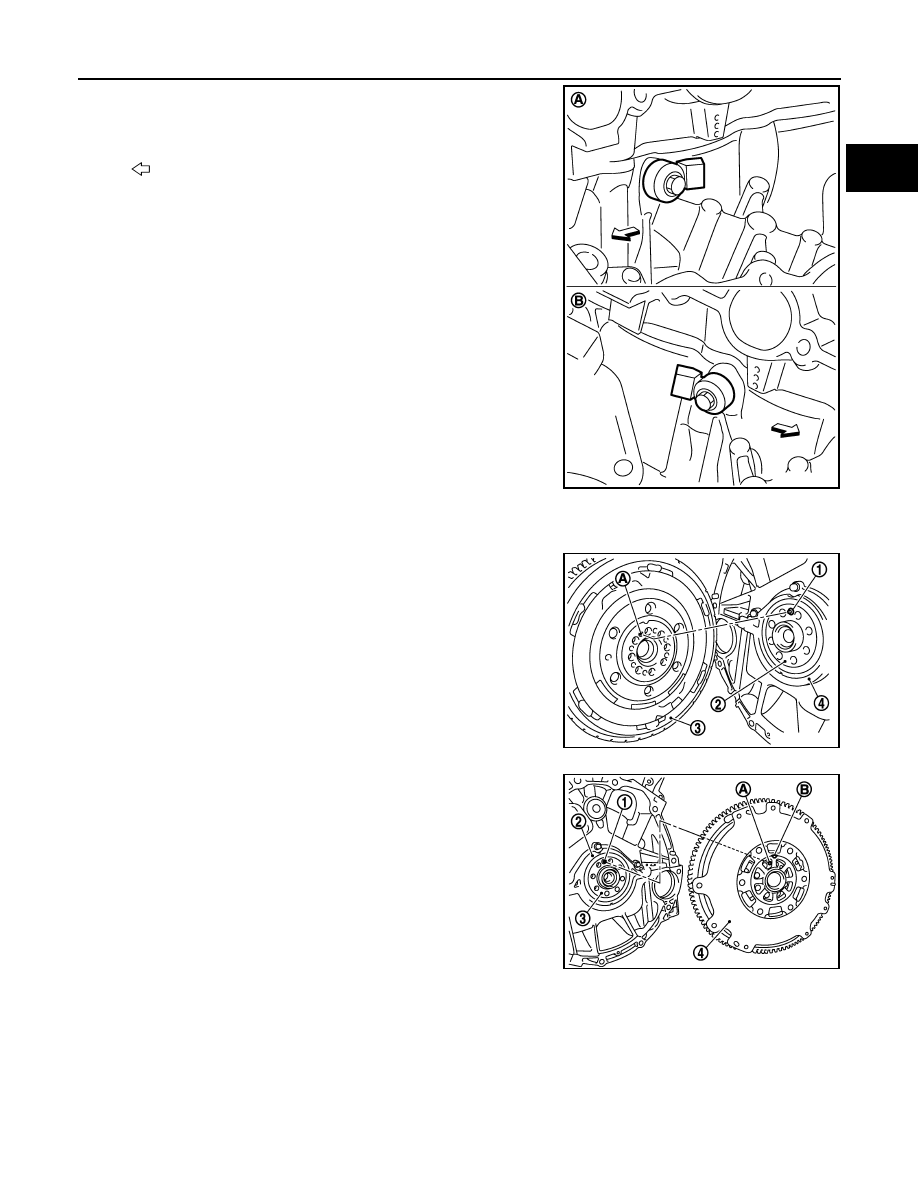

17. Install knock sensors.

• Install knock sensor so that connector faces rear of the

engine.

• After installing knock sensor, connect harness connector, and

lay it out to rear of the engine.

CAUTION:

• Do not tighten mounting bolts while holding connector.
• If any impact by dropping is applied to knock sensor,

replace it with new one.

NOTE:
• Make sure that there is no foreign material on the cylinder

block mating surface and the back surface of knock sensor.

• Make sure that knock sensor does not interfere with other

parts.

18. Note the following, assemble in the reverse order of disassembly after this step.

Flywheel (M/T models)

• Ensure the dowel pin (1) is installed in the crankshaft.

• When installing flywheel (3) to crankshaft (2), be sure to cor-

rectly align crankshaft side dowel pin and flywheel side dowel
pin hole (A).

• There is a mating mark (B) on the clutch cover side of flywheel

(4).Refer it during installation.

Drive plate (A/T models)

• When installing drive plate to crankshaft, be sure to correctly align crankshaft side dowel pin and drive

plate side dowel pin hole.

CAUTION:

If these are not aligned correctly, engine runs roughly and “MIL” turns on.

A

: Right bank

B

: Left bank

: Engine front

JPBIA0211ZZ

4

: Rear oil seal

JPBIA0322ZZ

1

:  Dowel  pin

2

: Rear oil seal

3

: Crankshaft

A

:  Hole

JPBIA0323ZZ

EM-124

< DISASSEMBLY AND ASSEMBLY >

CYLINDER BLOCK

• Install drive plate (2) and reinforcement plate (3) as shown in

the figure.

• Holding ring gear with the ring gear stopper [SST:

KV10118600 (J-48641)].

• Tighten the mounting bolts crosswise over several times.

Inspection

INFOID:0000000000956289

CRANKSHAFT END PLAY

• Measure the clearance between thrust bearings and crankshaft

arm when crankshaft is moved fully forward or backward with a dial
indicator.

• If the measured value exceeds the limit, replace thrust bearings,

and measure again. If it still exceeds the limit, replace crankshaft
also.

CONNECTING ROD SIDE CLEARANCE

• Measure the side clearance between connecting rod and crank-

shaft arm with a feeler gauge.

• If the measured value exceeds the limit, replace connecting rod,

and measure again. If it still exceeds the limit, replace crankshaft
also.

PISTON TO PISTON PIN OIL CLEARANCE

Piston Pin Hole Diameter

Measure the inner diameter of piston pin hole with an inside
micrometer (A).

Piston Pin Outer Diameter

1

: Ring gear

4

: Pilot converter

5

: Crankshaft

: Engine front

JPBIA0212ZZ

Standard and limit

: Refer to

EM-146, "Cylinder Block"

.

PBIC2953E

Standard and limit

: Refer to

EM-146, "Cylinder Block"

.

PBIC2954E

Standard

: Refer to

EM-146, "Cylinder Block"

.

JPBIA0217ZZ

CYLINDER BLOCK

EM-125

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Measure the outer diameter of piston pin with a micrometer (A).

Piston to Piston Pin Oil Clearance

(Piston to piston pin oil clearance) = (Piston pin hole diameter) – (Piston pin outer diameter)

• If the calculated value is out of the standard, replace piston and piston pin assembly.
• When replacing piston and piston pin assembly, refer to

EM-135, "Description"

.

NOTE:
• Piston is available together with piston pin as assembly.
• Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts, no

piston pin grades can be selected. (Only “0” grade is available.)

PISTON RING SIDE CLEARANCE

• Measure the side clearance of piston ring (1) and piston ring

groove with a feeler gauge (C).

• If the measured value exceeds the limit, replace piston ring, and

measure again. If it still exceeds the limit, replace piston also.

PISTON RING END GAP

• Make sure that the cylinder bore inner diameter is within the speci-

fication. Refer to

EM-114, "Disassembly and Assembly"

.

• Lubricate with new engine oil to piston (1) and piston ring (2), and

then insert piston ring until middle of cylinder with piston, and mea-
sure the piston ring end gap with a feeler gauge (B).

• If the measured value exceeds the limit, replace piston ring, and

measure again. If it still exceeds the limit, re-bore cylinder and use oversize piston and piston rings.

CONNECTING ROD BEND AND TORSION

Standard

: Refer to

EM-146, "Cylinder Block"

.

JPBIA0218ZZ

Standard

: Refer to

EM-146, "Cylinder Block"

.

A

:  NG

B

:  OK

Standard and limit

: Refer to

EM-146, "Cylinder Block"

.

JPBIA0219ZZ

A

: Press-fit

C

: Measuring point

Standard and limit

: Refer to

EM-146, "Cylinder Block"

.

JPBIA0220ZZ

EM-126

< DISASSEMBLY AND ASSEMBLY >

CYLINDER BLOCK

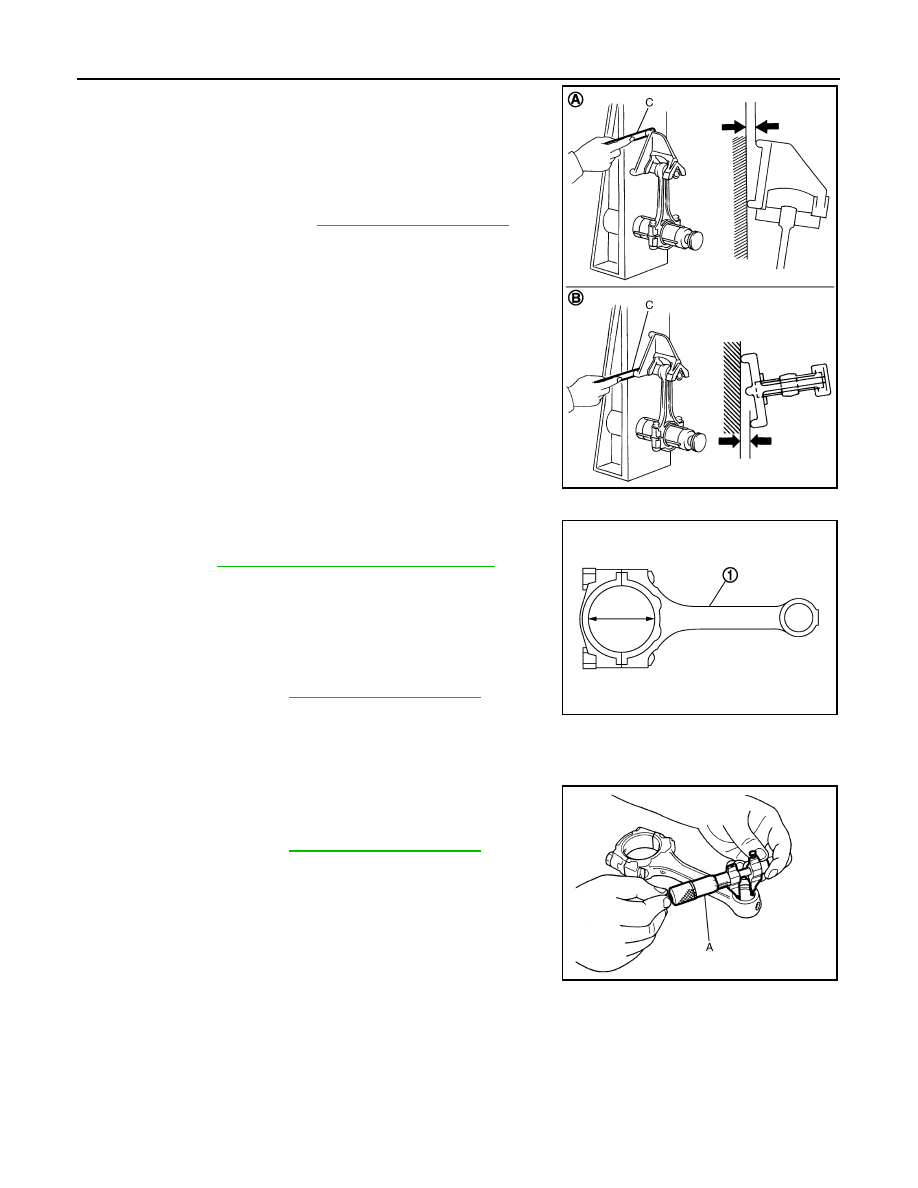

• Check with a connecting rod aligner.

• If it exceeds the limit, replace connecting rod assembly.

CONNECTING ROD BIG END DIAMETER

• Install connecting rod bearing cap without installing connecting rod

bearing, and tightening connecting rod bolts to the specified
torque. Refer to

EM-114, "Disassembly and Assembly"

 for the

tightening procedure.

• Measure the inner diameter of connecting rod big end with an

inside micrometer.

• If out of the standard, replace connecting rod assembly.

CONNECTING ROD BUSHING OIL CLEARANCE

Connecting Rod Bushing Inner Diameter

Measure the inner diameter of connecting rod bushing with an inside
micrometer (A).

Piston Pin Outer Diameter

A

:  Bend

B

:  Torsion

C

: Feeler gauge

Bend limit

: Refer to

EM-146, "Cylinder Block"

.

Torsion limit

JPBIA0221ZZ

1

: Connecting rod

Standard

: Refer to

EM-146, "Cylinder Block"

.

JPBIA0222ZZ

Standard

: Refer to

EM-146, "Cylinder Block"

.

JPBIA0223ZZ
