ENGINE STAND SETTING

DISASSEMBLY AND ASSEMBLY

ENGINE STAND SETTING

Setting

INFOID:0000000000956271

NOTE:
Explained here is how to disassemble with engine stand supporting transmission surface. When using differ-
ent type of engine stand, note with difference in steps and etc.
1.

Remove the engine assembly from the vehicle. Refer to

EM-77, "2WD : Exploded View"

 or

EM-81, "AWD

: Exploded View"

.

2.

Remove the parts that may restrict installation of engine to widely use engine stand.
NOTE:
The procedure is described assuming that you use a widely use engine stand holding the surface, to
which transmission is installed.
• Remove clutch cover and clutch disc (M/T models). Refer to

CL-19, "Exploded View"

.

• Remove drive plate (A/T models) or flywheel (M/T models) with power tool. Fix crankshaft with a ring

gear stopper [SST: KV10118600 (J-48641)], and remove mounting bolts.

• Loosen mounting bolts in diagonal order.
• Check for deformation or damage drive plate (A/T models) or flywheel (M/T models).

CAUTION:

• Do not disassemble drive plate (A/T models) or flywheel (M/T models).
• Never place drive plate (A/T models) or flywheel (M/T models) with signal plate facing down.
• When handling signal plate, take care not to damage or scratch it.
• Handle signal plate in a manner that prevents it from becoming magnetized.

3.

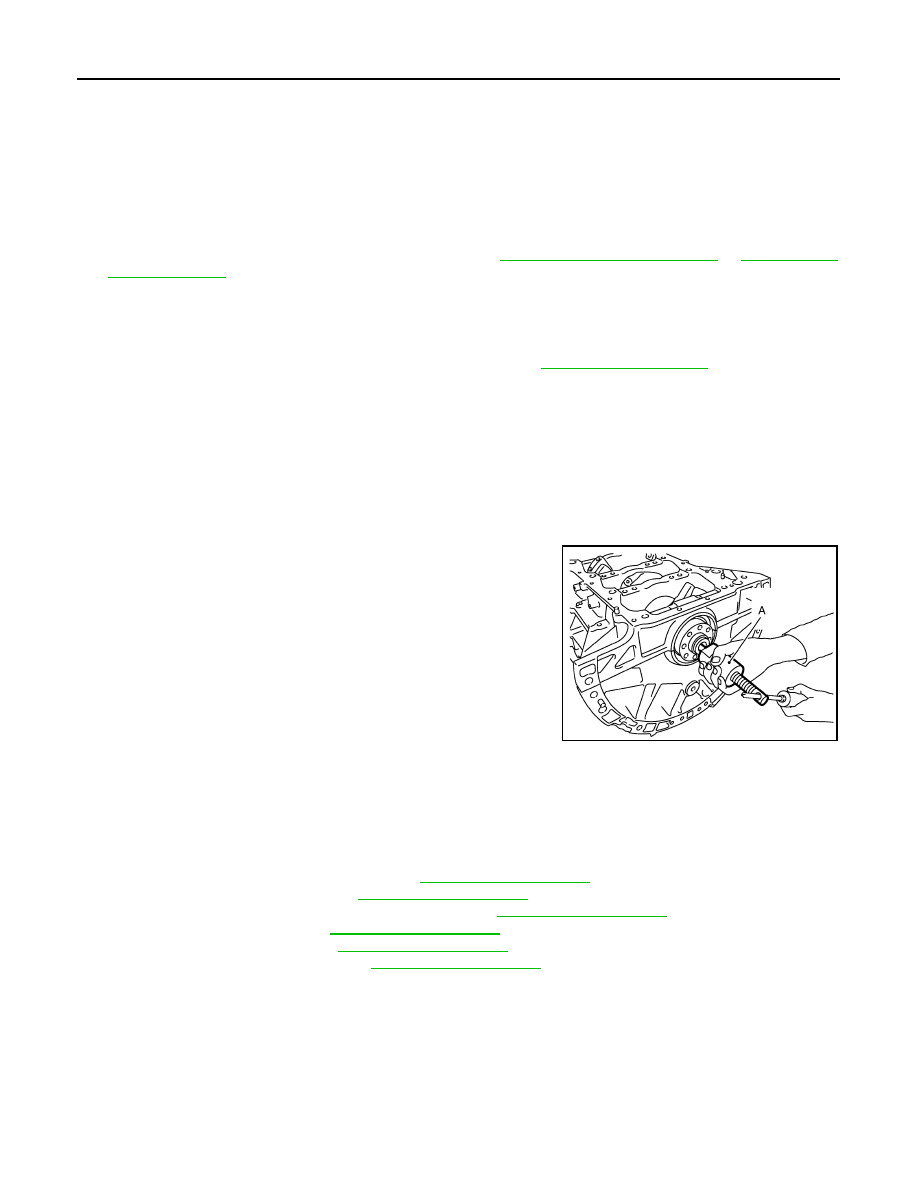

Remove pilot converter (A/T models) using the pilot bushing
puller [SST: ST1661001 (J-23907)] (A) as necessary.

4.

Lift the engine with hoist to install it onto the widely use engine stand.

CAUTION:

Use an engine stand that has a load capacity [220 kg (441 lb) or more] large enough for supporting
the engine weight.
• If the load capacity of the stand is not adequate, remove the following parts beforehand to reduce the

potential risk of overturning the stand.

- Remove intake manifold collector. Refer to

EM-27, "Exploded View"

.

- Remove intake manifold. Refer to

EM-30, "Exploded View"

.

- Remove fuel injector and fuel tube assembly. Refer to

EM-35, "Exploded View"

.

- Remove ignition coil. Refer to

EM-45, "Exploded View"

.

- Remove rocker cover. Refer to

EM-45, "Exploded View"

.

- Remove exhaust manifold. Refer to

EM-32, "Exploded View"

.

- Other removable brackets.

NOTE:

JPBIA0193ZZ

ENGINE STAND SETTING

EM-89

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

The figure shows an example of widely use engine stand (A)
that can hold mating surface of transmission with drive plate
(A/T models) or flywheel (M/T models) removed.

CAUTION:

Before removing the hanging chains, make sure the
engine stand is stable and there is no risk of overturning.

5.

Drain engine oil. Refer to

LU-7, "Inspection"

.

6.

Drain engine coolant by removing water drain plugs (1) and (4)
from cylinder block both sides as shown in the figure.

JPBIA0190ZZ

2

:  Washer

3

:  Plug

: Engine front

JPBIA0191ZZ

EM-90

< DISASSEMBLY AND ASSEMBLY >

ENGINE UNIT

ENGINE UNIT

Disassembly

INFOID:0000000000956272

1.

Remove intake manifold collector. Refer to

EM-27, "Exploded View"

.

2.

Remove intake manifold. Refer to

EM-30, "Exploded View"

.

3.

Remove exhaust manifold. Refer to

EM-32, "Exploded View"

.

4.

Remove oil pan (lower). Refer to

EM-41, "Exploded View (2WD)"

 or

EM-41, "Exploded View (AWD)"

.

5.

Remove ignition coil, spark plug and rocker cover. Refer to

EM-45, "Exploded View"

.

6.

Remove fuel injector and fuel tube. Refer to

EM-35, "Exploded View"

.

7.

Remove timing chain. Refer to

EM-48, "Exploded View"

.

8.

Remove rear timing chain case. Refer to

EM-91, "Exploded View"

.

9.

Remove camshaft. Refer to

EM-65, "Exploded View"

.

10. Remove cylinder head. Refer to

EM-103, "Exploded View"

.

Assembly

INFOID:0000000000956273

Assembly in the reverse order of disassembly.
