1.

Remove the following parts:
• Engine undercover with power tool.
• Drive belts: Refer to

EM-12, "Exploded View"

.

• Crankshaft pulley: Refer to

EM-48, "Exploded View"

.

2.

Remove front oil seal using a suitable tool.

CAUTION:

Be careful not to damage front timing chain case and crank-
shaft.

INSTALLATION

1.

Apply new engine oil to both oil seal lip and dust seal lip of new front oil seal.

2.

Install front oil seal.
• Install front oil seal so that each seal lip is oriented as shown in

the figure.

• Using a suitable drift, press-fit until the height of front oil seal is

level with the mounting surface.

- Suitable drift: outer diameter 60 mm (2.36 in), inner diameter

50 mm (1.97 in).

• Make sure the garter spring is in position and seal lips not

inverted

CAUTION:

• Be careful not to damage front timing chain case and

crankshaft.

• Press-fit straight and avoid causing burrs or tilting oil

seal.

3.

Install in the reverse order of removal after this step.

REAR OIL SEAL

REAR OIL SEAL : Removal and Installation

INFOID:0000000000956264

REMOVAL

1.

Remove transmission assembly. Refer to

TM-26, "Exploded View"

 (M/T models) or

TM-275, "2WD :

Exploded View"

 (A/T 2WD models),

TM-277, "AWD : Exploded View"

 (A/T AWD models).

2.

Remove drive plate (A/T models) or fly wheel (M/T models). Refer to

EM-114, "Exploded View"

.

3.

Remove rear oil seal with a suitable tool.

CAUTION:

PBIC2931E

A

: Oil seal lip

B

: Dust seal lip

: Engine inside

: Engine outside

JPBIA0054ZZ

PBIC2931E

EM-76

< ON-VEHICLE REPAIR >

OIL SEAL

Be careful not to damage crankshaft and cylinder block.

INSTALLATION

1.

Install rear oil seal.

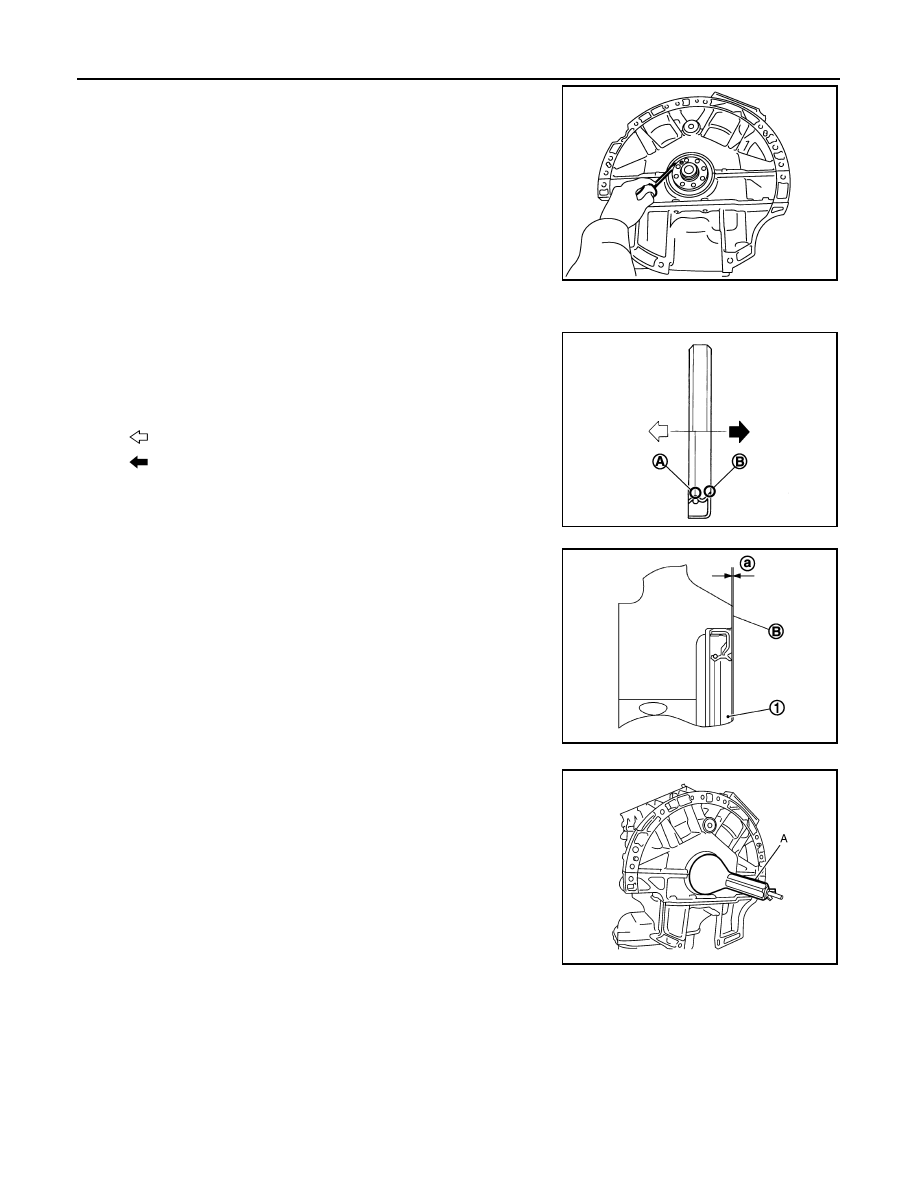

• Install rear oil seal so that each seal lip is oriented as shown in

the figure.

• Press in rear oil seal (1) to the position as shown in the figure.

• Using a suitable drift (A), press-fit until the height of rear oil seal is

level with the mounting surface.

- Suitable drift: outer diameter 100 mm (3.94 in), inner diameter

85mm (3.35 in).

CAUTION:

• Be careful not to damage crankshaft and cylinder block.
• Press-fit straight and avoid causing burrs or tilting oil seal.

2.

Install in the reverse order of removal after this step.

PBIC2932E

A

:  Oil  seal  lip

B

: Dust seal lip

: Engine inside

: Engine outside

JPBIA0054ZZ

a

: 0 - 0.5 mm (0 - 0.020 in)

B

: Cylinder block rear end face

JPBIA0152ZZ

JPBIA0153ZZ

ENGINE ASSEMBLY

EM-77

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

REMOVAL AND INSTALLATION

ENGINE ASSEMBLY

2WD

2WD : Exploded View

INFOID:0000000000956265

2WD : Removal and Installation

INFOID:0000000000956266

WARNING:

• Situate the vehicle on a flat and solid surface.
• Place chocks at front and back of rear wheels.
• For engines not equipped with engine slingers, attach proper slingers and bolts described in PARTS

CATALOG.

CAUTION:

• Always be careful to work safely, avoid forceful or uninstructed operations.
• Do not start working until exhaust system and engine coolant are cool enough.
• If items or work required are not covered by the engine section, refer to the applicable sections.
• Always use the support point specified for lifting.
• Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for unavoid-

able reasons, support at rear axle jacking point with transmission jack or similar tool before starting
work, in preparation for the backward shift of center of gravity.

1.

Engine mounting bracket (RH)

2.

Engine mounting insulator (RH)

3.

Engine mounting bracket (LH)

4.

Engine mounting insulator (LH)

5.

Rear engine mounting member

6.

Engine mounting insulator (rear)

7.

Dynamic damper (M/T models)

8.

Dynamic damper (A/T models)

A.

Front mark

JPBIA0099GB

EM-78

< REMOVAL AND INSTALLATION >

ENGINE ASSEMBLY

• For supporting points for lifting and jacking point at rear axle, refer to

GI-30, "Garage Jack and

Safety Stand and 2-Pole Lift"

.

REMOVAL

Outline

At first, remove the engine and the transmission assembly with front suspension member downward. Then
separate the engine from transmission.

Preparation

1.

Release fuel pressure. Refer to

EC-543, "Inspection"

.

2.

Disconnect both battery cables. Refer to

PG-98, "Exploded View"

.

3.

Drain engine coolant from radiator. Refer to

CO-8, "Draining"

.

CAUTION:

• Perform this step when engine is cold.
• Do not spill engine coolant on drive belts.

4.

Remove the following parts:
• Radiator reservoir tank: Refer to

CO-14, "Exploded View"

.

• Engine cover: Refer to

EM-27, "Exploded View"

.

• Front road wheel and tires (power tool)
• Engine undercover (power tool)
• Cowl top cover: Refer to

EXT-18, "Exploded View"

.

• Air duct and air cleaner case assembly (RH and LH): Refer to

EM-25, "Exploded View"

.

• Cooling fan assembly: Refer to

CO-17, "Exploded View"

.

5.

Discharge refrigerant from A/C circuit. Refer to

HA-40, "Exploded View"

.

6.

Remove radiator hoses (upper and lower). Refer to

CO-14, "Exploded View"

.

Engine Room LH

1.

Disconnect heater hose from vehicle-side, and fit a plug onto hose end to prevent engine coolant leak.

2.

Disconnect A/C piping from A/C compressor, and temporarily fasten it on vehicle with a rope. Refer to

HA-

40, "Exploded View"

.

3.

Disconnect brake booster vacuum hose.

4.

Disconnect ground cable.

Engine Room RH

1.

Disconnect battery positive cable at vehicle side and temporarily fasten it on engine.

2.

Disconnect all clips and connector of the engine room harness from engine back side.

3.

Disconnect fuel feed hose (with damper) and EVAP hose. Refer to

EM-35, "Exploded View"

.

CAUTION:

Fit plugs onto disconnected hoses to prevent fuel leak.

4.

Remove reservoir tank of power steering oil pump and piping from vehicle, and temporarily secure them
on engine. Refer to

ST-44, "WITHOUT 4WAS : Exploded View"

 (without 4WAS models) or

ST-49, "WITH

4WAS : Exploded View"

 (with 4WAS models).

CAUTION:

When temporarily securing, keep the reservoir tank upright to avoid a fluid leak.

Vehicle Inside

Follow procedure below to disconnect engine room harness connectors at passenger room side, and tempo-
rarily secure them on engine.

1.

Remove passenger-side kicking plate and dash side finisher. Refer to

INT-13, "Exploded View"

 and

IP-11,

"Exploded View"

.

2.

Disconnect engine room harness connectors at unit sides TCM, ECM and other.

3.

Disengage intermediate fixing point. Pull out engine room harnesses to engine room side, and temporarily
secure them on engine.

CAUTION:

• When pulling out harnesses, take care not to damage harnesses and connectors.
• After temporarily securing, cover connectors with vinyl or similar material to protect against for-

eign material adhesion.

Vehicle Underbody
