Infiniti G35 (V35) Sedan. Manual - part 602





PRECAUTIONS

EM-7

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

1.

Using a scraper (A), remove old liquid gasket adhering to the liq-
uid gasket application surface and the mating surface.
• Remove liquid gasket completely from the groove of the liquid

gasket application surface, mounting bolts, and bolt holes.

2.

Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.

3.

Attach liquid gasket tube to the tube presser [SST: WS39930000
(

)].

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

4.

Apply liquid gasket without breaks to the specified location with
the specified dimensions.
• If there is a groove for liquid gasket application, apply liquid

gasket to the groove.

• As for bolt holes (B), normally apply liquid gasket inside the

holes. Occasionally, it should be applied outside the holes.
Make sure to read the text of this manual.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If liquid gasket protrudes, wipe it off immediately.
• Do not retighten mounting bolts or nuts after the installation.
• After 30 minutes or more have passed from the installation, fill

engine oil and engine coolant.

CAUTION:

If there are specific instructions in this manual, observe them.

JPBIA0053ZZ

EMA0622D

A

:  Groove

: Inside

JPBIA0010ZZ

EM-8

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000000956221

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV10116200
(J26336-A)
Valve spring compressor
1. KV10115900
(J26336-20)
Attachment
2.KV10109220
(

)

Adapter

Disassembling valve mechanism
Part (1) is a component of KV10116200
(J26336-A), but Part (2) is not so.

KV10107902
(J38959)
Valve oil seal puller

Replacing valve oil seal

KV10115600
(J-38958)
Valve oil seal drift

Installing valve oil seal
Use side A (G).
a: 20 (0.79) dia.             d: 8 (0.31) dia.
b: 13 (0.51) dia.             e: 10.7 (0.421)
c: 10.3 (0.406) dia.         f: 5 (0.20)
H: side B
                                                   Unit: mm (in)

EM03470000
(J8037)
Piston ring compressor

Installing piston assembly into cylinder bore

ST16610001
(J23907)
Pilot bushing puller

Removing pilot converter

KV10111100
(J37228)
Seal cutter

Removing oil pan (lower and upper), front and
rear timing chain case, etc.

PBIC1650E

NT011

JPBIA0396ZZ

NT044

NT045

NT046

PREPARATION

EM-9

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

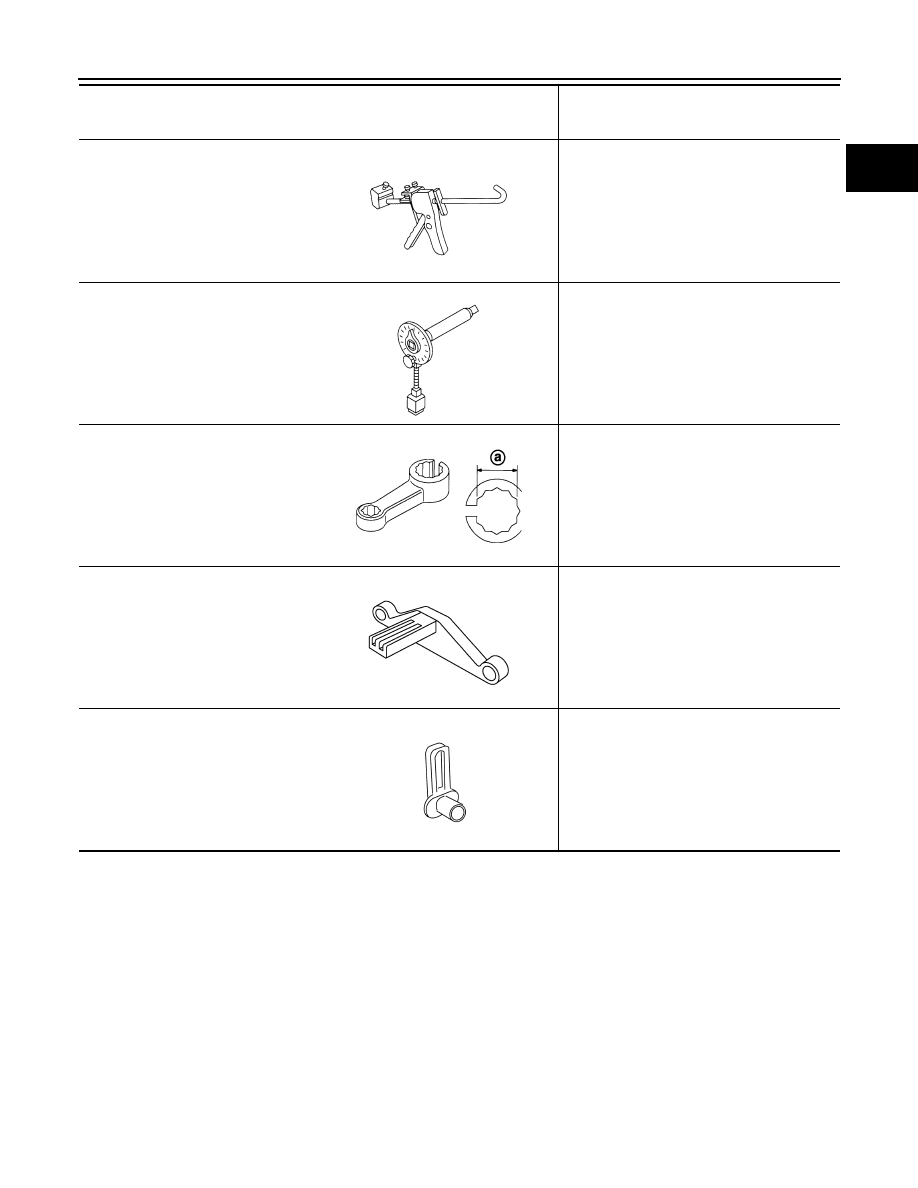

Commercial Service Tools

INFOID:0000000000956222

WS39930000
(

)

Tube presser

Pressing the tube of liquid gasket

KV10112100
(BT8653-A)
Angle wrench

Tightening bolts for connecting rod bearing
cap, cylinder head, etc. in angle

KV10114400
(J38365)
Heated oxygen sensor wrench

Loosening or tightening air fuel ratio sensor 1
a: 22 mm (0.87 in)

KV10118600
(J-48641)
Ring gear stopper

Removing and installing crankshaft pulley

(J-45488)
Quick connector release

Removing fuel tube quick connectors in en-
gine room

Tool number
(Kent-Moore No.)
Tool name

Description

NT052

NT014

JPBIA0397ZZ

JPBIA0409ZZ

PBIC0198E

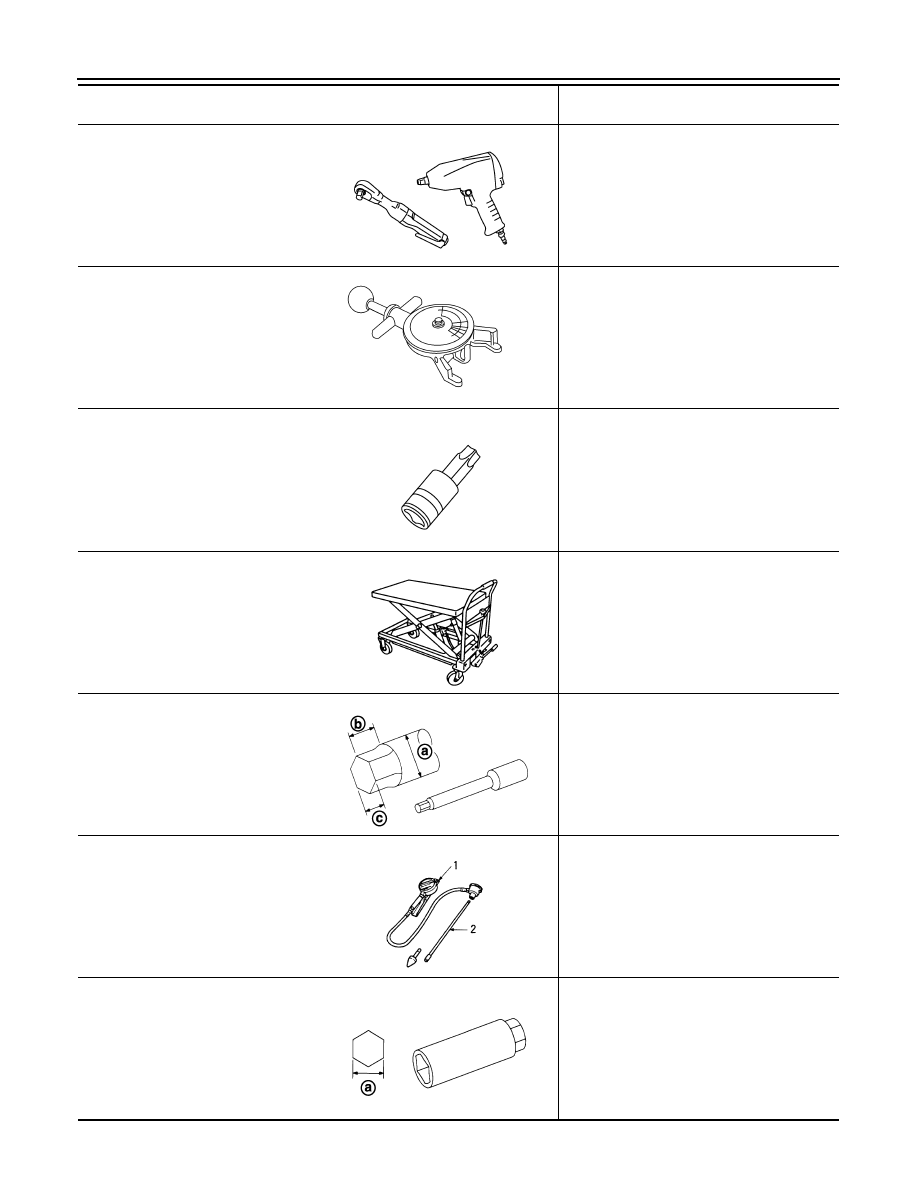

EM-10

< PREPARATION >

PREPARATION

(Kent-Moore No.)
Tool name

Description

(

)

Power tool

Loosening nuts and bolts

(BT3373-F)
Belt tension gauge

Checking drive belt tension

(

)

TORX socket

Removing and installing drive plate
Size: T55

(

)

Manual lift table caddy

Removing and installing engine

(J24239-01)
Cylinder head bolt wrench

Loosening and tightening cylinder head bolt,
and used with the angle wrench [SST:
KV10112100 (BT8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)

(

)

1.Compression gauge
2.Adapter

Checking compression pressure

(

)

Spark plug wrench

Removing and installing spark plug
a: 14 mm (0.55 in)

PBIC0190E

AMA126

PBIC1113E

ZZA1210D

JPBIA0398ZZ

ZZA0008D

JPBIA0399ZZ
