DLN-234

< ON-VEHICLE REPAIR >

[REAR FINAL DRIVE: R200V]

FRONT OIL SEAL

Verify identification stamp of replacement frequency put in the lower part of gear carrier to determine
replacement for collapsible spacer when replacing front oil seal. Refer to “Identification stamp of
replacement frequency of front oil seal”. If necessary collapsible spacer replacement, remove final
drive assembly and disassemble it to replace front oil seal and collapsible spacer. Refer to

DLN-244,

"A/T : Removal and Installation"

 and

DLN-259, "A/T : Disassembly"

.

NOTE:
The reuse of collapsible spacer is prohibited in principle. However, it is reusable on a one-time basis
only in cases when replacing front oil seal.

Identification stamp of replacement frequency of front oil seal

• The diagonally shaded area in the figure shows stamping point for

replacement frequency of front oil seal.

• The following table shows if collapsible spacer replacement is

needed before replacing front oil seal.
When collapsible spacer replacement is required, disassemble
final drive assembly to replace collapsible spacer and front oil seal.
Refer to

DLN-259, "A/T : Disassembly"

.

CAUTION:

Never make a stamping after replacing front oil seal.

• After replacing front oil seal, make a stamping on the stamping point in accordance with the table below in

order to identify replacement frequency.

CAUTION:

Stamping shall be made from left to right.

1.

Drain gear oil. Refer to

DLN-226, "Draining"

.

2.

Make a judgment if a collapsible spacer replacement is required.

3.

Remove center muffler with a power tool. Refer to

EX-5, "Removal and Installation"

.

4.

Remove rear wheel sensor. Refer to

BRC-100, "Removal and Installation"

.

5.

Remove drive shaft from final drive. Then suspend it by wire etc. Refer to

RAX-9, "Removal and Installa-

tion"

.

6.

Install attachment (A) [SST: KV40104100 (

—

)] to side

flange, and then pull out the side flange with the sliding hammer
(B) [SST: ST36230000 (J-25840-A)].
NOTE:
Circular clip installation position: Final drive side

7.

Remove propeller shaft. Refer to

DLN-86, "Removal and Instal-

lation"

.

Stamp

collapsible spacer replacement

No stamp

Not required

“0” or “0” on the far right of stamp

Required

“01” or “1” on the far right of stamp

Not required

JSDIA0104ZZ

Stamp before stamping

Stamping on the far right

Stamping

No stamp

0

0

“0”
(Front oil seal was replaced once.)

1

01

“01”
(Collapsible spacer and front oil seal were replaced last time.)

0

010

“0” is on the far right.
(Only front oil seal was replaced last time.)

1

...01

“1” is on the far right.
(Collapsible spacer and front oil seal were replaced last time.)

0

...010

JSDIA0105ZZ

FRONT OIL SEAL

DLN-235

< ON-VEHICLE REPAIR >

[REAR FINAL DRIVE: R200V]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

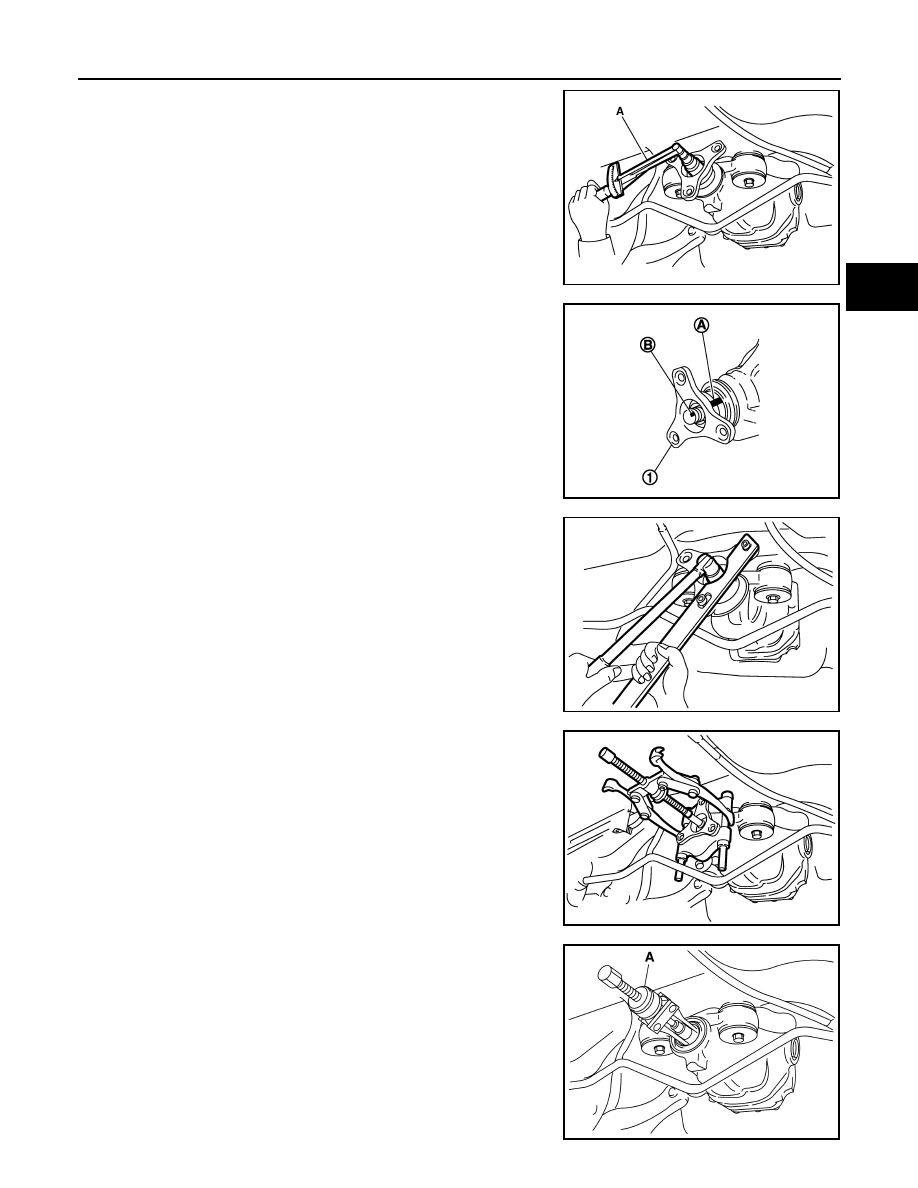

8.

Measure the total preload with the preload gauge (A) [SST:
ST3127S000 (J-25765-A)].
NOTE:
Record the preload measurement.

9.

Put matching mark (B) on the end of the drive pinion. The
matching mark (B) should be in line with the matching mark (A)
on companion flange (1).

CAUTION:

For matching mark, use paint. Never damage companion
flange and drive pinion.
NOTE:
The matching mark (A) on the final drive companion flange (1)
indicates the maximum vertical runout position.

10. Remove drive pinion lock nut using the flange wrench.

11. Remove companion flange using pullers.

12. Remove front oil seal using the puller (A) [SST: KV381054S0 (J-

34286)].

JSDIA0015ZZ

JSDIA0016ZZ

JSDIA0021ZZ

JSDIA0022ZZ

PDIA0980E

DLN-236

< ON-VEHICLE REPAIR >

[REAR FINAL DRIVE: R200V]

FRONT OIL SEAL

INSTALLATION

1.

Apply multi-purpose grease to front oil seal lips.

2.

Install front oil seal using the drift (A) [SST: ST30720000 (J-
25405)] as shown in figure.

CAUTION:

• Never reuse oil seal.
• Never incline oil seal when installing.

3.

Align the matching mark (B) of drive pinion with the matching
mark (A) of companion flange (1), and then install the compan-
ion flange (1).

4.

Apply anti-corrosion oil to the thread and seat of new drive pin-
ion lock nut, and temporarily tighten drive pinion lock nut to drive
pinion.

CAUTION:

Never reuse drive pinion lock nut.

5.

Tighten to drive pinion lock nut, while adjust total preload torque.

CAUTION:

• Adjust to the lower limit of the drive pinion lock nut tight-

ening torque first.

• If the preload torque exceeds the specified value, replace

collapsible spacer and tighten it again to adjust. Never
loosen drive pinion lock nut to adjust the preload torque.

PDIA0752J

JSDIA0016ZZ

A: Preload gauge [SST: ST3127S000 (J-25765-A)]

Total preload torque

: Total preload torque
should equal the measure-
ment taken during removal
plus an additional 0.1 – 0.4
N·m (0.01 – 0.04 kg-m, 1 – 3
in-lb).

JSDIA0023ZZ

FRONT OIL SEAL

DLN-237

< ON-VEHICLE REPAIR >

[REAR FINAL DRIVE: R200V]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

6.

Set a dial indicator (A) vertically to the tip of the drive pinion.

7.

Rotate drive pinion to check for runout.

• If the runout value is still outside of the limit after the phase

has been changed, possible cause will be an assembly mal-
function of drive pinion and pinion bearing and malfunction of
pinion bearing. Check for these items and repair if necessary.

8.

Make a stamping for identification of front oil seal replacement frequency. Refer to “Identification stamp of
replacement frequency of front oil seal”.

CAUTION:

Never make a stamping after replacing front oil seal.

9.

Install propeller shaft. Refer to

DLN-86, "Removal and Installation"

.

10. Install side flange with the following procedure.
a.

Attach the protector [SST: KV38107900 (J-39352)] to side oil
seal.

b.

After the side flange is inserted and the serrated part of side
gear has engaged the serrated part of flange, remove the pro-
tector.

c.

Put a suitable drift on the center of side flange, then drive it until sound changes.
NOTE:
When installation is completed, driving sound of the side flange turns into a sound which seems to affect
the whole final drive.

d.

Confirm that the dimension of the side flange (1) installation
(Measurement A) in the figure comes into the following.

11. Install drive shaft. Refer to

RAX-9, "Removal and Installation"

.

12. Install rear wheel sensor. Refer to

BRC-100, "Removal and

Installation"

.

13. Install center muffler. Refer to

EX-5, "Removal and Installation"

.

14. Refill gear oil to the final drive and check oil level. Refer to

DLN-

226, "Refilling"

.

15. Check the final drive for oil leakage. Refer to

DLN-226, "Inspection"

.

Limit

Drive pinion runout

: Refer to

DLN-287, "Drive

Pinion Runout (A/T Mod-
els)"

.

JSDIA0043ZZ

SDIA0822E

Measurement “A”

: 326 – 328 mm (12.83 –
12.91 in)

JSDIA0110ZZ
