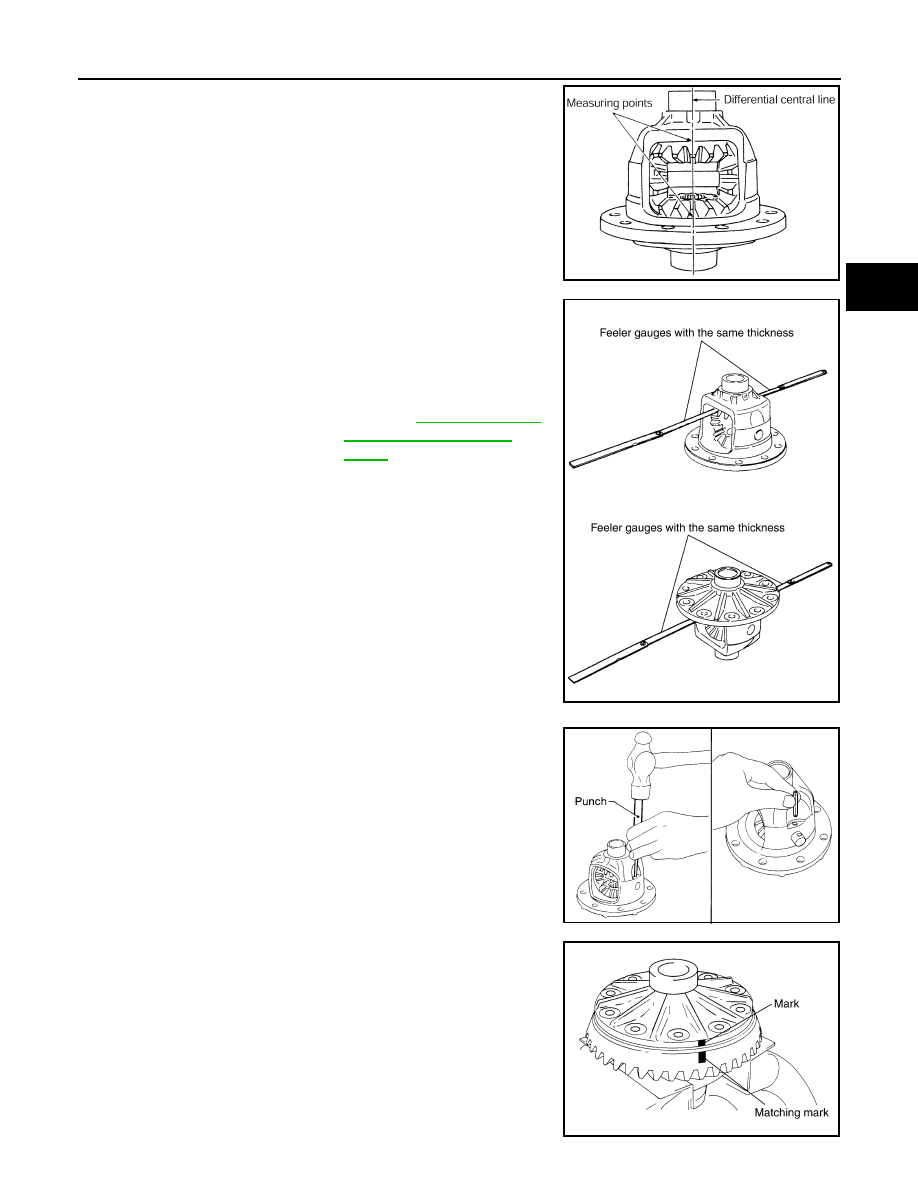

DLN-190 < DISASSEMBLY AND ASSEMBLY > [REAR FINAL DRIVE: R200] DIFFERENTIAL ASSEMBLY 15. Turn pinion mate gear, then remove pinion mate gear, pinion mate thrust washer, side gear and side gear thrust washer from AWD : Assembly INFOID:0000000000957402 1. Install side gear thrust washers with the same thickness as the 2. Install side gears and thrust washers into differential case. CAUTION: Make sure that the circular clip is installed to side gears. 3. Align 2 pinion mate gears in diagonally opposite positions, then 4. Align the lock pin holes on differential case with shaft, and install 5. Measure side gear end play. If necessary, select the appropriate side gear thrust washers. SDIA0032J SDIA0193J SDIA2025E SDIA0195J |
