Infiniti G35 (V35) Sedan. Manual - part 385





DOOR

DLK-201

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT DOOR : Removal and Installation

INFOID:0000000000961272

REMOVAL

CAUTION:

• When removing and installing the front door assembly, support the door with a jack and cloth to pro-

tect the door and body.

• When removing and installing front door assembly, perform the fitting adjustment. Refer to

DLK-202,

"FRONT DOOR : Adjustment"

.

• After installing, apply touch-up paint (the body color) onto the head of the hinge mounting nuts.
• Check the hinge rotating part for poor lubrication. If necessary, apply body grease.
• Operate with two workers, because of its heavy weight.
• Check rear door open/close operation after installation.
1.

Pull the lever and disconnect the door harness connector while removing tabs of door harness connector.

1.

Front fender

2.

Front door outer

3.

Rear door outer

4.

Rear fender

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0013GB

DLK-202

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

DOOR

2.

Remove the mounting bolts of the check link on the vehicle.

3.

Remove the door side hinge mounting nuts, then remove the door assembly.

INSTALLATION

Install in the reverse order of removal.

FRONT DOOR : Adjustment

INFOID:0000000000961273

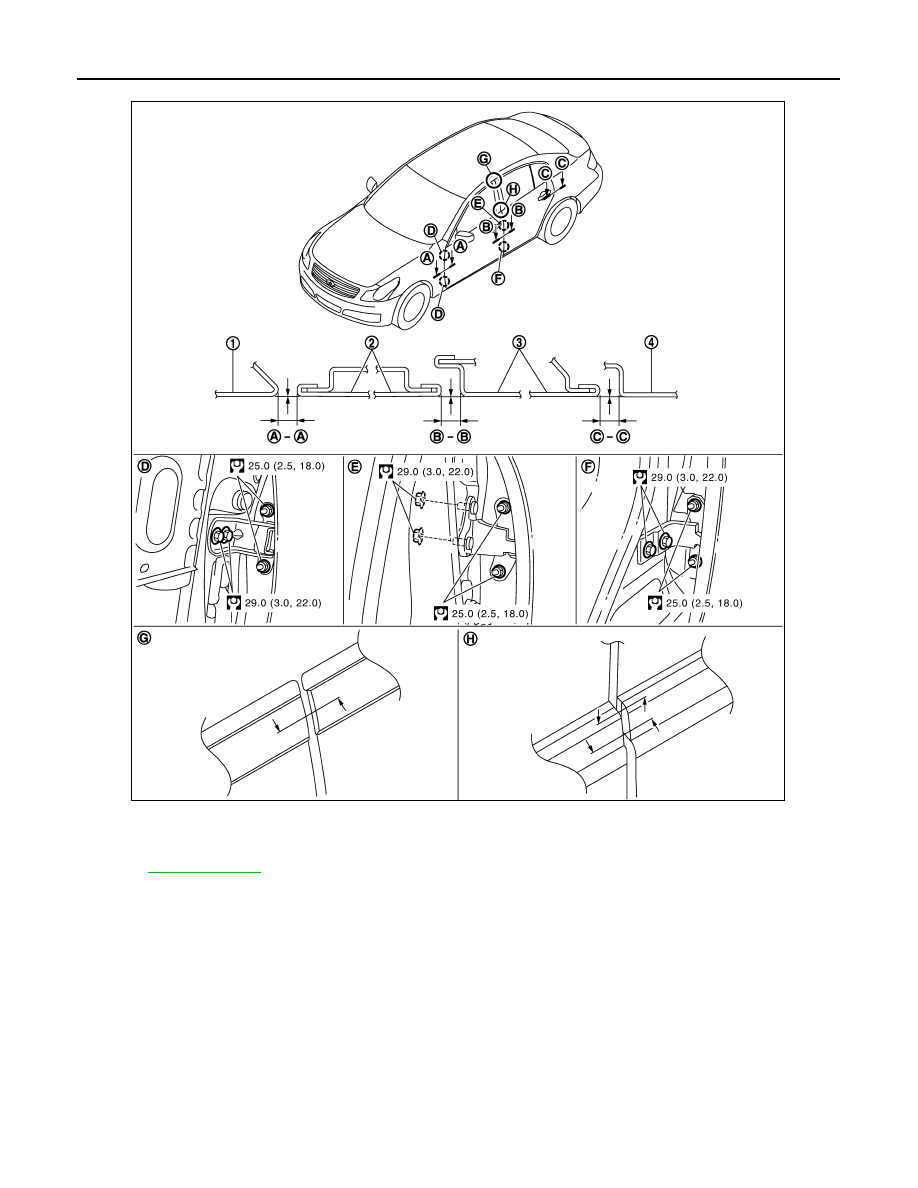

CLEARANCE, SURFACE HEIGHT AND SURFACE MISMATCH ADJUSTMENT

1.

Check the clearance and surface height and surface mismatch between the front door and each part
visually and by touching.(Fitting standard dimension in the table below should be satisfied.)

2.

In case out of specification, adjust them according to the procedures shown below.

3.

Remove the front fender. Refer to refer to

DLK-199, "Removal and Installation"

.

4.

Loosen the hinge mounting nuts on door side.

5.

Adjust the surface height and surface mismatch of the front door according to the fitting standard dimen-
sion.

6.

Temporarily tighten the hinge mounting nuts on door side.

7.

Loosen the hinge mounting bolts on body side.

8.

Raise the front door at rear end to adjust clearance of the front door according to the fitting standard
dimension.

9.

After adjustment tighten bolts and nuts to the specified torque.

10. Install the front fender. Refer to refer to

DLK-199, "Removal and Installation"

.

STRIKER ADJUSTMENT

JMKIA0014ZZ

Parts

Portion

Clearance

Surface height

Surface

mismatch

Front fender – front door

A – A

2.5 – 4.5

(0.098 – 0.177)

1.0 – 1.0

(

0.039 – 0.039)

Front door – rear door

B – B

2.5 – 4.5

(0.098 – 0.177)

1.0 – 1.0

(

0.039 – 0.039)

Front door sash molding –

rear door sash molding

G

1.5 – 1.5

(

0.059 – 0.059)

Front door outside molding –

rear door outside molding

H

1.5 – 1.5

(

0.059 – 0.059)

1.5 – 1.5

(

0.059 – 0.059)

DOOR

DLK-203

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

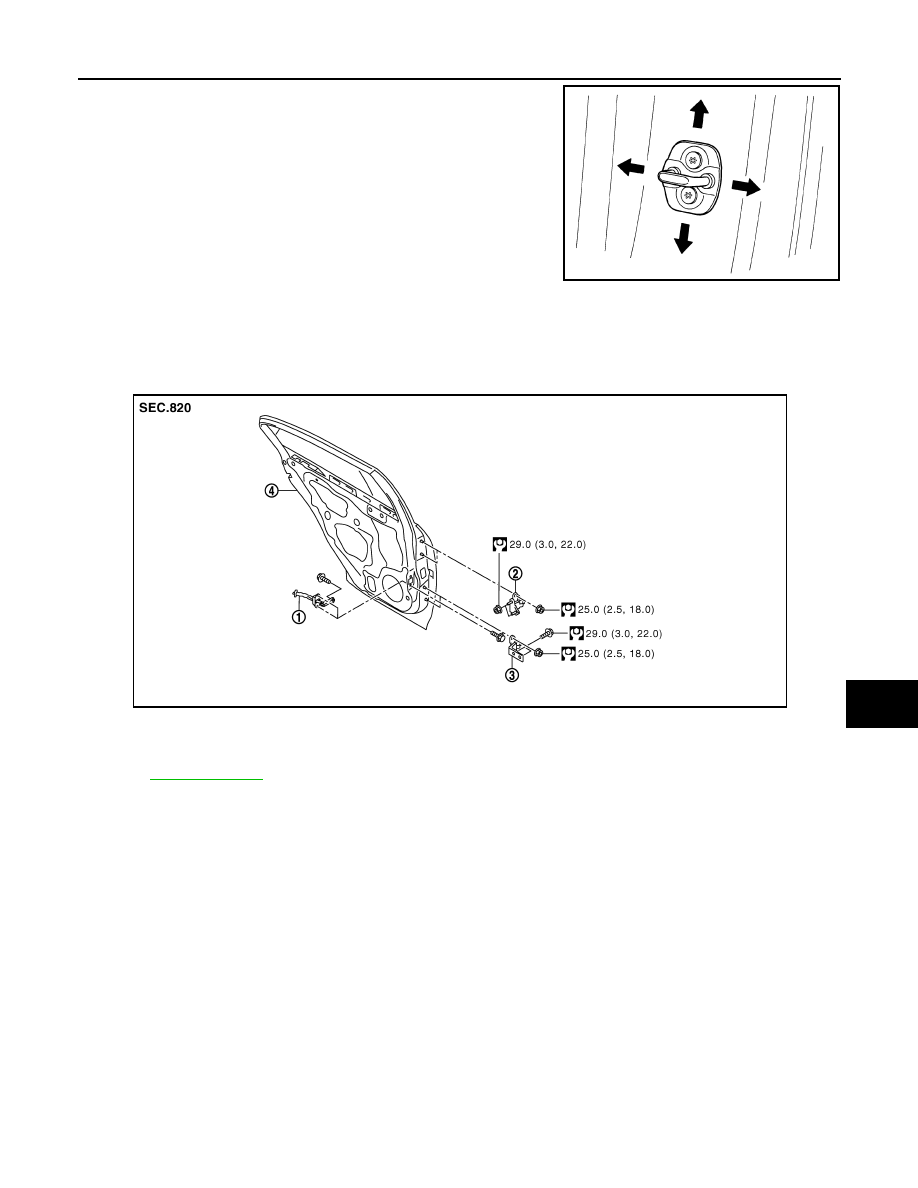

Adjust the striker so that it becomes parallel with the lock insertion
direction.

REAR DOOR

REAR DOOR : Exploded View

INFOID:0000000000961274

REMOVAL

ADJUSTMENT

PIIB2804J

1.

Check link

2.

Door hinge (upper)

3.

Door hinge (lower)

4.

Rear door panel

Refer to

GI-4, "Components"

 for the symbols in the figure.

JMKIA0138GB

DLK-204

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

DOOR

REAR DOOR : Removal and Installation

INFOID:0000000000961275

REMOVAL

1.

Pull out grommet and disconnect rear door harness connector.

1.

Front fender

2.

Front door outer

3.

Rear door outer

4.

Rear fender

Refer to

GI-4, "Components"

 for the symbols in the figure.

JMKIA0013GB
