CLUTCH PIPING

CAUTION:

Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately
and wash the affected area with water.

REMOVAL

Refer to the figure for removal procedure.

INSTALLATION

Refer to the figure for installation procedure.
• To fix clutch hose on bracket, position clutch hose clasp on the

emboss of bracket and drive lock plate vertically from above.

CAUTION:

• Be careful not to bend or twist clutch hose.
• Do not scratch or damage clutch hose.

• Tighten clutch tube flare nut to the specified torque.

CAUTION:

Be careful not to damage flare nut and clutch tube.

• After installation, bleed the air from the clutch hydraulic system.

Refer to

CL-6, "Air Bleeding Procedure"

.

PCIB0681E

CSC (CONCENTRIC SLAVE CYLINDER)

CL-15

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

REMOVAL AND INSTALLATION

CSC (CONCENTRIC SLAVE CYLINDER)

Exploded View

INFOID:0000000000956935

Removal and Installation

INFOID:0000000000956936

CAUTION:

• If transmission assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylin-

der) body and CSC tube. Return CSC body insert to original position to remove transmission assem-
bly. Dust on clutch disc sliding parts may damage seal of CSC body and may cause clutch fluid
leakage.

• Do not disassemble CSC body.
• Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately

and wash the affected area with water.

REMOVAL

1.

Remove transmission assembly from the vehicle. Refer to

TM-26, "Removal and Installation"

.

JPDIB0018GB

1.

Transmission assembly

2.

CSC (Concentric Slave Cylinder)
body

3.

Dust cover

4.

CSC (Concentric Slave Cylinder)
tube

5.

Air bleeder valve

Refer to

GI-4, "Components"

 for the symbols in the figure.

CL-16

< REMOVAL AND INSTALLATION >

CSC (CONCENTRIC SLAVE CYLINDER)

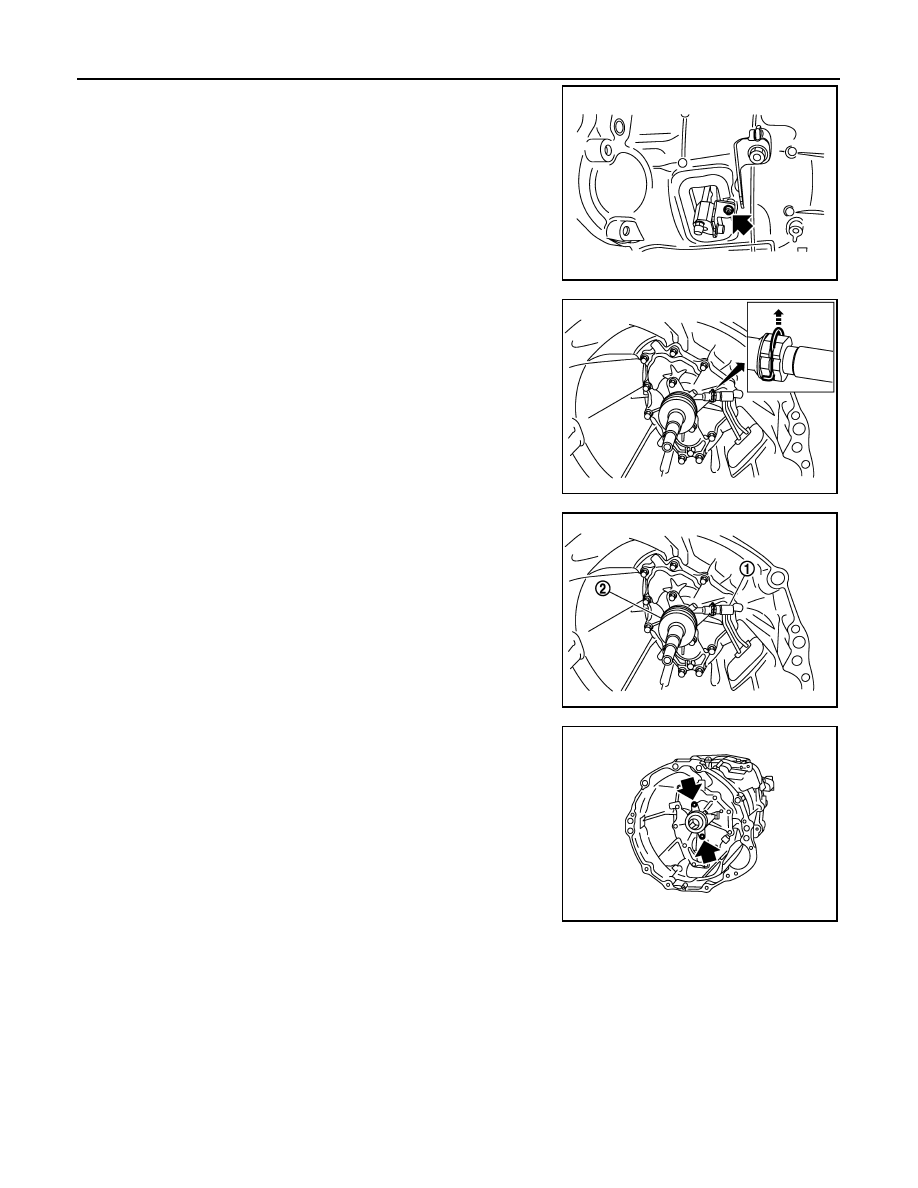

2.

Remove CSC tube mounting bolt.

3.

Pull up the lock pin of the CSC body.

4.

Pull out the CSC tube (1) from the CSC body (2).

5.

Remove CSC tube and dust cover from transmission case.

6.

Remove air bleeder valve from CSC tube.

7.

Remove CSC body from transmission case.

INSTALLATION

JPDIB0012ZZ

JPDIB0019ZZ

JPDIB0031ZZ

JPDIB0020ZZ

CSC (CONCENTRIC SLAVE CYLINDER)

CL-17

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

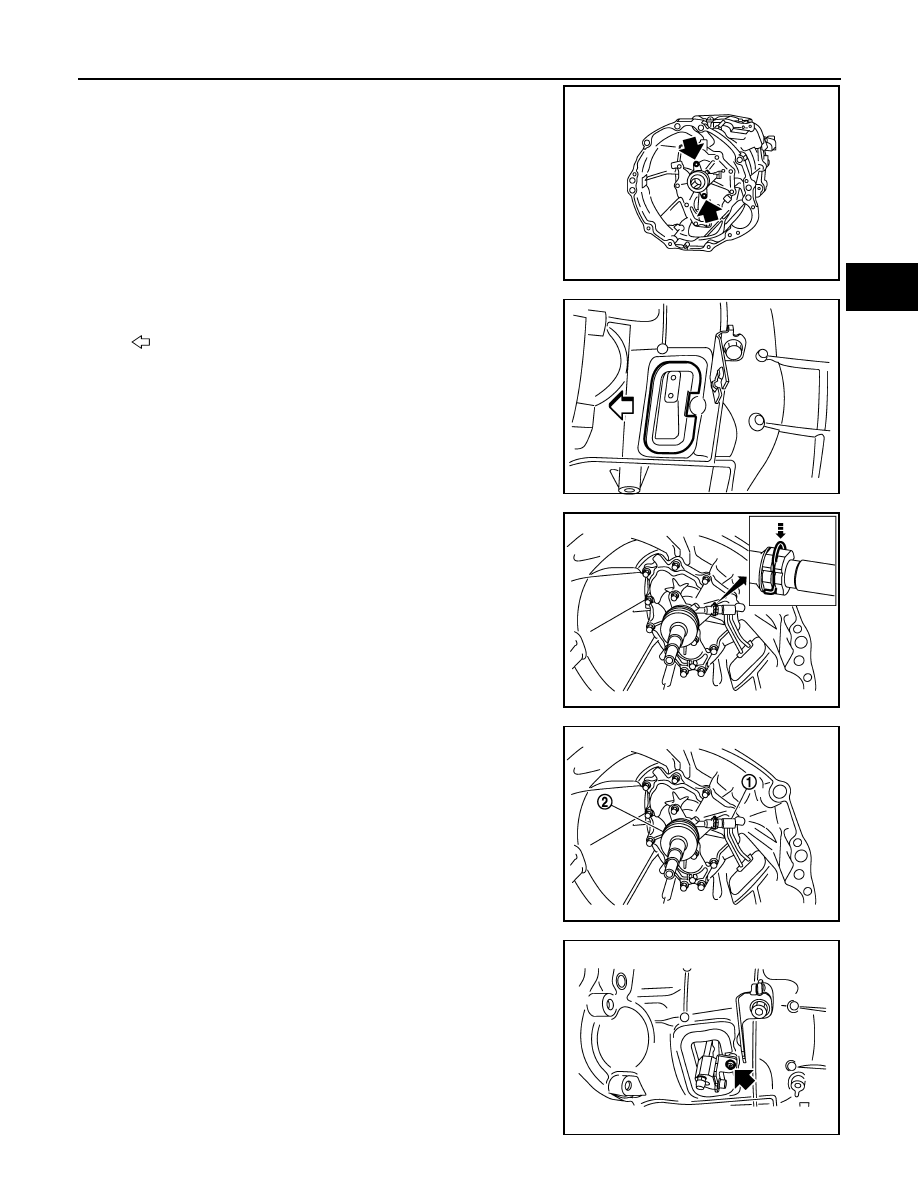

1.

Install CSC body to transmission case and then tighten mount-
ing bolts to the specified torque.

CAUTION:

• Do not reuse CSC body.
• Do not insert and operate CSC body because piston and

stopper of CSC body components may fall off.

2.

Install dust cover to transmission case.

CAUTION:

Be careful with the orientation of dust cover.

3.

Insert CSC tube to dust cover.

CAUTION:

• Do not reuse CSC tube.
• Be sure not to damage O-ring of CSC tube.

4.

Press down the lock pin of the CSC body.

5.

Insert the CSC tube (1) into the connector of the CSC body (2)
until it clicks.

6.

Install CSC tube mounting bolt and then tighten mounting bolt to
the specified torque.

JPDIB0020ZZ

: Vehicle front

JPDIB0021ZZ

JPDIB0023ZZ

JPDIB0031ZZ

JPDIB0012ZZ
