CHARGING SYSTEM

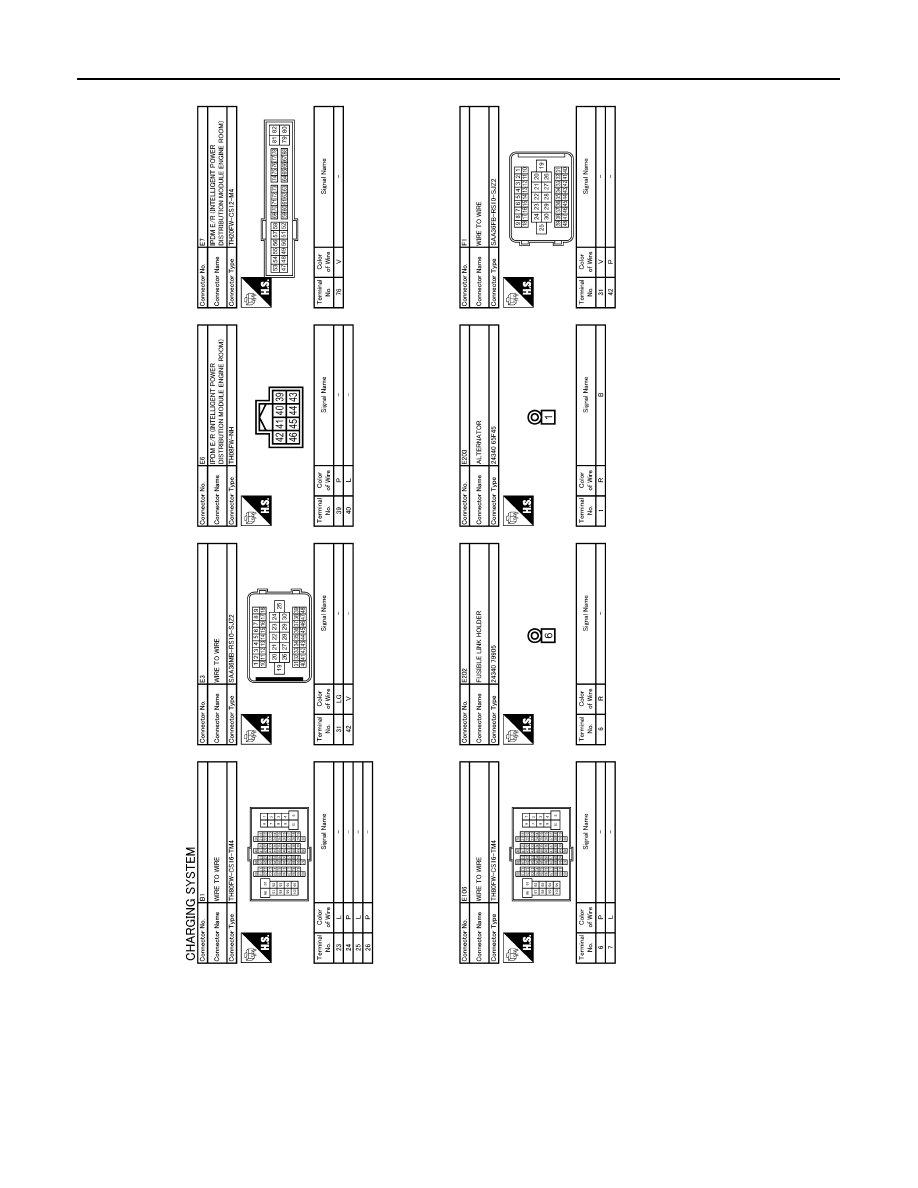

Wiring Diagram — CHARGING SYSTEM —

INFOID:0000000000964280

JCMWA0028GB

CHG-16

< COMPONENT DIAGNOSIS >

CHARGING SYSTEM

JCMWA0029GB

CHG

CHARGING SYSTEM

CHG-17

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWA0030GB

CHG-18

< SYMPTOM DIAGNOSIS >

CHARGING SYSTEM

SYMPTOM DIAGNOSIS

CHARGING SYSTEM

Symptom Table

INFOID:0000000000964281

Symptom

Reference

Battery discharged

Refer to

CHG-3, "Work Flow"

.

The charge warning lamp does not illuminate when the ignition
switch is set to ON.

The charge warning lamp does not turn OFF after the engine
starts.

The charging warning lamp turns ON when increasing the engine
speed.
