REPLACEMENT OPERATIONS

BRM-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

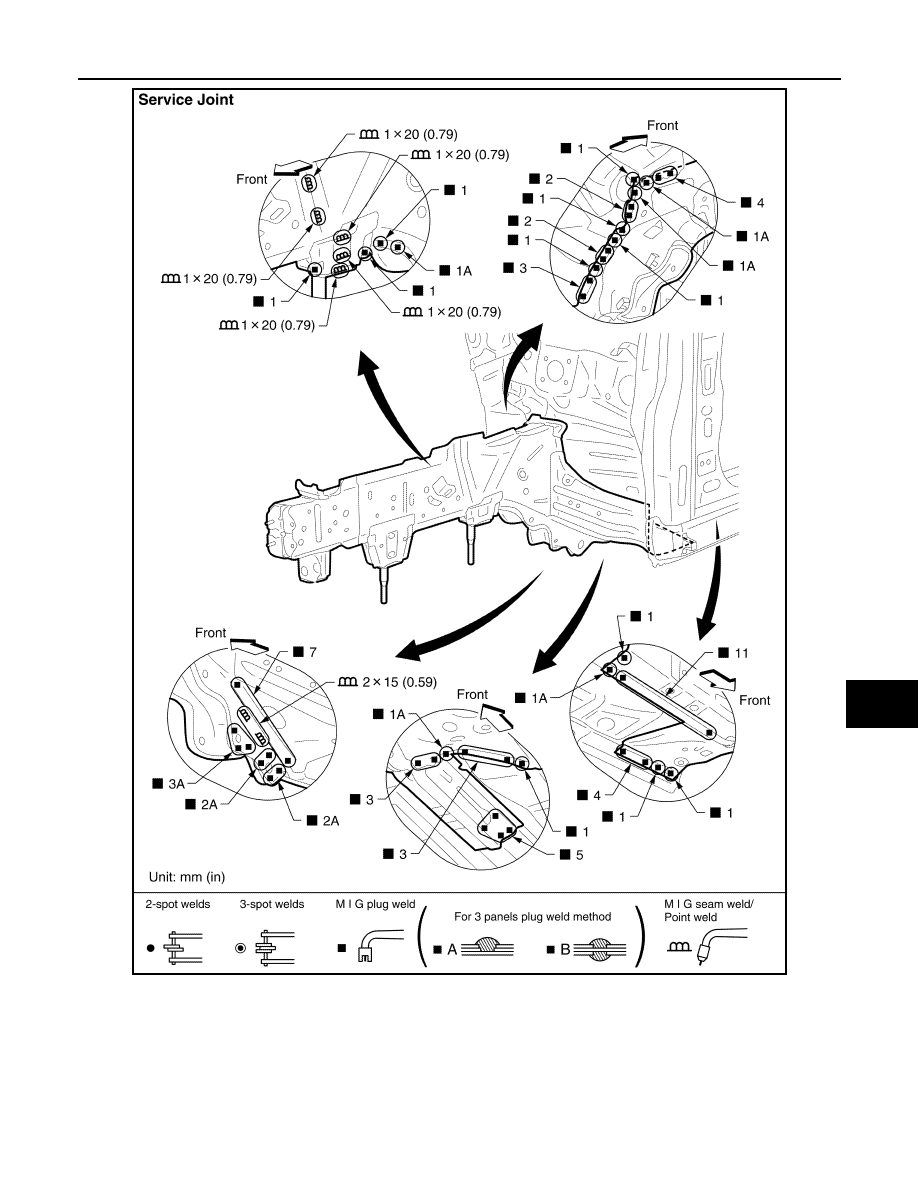

Front Side Member (AWD)

INFOID:0000000000961840

Work after radiator core support and hoodledge have been removed.

JSKIA0027GB

BRM-38

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

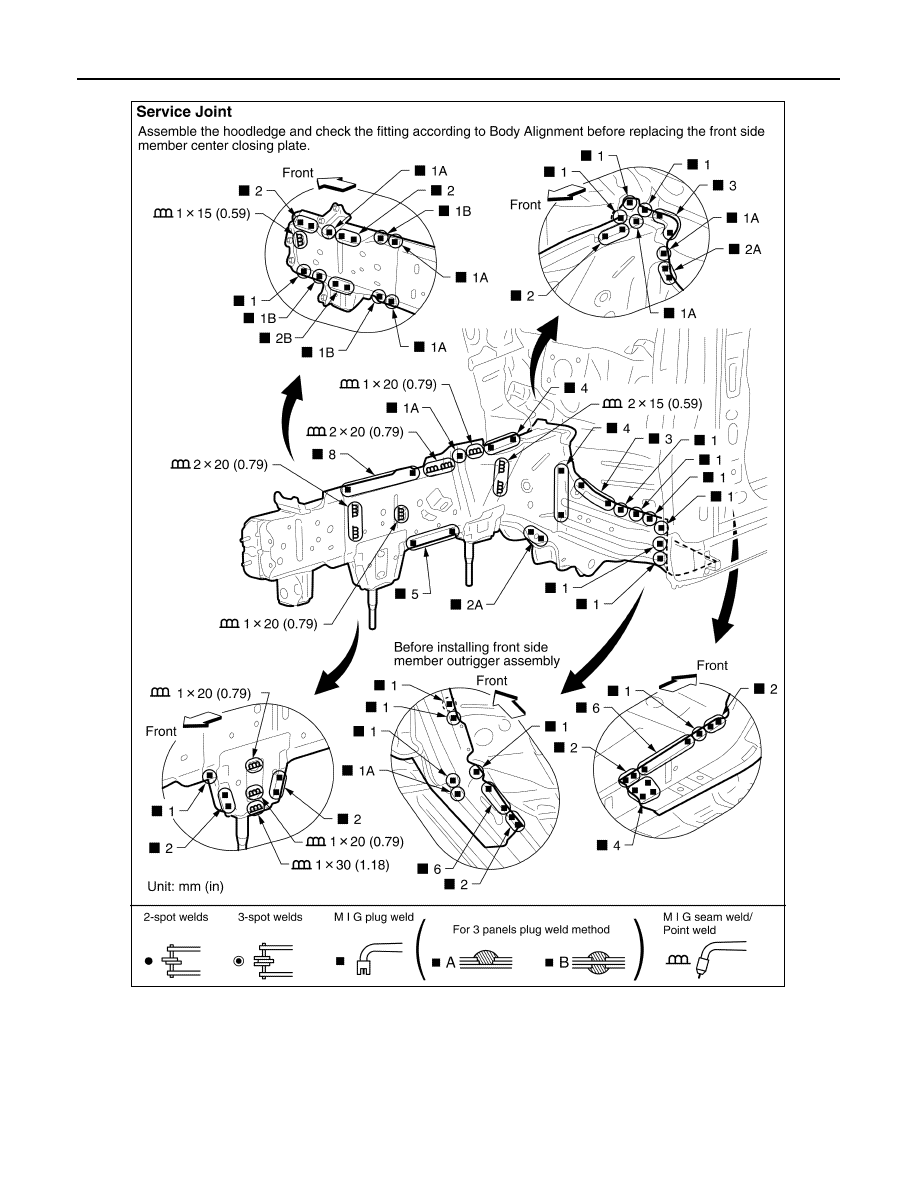

Change parts

●

Front side member assembly (LH)

●

Front side member closing plate assembly (LH)

●

Front side member outrigger assembly (LH)

JSKIA0028GB

REPLACEMENT OPERATIONS

BRM-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Front Side Member (Partial Replacement)

INFOID:0000000000961841

Work after radiator core support has been removed.

JSKIA0029GB

BRM-40

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Front Pillar

INFOID:0000000000961842

Work after hoodledge reinforcement and roof have been removed.

Change parts

●

Front side member front extension (RH)

●

Front side member front closing plate (RH)

JSKIA0030GB
