< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

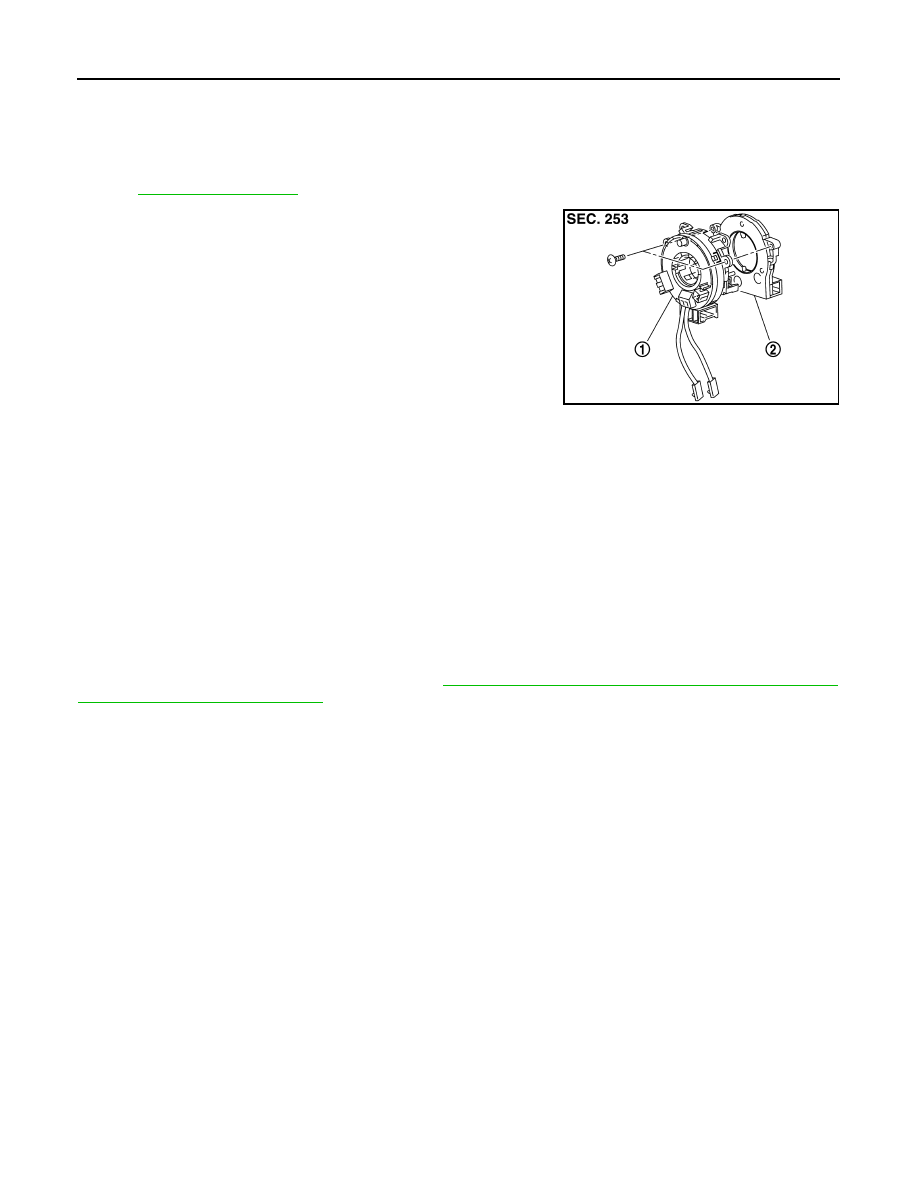

Exploded View

INFOID:0000000000964950

REMOVAL

Refer to

SR-7, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000964951

REMOVAL

1.

Remove spiral cable.

2.

Remove steering angle sensor from spiral cable.

INSTALLATION

Installation is the reverse order of removal.

Adjustment

INFOID:0000000000964952

Perform 4WAS front actuator adjustment. Refer to

STC-27, "4WAS FRONT ACTUATOR NEUTRAL POSI-

TION ADJUSTMENT : Description"

.

JSNIA0135ZZ

1.

Spiral cable

2.

Steering angle sensor

AV

ANTENNA FEEDER (RADIO)

AV-553

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

ANTENNA FEEDER (RADIO)

Harness Layout

INFOID:0000000000964953

JSNIA0125GB

AV-554

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

ANTENNA FEEDER (SATELLITE RADIO)

ANTENNA FEEDER (SATELLITE RADIO)

Harness Layout

INFOID:0000000000964954

JSNIA0125GB

AV

ANTENNA FEEDER (GPS)

AV-555

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

ANTENNA FEEDER (GPS)

Harness Layout

INFOID:0000000000964955

JSNIA0125GB
