AV-548

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

GPS ANTENNA

REMOVAL

1.

Remove instrument panel. Refer to

IP-11, "Exploded View"

.

2.

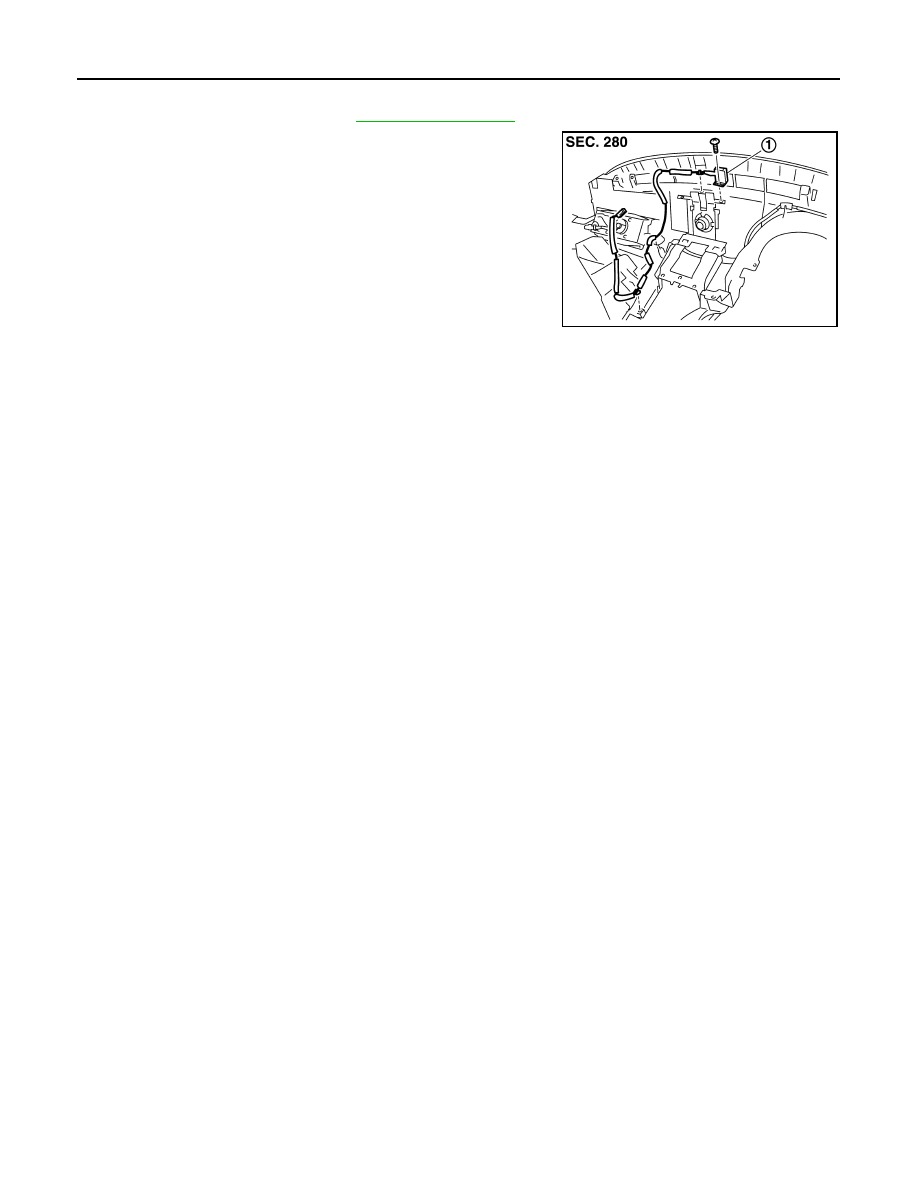

Remove GPS antenna (1) from instrument panel.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0175ZZ

AV

CAMERA CONTROL UNIT

AV-549

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

CAMERA CONTROL UNIT

Exploded View

INFOID:0000000000964944

Removal and Installation

INFOID:0000000000964945

REMOVAL

1.

Remove trunk side finisher (RH), and then remove camera control unit. Refer to

INT-26, "Exploded View"

.

INSTALLATION

Installation is the reverse order of removal.

Adjustment

INFOID:0000000000964946

ADJUSTMENT

There may be a misalignment of possible route line center position of rear view monitor after removing camera
control unit. Therefore, correct neutral position with the following procedure.

1.

Steer the steering wheel to the leftmost and rightmost ends.

2.

Drive vehicle at 30 km/h (18.6 MPH) min. speed at least 100 m (328.1 ft).

JSNIA0133ZZ

1.

Camera control unit

AV-550

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW CAMERA

REAR VIEW CAMERA

Exploded View

INFOID:0000000000964947

REMOVAL

Refer to

EXT-35, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000964948

REMOVAL

1.

Remove trunk lid finisher outer. Refer to

EXT-35, "Exploded View"

.

2.

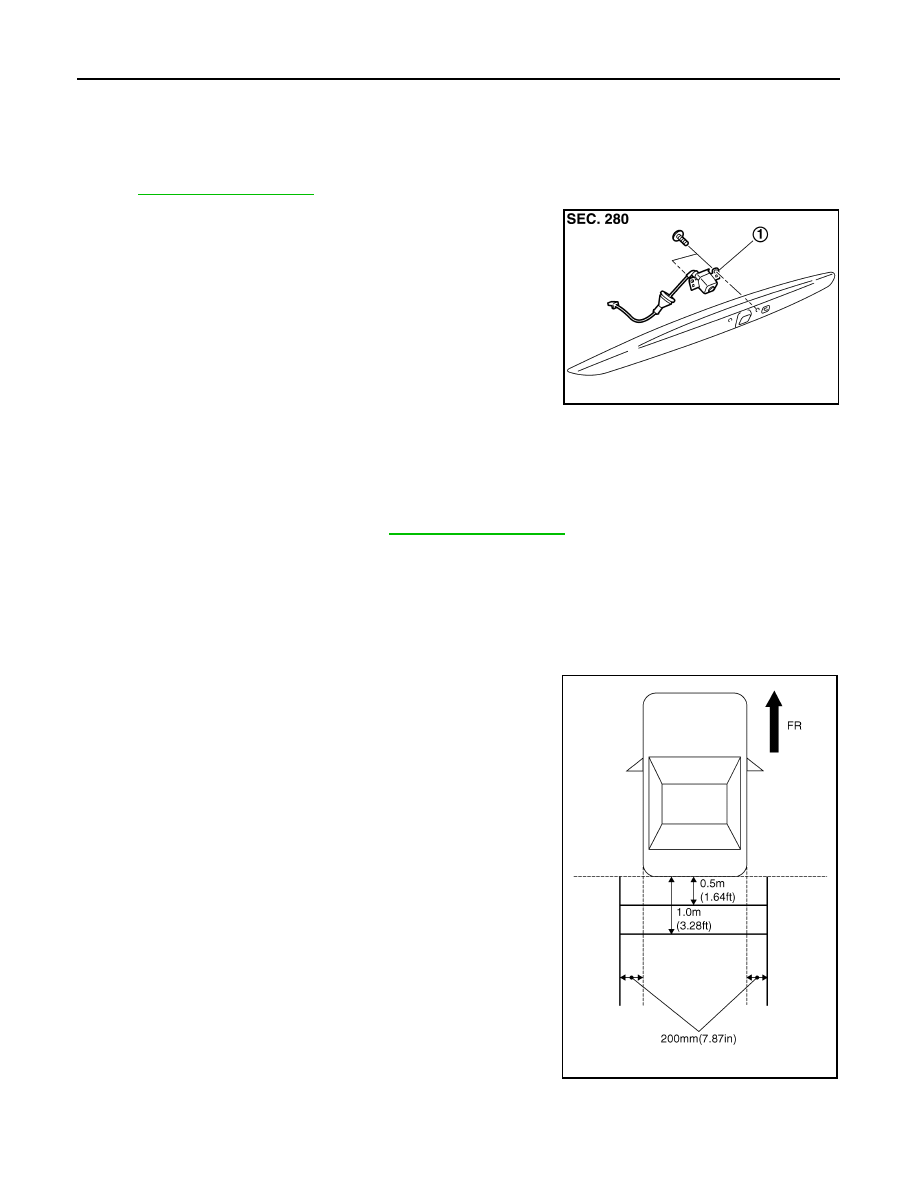

Remove rear view camera from trunk lid finisher outer.

INSTALLATION

Installation is the reverse order of removal.

Adjustment

INFOID:0000000000964949

Adjust the guide line position if the guide line position is shifted after installing the rear view camera.

1.

Draw lines on rearward area of the vehicle passing through the
following points: 20 cm (7.87 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.

2.

Set into “Adjust offset of rear view camera” mode of Confirma-
tion / Adjustment mode.

JSNIA0134ZZ

1.

Rear view camera

SKIB3691E

AV

REAR VIEW CAMERA

AV-551

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

3.

Rotate the center dial, and then select the guiding line pattern so
that its angle is aligned with the correction line of the rear of the
vehicle.

4.

Make fine adjustment to the correction line of the rear of the
vehicle with up/down/left/right switches so that its position is
aligned with the guiding line. Press “”

CAUTION:

Never operate other function such as pressing BACK while writing index data.
If Confirmation/Adjustment mode does not function in the above procedure, perform one of the
following service to adjust the index again.
• Remove battery for five min. Then reconnect battery.
• Remove camera control unit connector for five min. Then reconnect camera control unit connec-

tor.

Selected pattern

: 7

Up/Down adjustment range

20 – 20

Left/Right adjustment range

20 – 20

SKIB3689E
