AV-536

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

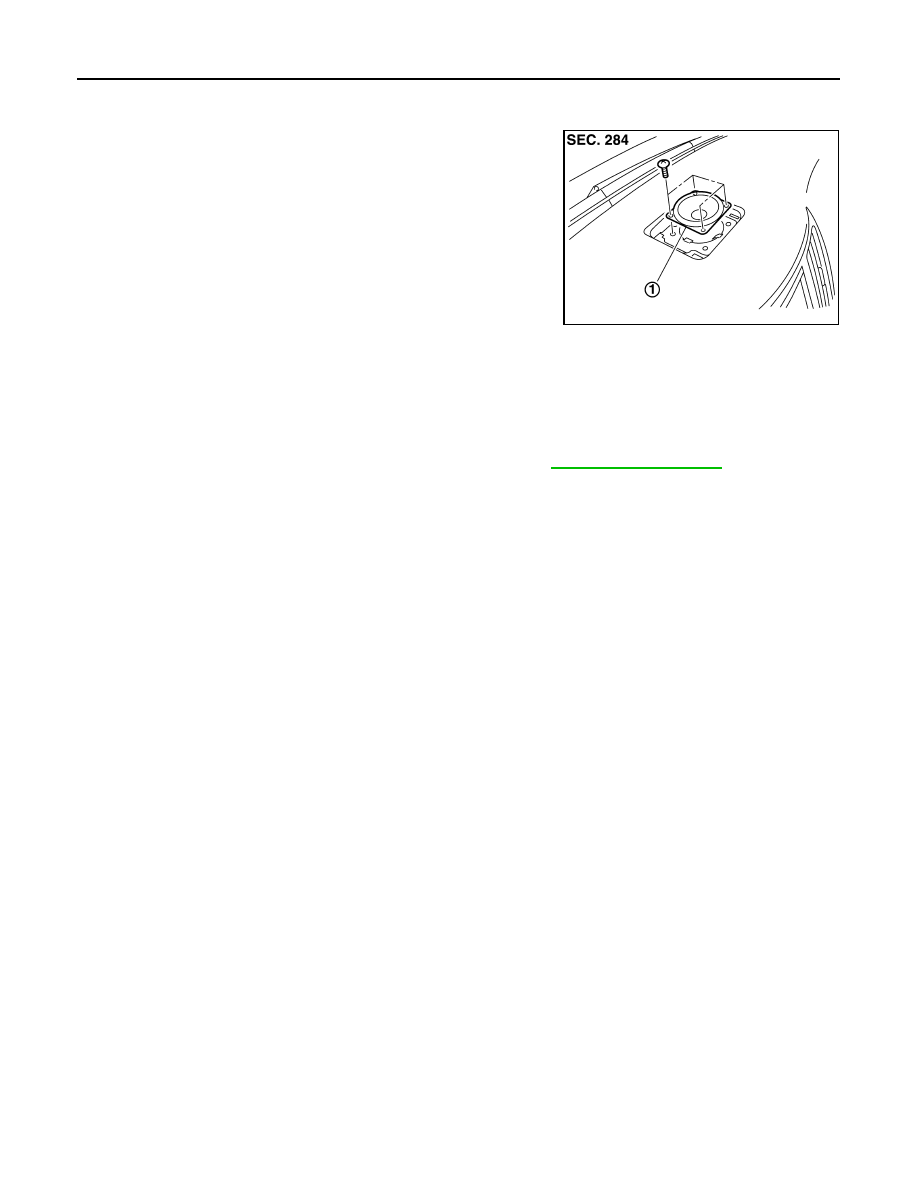

CENTER SPEAKER

CENTER SPEAKER

Exploded View

INFOID:0000000000964919

Removal and Installation

INFOID:0000000000964920

REMOVAL

1.

Remove upper grille, and then remove center speaker. Refer to

INT-10, "Exploded View"

.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0120ZZ

1.

Center speaker

AV

WOOFER

AV-537

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

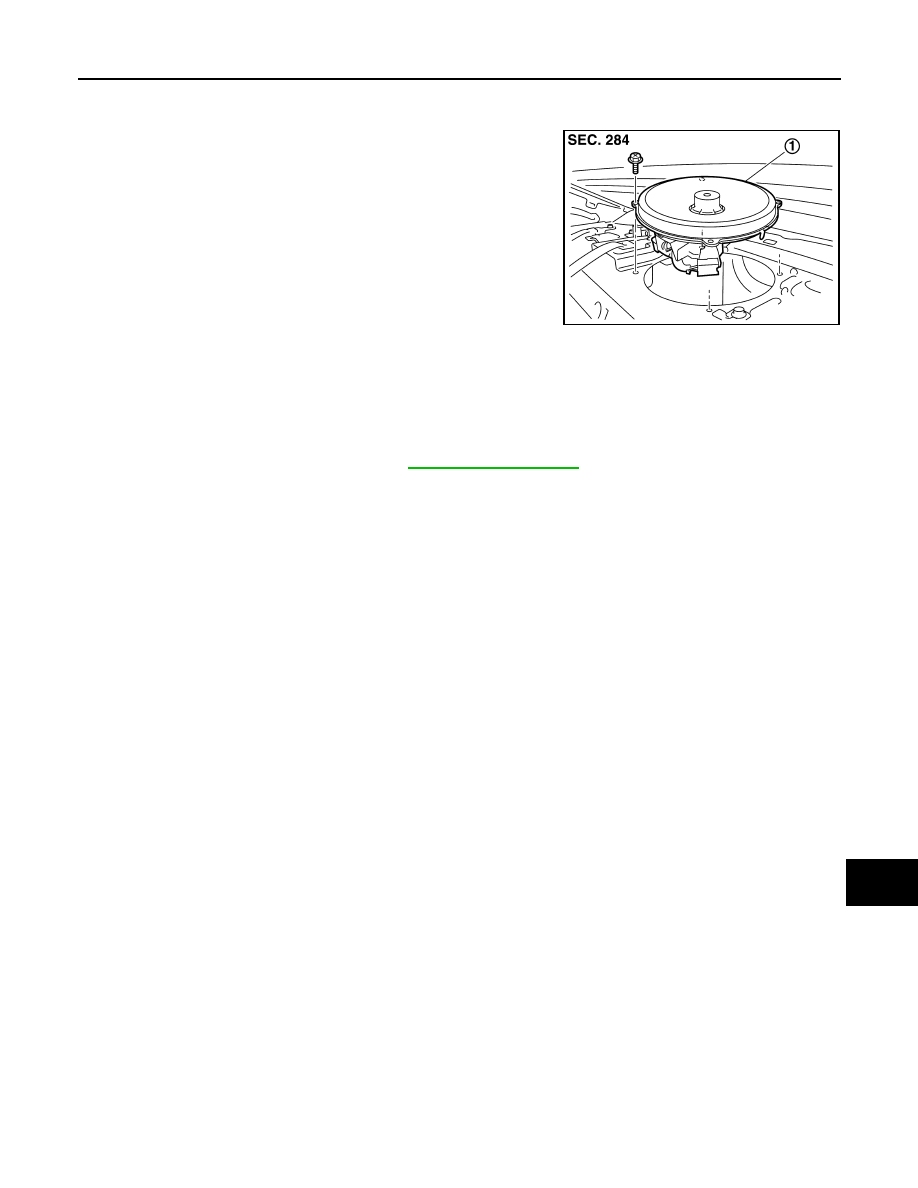

WOOFER

Exploded View

INFOID:0000000000964921

Removal and Installation

INFOID:0000000000964922

REMOVAL

1.

Remove rear parcel shelf finisher. Refer to

INT-18, "Exploded View"

.

2.

Remove woofer from rear parcel shelf.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0121ZZ

1.

Woofer

AV-538

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

BOSE AMP.

BOSE AMP.

Exploded View

INFOID:0000000000964923

Removal and Installation

INFOID:0000000000964924

REMOVAL

1.

Remove trunk front finisher. Refer to

INT-26, "Exploded View"

.

2.

Remove BOSE amp. from rear parcel shelf.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0122ZZ

1.

BOSE amp.

AV

ANTENNA AMP.

AV-539

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

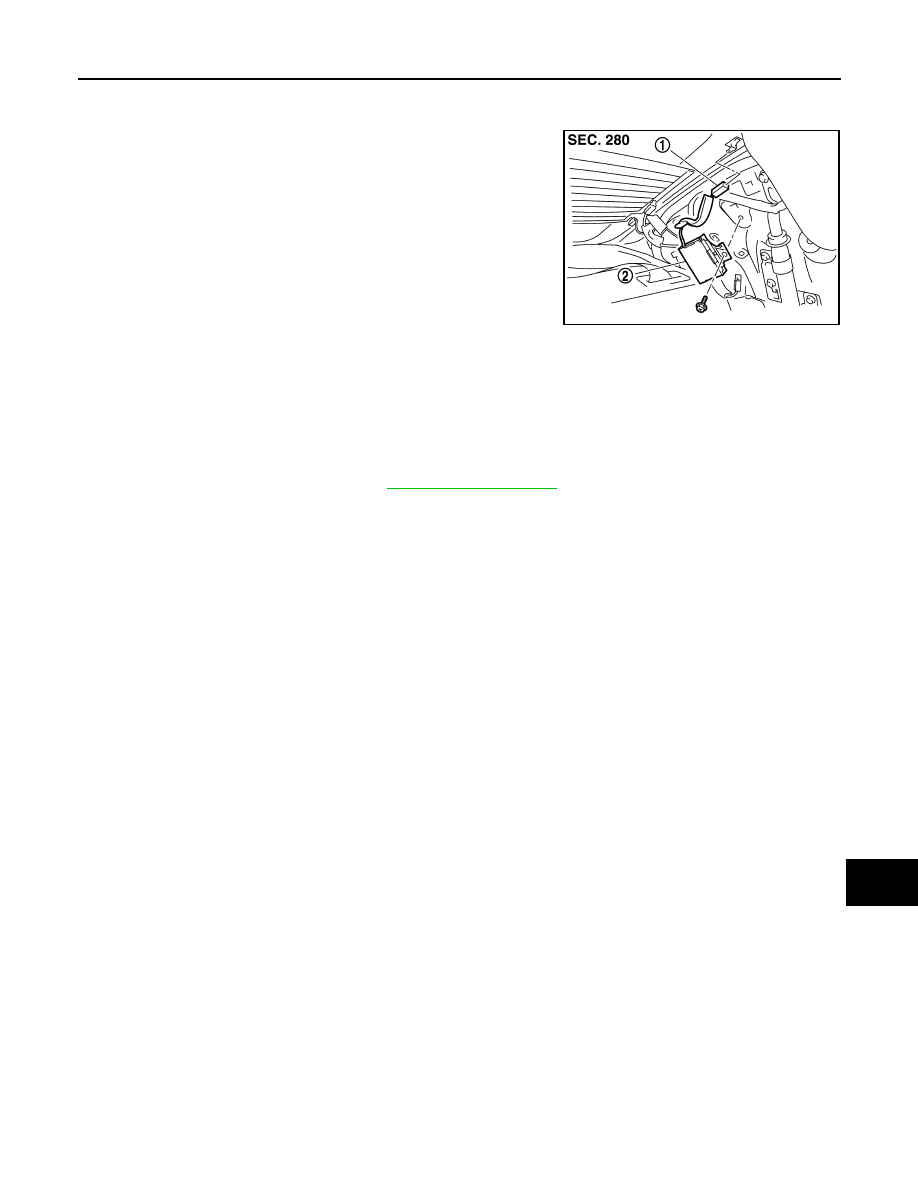

ANTENNA AMP.

Exploded View

INFOID:0000000000964925

Removal and Installation

INFOID:0000000000964926

REMOVAL

1.

Remove rear pillar finisher LH. Refer to

INT-13, "Exploded View"

.

2.

Remove antenna amp. from rear pillar LH.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0123ZZ

1.

AM-FM main connector

2.

Antenna amp.
