AV-528

< PRECAUTION >

[BOSE AUDIO WITH NAVIGATION]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000000964903

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRS section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for Trouble Diagnosis

INFOID:0000000000964904

AV COMMUNICATION SYSTEM

• Do not apply voltage of 7.0 V or higher to the measurement terminals.
• Use the tester with its open terminal voltage being 7.0 V or less.
• Be sure to turn ignition switch OFF and disconnect the battery cable from the negative terminal before

checking the circuit.

Precaution for Harness Repair

INFOID:0000000000964905

AV COMMUNICATION SYSTEM

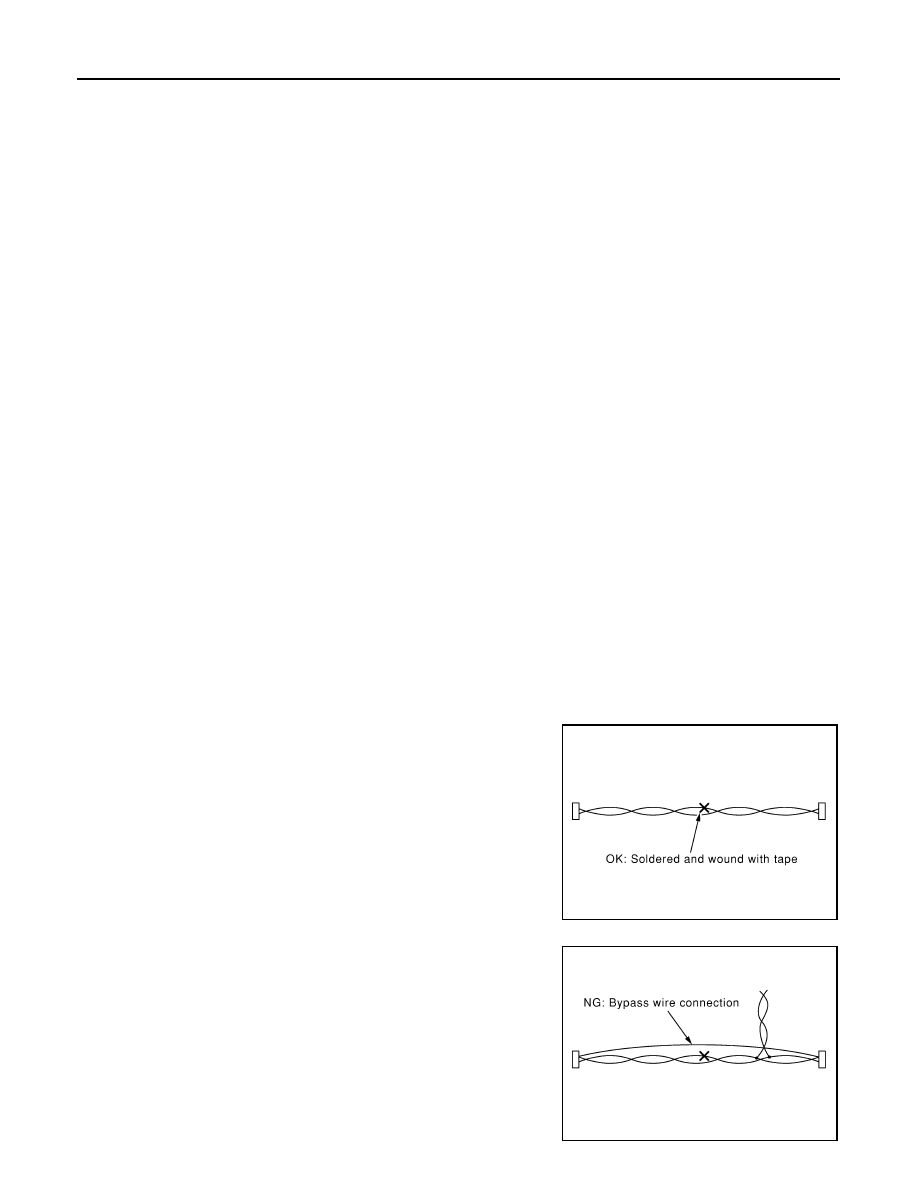

• Solder the repaired parts, and wrap with tape. [Frays of twisted line

must be within 110 mm (4.33 in).]

• Do not perform bypass wire connections for the repair parts. (The

spliced wire will become separated and the characteristics of
twisted line will be lost.)

PKIA0306E

PKIA0307E

AV

PREPARATION

AV-529

< PREPARATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000000964906

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0191E

AV-530

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

ON-VEHICLE REPAIR

AV CONTROL UNIT

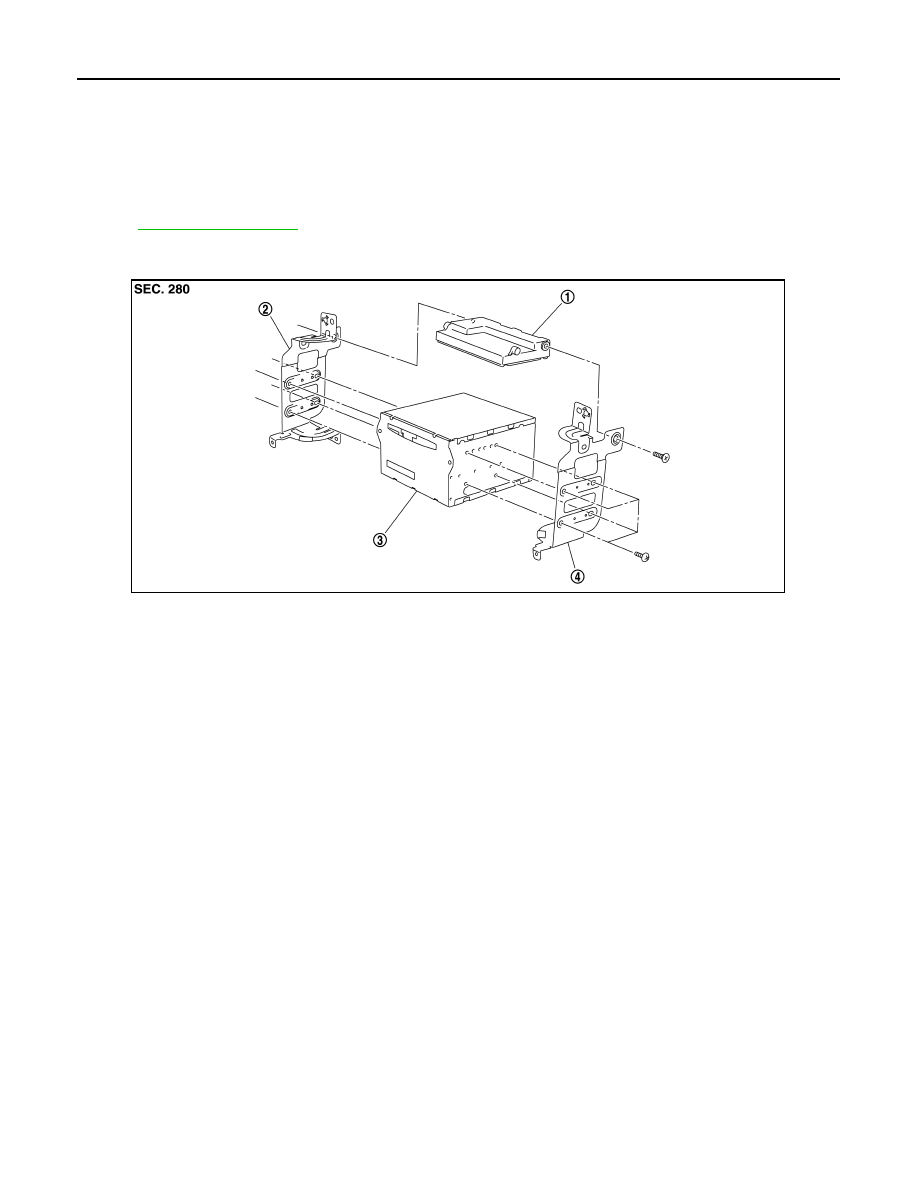

Exploded View

INFOID:0000000000964907

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000964908

REMOVAL

1.

Remove Display unit.

2.

Remove AV control unit with a unified meter and A/C amp. as a single unit from the body.

3.

Remove bracket screws, and then remove AV control unit.

INSTALLATION

Installation is the reverse order of removal.

1.

Unified meter and A/C amp.

2.

Bracket LH

3.

AV control unit

4.

Bracket RH

JSNIA0113ZZ

AV

DISPLAY UNIT

AV-531

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

DISPLAY UNIT

Exploded View

INFOID:0000000000964909

Refer to

IP-11, "Exploded View"

.

Removal and Installation

INFOID:0000000000964910

REMOVAL

1.

Remove cluster lid C. Refer to

IP-11, "Exploded View"

.

2.

Remove display unit with bracket as a single unit.

INSTALLATION

Installation is the reverse order of removal.
