NORMAL OPERATING CONDITION

WW-77

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

NORMAL OPERATING CONDITION

Description

INFOID:0000000000962660

FRONT WIPER MOTOR PROTECTION FUNCTION

• IPDM E/R may stop the front wiper to protect the front wiper motor if any obstruction (operation resistance)

such as a large amount of snow is detected during the front wiper operation.

• At that time turn OFF the front wiper and remove the foreign object. Then wait for approximately 20 seconds

or more and reactivate the front wiper. The wiper will operate normally.

WW-78

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000000962661

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRS section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

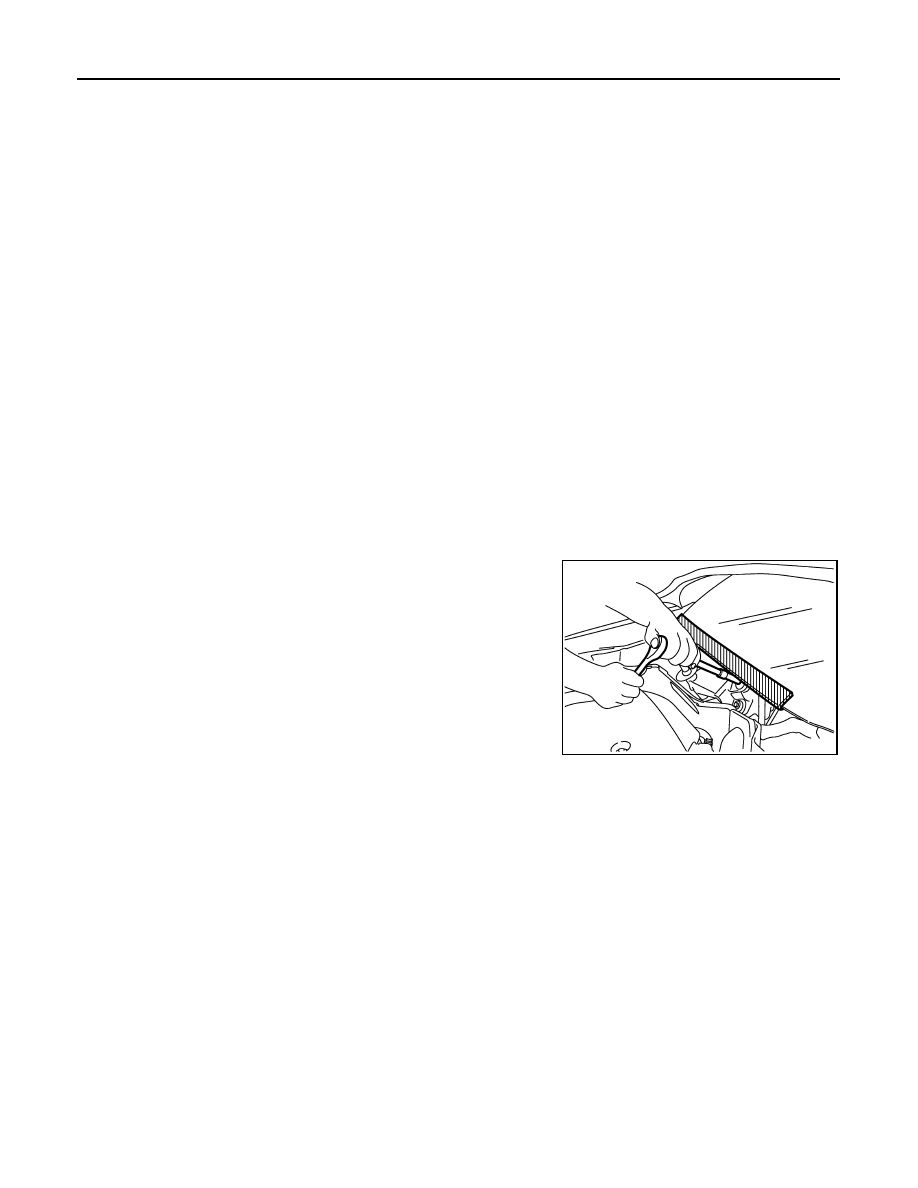

Precaution for Procedure without Cowl Top Cover

INFOID:0000000000962662

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

PIIB3706J

WASHER TANK

WW-79

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

ON-VEHICLE REPAIR

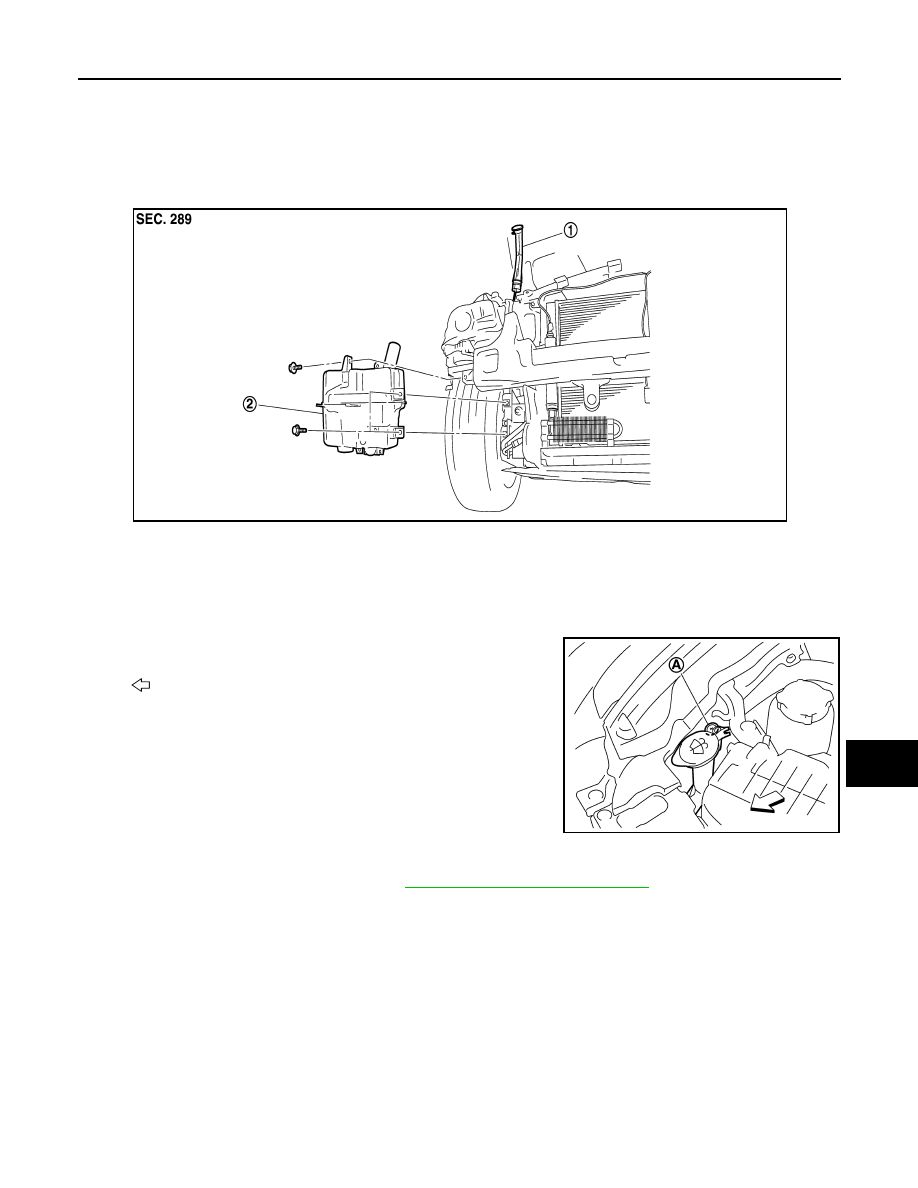

WASHER TANK

Exploded View

INFOID:0000000000962663

Removal and Installation

INFOID:0000000000962664

REMOVAL

1.

Remove the clip (A).

2.

Pull out the washer tank inlet from the washer tank.

3.

Remove the front bumper fascia. Refer to

EXT-11, "Removal and Installation"

.EI- Bumper removal/instal-

lation

4.

Disconnect washer pump connector.

5.

Disconnect the washer level switch connector.

6.

Remove washer tube.

7.

Remove washer tank mounting bolts.

8.

Remove washer tank from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Add water up to the top of the washer tank inlet after installing. Check that there is no leakage.

1.

Washer tank inlet

2.

Washer tank

JPLIA0078ZZ

: Vehicle front

JPLIA0077ZZ

WW-80

< ON-VEHICLE REPAIR >

FRONT WASHER PUMP

FRONT WASHER PUMP

Exploded View

INFOID:0000000000962665

Removal and Installation

INFOID:0000000000962666

REMOVAL

1.

Remove the fender protector RH (front). Refer to

EXT-22, "Removal and Installation"

.

2.

Disconnect the washer pump connector.

3.

Remove washer tube.

4.

Remove washer pump from the washer tank.

5.

Remove the packing from the washer tank.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Be careful not to twist the packing when installing the washer pump.

1.

Washer pump connector

2.

Washer pump

3.

Packing

4.

Washer tank

: Vehicle front

JPLIA0079ZZ
