Infiniti G35 (V35) Sedan. Manual - part 1430

WCS-4

< FUNCTION DIAGNOSIS >

WARNING CHIME SYSTEM

FUNCTION DIAGNOSIS

WARNING CHIME SYSTEM

WARNING CHIME SYSTEM

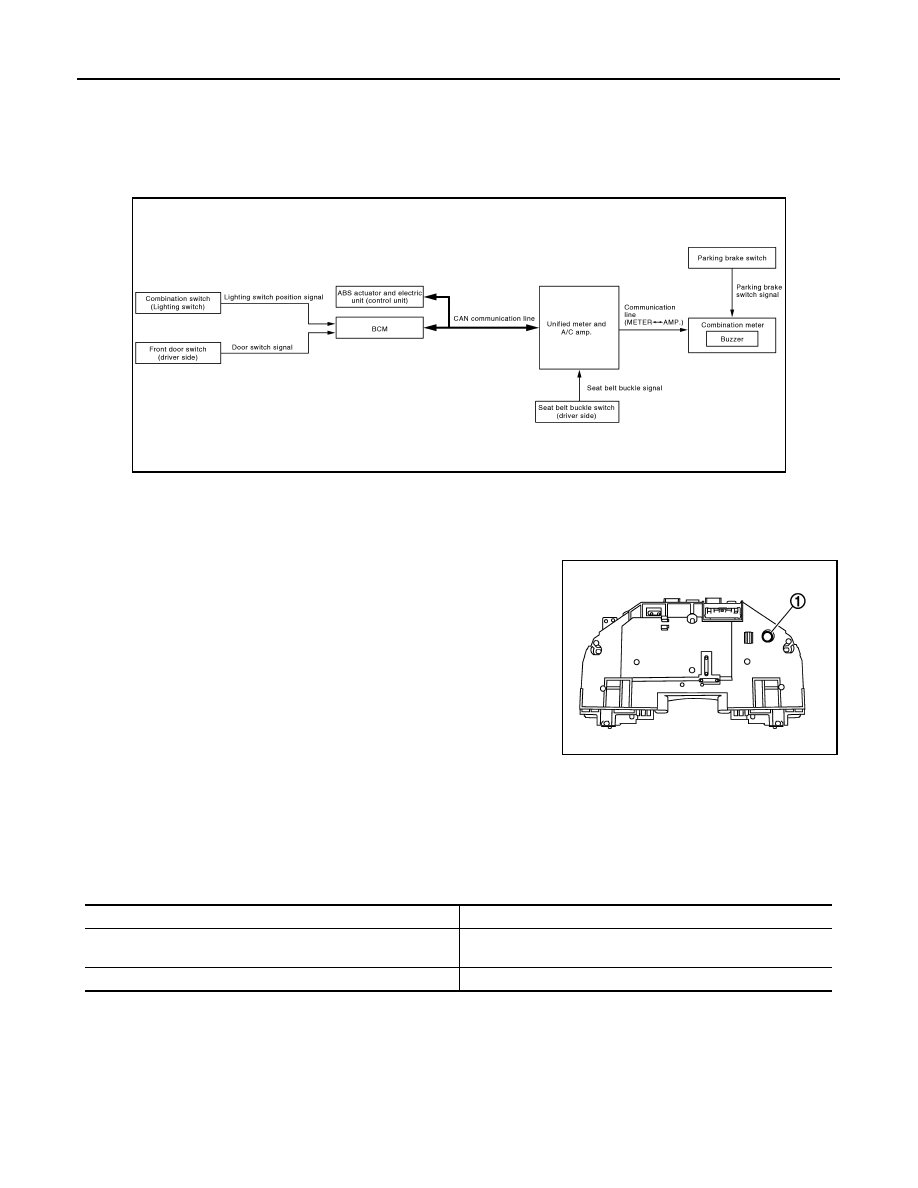

WARNING CHIME SYSTEM : System Diagram

INFOID:0000000000964468

WARNING CHIME SYSTEM : System Description

INFOID:0000000000964469

COMBINATION METER

• The buzzer (1) for warning chime system is installed in the combi-

nation meter.

• The buzzer sounds when the combination meter receives buzzer

output signal from each unit through unified meter and A/C amp.

UNIFIED METER AND A/C AMP.

The unified meter and A/C amp. transmits the buzzer output signal received from BCM with CAN communica-
tion line to the combination meter.

BCM

BCM receives signals from various units and transmits a buzzer output signal to the unified meter and A/C
amp. with CAN communication line if it judges that the warning buzzer should be activated.

BCM warning function list

JSNIA0034GB

JSNIA0037GB

Warning functions

Signal name

Light reminder warning chime

• Lighting switch position signal
• Door switch signal

Seat belt warning chime

Seat belt buckle switch signal

WCS

WARNING CHIME SYSTEM

WCS-5

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

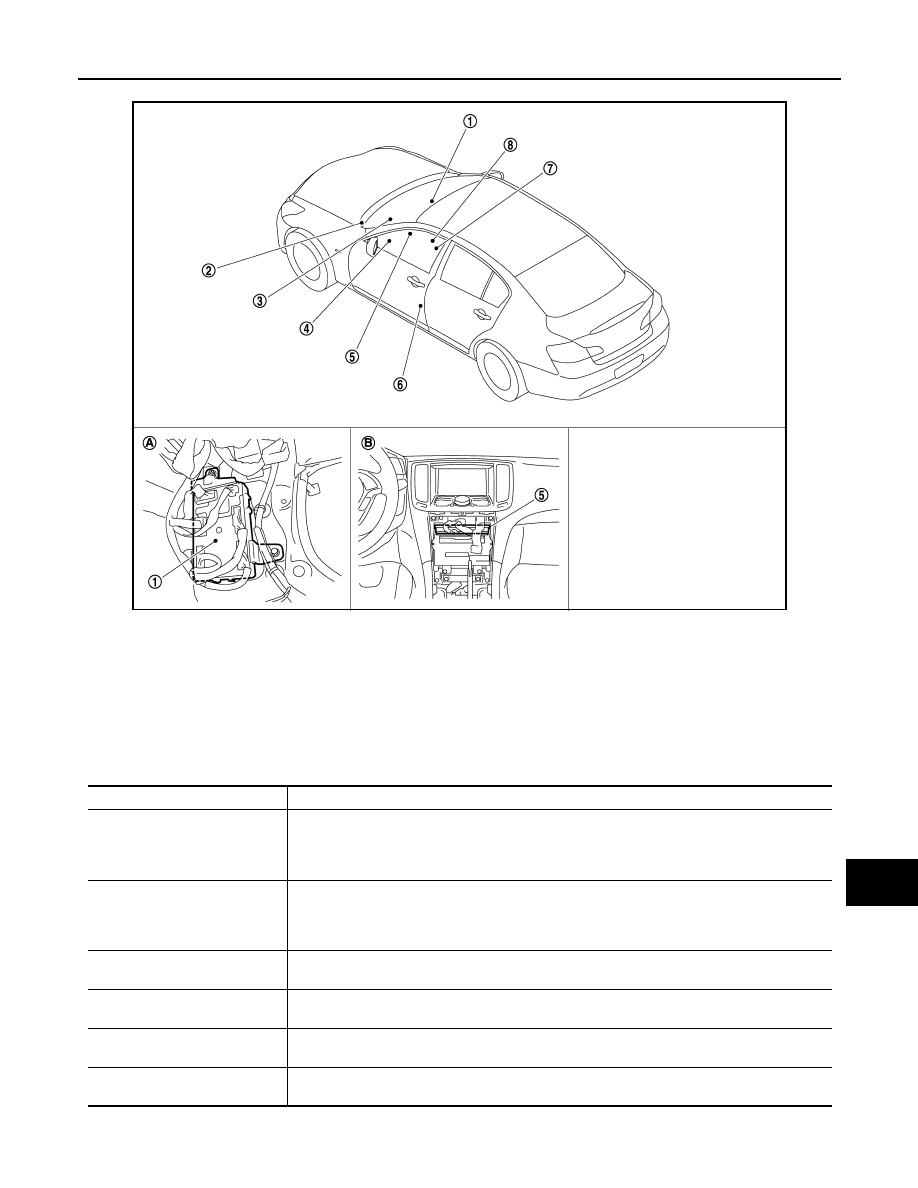

WARNING CHIME SYSTEM : Component Parts Location

INFOID:0000000000964470

WARNING CHIME SYSTEM : Component Description

INFOID:0000000000964471

JSNIA0043ZZ

1.

BCM

2.

Parking brake switch (A/T)

3.

Combination meter

4.

Combination switch
(Lighting switch)

5.

Unified meter and A/C amp.

6.

Front door switch (driver side)

7.

Seat belt buckle switch

8.

Parking brake switch (M/T)

A.

Dash side lower (passenger side)

B.

Behind cluster lid C (back)

Unit

Description

Combination meter

• Receives a buzzer output signal from the unified meter and A/C amp. and sounds the buzzer.
• Judges whether the parking brake is released from the vehicle speed signal received from the

unified meter and A/C amp. with CAN communication line and the parking brake switch signal
from the parking brake switch, and sounds the buzzer if necessary.

Unified meter and A/C amp.

• Receives the seat belt buckle switch signal from the seat belt buckle switch and transmits it to

BCM with CAN communication line.

• Receives a buzzer output signal from BCM with CAN communication line and transmits it to

the combination meter by means of communication line.

BCM

Transmits signals provided by various units to the unified meter and A/C amp. with CAN com-
munication line.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to BCM with CAN communication line.

Seat belt buckle switch (driver
side)

Transmits a seat belt buckle switch signal to the unified meter and A/C amp.

Combination switch
(Lighting switch)

Transmits the lighting switch position signal to BCM.

WCS-6

< FUNCTION DIAGNOSIS >

WARNING CHIME SYSTEM

LIGHT REMINDER WARNING CHIME

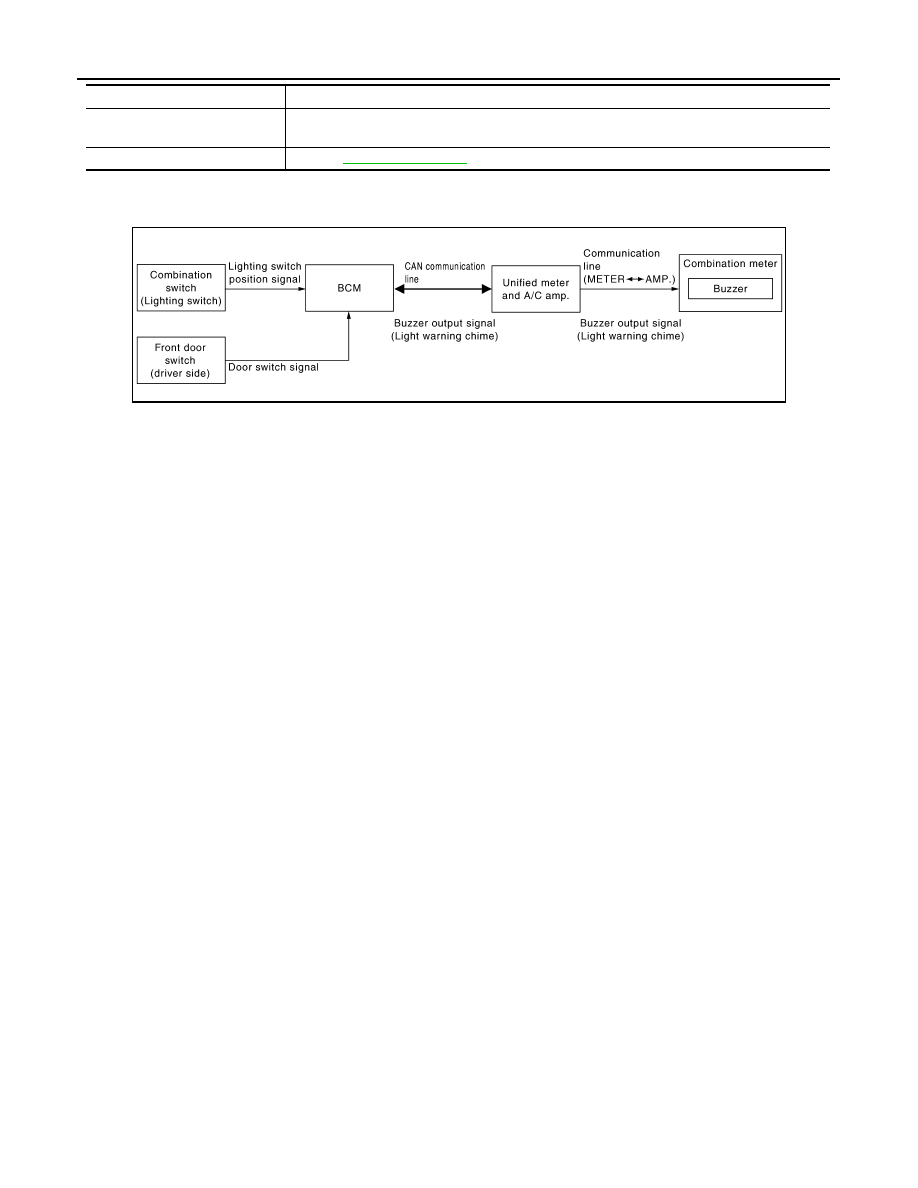

LIGHT REMINDER WARNING CHIME : System Diagram

INFOID:0000000000964472

LIGHT REMINDER WARNING CHIME : System Description

INFOID:0000000000964473

DESCRIPTION

With ignition switch in OFF or ACC position, driver door open, and lighting switch in 1ST or 2ND position, the
light warning chime will sound.
• BCM detects ignition switch in OFF or ACC position, front door switch (driver side) ON, and lighting switch in

1ST or 2ND position. And then transmits buzzer output signal (light reminder warning chime) to unified meter
and A/C amp. with CAN communication line.

• Unified meter and A/C amp. transmits buzzer output signal (light reminder warning chime) to combination

meter with communication line.

• When combination meter receives buzzer output signal (light reminder warning chime), it sounds the buzzer.

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled

• Lighting switch is at 1st or 2nd position
• Ignition switch is at OFF or ACC
• Front door switch (driver side) is ON

WARNING CANCEL CONDITIONS

Warning is canceled if any of the following conditions is fulfilled.

• Lighting switch OFF
• Ignition switch ON
• Front door switch (driver side) is OFF

Front door switch
(driver side)

Transmits the door switch signal to BCM.

Parking brake switch

Refer to

MWI-59, "Description"

.

Unit

Description

JSNIA0167GB

WCS

WARNING CHIME SYSTEM

WCS-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

LIGHT REMINDER WARNING CHIME : Component Parts Location

INFOID:0000000000964474

LIGHT REMINDER WARNING CHIME : Component Description

INFOID:0000000000964475

SEAT BELT WARNING CHIME

JSNIA0043ZZ

1.

BCM

2.

Parking brake switch (A/T)

3.

Combination meter

4.

Combination switch
(Lighting switch)

5.

Unified meter and A/C amp.

6.

Front door switch (driver side)

7.

Seat belt buckle switch

8.

Parking brake switch (M/T)

A.

Dash side lower (passenger side)

B.

Behind cluster lid C (back)

Unit

Description

Combination meter

Receives a buzzer output signal from the unified meter and A/C amp. and sounds the buzzer.

Unified meter and A/C amp.

Receives a buzzer output signal from BCM via CAN communication line and transmits it to the com-
bination meter by means of communication line.

BCM

Judges the light warning conditions from the signals provided by various switches and transmits a
buzzer output signal to the unified meter and A/C amp. via CAN communication line if necessary.

Combination switch
(Lighting switch)

Transmits the lighting switch position signal to BCM.

Front door switch
(driver side)

Transmits the door switch signal to BCM.
