TRANSMISSION ASSEMBLY

28. Install parking actuator support from rear extension (2WD) or

adapter case (AWD).

29. Install needle bearing (1) to rear extension (2WD) or adapter

case (AWD).

CAUTION:

Take care with the direction of needle bearing. Refer to

TM-

289, "Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

30. Install rear extension assembly (2WD) or adapter case assembly (AWD) according to the following proce-

dures.

a.

2WD

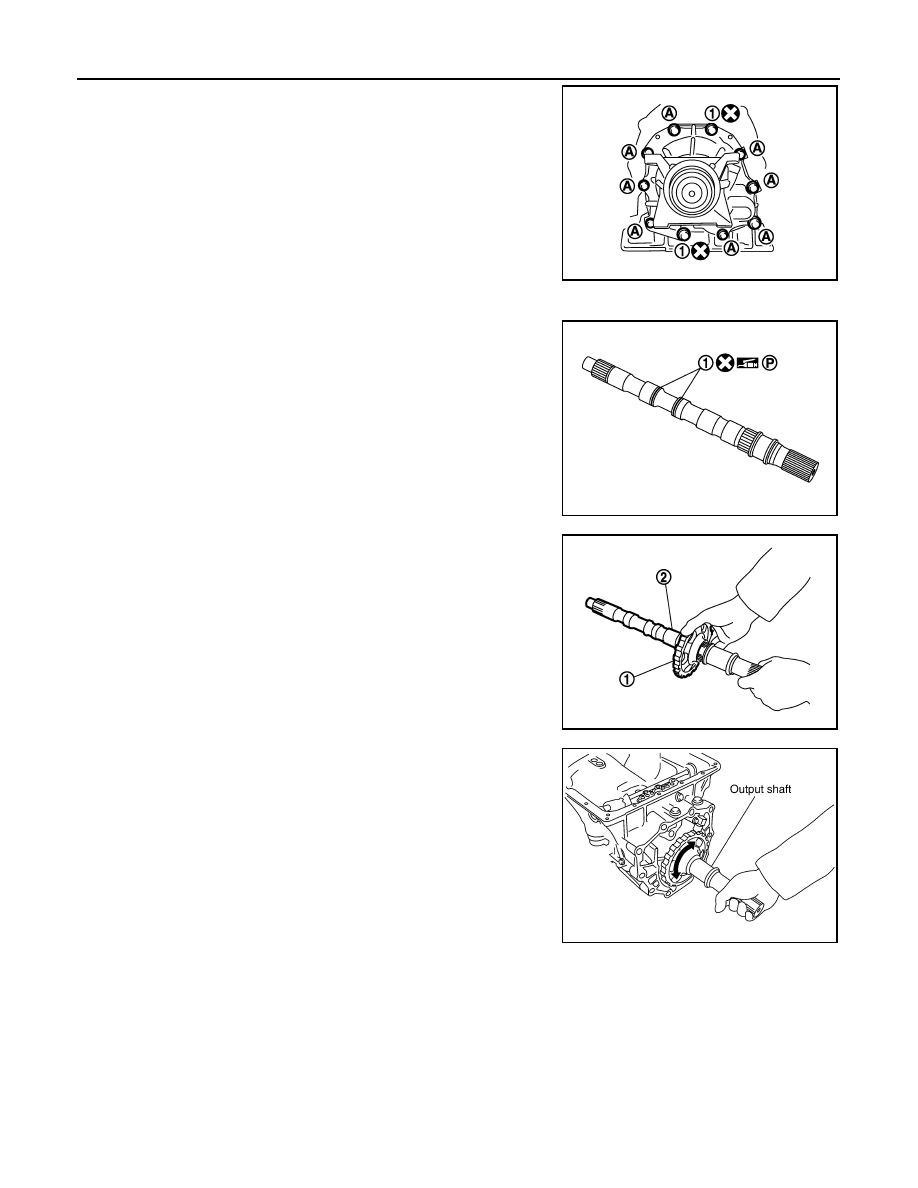

i.

Install seal rings (1) to output shaft.

ii.

Install parking gear (1) to output shaft (2).

SCIA3423E

SCIA6179J

JPDIA0030ZZ

JPDIA0029ZZ

TRANSMISSION ASSEMBLY

TM-317

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

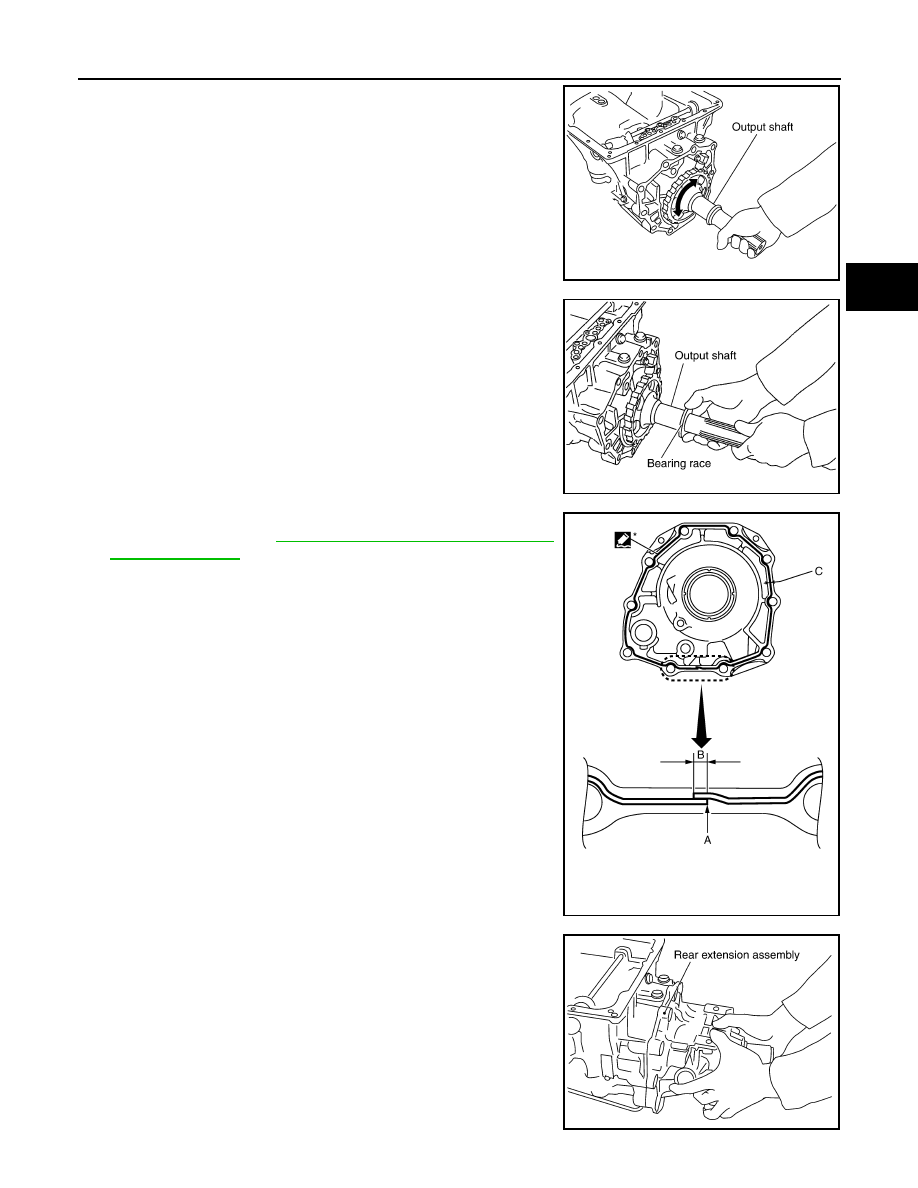

iii.

Install output shaft in transmission case.

CAUTION:

Be careful not to mistake front for rear because both sides
looks similar. (Thinner end is front side.)

iv.

Install bearing race to output shaft.

v.

Apply recommended sealant (Genuine Anaerobic Liquid Gasket
or equivalent. Refer to

GI-15, "Recommended Chemical Prod-

ucts and Sealants"

.) to rear extension assembly as shown in the

figure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
from the transmission case and rear extension assembly
mounting surfaces.

vi. Install rear extension assembly to transmission case.

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the rear
extension assembly.

SCIA5030E

SCIA5245E

A

: Start and finish point shall be in
the center of two bolts.

B

: 3 – 5 mm (0.12 – 0.20 in)

Sealant
width (C)

: 1.0 – 2.0 mm (0.04 – 0.08 in)

Sealant
height (C)

: 0.4 – 1.0 mm (0.016 – 0.04 in)

JPDIA0036ZZ

SCIA5029E

TM-318

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

vii. Tighten rear extension assembly bolts to the specified torque.

b.

AWD

i.

Install seal rings (1) to output shaft.

ii.

Install parking gear (1) to output shaft (2).

iii.

Install output shaft in transmission case.

CAUTION:

Be careful not to mistake front for rear because both sides
looks similar. (Thinner end is front side.)

1

: Self-sealing bolt

A

:  Bolt

JPDIA0026ZZ

JPDIA0030ZZ

JPDIA0029ZZ

SCIA5030E

TRANSMISSION ASSEMBLY

TM-319

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

iv.

Install bearing race to output shaft.

v.

Install gasket onto transmission case.

CAUTION:

• Completely remove all moisture, oil and old gasket, etc.

from the transmission case and adapter case assembly
mounting surfaces.

• Do not reuse gasket.

vi. Install adapter case assembly to transmission case.

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the adapter
case assembly.

vii. Tighten adapter case assembly bolts (1) to the specified torque.

[With bracket (2).]

SCIA5245E

SCIA5231E

SCIA5186E

3

: Self-sealing bolt

: Bolt

SCIA6910E
