TM-240

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

CONTROL VALVE WITH TCM

CONTROL VALVE WITH TCM

Exploded View

INFOID:0000000000957152

Removal and Installation

INFOID:0000000000957153

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Drain ATF through drain plug.

3.

Remove exhaust mounting bracket. Refer to

EX-5, "Exploded View"

.

1.

A/T

2.

Snap ring

3.

Sub-harness

4.

Bracket

5.

Control valve with TCM

6.

Bracket

7.

A/T fluid temperature sensor 2

8.

Oil pan gasket

9.

Clip

10. Oil pan mounting bolt

11.

Oil pan

12. Magnet

13. Drain plug

14. Drain plug gasket

15. Terminal cord assembly

16. O-ring

Refer to

GI-4, "Components"

 for symbols in the figure.

SCIA8270E

CONTROL VALVE WITH TCM

TM-241

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

4.

Disconnect heated oxygen sensor 2 harness connectors (A).

5.

Remove heated oxygen sensor 2 harness (B) from clips (1).

6.

Remove bracket (2) from transmission assembly.

7.

Disconnect A/T assembly harness connector.

8.

Remove snap ring (1) from A/T assembly harness connector
(A).

9.

Push A/T assembly harness connector (A).

CAUTION:

Be careful not to damage connector.

10. Remove clips (1).

11. Remove oil pan (2) and oil pan gasket.

12. Remove magnets (1) from oil pan.

: Vehicle front

: Bolt

SCIA8269E

JPDIA0007ZZ

JPDIA0008ZZ

3

: Drain plug

: Vehicle front

: Oil pan mounting bolt

SCIA8117E

JPDIA0009ZZ

TM-242

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

CONTROL VALVE WITH TCM

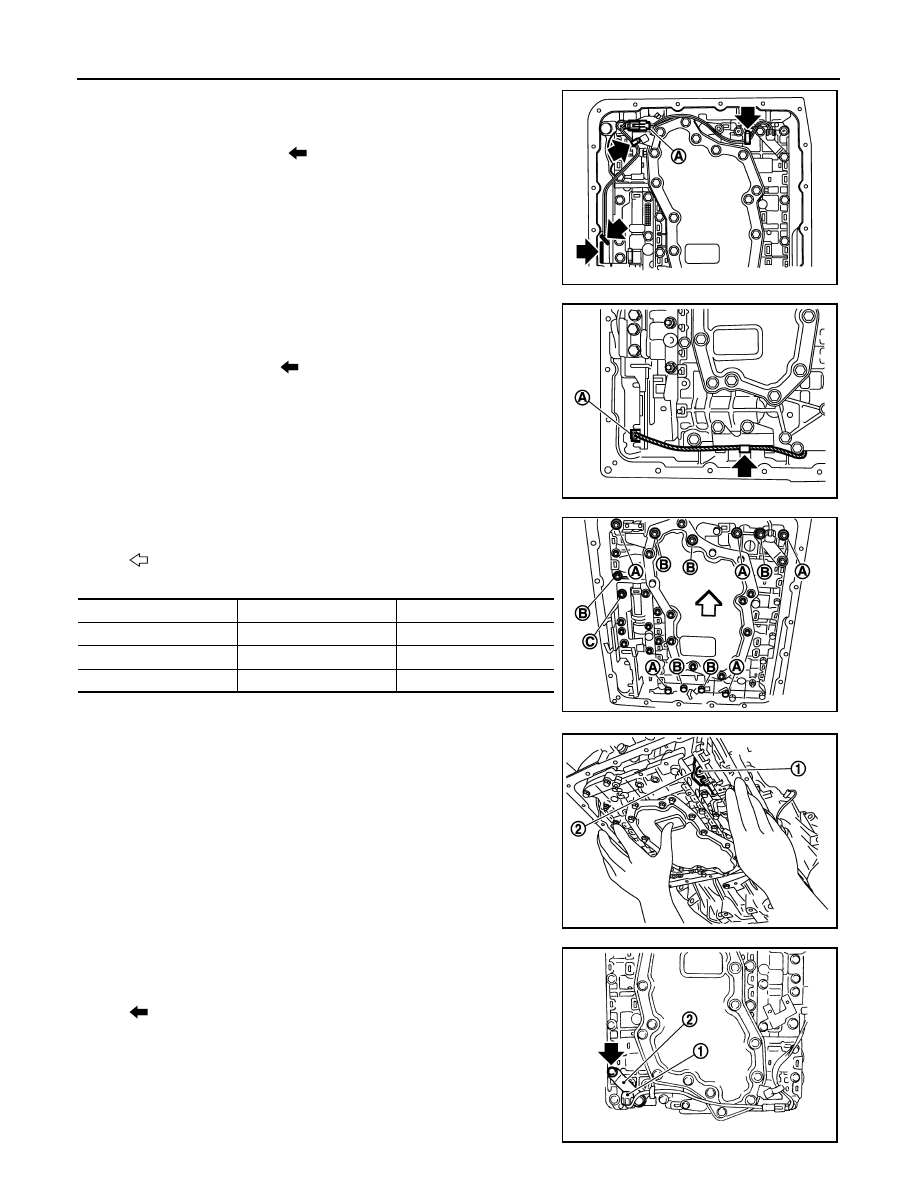

13. Disconnect A/T fluid temperature sensor 2 connector (A).

CAUTION:

Be careful not to damage connector.

14. Disengage terminal clips (

).

15. Disconnect revolution sensor connector (A).

CAUTION:

Be careful not to damage connector.

16. Disengage terminal clip (

).

17. Remove bolts A, B and C from control valve with TCM.

18. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve (1) notch
and manual plate (2) height. Remove it vertically.

19. Remove A/T fluid temperature sensor 2 (1) with bracket (2) from

control valve with TCM.

SCIA8124E

JPDIA0011ZZ

: Vehicle front

Bolt symbol

Length

mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8074E

JPDIA0012ZZ

: Bolt

JPDIA0013ZZ

CONTROL VALVE WITH TCM

TM-243

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

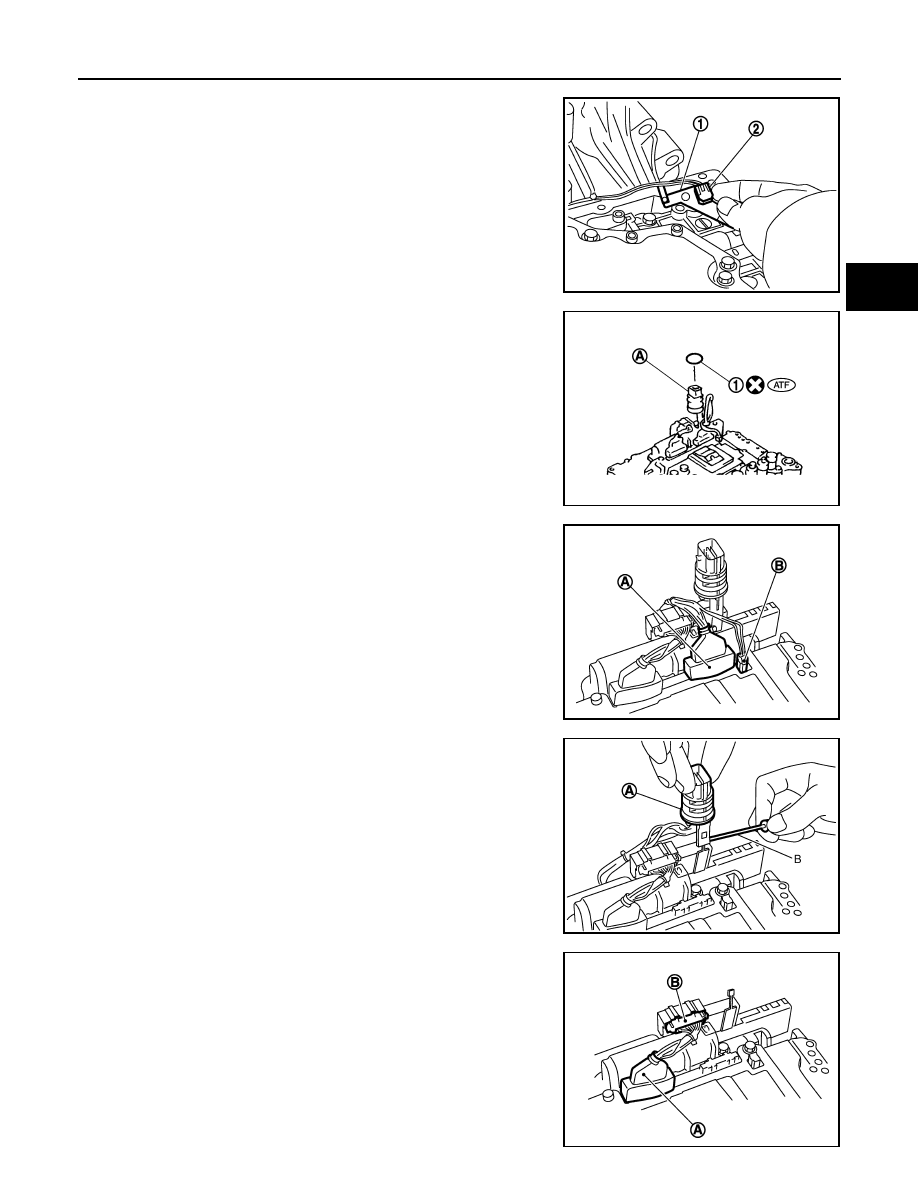

20. Remove bracket (1) from A/T fluid temperature sensor 2 (2).

21. Remove O-ring (1) from A/T assembly harness connector (A).

22. Disconnect TCM connectors (A) and (B).

CAUTION:

Be careful not to damage connectors.

23. Remove A/T assembly harness connector (A) from control valve

with TCM using flat-blade screwdriver (B).

24. Disconnect TCM connector (A) and park/neutral position switch

connector (B).

CAUTION:

Be careful not to damage connectors.

JPDIA0014ZZ

JPDIA0015ZZ

JPDIA0016ZZ

JPDIA0017ZZ

JPDIA0018ZZ
