TM-36

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

TRANSMISSION ASSEMBLY

3.

Remove check select spring and check ball from rear extension.

4.

Remove retaining pin using a pin punch and then remove con-
trol rod and boots.

5.

Remove park/neutral position (PNP) switch, plunger, and back-
up lamp switch from rear extension.

6.

Remove control bracket mounting bolts and then remove check
shift pin and control bracket as one unit from rear extension.

7.

Remove right and left return spring plugs and then remove
return springs and return spring plungers from rear extension.

CAUTION:

Return spring and return spring plunger have different
lengths for right and left sides. Identify right and left side
and then store.

8.

Remove bracket mounting bolts and then remove brackets from
rear extension.

9.

Remove rear oil seal from rear extension using a puller [SST:
KV381054S0 (J-34286)].

CAUTION:

Be careful not to damage rear extension.

PCIB1344E

PCIB1345E

PCIB1346E

PCIB1347E

PCIB1348E

TRANSMISSION ASSEMBLY

TM-37

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

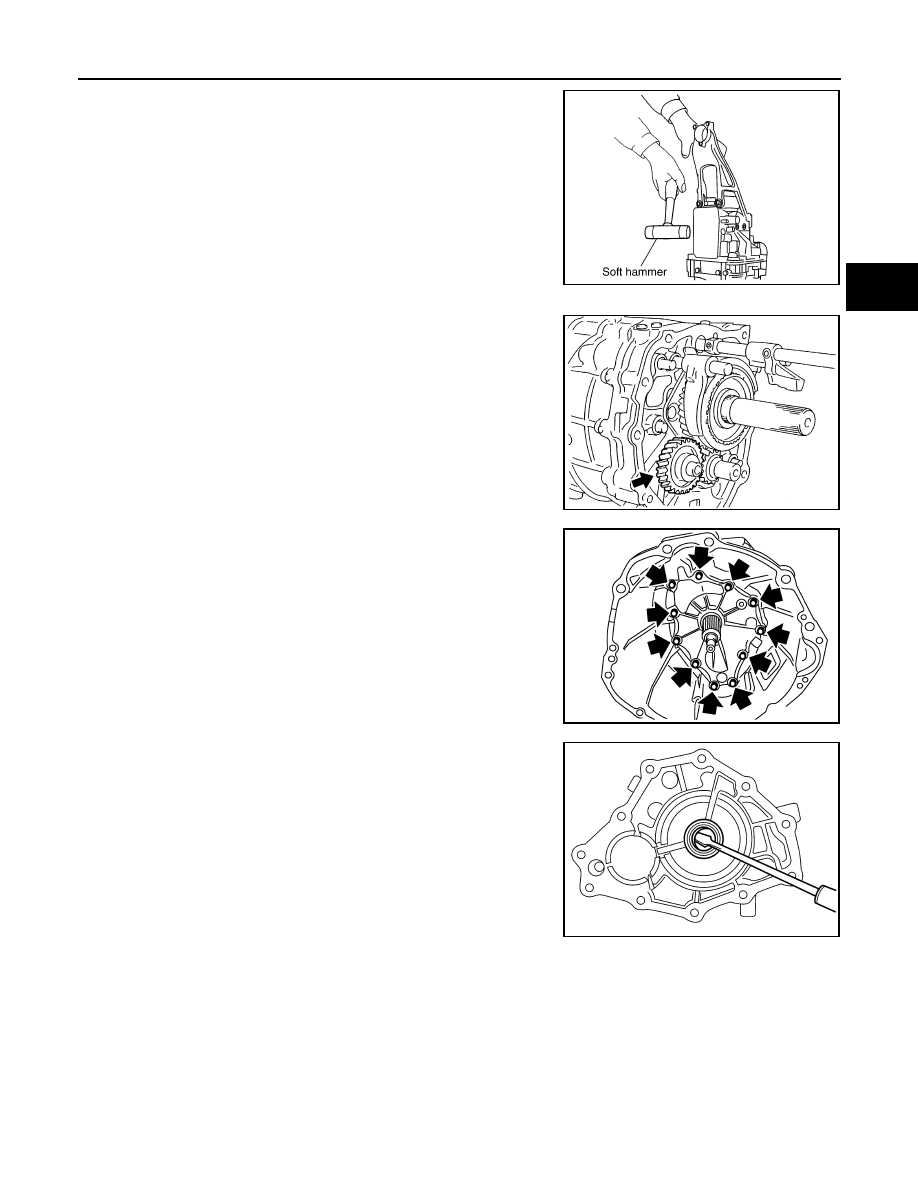

10. Remove rear extension mounting bolts and then remove rear

extension assembly using a soft hammer.

CAUTION:

Do not hold control lever housing to prevent bushing of
control lever housing from deformation when moving trans-
mission assembly.

11. Remove control lever housing mounting bolts and then remove

control lever housing from rear extension.

12. Remove striking rod oil seal from rear extension.

CAUTION:

Be careful not to damage rear extension.

13. Remove rear extension oil gutter and cap from rear extension.
14. Remove reverse idler thrust washer, reverse idler gear and

reverse idler needle bearing from reverse idler shaft.

15. Remove reverse idler shaft from adapter plate.

16. Remove front cover mounting bolts and then remove front cover

and front cover gasket from transmission case.

17. Remove front cover oil seal from front cover assembly using a

flat-bladed screwdriver.

CAUTION:

Be careful not to damage front cover mating surface.

PCIB1349E

PCIB0152E

JPDIC0031ZZ

SCIA1399E

TM-38

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

TRANSMISSION ASSEMBLY

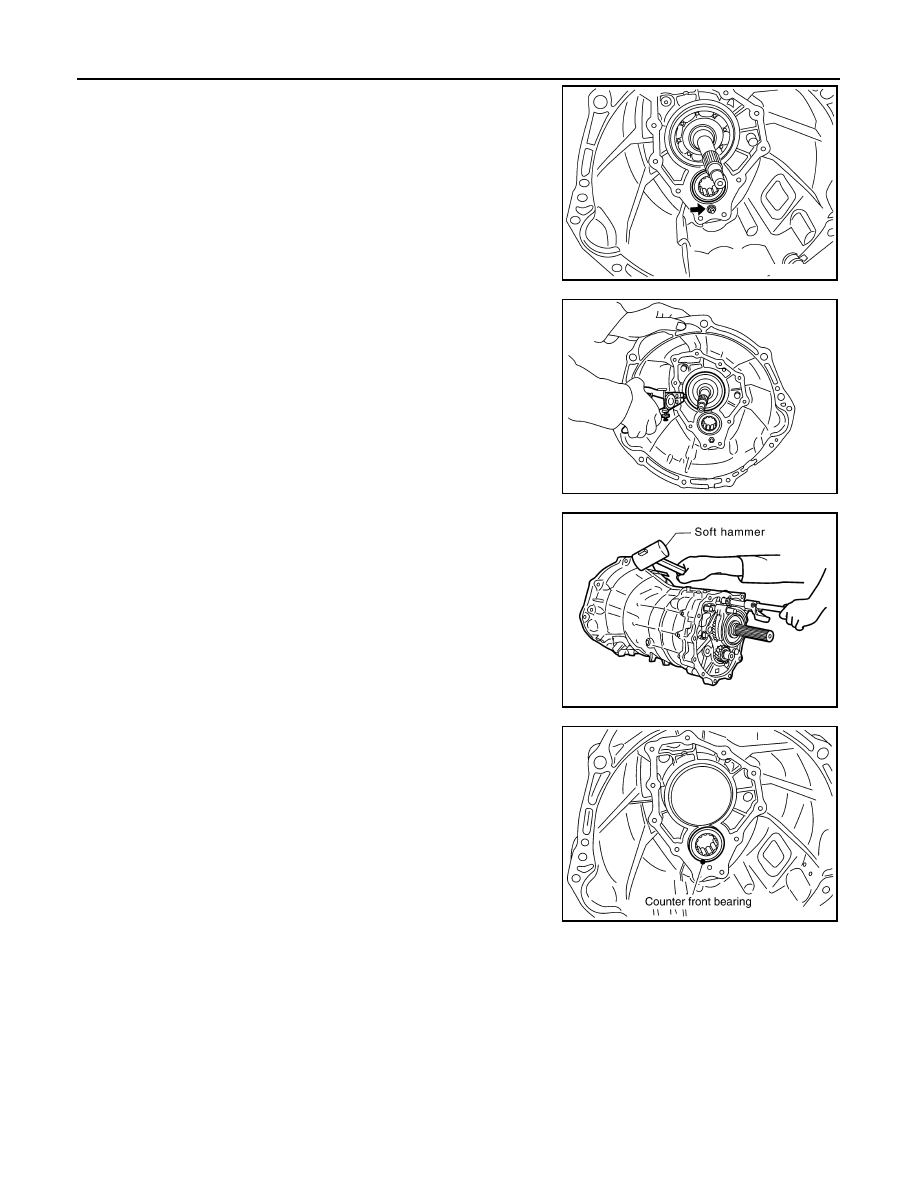

18. Remove baffle plate mounting nut from transmission case.

19. Remove snap ring from main drive gear bearing using snap ring

pliers.

20. Using a soft hammer to carefully tap mainshaft and counter shaft

from transmission case side and then separate adapter plate
and transmission case.

21. Remove counter front bearing from transmission case.

22. Remove oil gutter and breather tube from transmission case.
23. Remove filler plug, drain plug, and gaskets from transmission

case.

24. Remove bracket mounting bolt and then remove bracket from

transmission case.

SHIFT FORK AND FORK ROD

SCIA1443E

SCIA1532E

SCIA1687E

PCIB0436E

TRANSMISSION ASSEMBLY

TM-39

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

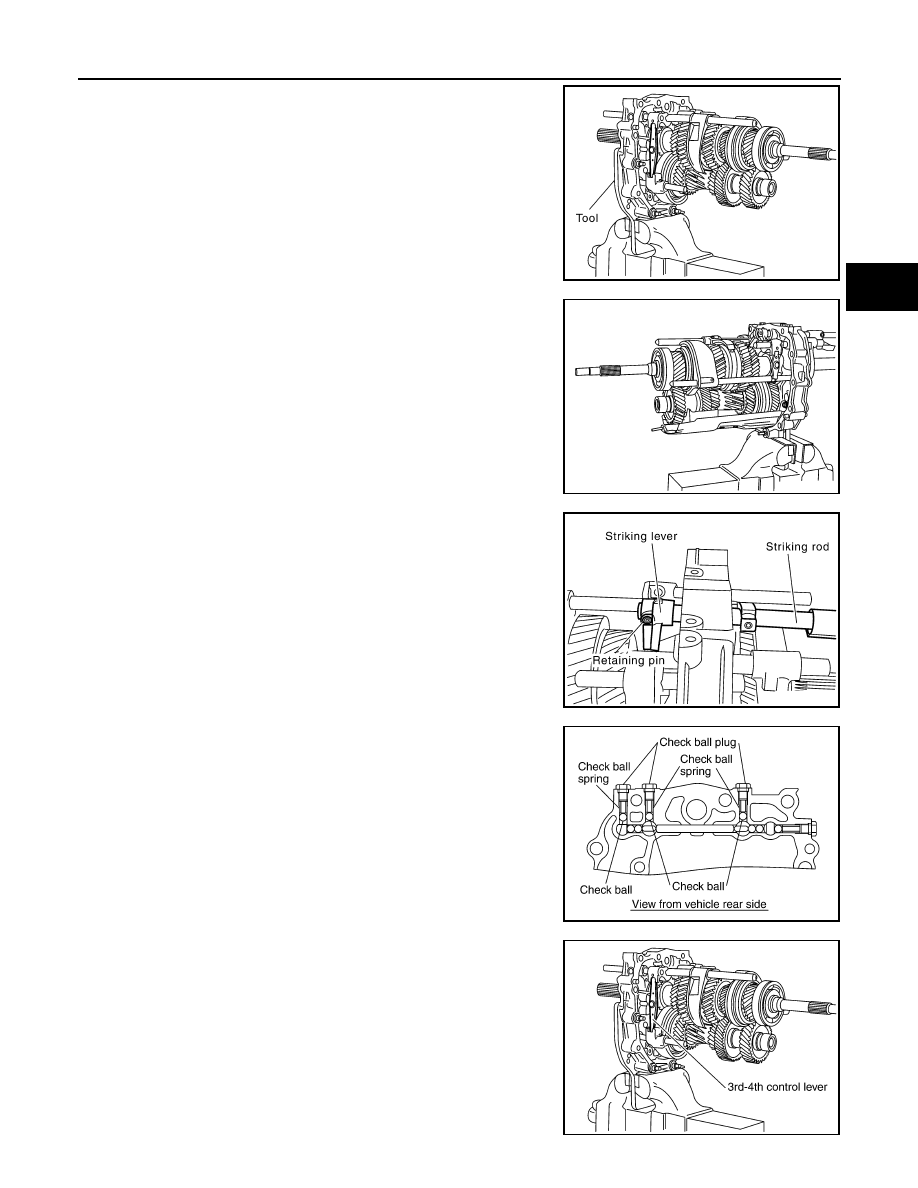

1.

Install adapter setting plate [SST: ST22490000 (

—

)] to

adapter plate and then fixing in adapter setting plate using a
vise.

CAUTION:

Do not directly secure the surface in a vise.

2.

Remove baffle plate mounting bolts and then remove baffle
plate from adapter plate.

3.

Remove retaining pin using a pin punch and then remove strik-
ing lever and striking rod.

4.

Remove check ball plugs and then remove check ball springs
and check balls from adapter plate.

5.

Remove 3rd-4th control lever mounting bolts and then remove
3rd-4th control lever and shifter cap.

CAUTION:

Be careful not to lose shifter cap.

PCIB0254E

PCIB0154E

PCIB0414E

PCIB0143E

PCIB0235E
