Infiniti G35 (V35) Sedan. Manual - part 133

AV-304

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

MULTIFUNCTION SWITCH

MULTIFUNCTION SWITCH

Exploded View

INFOID:0000000000964741

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000964742

REMOVAL

1.

Remove cluster lid C. Refer to

IP-11, "Exploded View"

.

2.

Remove multi function switch with center ventilator grille as a single unit.

3.

Remove multi function switch from center ventilator.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0126ZZ

1.

Center ventilator grille

2.

Multifunction switch

AV

PRESET SWITCH

AV-305

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

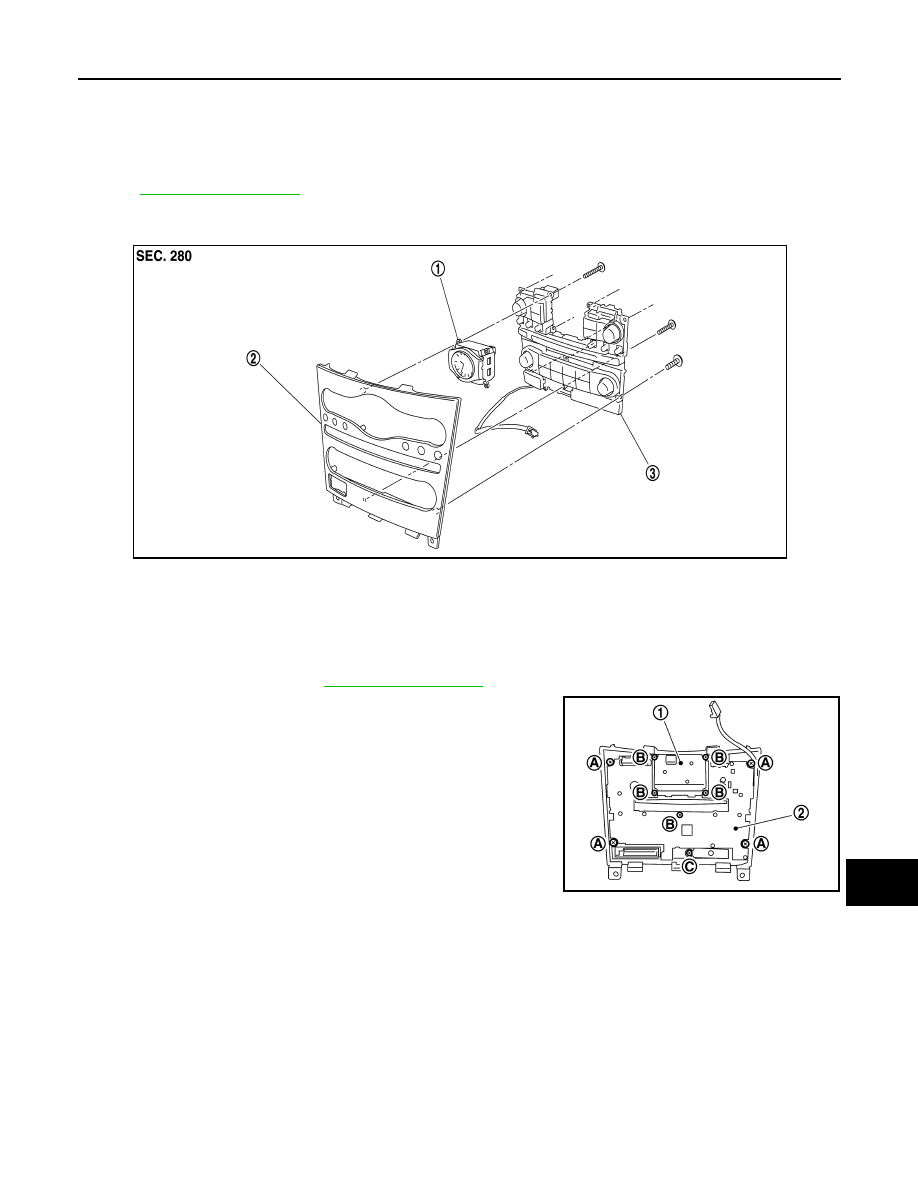

PRESET SWITCH

Exploded View

INFOID:0000000000964743

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000964744

REMOVAL

1.

Remove cluster lid C. Refer to

IP-11, "Exploded View"

.

2.

Remove preset switch (2) from cluster lid C.

INSTALLATION

Installation is the reverse order of removal.
NOTE:
When installing preset switch, do not allow the print wire that connects preset switch and multifunction switch
to get caught in between AV control unit and preset switch.

1.

Clock

2.

Cluster lid C

3.

Preset switch

JPNIA0136ZZ

1.

Clock

A.

Screw

B.

Screw

C.

Screw

JSNIA0127ZZ

AV-306

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

STEERING SWITCH

STEERING SWITCH

Exploded View

INFOID:0000000000964745

Refer to

ST-15, "Exploded View"

.

Removal and Installation

INFOID:0000000000964746

REMOVAL

Refer to

ST-15, "Removal and Installation"

.

INSTALLATION

Installation is the reverse order of removal.

AV

AUXILIARY INPUT JACKS

AV-307

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

AUXILIARY INPUT JACKS

Exploded View

INFOID:0000000000964747

REMOVAL

Refer to

IP-22, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000964748

REMOVAL

1.

Remove center console. (M/T models) Refer to

INT-20, "Exploded View"

.

Remove center console cup. (A/T models) Refer to

INT-20, "Exploded View"

.

2.

Remove auxiliary input jacks from center console. (M/T models)
Remove auxiliary input jacks from center console cup. (A/T models)

INSTALLATION

Installation is the reverse order of removal.

JSNIA0131ZZ

1.

Auxiliary input jacks
