Infiniti G35 (V35) Sedan. Manual - part 132

AV-300

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

BOSE AMP.

BOSE AMP.

Exploded View

INFOID:0000000000964733

Removal and Installation

INFOID:0000000000964734

REMOVAL

1.

Remove trunk front finisher. Refer to

INT-26, "Exploded View"

.

2.

Remove BOSE amp. from rear parcel shelf.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0122ZZ

1.

BOSE amp.

AV

ANTENNA AMP.

AV-301

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

ANTENNA AMP.

Exploded View

INFOID:0000000000964735

Removal and Installation

INFOID:0000000000964736

REMOVAL

1.

Remove rear pillar finisher LH. Refer to

INT-13, "Exploded View"

.

2.

Remove antenna amp. from rear pillar LH.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0123ZZ

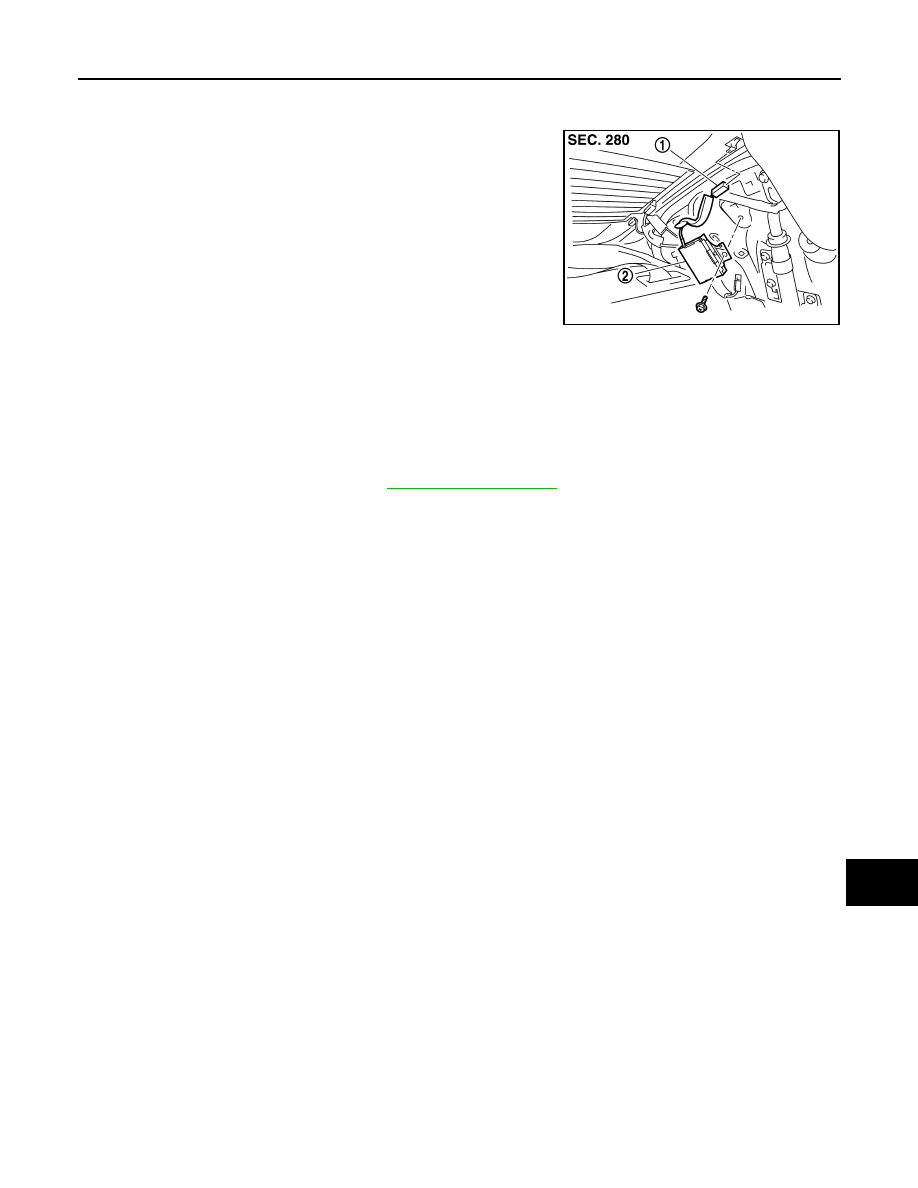

1.

AM-FM main connector

2.

Antenna amp.

AV-302

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

SATELLITE RADIO TUNER

SATELLITE RADIO TUNER

Exploded View

INFOID:0000000000964737

Removal and Installation

INFOID:0000000000964738

REMOVAL

1.

Remove trunk front finisher. Refer to

INT-26, "Exploded View"

.

2.

Remove rear parcel shelf finisher. Refer to

INT-18, "Exploded View"

.

3.

Remove screw (A) from inside the cabin, and remove TEL
adapter unit and TEL antenna as a single unit from trunk room
side.

4.

Remove bracket screws and remove TEL adapter unit and sat-
ellite radio tuner.

INSTALLATION

Installation is the reverse order of removal.

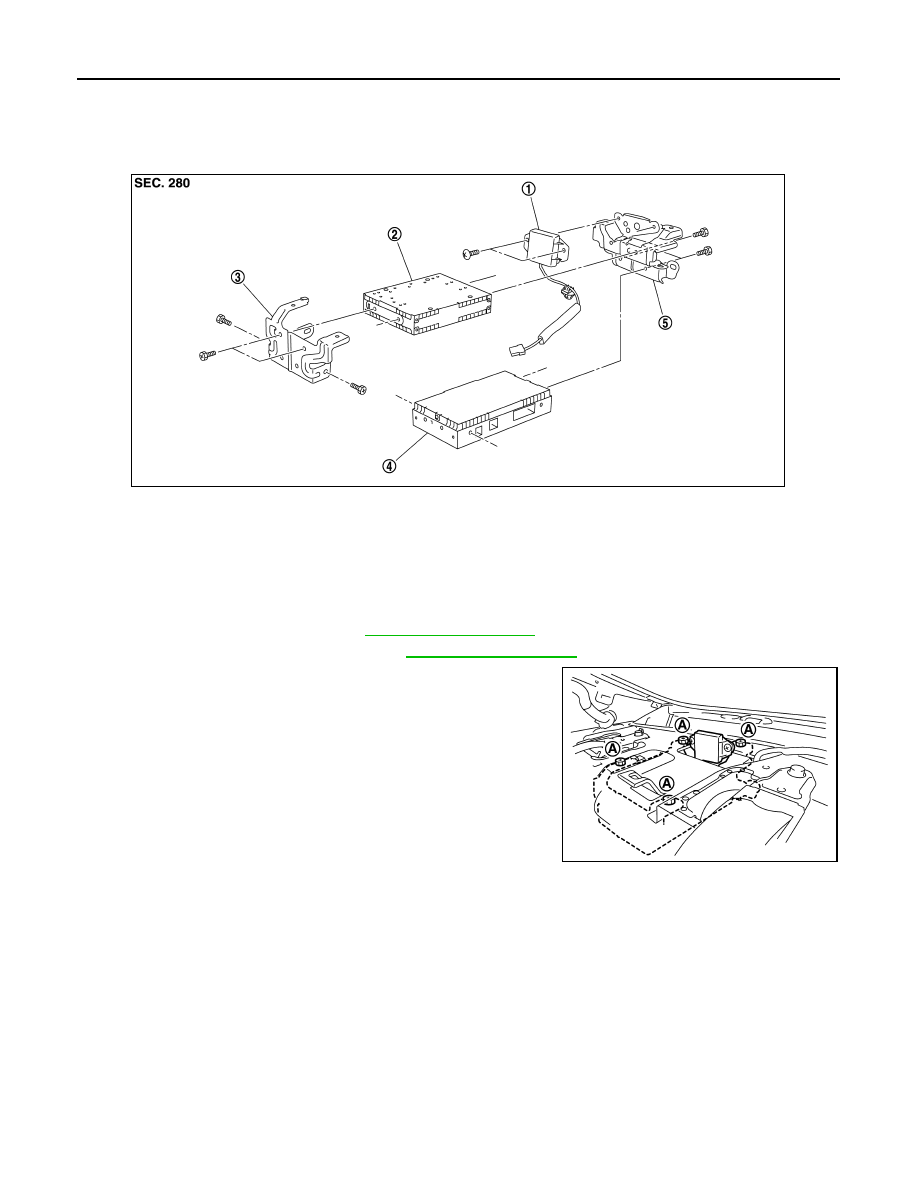

1.

TEL antenna

2.

Satellite radio tuner

3.

Bracket (front)

4.

TEL adapter unit

5.

Bracket (rear)

JSNIA0156ZZ

JSNIA0157ZZ

AV

SATELLITE RADIO ANTENNA

AV-303

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

SATELLITE RADIO ANTENNA

Exploded View

INFOID:0000000000964739

Removal and Installation

INFOID:0000000000964740

REMOVAL

1.

Remove head lining assembly (rear) to secure work space between vehicle and headlining. Refer to

INT-

22, "Exploded View"

.

2.

Remove nuts, and then remove satellite radio antenna from roof panel.

INSTALLATION

Installation is the reverse order of removal.

CAUTION:

Be careful about tightening torque. Antenna sensitivity becomes poor, and when it is excessive, roof
panel may be deformed, when roof antenna mounting nut tightening torque is loose.

JSNIA0124ZZ

1.

Satellite radio antenna

Roof antenna mounting nut

 : 6.5 N·m (0.66 kg-m, 58 in-lb)
