Infiniti G35 (V35) Sedan. Manual - part 1166

INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS

SEC-19

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

1.

BCM M118, M119, M120, M121, M122,
M123

2.

IPDM E/R E5, E6

3.

Remote keyless entry receiver
M104

4.

Inside key antenna (console) M146

5.

Outside key antenna (rear bumper)
B63

6.

Inside key antenna (trunk room)
B49

7.

Front outside handle LH (request switch)
D13

8.

Front outside handle LH (outside key
antenna) D14

9.

Unified meter and A/C AMP M66,
M67

10. Inside key antenna (instrument center)

M131

11. Trunk lid request switch B304

12. Intelligent Key warning buzzer (en-

gine room) E57

A.

Dash side lower (Passenger side).

B.

Engine room dash panel (RH).

C.

 View with instrument assist lower
panel removed.

JMKIA0142GB

SEC-20

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS

D.

View with console rear finisher removed. E.

View with rear bumper removed.

F.

View with trunk rear finisher (up-
per) removed.

G.

View of front door LH.

H.

Behind cluster lid C.

I.

View with hood seal assembly re-
moved.

1.

Horn relay E11

2.

ECM M107

3.

Push-button ignition switch M50

4.

Combination meter (Security indica-
tor) M53

5.

Stop lamp switch E110

6.

Steering lock unit M40

7.

Clutch interlock switch E111

8.

ICC brake hold relay E51

9.

Horn (high) E61, E62

10. Horn (low) E69, E70

JMKIA0144GB

INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS

SEC-21

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Component Description

INFOID:0000000000961323

A.

View with battery cover removed.

B.

View with instrument assist lower
panel removed.

C.

View with instrument driver lower
cover removed.

D.

View with instrument driver lower
cover removed.

E.

View with instrument driver lower
cover removed.

F.

Left view of engine room.

G.

View with front bumper removed.

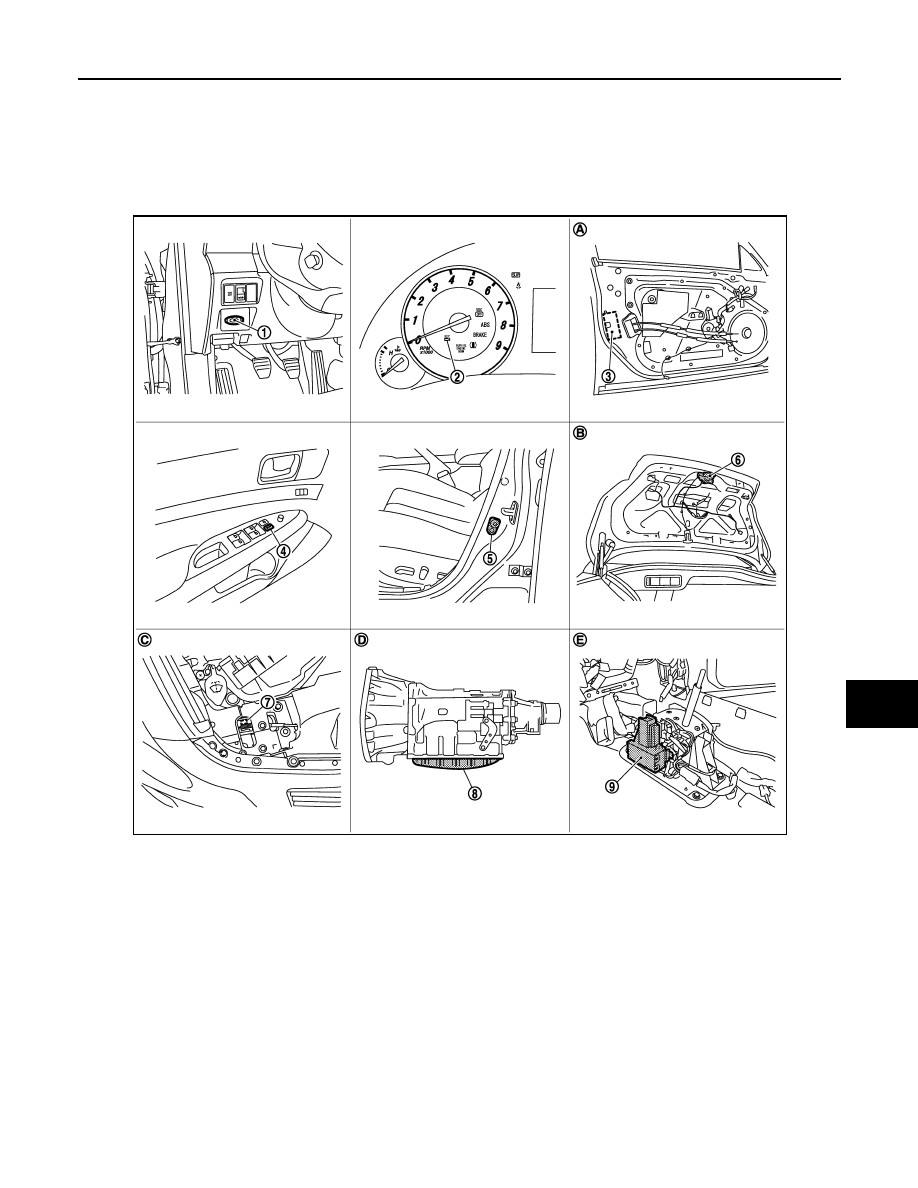

1.

Key slot M22

2.

Combination meter (Key warning
lamp) M53

3.

Front door lock assembly (driver
side) (door key cylinder switch) D15

4.

Power window main switch D8, D9

5.

Front door switch (driver side) B16

6.

Trunk lid lock assembly (trunk room
lamp switch) B303

7.

Hood switch E30

8.

TCM F151

9.

A/T device (detention switch) M137

A.

View with front door finisher re-
moved.

B.

View with trunk lid finisher removed. C.

View with hood switch incorporated
into hood lock (RH).

D.

Inside of A/T (built into A/T).

E.

View with center console assembly
removed.

JMKIA0145GB

SEC-22

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS

Component Reference

BCM

SEC-85

Steering lock unit

SEC-74

Push-button ignition switch

SEC-86

Door switch

DLK-65

A/T device (detention switch)

SEC-53

Inside key antenna

DLK-58

Remote keyless entry receiver

DLK-104

Stop lamp switch

SEC-47

Park/neutral position switch

SEC-61

Clutch switch

SEC-100

Steering lock relay

SEC-65

Starter relay

SEC-68

Starter control relay

SEC-52

Security indicator

SEC-120

Key warning lamp

SEC-119
