Infiniti G35 (V35) Sedan. Manual - part 1164





INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-11

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

• The ignition switch is in the ACC position
• All doors are closed
• A/T selector lever is in the P position

Reset Condition of Battery Saver System

AT models
In order to prevent the battery from discharging, the battery saver system will cut off the power supply when all
doors are closed, the selector lever is on P position and the ignition switch is left on ACC position for 1 hour. If
any of the following conditions are met the battery saver system is released and the steering will change auto-
matically to lock position from OFF position.
• Opening any door
• Operating with request switch on door lock
• Operating with Intelligent Key on door lock
Press push-button ignition switch and ignition switch will change to ACC position from OFF position.
M/T models
If any of the conditions above is met the battery saver system is released but the steering will not lock.
In this case, the steering operation OFF to LOCK is prohibited.

STEERING LOCK OPERATION

Steering is locked by steering lock unit when ignition switch is in the OFF position, A/T selector lever is in the
P position and any of the following conditions are met.
• Opening door
• Closing door
• Door is locked with request switch
• Door is locked with Intelligent Key

PUSH-BUTTON IGNITION SWITCH OPERATION PROCEDURE

The power supply position changing operation can be performed with the following operations.
NOTE:
• When an Intelligent Key is within the detection area of inside key antenna and when it is inserted to the key

slot, it is equivalent to the operations below.

• When starting the engine, the BCM monitors under the engine start conditions,
- Brake pedal operating condition (A/T models)
- A/T selector lever position (A/T models)
- Clutch pedal operating condition (M/T models)
- Vehicle speed
• Unless each start condition is fulfilled, the engine will not respond regardless of how many times the engine

switch is pressed. At that time, illumination repeats the position in the order of LOCK

ACC

ON

OFF.

*1: When the A/T selector lever position is N position, the engine start condition is different according to the vehicle speed.

Power supply position

Engine start/stop condition

Push-button ignition switch op-

eration frequency

Brake pedal (A/T)/clutch pedal

(M/T)

A/T selector lever position

LOCK

 ACC

Not depressed

Any position

1

LOCK

 ACC

 ON

Not depressed

Any position

2

LOCK

 ACC

 ON



OFF

Not depressed

Any position

3

LOCK

 START

ACC

 START

ON

 START

(Engine start)

Depressed

P or N position (*1)

1

[If the switch is pressed once,

the engine starts from any pow-
er supply position (LOCK, ACC,

and ON)]

Engine is running



OFF
(Engine stop)

Any position

1

Engine is running



ACC
(Engine stop)

Any position other than P (*2)

1

Engine stall return oper-
ation while driving

N position

1

SEC-12

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

• At vehicle speed of 4 km/h or less, the engine can start only when the brake pedal is depressed.

• At vehicle speed of 4 km/h or more, the engine can start even if the brake pedal is not depressed. (It is the same as “Engine stall

return operation while driving”.)

*2: When the A/T selector lever position is in any position other than P position and when the vehicle speed is 5 km/h or more, the
engine stop condition is different.

• Press and hold the push-button ignition switch for 2 seconds or more. (When the push-button ignition switch is pressed for too short a

time, the operation may be invalid, so properly press and hold to prevent an incorrect operation.)

• Press the push-button ignition switch 3 times or more within 1.5 seconds. (Emergency stop operation)

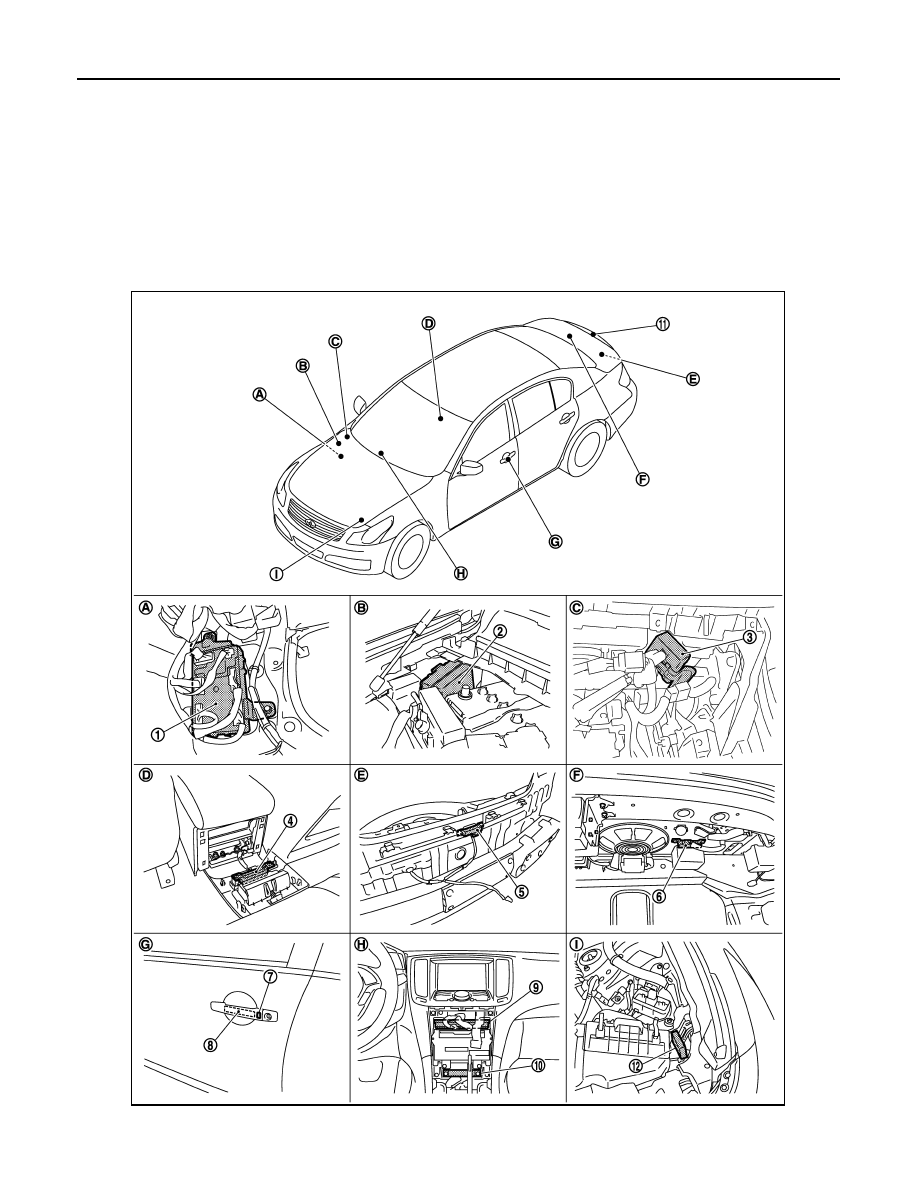

Component Parts Location

INFOID:0000000000961318

JMKIA0142GB

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-13

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

1.

BCM M118, M119, M120, M121, M122,
M123

2.

IPDM E/R E5, E6

3.

Remote keyless entry receiver
M104

4.

Inside key antenna (console) M146

5.

Outside key antenna (rear bumper)
B63

6.

Inside key antenna (trunk room)
B49

7.

Front outside handle LH (request switch)
D13

8.

Front outside handle LH (outside key
antenna) D14

9.

Unified meter and A/C AMP M66,
M67

10. Inside key antenna (instrument center)

M131

11. Trunk lid request switch B304

12. Intelligent Key warning buzzer (en-

gine room) E57

A.

Dash side lower (Passenger side).

B.

Engine room dash panel (RH).

C.

 View with instrument assist lower
panel removed.

D.

View with console rear finisher removed. E.

View with rear bumper removed.

F.

View with trunk rear finisher (up-
per) removed.

G.

View of front door LH.

H.

Behind cluster lid C.

I.

View with hood seal assembly re-
moved.

SEC-14

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

1.

Horn relay E11

2.

ECM M107

3.

Push-button ignition switch M50

4.

Combination meter (Security indica-
tor) M53

5.

Stop lamp switch E110

6.

Steering lock unit M40

7.

Clutch interlock switch E111

8.

ICC brake hold relay E51

9.

Horn (high) E61, E62

10. Horn (low) E69, E70

A.

View with battery cover removed.

B.

View with instrument assist lower
panel removed.

C.

View with instrument driver lower
cover removed.

D.

View with instrument driver lower
cover removed.

E.

View with instrument driver lower
cover removed.

F.

Left view of engine room.

G.

View with front bumper removed.

JMKIA0144GB
