FRONT SEAT

SE-99

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

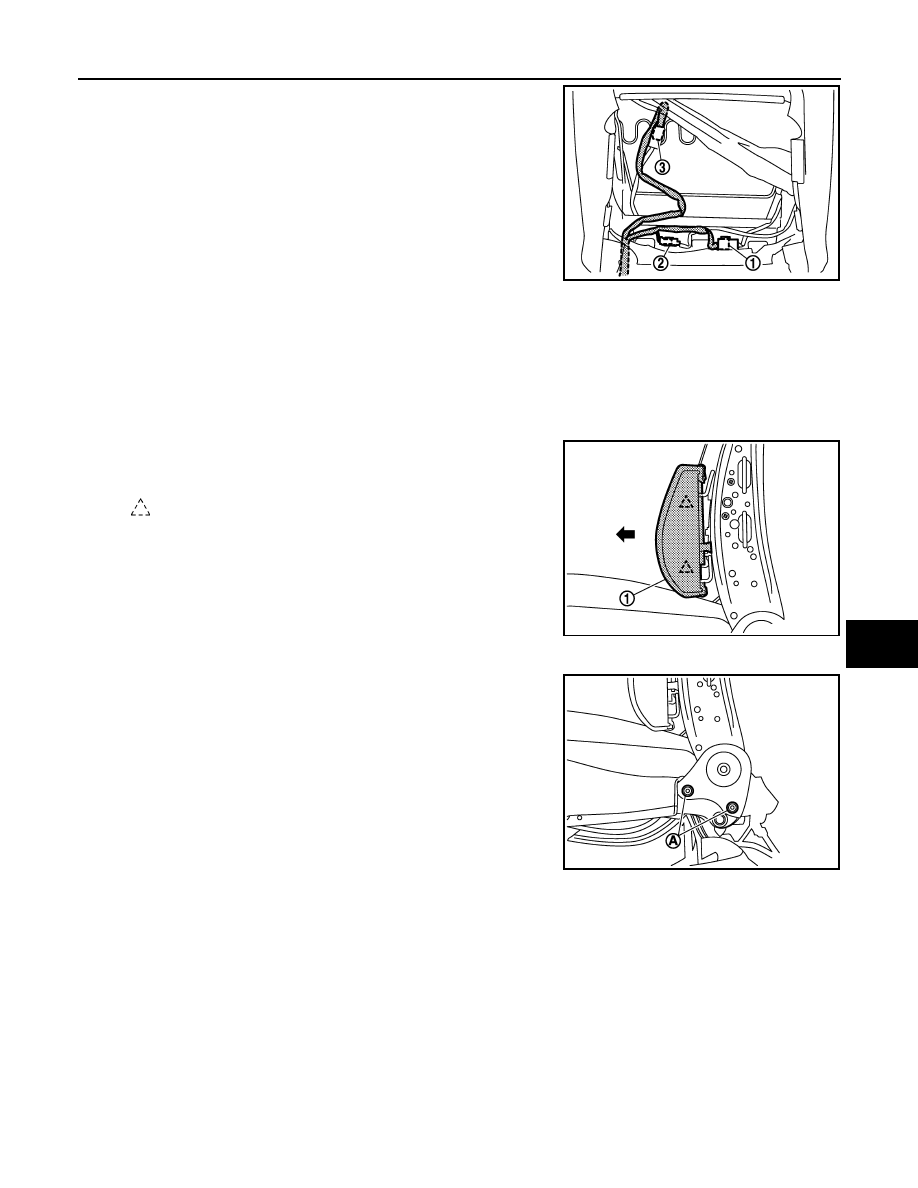

• Disconnect the reclining motor harness connector (1) and

remove the harness clamp.

• Disconnect the lumbar support motor harness connector (2)

and remove the harness clamp.(Power lumbar support model
only.)

• Disconnect the side support unit harness connector (3) and

remove the harness clamp.(Side support model only.)

• Remove the seatback pad and seatback trim from the seatback frame.
• Remove the hog rings, and separate the trim and pad.

6.

Remove the seatback silencer.

7.

Remove the lumbar support motor.(Power lumbar support model only.)
• Remove the bolts, and then remove lumbar support unit.
• Remove the screws, and then remove lumbar support motor.

8.

Remove the side support bag and unit.(Side support model only.)
• Remove the pawls, and then remove side support bag (1).
• Remove the side support unit.

9.

Remove the seatback frame.
Remove the seatback frame mounting bolt (A).

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seatback trim in position, and then securely connect the trim or trim cord with
the pad side wire.

SEAT CUSHION

Disassembly

CAUTION:

Do not disassemble front passenger seat cushion assembly.
Always replace as an assembly.
For front passenger seat service parts, refer to the service part catalogue.
1.

Remove the seat cushion outer finisher.

JMJIA0014ZZ

: Pawl

JMJIA0015ZZ

JMJIA0016ZZ

SE-100

< ON-VEHICLE REPAIR >

FRONT SEAT

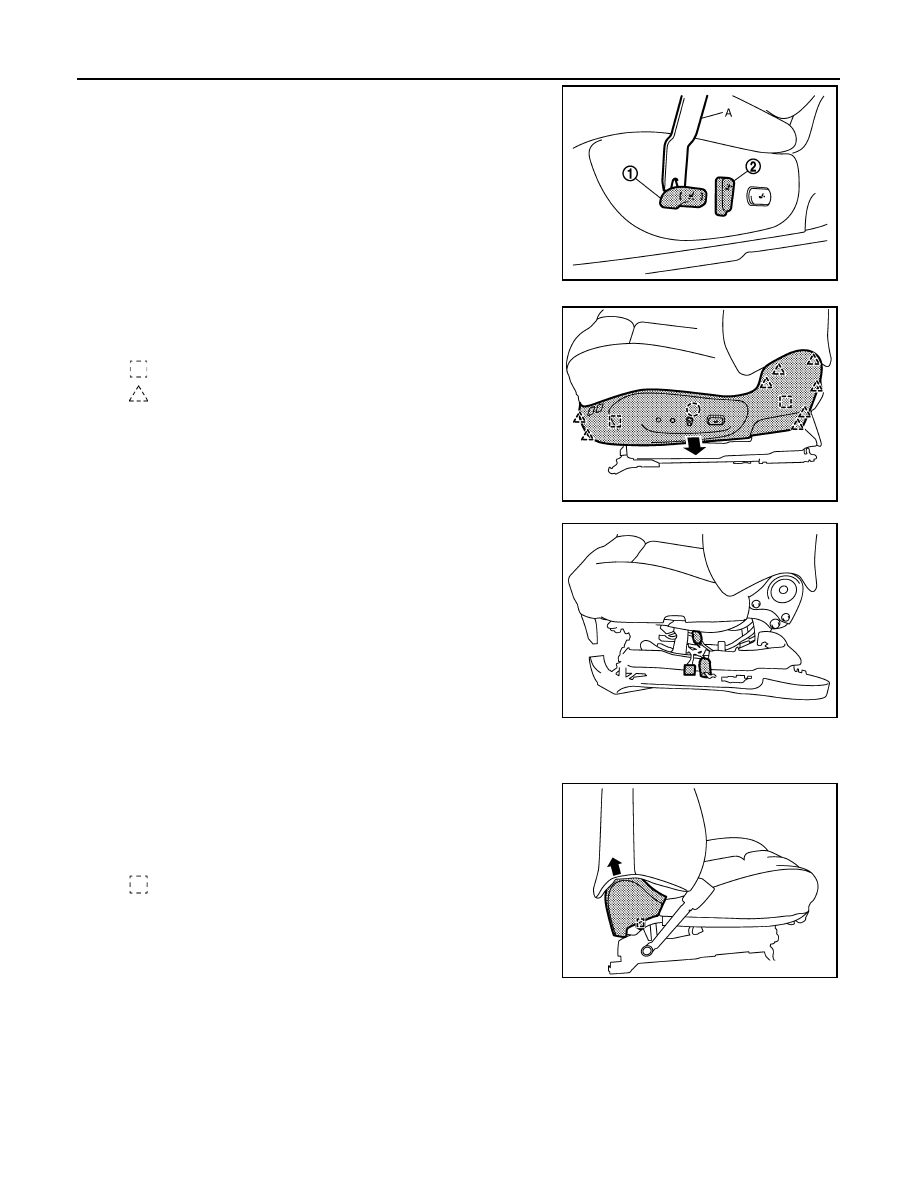

• Remove the seat slide and lifter switch knob (1) and seat

reclining switch knob (2).Using a remover tool (A).

• Remove the metal clips, clips and pawls, and then pull out seat

cushion outer finisher.

• Disconnect the seat control switch, lumbar support switch and

side support switch harness connector.

• Remove the reclining device outer cover (front, rear).

2.

Remove the seat cushion inner finisher.
• Remove the reclining device inner covers (front, rear) by

releasing the metal clip and pull it up together with the cover.

• Remove the relining device inner covers (front, rear) from the

seat cushion inner finisher by releasing the pawls.

3.

Remove the seat cushion front finisher.

JMJIA0007ZZ

: Metal clip

: Pawl

JMJIA0008ZZ

JMJIA0009ZZ

: Metal clip

JMJIA0010ZZ

FRONT SEAT

SE-101

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

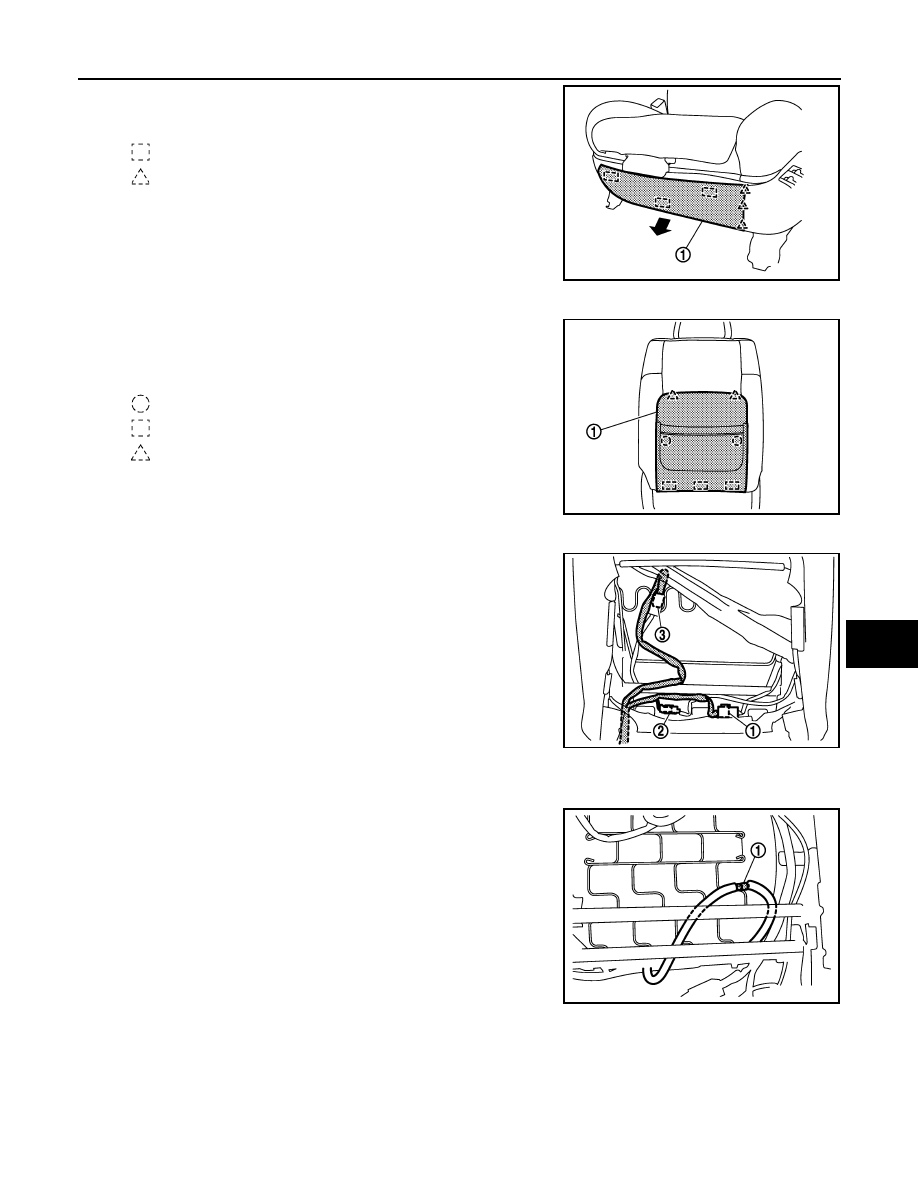

Remove the metal clips, and then pull out seat cushion front fin-
isher (1).

4.

Remove the seatback board.
• Remove the metal clips and clips, and then pull out seatback

board (1).

• Pull down the seatback board to release the upper pawls.

5.

Remove the seatback assembly.
• Disconnect the reclining motor harness connector (1) and

remove the harness clamp.

• Disconnect the lumbar support motor harness connector (2)

and remove the harness clamp.(Power lumbar support model
only.)

• Disconnect the side support unit harness connector (3) and

remove the harness clamp.(Side support model only.)

• Remove the seat cushion retainer, and then side air bag harness clamp and seatback heater unit har-

ness connector.

• Remove the side support hose joint (1) located under the seat

cushion.(Side support model only.)

: Metal clip

: Pawl

JMJIA0017ZZ

: Clip

: Metal clip

: Pawl

JMJIA0011ZZ

JMJIA0014ZZ

JMJIA0013ZZ

SE-102

< ON-VEHICLE REPAIR >

FRONT SEAT

• Remove the seatback mounting bolts (A), and then remove

the seatback assembly.

6.

Remove the thigh extension.(Thigh extension model only.)
• Remove the retainer.

• Remove the thigh extension pad.
• Remove the mounting screw (A).
• Remove the seat cushion trim wire (1) from the hook (2).
• Remove the thigh extension frame by sliding it.

7.

Remove the seat cushion pad and trim.
• Remove the clip (A).(Thigh extension model only.)

• Remove the retainer.
• Disconnect the seat cushion heater unit harness connector.
• Remove the hog rings, and separate the trim and pad.

8.

Remove the side support bag.(Side support model only.)
• Remove the hose clamp.

JMJIA0018ZZ

JMJIA0019ZZ

JMJIA0020ZZ

JMJIA0021ZZ
