Infiniti G35 (V35) Sedan. Manual - part 1133





LATCH SYSTEM FOR CHILDREN

SB-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

LATCH SYSTEM FOR CHILDREN

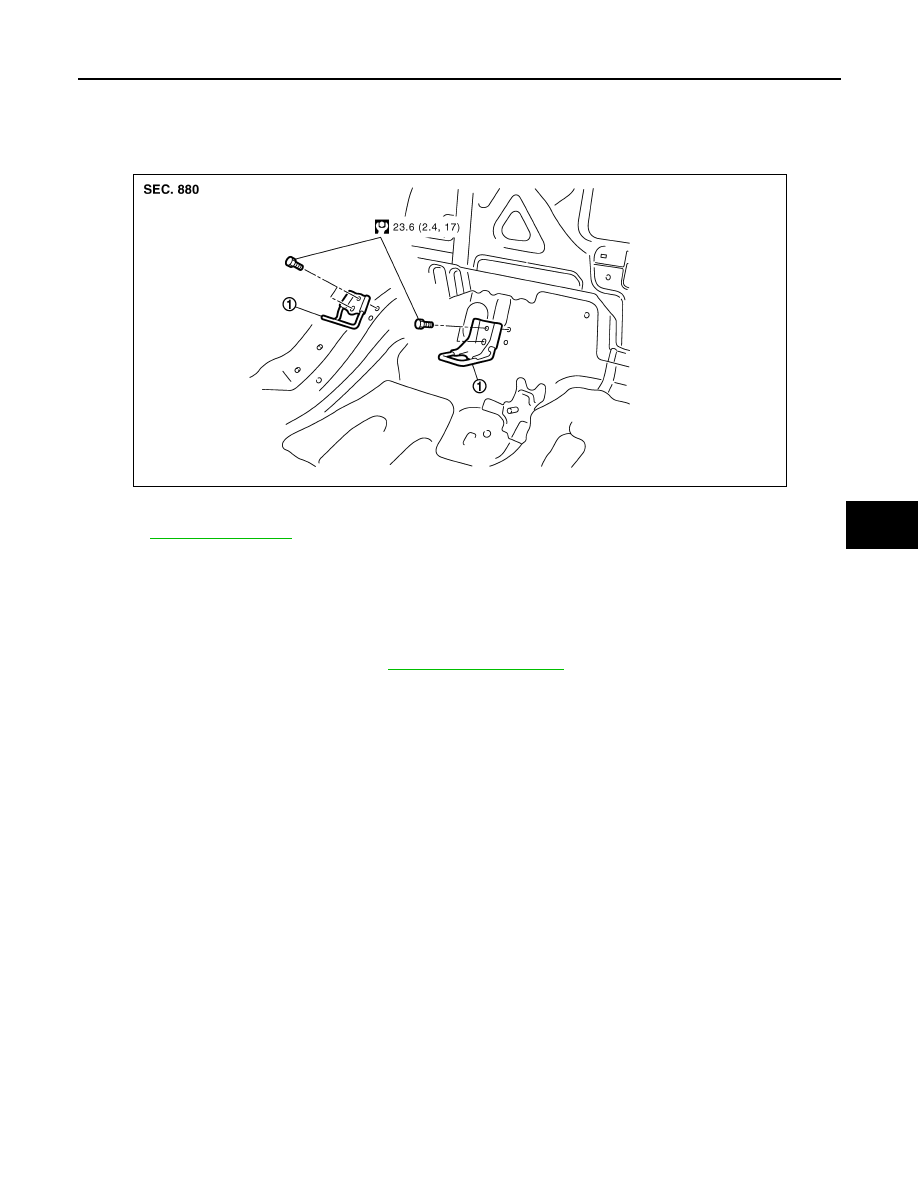

Exploded View

INFOID:0000000000959557

Removal and Installation

INFOID:0000000000959558

REMOVAL

CAUTION:

Replace anchor bolts if they are deformed or worn out.

1.

Remove the rear seat cushion. Refer to

SE-104, "Exploded View"

.

2.

Remove LATCH (Lower Anchor and Tether for Children) system.

INSTALLATION

Install in the reverse order of removal.

1.

LATCH system

Refer to

SE-104, "Exploded View"

 for symbols in the figure.

JMHIA0031GB

SB-14

< ON-VEHICLE REPAIR >

TOP TETHER STRAP CHILD RESTRAINT

TOP TETHER STRAP CHILD RESTRAINT

Exploded View

INFOID:0000000000959559

Removal and Installation

INFOID:0000000000959560

REMOVAL

CAUTION:

Replace anchor bolts if they are deformed or worn out.

1.

Remove the top tether strap child restraint cover. Refer to

INT-18, "Exploded View"

.

2.

Remove the top tether strap child restraint.

INSTALLATION

Install in the reverse order of removal.

1.

Anchor bolt

2.

Wave washer

3.

Anchor plate

4.

Spacer

5.

Fiber washer

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0032GB

SE-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

SE

A

B

SE

N

O

P

CONTENTS

SEAT

BASIC INSPECTION  ....................................

4

DIAGNOSIS AND REPAIR WORKFLOW  ..........

4

Work Flow  .................................................................

4

FUNCTION DIAGNOSIS ...............................

5

POWER SEAT .....................................................

5

System Description  ...................................................

5

Component Parts Location ........................................

5

Component Description .............................................

5

TILT&TELESCOPIC SYSTEM  ............................

7

System Description  ...................................................

7

Component Parts Location ........................................

7

Component Description .............................................

7

HEATED SEAT ....................................................

9

System Description  ...................................................

9

Component Parts Location ........................................

9

Component Description .............................................

9

LUMBAR SUPPORT  ..........................................

10

System Description  .................................................

10

Component Parts Location ......................................

10

Component Description ...........................................

10

COMPONENT DIAGNOSIS  .........................

11

POWER SEAT POWER SUPPLY CIRCUIT  ......

11

Component Function Check ....................................

11

Diagnosis Procedure ...............................................

11

HEATED SEAT POWER SUPPLY AND
GROUND CIRCUIT ............................................

12

Component Function Check ....................................

12

Diagnosis Procedure ...............................................

12

POWER SEAT SWITCH .....................................

13

Description ..............................................................

13

Component Function Check ....................................

13

Diagnosis Procedure ...............................................

13

Component Inspection .............................................

13

SIDE SUPPORT SWITCH .................................

16

Description ...............................................................

16

Component Function Check  ....................................

16

Diagnosis Procedure  ...............................................

16

Component Inspection .............................................

16

TILT&TELESCOPIC SWITCH  ..........................

18

Description ...............................................................

18

Component Function Check  ....................................

18

Diagnosis Procedure  ...............................................

18

Component Inspection .............................................

19

HEATED SEAT SWITCH  ..................................

20

Description ...............................................................

20

Component Function Check  ....................................

20

Diagnosis Procedure  ...............................................

20

Component Inspection .............................................

20

SEAT HEATER  .................................................

22

Description ...............................................................

22

Component Function Check  ....................................

22

Diagnosis Procedure  ...............................................

22

SLIDING MOTOR ..............................................

23

Description ...............................................................

23

Component Function Check  ....................................

23

Diagnosis Procedure  ...............................................

23

Component Inspection .............................................

23

RECLINING MOTOR .........................................

25

Description ...............................................................

25

Component Function Check  ....................................

25

Diagnosis Procedure  ...............................................

25

Component Inspection .............................................

25

LIFTING MOTOR  ..............................................

27

Description ...............................................................

27

Component Function Check  ....................................

27

Diagnosis Procedure  ...............................................

27

Component Inspection .............................................

28

SE-2

TILT&TELESCOPIC MOTOR  ............................

29

Description ..............................................................

29

Component Function Check  ...................................

29

Diagnosis Procedure  ..............................................

29

Component Inspection ............................................

30

SIDE SUPPORT UNIT  .......................................

31

Description ..............................................................

31

Component Function Check  ...................................

31

Diagnosis Procedure  ..............................................

31

TILT&TELESCOPIC SENSOR  ..........................

32

Description ..............................................................

32

Component Function Check  ...................................

32

Diagnosis Procedure  ..............................................

32

ADP CONTROL UNIT POWER SUPPLY AND
GROUND CIRCUIT ............................................

34

Component Function Check  ...................................

34

Diagnosis Procedure  ..............................................

34

LUMBAR SUPPORT SWITCH  ..........................

35

Description ..............................................................

35

Component Function Check  ...................................

35

Diagnosis Procedure  ..............................................

35

Component Inspection ............................................

35

LUMBAR SUPPORT MOTOR ...........................

37

Description ..............................................................

37

Component Function Check  ...................................

37

Diagnosis Procedure  ..............................................

37

Component Inspection ............................................

38

POWER SEAT  ...................................................

39

Wiring Diagram— POWER SEAT SYSTEM —  ......

39

HEATED SEAT  ..................................................

46

Wiring Diagram— HEATED SEAT SYSTEM —  .....

46

LUMBAR SUPPORT .........................................

50

Wiring Diagram— LUMBAR SUPPORT SYSTEM
— ...........................................................................
.

50

TILT&TELESCOPIC SYSTEM  ..........................

53

Wiring Diagram— TILT AND TELESCOPIC SYS-
TEM —  ..................................................................
.

53

ECU DIAGNOSIS  ........................................

56

AUTOMATIC DRIVE POSITIONER CON-
TROL UNIT  ........................................................

56

Reference Value  .....................................................

56

Wiring Diagram— TILT AND TELESCOPIC SYS-
TEM —  ..................................................................
.

58

SYMPTOM DIAGNOSIS  .............................

61

ALL COMPONENTS OF POWER SEAT DO
NOT OPERATE  .................................................

61

Diagnosis Procedure  ..............................................

61

EITHER DRIVER SEAT OR PASSENGER
POWER SEAT DOES NOT OPERATE  .............

62

Diagnosis Procedure ...............................................

62

SLIDING FUNCTION DOES NOT OPERATE ...

63

Diagnosis Procedure ...............................................

63

SLIDING FUNCTION IS OPERATING ONLY
IN ONE WAY  .....................................................

64

Diagnosis Procedure ...............................................

64

RECLINING FUNCTION DOES NOT OPER-
ATE ....................................................................

65

Diagnosis Procedure ...............................................

65

RECLINING FUNCTION IS OPERATING
ONLY IN ONE WAY  ..........................................

66

Diagnosis Procedure ...............................................

66

LIFTING FUNCTION DOES NOT OPERATE ...

67

Diagnosis Procedure ...............................................

67

LIFTING FUNCTION IS OPERATING ONLY
IN ONE WAY  .....................................................

68

Diagnosis Procedure ...............................................

68

ALL OF SIDE SUPPORT COMPONENTS DO
NOT OPERATE  .................................................

69

Diagnosis Procedure ...............................................

69

SEAT BACK SIDE SUPPORT FUNCTION
DOES NOT OPERATE  ......................................

70

Diagnosis Procedure ...............................................

70

SEAT CUSHION SIDE SUPPORT DOES NOT
OPERATE ..........................................................

71

Diagnosis Procedure ...............................................

71

BOTH DRIVER SEAT HEATER AND PAS-
SENGER SEAT HEATER DO NOT OPERATE

...

72

Diagnosis Procedure ...............................................

72

DRIVER SIDE HEATER DOES NOT OPER-
ATE ....................................................................

73

Diagnosis Procedure ...............................................

73

PASSENGER SIDE HEATER DOES NOT OP-
ERATE ...............................................................

74

Diagnosis Procedure ...............................................

74

DRIVER SIDE SEAT BACK HEATER DOES
NOT OPERATE  .................................................

75

Diagnosis Procedure ...............................................

75

PASSENGER SIDE SEAT BACK HEATER
DOES NOT OPERATE  ......................................

76

Diagnosis Procedure ...............................................

76

LUMBAR SUPPORT FUNCTION DOES NOT
OPERATE ..........................................................

77















Content   ..  1131  1132  1133  1134   ..
