A : The webbing can be pulled out in case the retractor is tilted
15

°

 degrees or less.

B : The webbing cannot be pulled out in case the retractor is
tilted 27

°

 degrees or more.

• A and B show tilting angles.
•

 : Vehicle front.

Replace the seat belt assembly if it does not operate normally.

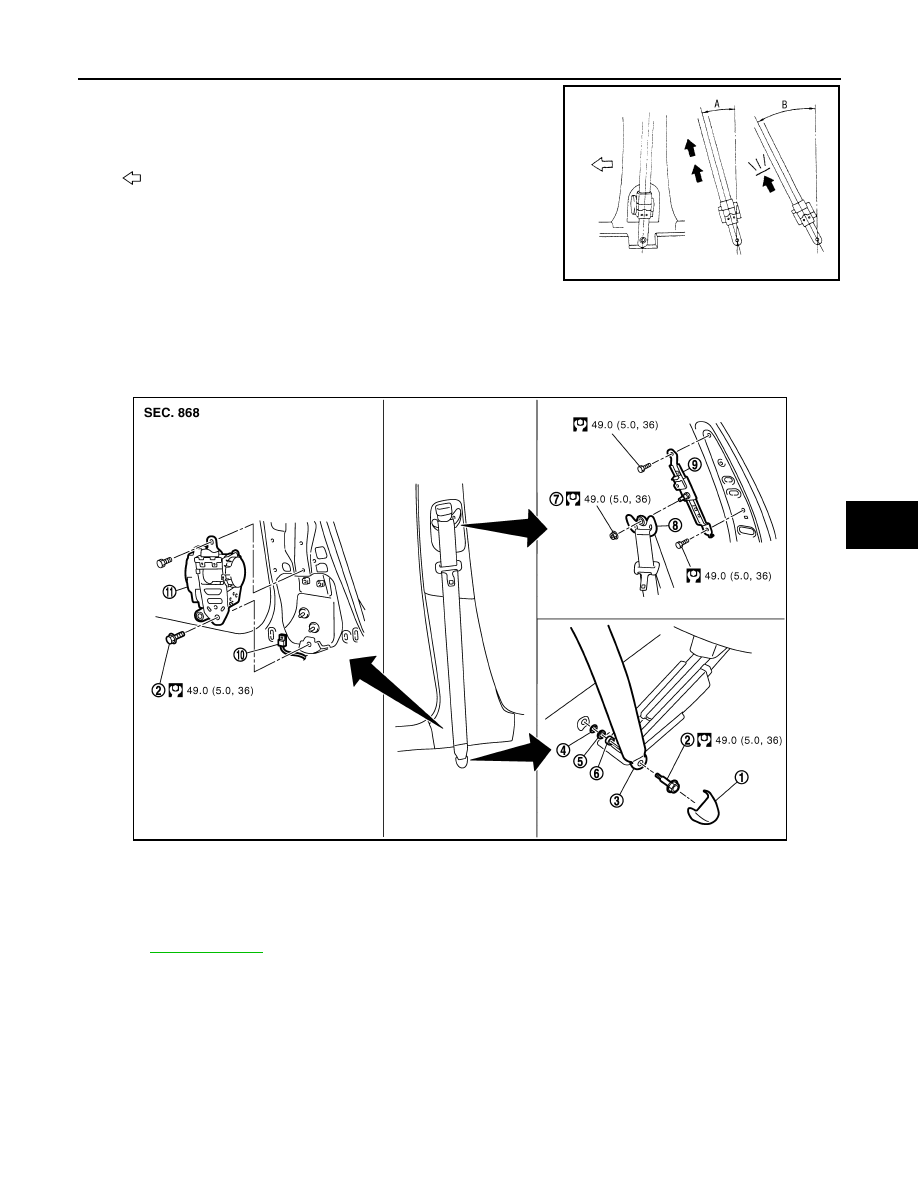

SEAT BELT RETRACTOR : Exploded View

INFOID:0000000000959546

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000000959547

REMOVAL

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3
minutes.
1.

Remove the outer anchor.
• Remove the outer anchor cover.
• Remove the fixing anchor bolt of the outer anchor.

PHIA0954J

1.

Anchor cover

2.

Anchor bolt

3.

Outer anchor

4.

Retaining washer

5.

Spring washer

6.

Spacer

7.

Anchor nut

8.

Shoulder anchor

9.

Seat belt adjuster

10. Seat belt pre-tensioner connector

11.

Pre-tensioner seat belt retractor

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0028GB

SB-6

< ON-VEHICLE REPAIR >

FRONT SEAT BELT

2.

Remove the shoulder anchor.
• Remove the center pillar lower and upper garnishes, refer to

INT-22, "Exploded View"

.

• Remove the fixing anchor nut of the shoulder anchor.

3.

Remove the seat belt assembly.
• Disconnect the seat belt pre-tensioner connector.

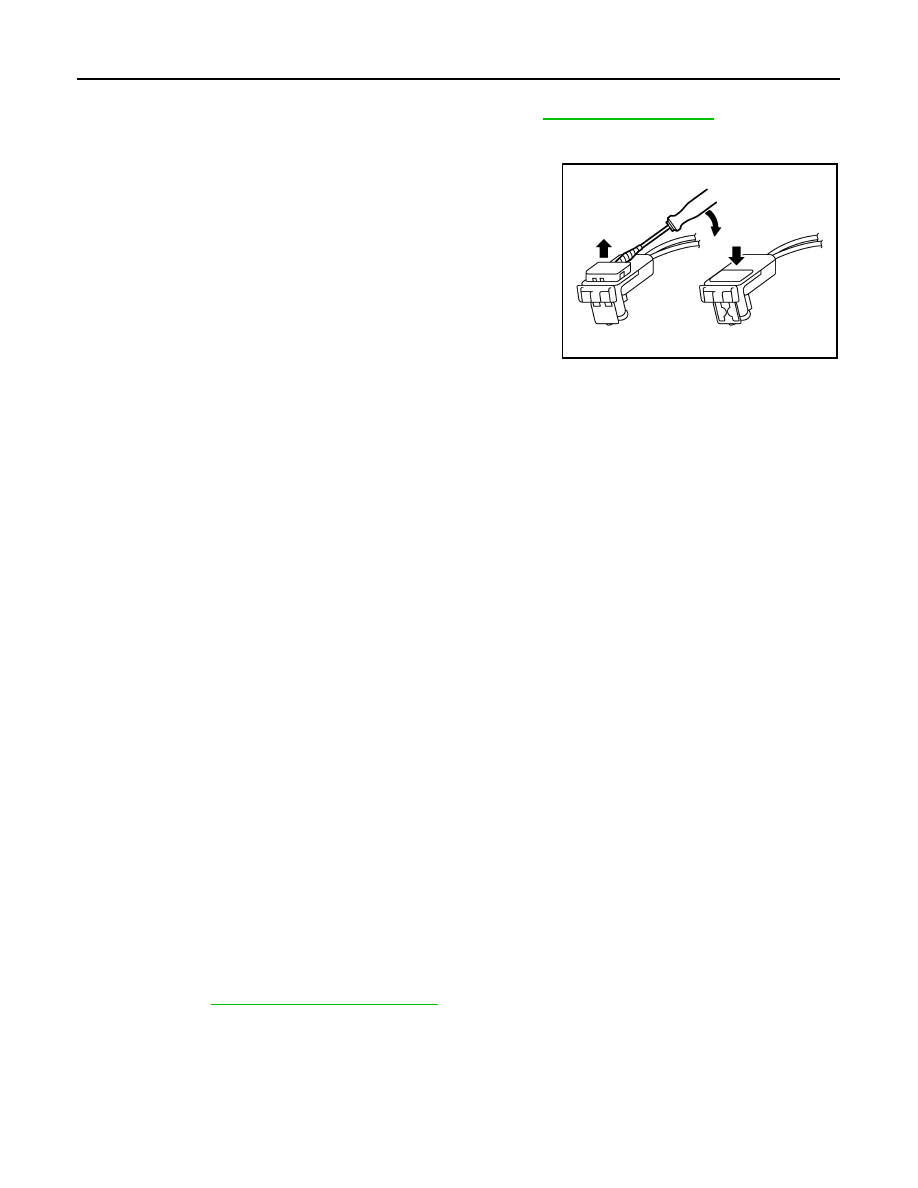

CAUTION:

• For installing/removing seat belt pre-tensioner connec-

tor, insert thin screwdriver wrapped in tape into notch,
lift lock and remove connector.

• Install connector with lock raised, and push lock into

connector.

• Remove the fixing screw and anchor bolt of the pre-tensioner seat belt retractor.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Inspection

INFOID:0000000000959548

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation is noted. Seat belt pre-
tensioners should be replaced even if the seat belts are not in use during a frontal collision in which
the air bags are deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and

buckles show no damage and continue to operate properly).

• The seat belt was damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).
• The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage

or distortion and repair as necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioner should be replaced even if the seat belts are not in use during the collision in

which the air bags are deployed.

PRELIMINARY CHECKS

1.

Check the seat belt warning lamp/chime for proper operation as follows:

a.

Turn ignition switch ON. The seat belt warning lamp should illuminate. Also, the seat belt warning chime
should sound for about six seconds.

b.

Fasten driver seat belt. The seat belt warning lamp should turn off and the chime (if sounding) should
stop.

2.

If the air bag warning lamp is blinking, conduct self-diagnosis using CONSULT-III and air bag warning
lamp. Refer to

SRC-15, "Diagnosis Description"

.

3.

Check that the seat belt retractor, seat belt anchor and buckle bolts are securely attached.

4.

Repeat steps above as necessary to check the other seat belts.

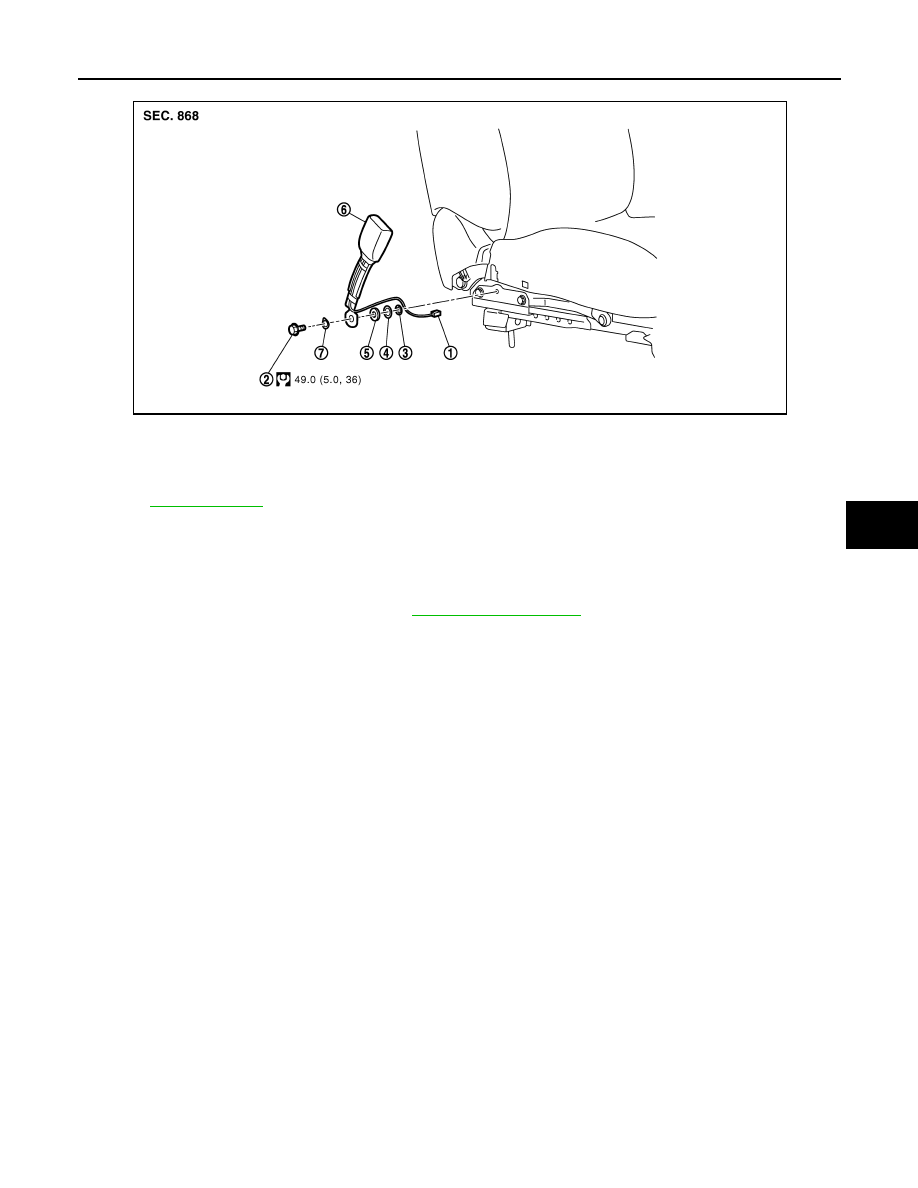

SEAT BELT BUCKLE : Exploded View

INFOID:0000000000959549

PHIA0953J

FRONT SEAT BELT

SB-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000000959550

REMOVAL

Remove the seat belt buckle.
• Remove the front seat from vehicle. Refer to

SE-92, "Exploded View"

 (for ease of tool operation in narrow

space).

• Disconnect the seat belt buckle harness connector and harness clamp.
• Remove the fixing anchor bolt of the seat belt buckle.

INSTALLATION

Install in the reverse order of removal.

1.

Seat belt buckle harness connector

2.

Anchor bolt

3.

Retaining washer

4.

Washer

5.

Spacer

6.

Seat belt buckle

7.

Wave washer

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0029GB

SB-8

< ON-VEHICLE REPAIR >

REAR SEAT BELT

REAR SEAT BELT

SEAT BELT RETRACTOR

SEAT BELT RETRACTOR : Inspection

INFOID:0000000000959551

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation is noted. Seat belt pre-
tensioners should be replaced even if the seat belts are not in use during a frontal collision in which
the air bags are deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and

buckles show no damage and continue to operate properly).

• The seat belt was damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).
• The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage

or distortion and repair as necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioners should be replaced even if the seat belts are not in use during the collision in

which the air bags are deployed.

PRELIMINARY CHECKS

1.

Check the seat belt warning lamp/chime for proper operation as follows:

a.

Turn ignition switch ON. The seat belt warning lamp should illuminate. Also, the seat belt warning chime
should sound for about six seconds.

b.

Fasten driver seat belt. The seat belt warning lamp should turn off and the chime (if sounding) should
stop.

2.

If the air bag warning lamp is blinking, conduct self-diagnosis with CONSULT-III and air bag warning lamp.
Refer to

SRC-15, "Diagnosis Description"

.

3.

Check that the seat belt retractor, seat belt anchor and buckle bolts are securely attached.

4.

Check retractor operation:

a.

Fully extend the seat belt webbing and check for twists, tears or other damage.

b.

Allow the seat belt to retract. Ensure that webbing returns smoothly and completely into the retractor. If
the seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth. Because dirt
build-up in the loops of that upper anchors can cause the seat belts to retract slowly.

c.

Fasten the seat belt. Check the seat belt returns smoothly and completely to the retractor. If the webbing
does not return smoothly, the cause may be an accumulation of dust or dirt. Use the “SEAT BELT TAPE
SET” and perform the following steps.

5.

Repeat steps above as necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

NOTE:
All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the
retractor will lock and prevent the webbing from extending any further. All 3-point type seat belt retractors
except the driver's seat belt also have an Automatic Locking Retractors (ALR) mode. The ALR mode (also
called child restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt
is fully extended. When the webbing is then retracted partially, the ALR mode automatically locks the seat belt
in a specific position so the webbing cannot be extended any further. To cancel the ALR mode, allow the seat
belt to fully wind back into the retractor.
Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating prop-
erly.

ELR Function Stationary Check
