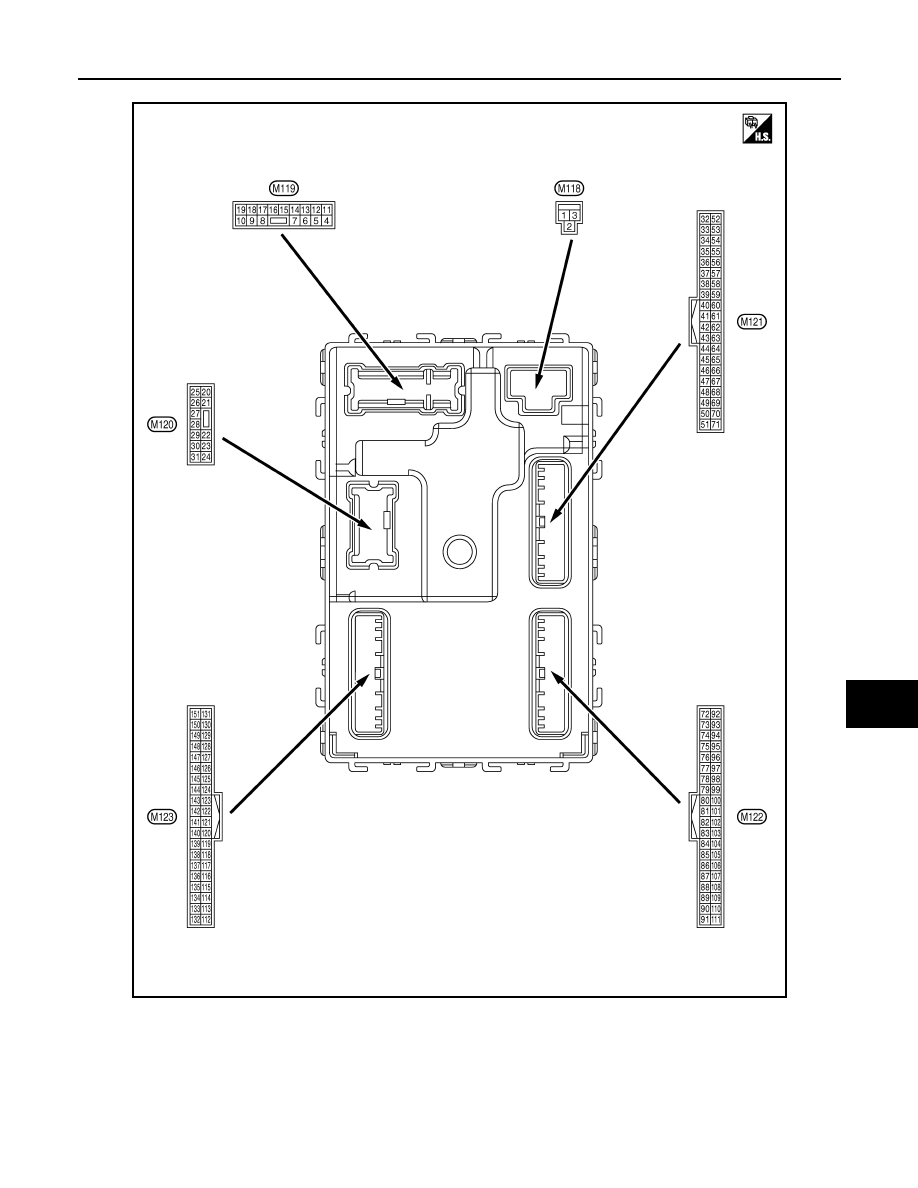

RF-18 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) S/L RELAY-REQ Ignition switch in OFF or ACC position OFF Ignition switch in ON position ON VEH SPEED 1 While driving Equivalent to speedometer reading VEH SPEED 2 While driving Equivalent to speedometer reading DOOR STAT-DR Driver door is locked LOCK Wait with selective UNLOCK operation (5 seconds) READY Driver door is unlocked UNLK DOOR STAT-AS Passenger door is locked LOCK Wait with selective UNLOCK operation (5 seconds) READY Passenger door is unlocked UNLK ID OK FLAG Ignition switch in ACC or ON position RESET Ignition switch in OFF position SET PRMT ENG STRT The engine start is prohibited RESET The engine start is permitted SET PRMT RKE STRT NOTE: RESET KEY SW -SLOT Intelligent Key is not inserted into key slot OFF Intelligent Key is inserted into key slot ON RKE OPE COUN1 During the operation of Intelligent Key Operation frequency of Intelligent Key RKE OPE COUN2 NOTE: — AIR PRESS FL Ignition switch ON (Only when the signal from the transmitter is re- Air pressure of front LH tire AIR PRESS FR Ignition switch ON (Only when the signal from the transmitter is re- Air pressure of front RH tire AIR PRESS RR Ignition switch ON (Only when the signal from the transmitter is re- Air pressure of rear RH tire AIR PRESS RL Ignition switch ON (Only when the signal from the transmitter is re- Air pressure of rear LH tire ID REGST FL1 ID of front LH tire transmitter is registered DONE ID of front LH tire transmitter is not registered YET ID REGST FR1 ID of front RH tire transmitter is registered DONE ID of front RH tire transmitter is not registered YET ID REGST RR1 ID of rear RH tire transmitter is registered DONE ID of rear RH tire transmitter is not registered YET ID REGST RL1 ID of rear LH tire transmitter is registered DONE ID of rear LH tire transmitter is not registered YET WARNING LAMP Tire pressure indicator OFF OFF Tire pressure indicator ON ON BUZZER Tire pressure warning alarm is not sounding OFF Tire pressure warning alarm is sounding ON Monitor Item Condition Value/Status |
