Infiniti G20 (P11). Manual - part 535





FRONT WHEEL ALIGNMENT (UNLADEN*1)

NCSU0021

Camber
Degree minute (Decimal degree)

Minimum

−0°45

(−0.75°)

Nominal

0°00

(0.00°)

Maximum

0°45

(0.75°)

Left and right difference

45

(0.75°) or less

Caster
Degree minute (Decimal degree)

Minimum

1°10

(1.17°)

Nominal

1°55

(1.92°)

Maximum

2°40

(2.67°)

Left and right difference

45

(0.75°) or less

Kingpin inclination
Degree minute (Decimal degree)

Minimum

13°45

(13.75°)

Nominal

14°30

(14.50°)

Maximum

15°15

(15.25°)

Total toe-in

Distance (A − B)
mm (in)

Minimum

0 (0)

Nominal

1 (0.04)

Maximum

2 (0.08)

Angle (left plus right)
Degree minute (Decimal degree)

Minimum

0

(0.00°)

Nominal

6

(0.10°)

Maximum

12

(0.20°)

Wheel turning angle
Full turn*2

Inside
Degree minute (Decimal degree)

Minimum

31°00

(31.00°)

Nominal

34°00

(34.00°)

Maximum

35°00

(35.00°)

Outside
Degree minute (Decimal degree)

Nominal

29°00

(29.00°)

*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
*2: On power steering models, wheel turning force (at circumference of steering wheel) of 98 to 147 N (10 to 15 kg, 22 to 33 lb) with
engine idle.

LOWER BALL JOINT

NCSU0022

Swinging force “A”
(Measuring point: cotter pin hole of ball stud)

N (kg, lb)

7.8 - 54.9 (0.8 - 5.6, 1.8 - 12.3)

Turning torque “B”

N·m (kg-cm, in-lb)

0.49 - 3.43 (5.0 - 35.0, 4.3 - 30.4)

Vertical end play “C”

mm (in)

0 (0)

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

BR

ST

RS

BT

HA

SC

EL

IDX

FRONT SUSPENSION

Service Data and Specifications (SDS) (Cont’d)

SU-15

WHEELARCH HEIGHT (UNLADEN*)

=NCSU0041

SFA818A

Applied model

195/60 R15 tire

195/65 R15 tire

Front (Hf) mm (in)

666 (26.22)

671 (26.42)

Rear (Hr) mm (in)

653 (25.71)

658 (25.91)

*: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

WHEEL RUNOUT

NCSU0023

Wheel type

Aluminum

Radial runout limit

mm (in)

0.3 (0.012)

Lateral runout limit

mm (in)

0.3 (0.012)

FRONT SUSPENSION

Service Data and Specifications (SDS) (Cont’d)

SU-16

SBR686C

Precautions

PRECAUTIONS

NCSU0024

I

When installing each rubber part, final tightening must be
carried out under unladen condition* with tires on ground.
*: Fuel, radiator coolant and engine oil full. Spare tire, jack,
hand tools and mats in designated positions.

I

Use flare nut wrench when removing or installing brake
tubes.

I

After installing removed suspension parts, check wheel
alignment.

I

Do not jack up at the trailing arm and lateral link.

I

Always torque brake lines when installing.

Preparation

COMMERCIAL SERVICE TOOLS

NCSU0026

Tool name

Description

Equivalent to
GG94310000
1 Flare nut crowfoot
2 Torque wrench

NT360

Removing and installing brake piping
a: 10 mm (0.39 in)

Spring compressor

NT717

Removing and installing coil spring

Noise, Vibration and Harshness (NVH)
Troubleshooting

NCSU0027

Refer to “Noise, Vibration and Harshness (NVH) Troubleshooting”,
“FRONT SUSPENSION”, SU-3.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

BR

ST

RS

BT

HA

SC

EL

IDX

REAR SUSPENSION

Precautions

SU-17

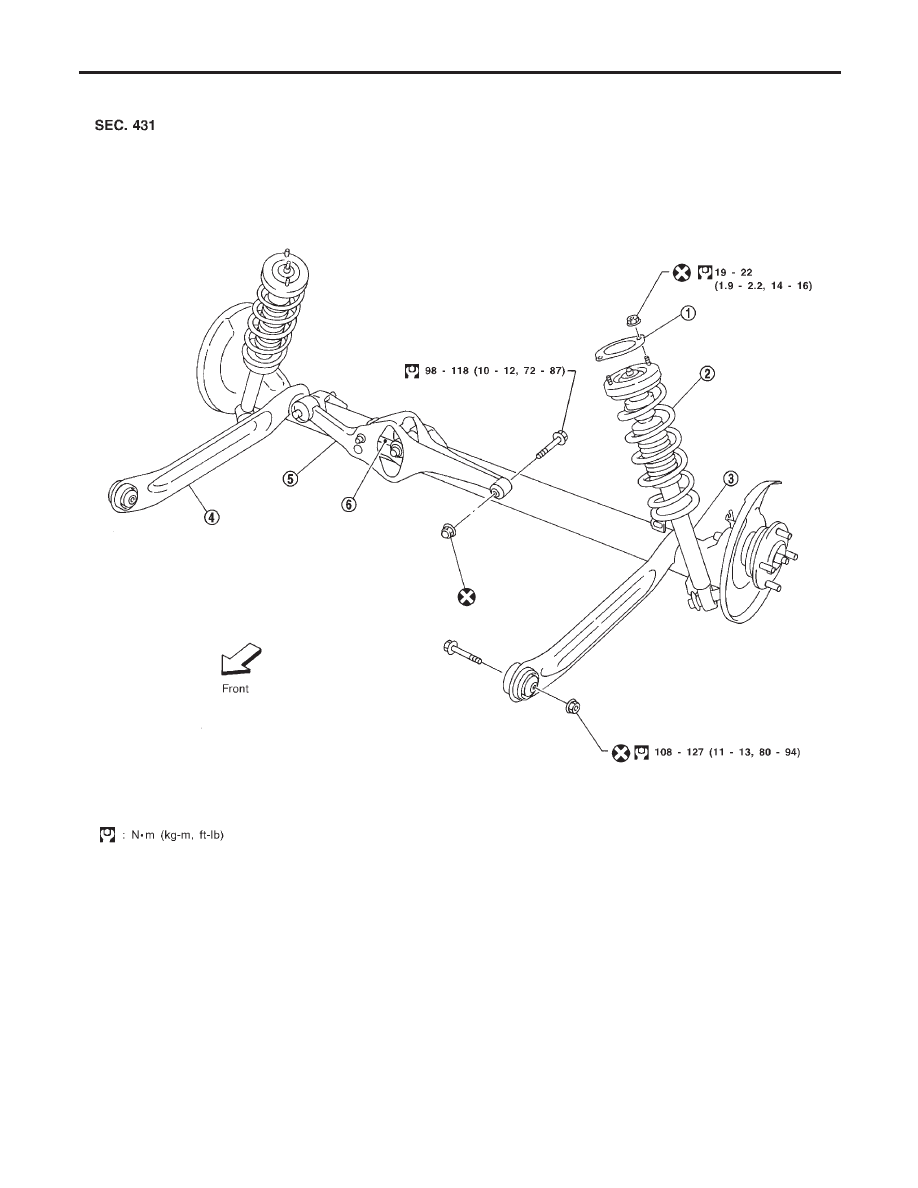

Components

NCSU0028

SRA788AB

1.

Gasket

2.

Coil spring

3.

Shock absorber

4.

Torsion beam

5.

Lateral link

6.

Control rod

REAR SUSPENSION

Components

SU-18
