CHECK STARTER MOTOR GROUND CIRCUIT (VOLTAGE DROP TEST)

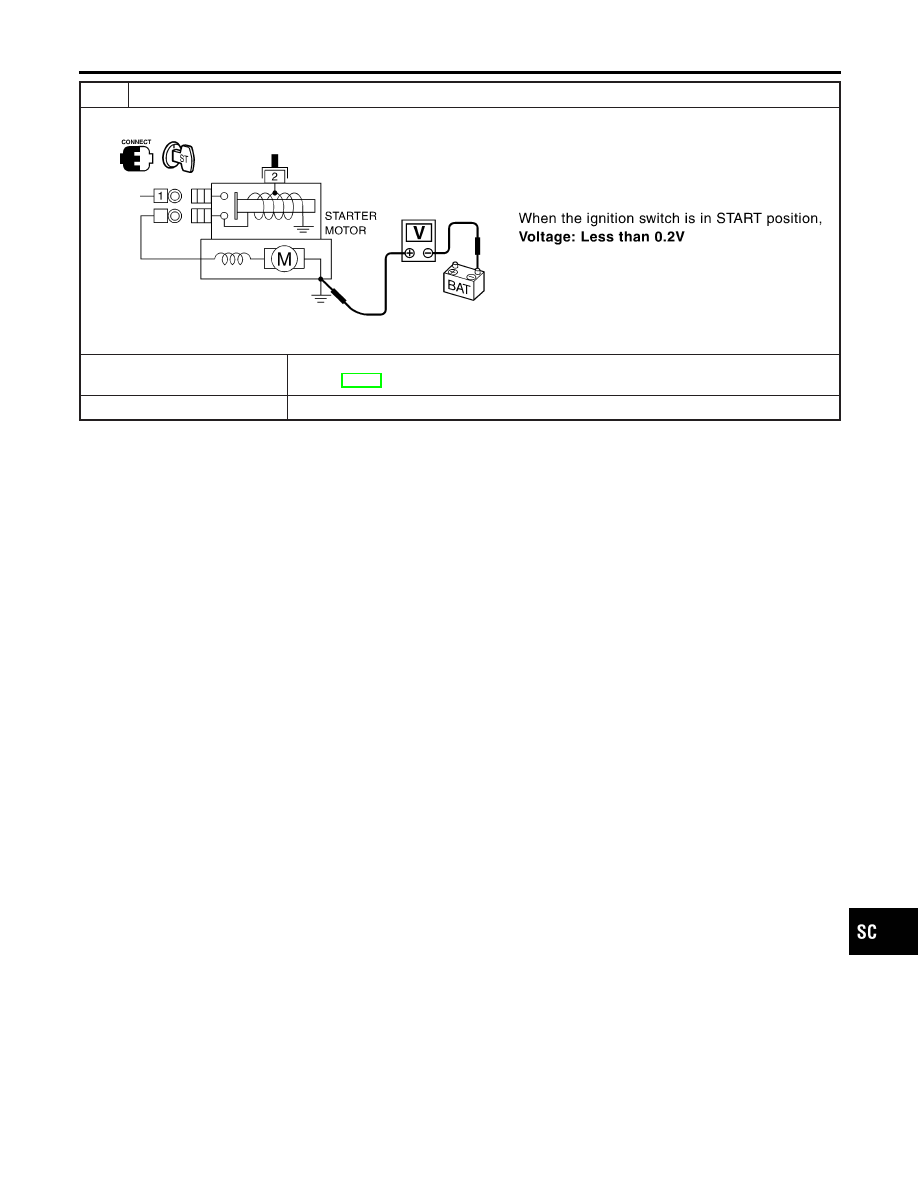

1. Check voltage between starter motor case and battery negative terminal using a digital circuit tester.

SEL947X

OK or NG

OK

©

Starter motor “B” terminal circuit is OK. Further inspection necessary. Refer to “WORK
FLOW”, SC-15.

NG

©

Check the starter motor case and ground for poor continuity.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

EL

IDX

STARTING SYSTEM

Trouble Diagnoses with Battery/Starting/Charging System Tester (Cont’d)

SC-17

DIAGNOSTIC PROCEDURE 2

=NCSC0019S04

Check “S” Terminal Circuit

NCSC0019S0401

1

CHECK POWER SUPPLY FOR STARTER MOTOR “S” TERMINAL

1. Remove the fuel pump fuse.
2. Crank or start the engine (where possible) until the fuel pressure is released.
3. Turn the ignition OFF.
4. Disconnect starter motor connector.

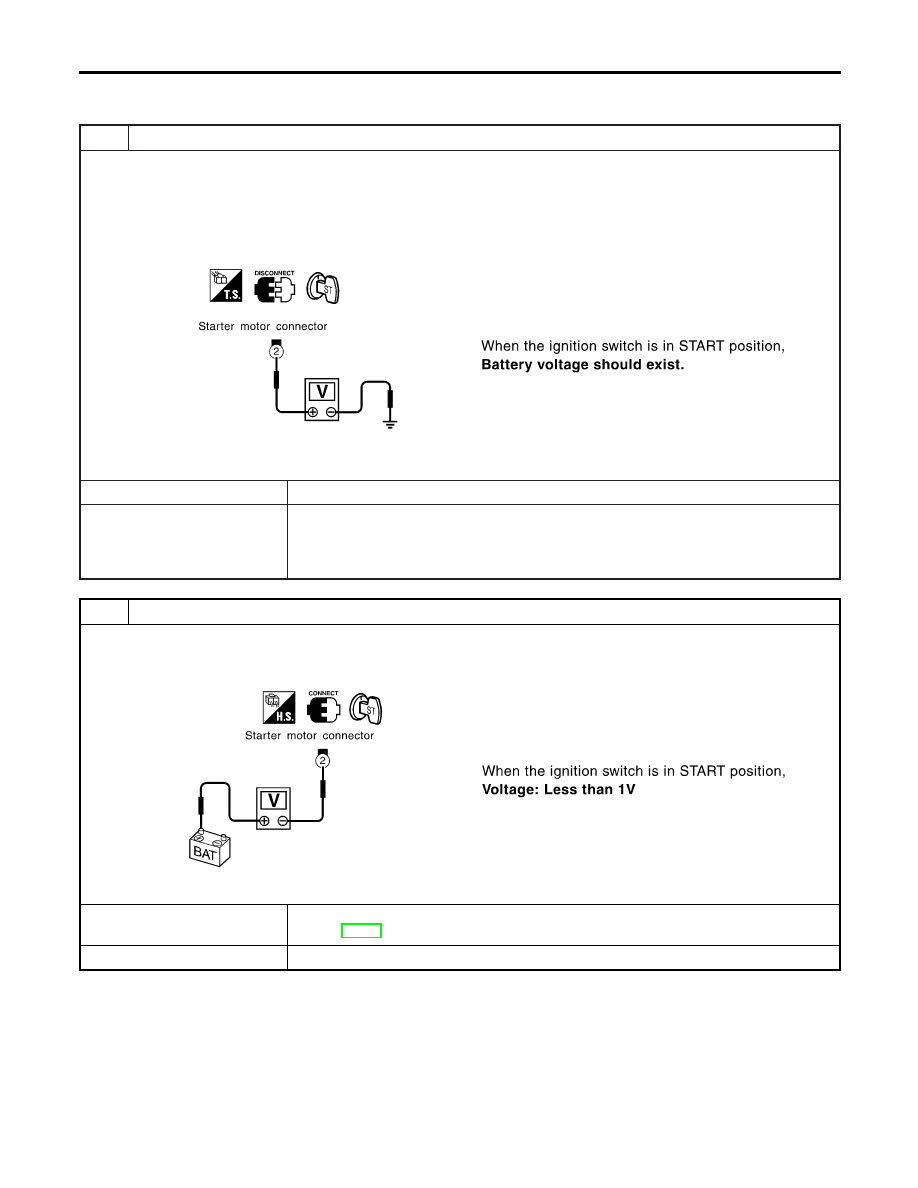

5. Check voltage between starter motor connector E118 terminal 2 (B/W for M/T models or B/Y for A/T models) and

ground using a digital circuit tester.

SEL948X

OK or NG

OK

©

GO TO 2.

NG

©

Check the following.

I

40A fusible link (letter g, located in fuse and fusible link box)

I

Park/neutral position relay

I

Harness for open or short

2

CHECK “S” TERMINAL CONNECTION QUALITY (VOLTAGE DROP TEST)

1. Connect starter motor connector.
2. Check voltage between starter motor connector E118 terminal 2 (B/W for M/T models or B/Y for A/T models) and bat-

tery positive terminal using a digital tester.

SEL949X

OK or NG

OK

©

Starter motor “S” terminal circuit is OK. Further inspection necessary. Refer to “WORK
FLOW”, SC-15.

NG

©

Check harness between the battery and the starter motor “S” terminal for poor continuity.

STARTING SYSTEM

Trouble Diagnoses with Battery/Starting/Charging System Tester (Cont’d)

SC-18

MINIMUM SPECIFICATION OF CRANKING VOLTAGE
REFERENCING COOLANT TEMPERATURE

NCSC0019S05

Engine coolant temperature

Voltage V

−30°C to −20°C (−22°F to −4°F)

8.0

−19°C to −10°C (−2°F to 14°F)

8.8

−9°C to 0°C (16°F to 32°F)

9.1

More than 1°C (More than 34°F)

9.3

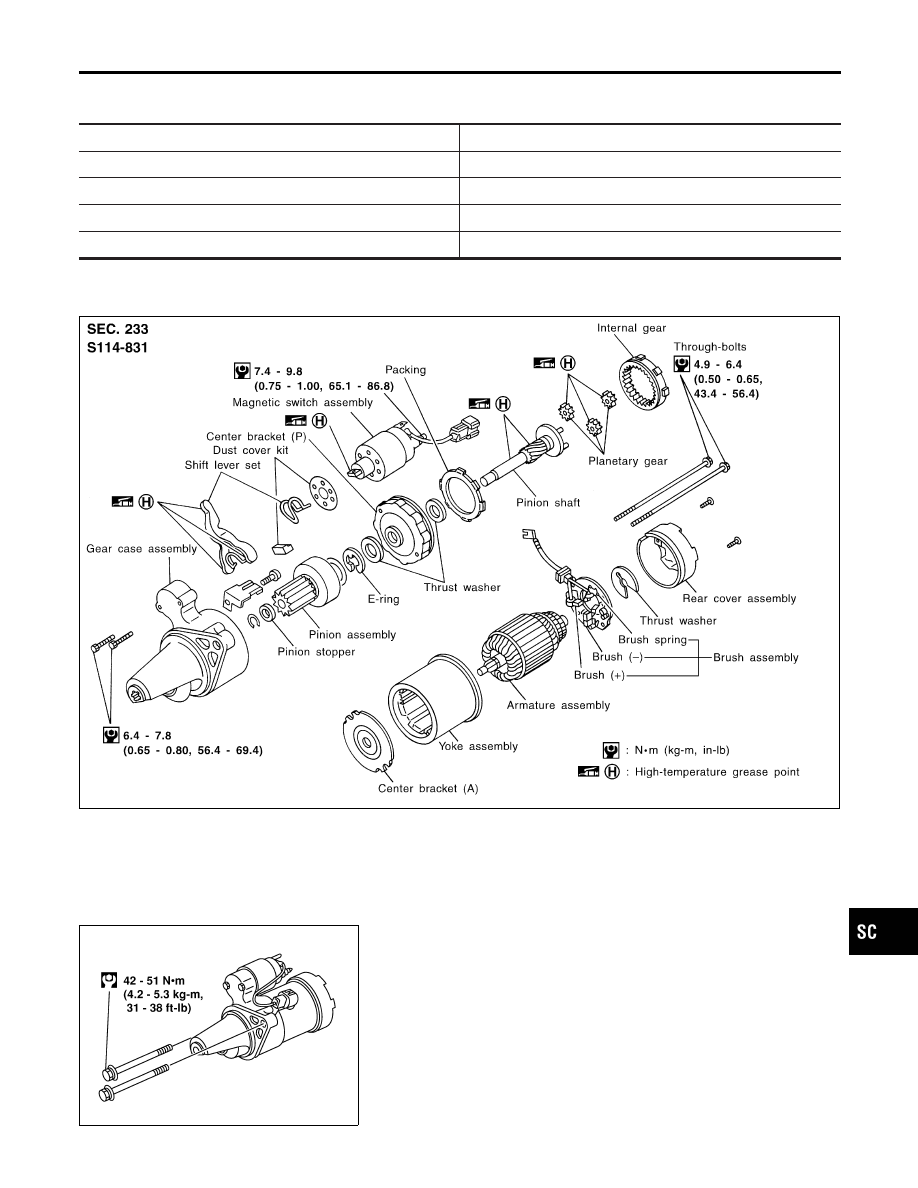

Construction

NCSC0006

MEL645K

MEL646K

Removal and Installation

NCSC0007

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

EL

IDX

STARTING SYSTEM

Trouble Diagnoses with Battery/Starting/Charging System Tester (Cont’d)

SC-19

Pinion/Clutch Check

NCSC0008

1.

Inspect pinion teeth.

I

Replace pinion if teeth are worn or damaged. (Also check
condition of ring gear teeth.)

2.

Inspect reduction gear teeth.

I

Replace reduction gear if teeth are worn or damaged. (Also
check condition of armature shaft gear teeth.)

3.

Check to see if pinion locks in one direction and rotates
smoothly in the opposite direction.

I

If it locks or rotates in both directions, or unusual resistance is
evident, replace.
