Infiniti G20 (P11). Manual - part 434





Blower Speed Compensation

NCHA0062S05

Sunload

NCHA0062S0501

When the in-vehicle temperature and the set temperature are very close, the blower will be operating at low
speed. The low speed will vary depending on the sunload. During conditions of high sunload, the blower low
speed is “normal” low speed (approx. 6V). During low or no sunload conditions, the low speed will drop to “low”
low speed (approx. 5V).
Ambient

NCHA0062S0502

When the ambient temperature is in the “moderate” range [10 - 15°C (50 - 59°F)], the computed blower volt-
age will be compensated (reduced) by up to 3.5V (depending on the blower speed). In the “extreme” ambi-
ent ranges [below 0°C (32°F) and above 20°C (68°F)] the computed objective blower voltage is not compen-
sated at all. In the ambient temperature ranges between “moderate” and “extreme” [0 - 10°C (32 - 50°F) and
15 - 20°C (59 - 68°F)], the amount of compensation (for a given blower speed) varies depending on the ambi-
ent temperature.

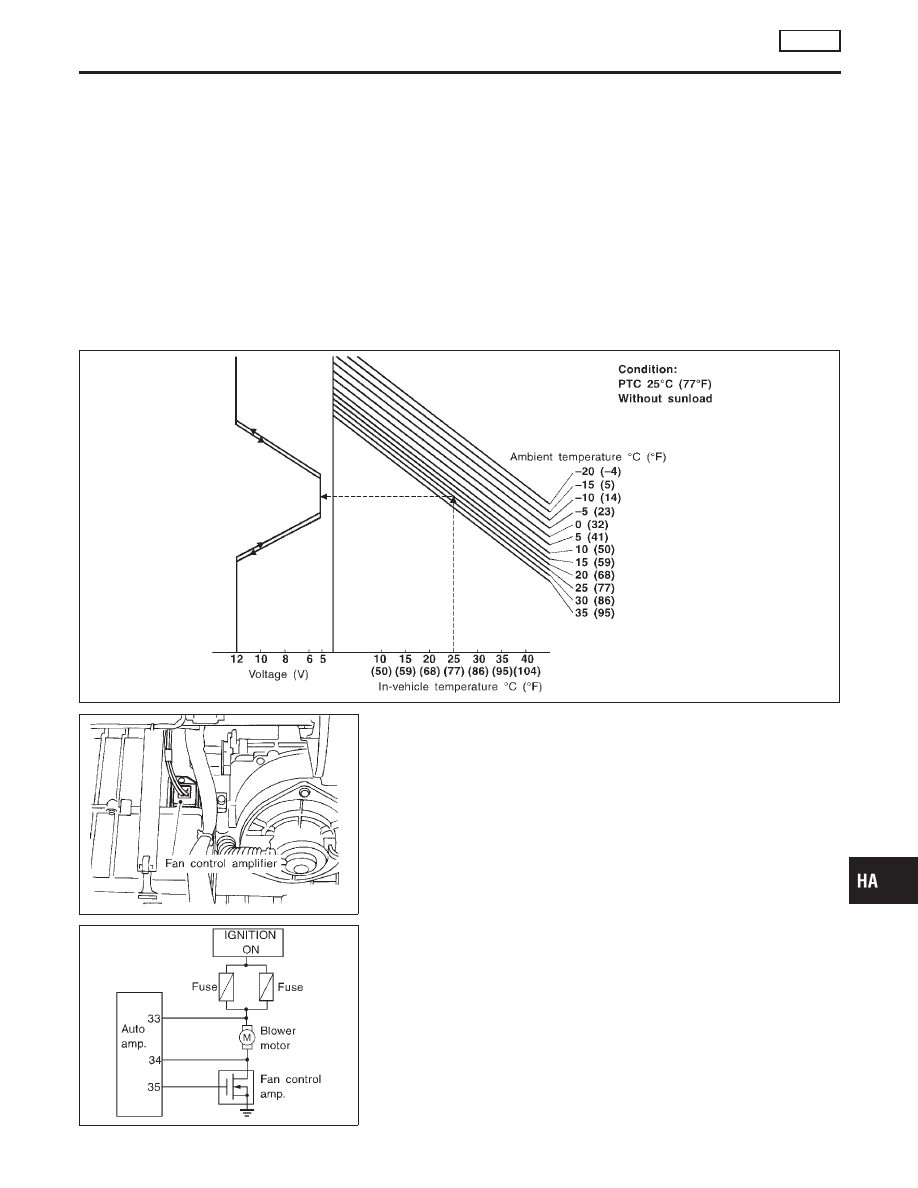

Fan Speed Control Specification

NCHA0062S06

RHA195H

RHA054H

COMPONENT DESCRIPTION

NCHA0063

Fan Control Amplifier

NCHA0063S01

The fan control amplifier is located on the cooling unit. The fan
control amp. receives a gate voltage from the auto amp. to step-
lessly maintain the blower fan motor voltage in the 5 to 12 volt
range (approx.).

RHA467G

DIAGNOSTIC PROCEDURE

NCHA0064

SYMPTOM: Blower motor operation is malfunctioning under
Starting Fan Speed Control.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

AUTO

Blower Motor (Cont’d)

HA-67

1

CHECK POWER SUPPLY FOR FAN AUTO AMP.

Do approx. 12 volts exist between auto amp. harness terminal No. 33 and body ground?

RHA902HC

Yes or No

Yes

©

GO TO 2.

No

©

I

Check power supply circuit and 15A fuses (Nos. 1 and 2, located in the fuse block).
Refer to EL-14, “Wiring Diagram — POWER —”.

I

If OK, check for open circuit in wiring harness.
Repair or replace as necessary.

I

If NG, replace fuse and check wiring harness for short circuit.
Repair or replace as necessary.

2

CHECK POWER SUPPLY FOR FAN CONTROL AMP.

Disconnect fan control amp. harness connector.
Do approx. 12 volts exist between fan control amp. harness terminal No. 3 and body ground?

RHA480GA

Yes or No

Yes

©

GO TO 3.

No

©

GO TO 10.

TROUBLE DIAGNOSES

AUTO

Blower Motor (Cont’d)

HA-68

3

CHECK BODY GROUND CIRCUIT FOR FAN CONTROL AMP.

Does continuity exist between fan control amp. harness terminal No. 1 and body ground?

RHA089GB

Yes or No

Yes

©

Reconnect fan control amp. harness connector. And GO TO 4.

No

©

Repair harness or connector.

4

CHECK VOLTAGE FOR FAN CONTROL AMP.

Set up Self-diagnosis STEP 4.
Measure voltage across fan control amp. harness terminal No. 2 and body ground.

RHA055H

MTBL0465

OK or NG

OK

©

GO TO 5.

NG

©

I

If the voltage is less than 2.5V. Replace fan control amp.

I

If the voltage is more than 3.0V. GO TO 5.

5

CHECK FAN CONTROL AMP.

Refer to HA-72.

OK or NG

OK

©

GO TO 5.

NG

©

1. Replace fan control amp.
2. Go to “STEP-BY-STEP PROCEDURE”, HA-32 and perform self-diagnosis STEP 4.

Confirm that blower motor operation is normal.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

AUTO

Blower Motor (Cont’d)

HA-69

6

CHECK BLOWER MOTOR ROTATION

Is blower motor rotate when fan speed 1 position with ignition switch at ON?

Yes or No

Yes

©

Replace fan control amp.

No

©

GO TO 7.

7

CHECK CIRCUIT BETWEEN AUTO AMP. AND FAN CONTROL AMP.

1. Disconnect auto amp. and fan control amp. harness connector.
2. Check circuit continuity between auto amp. harness terminal No. 35 and fan control amp. harness terminal No. 2.

Continuity should exist.

RHA056H

If OK, check harness for short.

OK or NG

OK

©

GO TO 8.

NG

©

Repair harness or connector.

8

CHECK CIRCUIT CONTINUITY BETWEEN AUTO AMP. AND FAN CONTROL AMP.

Check circuit continuity between auto amp. harness terminal No. 34 and fan control amp. harness terminal No. 3.

Continuity should exist.

RHA057H

If OK, check harness for short.

OK or NG

OK

©

GO TO 9.

NG

©

Repair harness or connector.

TROUBLE DIAGNOSES

AUTO

Blower Motor (Cont’d)

HA-70
