Infiniti G20 (P11). Manual - part 427





14

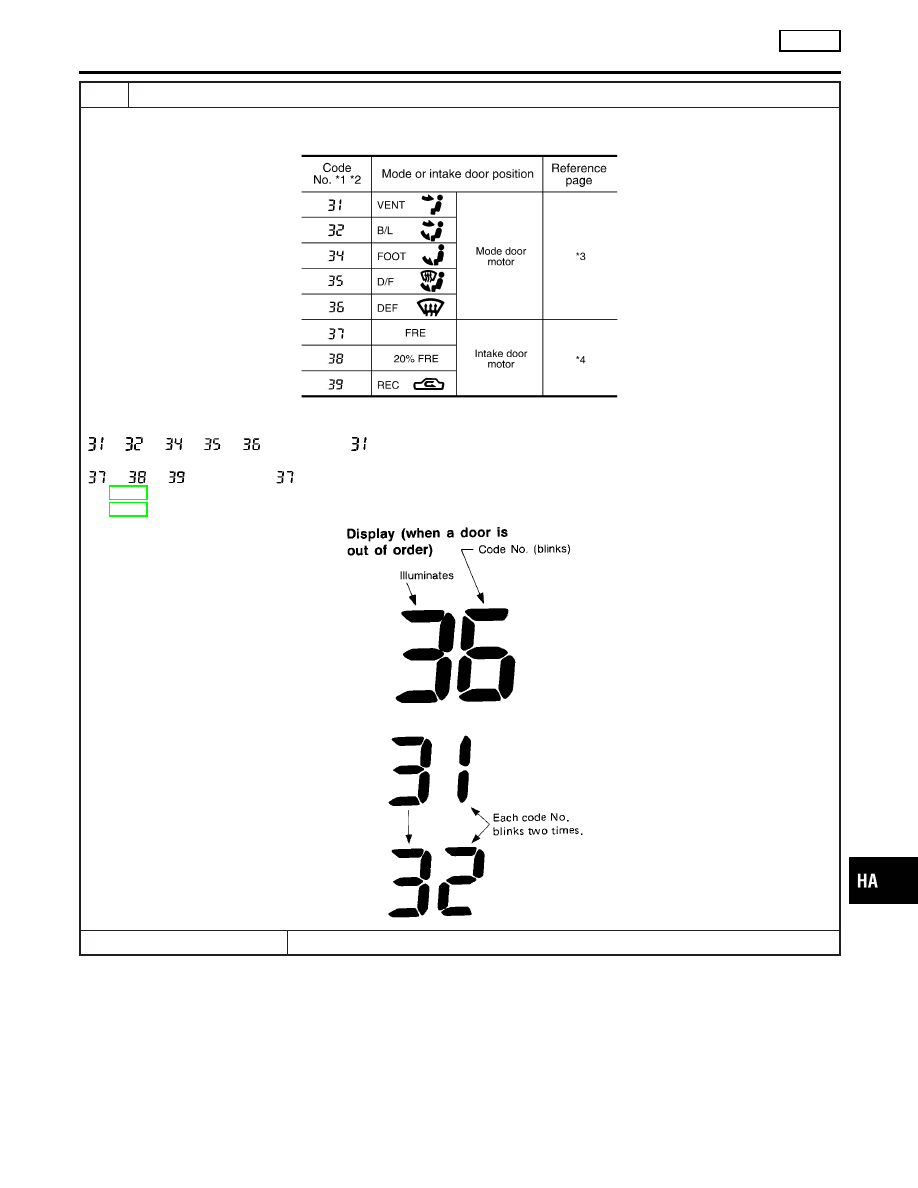

CHECK MALFUNCTIONING DOOR MOTOR POSITION SWITCH

Mode or (and) intake door motor position switch(es) is (are) malfunctioning.
(If two or more mode or intake doors are out of order, corresponding code numbers blink respectively two times.)

MTBL0376

*1: If mode door motor harness connector is disconnected, the following display pattern will appear.

,

,

,

,

,

Return to

*2: If intake door motor harness connector is disconnected, the following display pattern will appear.

,

,

,

Return to

*3: HA-48
*4: HA-58

RHA168DA

RHA498A

©

INSPECTION END

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

AUTO

Self-diagnosis (Cont’d)

HA-39

AUXILIARY MECHANISM: TEMPERATURE SETTING TRIMMER

=NCHA0021S03

The trimmer compensates for differences in range of

±

3°C (

±

6°F) between temperature setting (displayed

digitally) and temperature felt by driver.
Operating procedures for this trimmer are as follows:

I

Begin Self-diagnosis STEP 5 mode.

I

Press

(fan) UP switch to set system in auxiliary mode.

I

Display shows “

” in auxiliary mechanism.

It takes approximately 3 seconds.

I

Press either

(HOT) or

(COLD) switch as desired. Temperature will change at a rate of 0.5°C (1.0°F)

each time a switch is pressed.

SHA197E

When battery cable is disconnected, trimmer operation is canceled. Temperature set becomes that of
initial condition, i.e. 0°C (0°F).

TROUBLE DIAGNOSES

AUTO

Self-diagnosis (Cont’d)

HA-40

How to Perform Trouble Diagnoses for Quick
and Accurate Repair

=NCHA0018

WORK FLOW

NCHA0018S01

SHA900E

*1: Operational Check (HA-42)

SYMPTOM TABLE

NCHA0018S02

Symptom

Reference Page

I

A/C system does not come on.

I

Go to Trouble Diagnosis Procedure for A/C system.

HA-45

I

Air outlet does not change.

I

Go to Trouble Diagnosis Procedure for Mode Door Motor. (LAN)

HA-48

I

Mode door motor does not operate nor-
mally.

I

Discharge air temperature does not
change.

I

Go to Trouble Diagnosis Procedure for Air Mix Door Motor. (LAN)

HA-54

I

Air mix door motor does not operate nor-
mally.

I

Intake door does not change.

I

Go to Trouble Diagnosis Procedure for Intake Door Motor.

HA-58

I

Intake door motor does not operate nor-
mally.

I

Blower motor operation is malfunctioning.

I

Go to Trouble Diagnosis Procedure for Blower Motor.

HA-65

I

Blower motor operation is malfunctioning
under out of starting fan speed control.

I

Magnet clutch does not engage.

I

Go to Trouble Diagnosis Procedure for Magnet Clutch.

HA-73

I

Insufficient cooling.

I

Go to Trouble Diagnosis Procedure for Insufficient Cooling.

HA-80

I

Insufficient heating.

I

Go to Trouble Diagnosis Procedure for Insufficient Heating.

HA-88

I

Noise.

I

Go to Trouble Diagnosis Procedure for Noise.

HA-89

I

Self-diagnosis can not be performed.

I

Go to Trouble Diagnosis Procedure for Self-diagnosis.

HA-90

I

Memory function does not operate.

I

Go to Trouble Diagnosis Procedure for Memory Function.

HA-91

I

ECON mode does not operate.

I

Go to Trouble Diagnosis Procedure for ECON (ECONOMY) —
mode.

HA-92

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

AUTO

How to Perform Trouble Diagnoses for Quick and Accurate Repair

HA-41

Operational Check

NCHA0019

The purpose of the operational check is to confirm that the system
operates properly.

CONDITIONS:

NCHA0019S01

I

Engine running and at normal operating temperature.

RHA864HA

PROCEDURE:

NCHA0019S02

1. Check Memory Function

NCHA0019S0201

1.

Set the temperature 85°F or 32°C.

2.

Press OFF switch.

3.

Turn the ignition switch OFF.

4.

Turn the ignition switch ON.

5.

Press the AUTO switch.

6.

Confirm that the set temperature remains at previous tempera-
ture.

7.

Press OFF switch.

If NG, go to trouble diagnosis procedure for memory function (HA-
91).
If OK, continue with next check.

RHA457G

2. Check Blower

NCHA0019S0202

1.

Press fan switch (up side) one time.
Blower should operate on low speed.
The fan symbol should have one blade lit

.

2.

Press fan switch (up side) one more time, and continue check-
ing blower speed and fan symbol until all speeds are checked.

3.

Leave blower on MAX speed

.

If NG, go to trouble diagnosis procedure for blower motor (HA-65).
If OK, continue with next check.

RHA458G

3. Check Discharge Air

NCHA0019S0203

1.

Press mode switch four times and DEF button.

2.

Each position indicator should change shape.

TROUBLE DIAGNOSES

AUTO

Operational Check

HA-42
