Infiniti G20 (P11). Manual - part 399





ACCELERATOR CONTROL, FUEL &

EXHAUST SYSTEMS

SECTION

FE

CONTENTS

PREPARATION ...............................................................2

Special Service Tool ....................................................2
Commercial Service Tools ...........................................2

ACCELERATOR CONTROL SYSTEM ...........................3

Removal and Installation .............................................3
Adjusting Accelerator Wire ..........................................3

FUEL SYSTEM ................................................................5

Removal and Installation .............................................5

FUEL PUMP AND GAUGE

.........................................6

EXHAUST SYSTEM ........................................................8

Removal and Installation .............................................8

GI

MA

EM

LC

EC

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

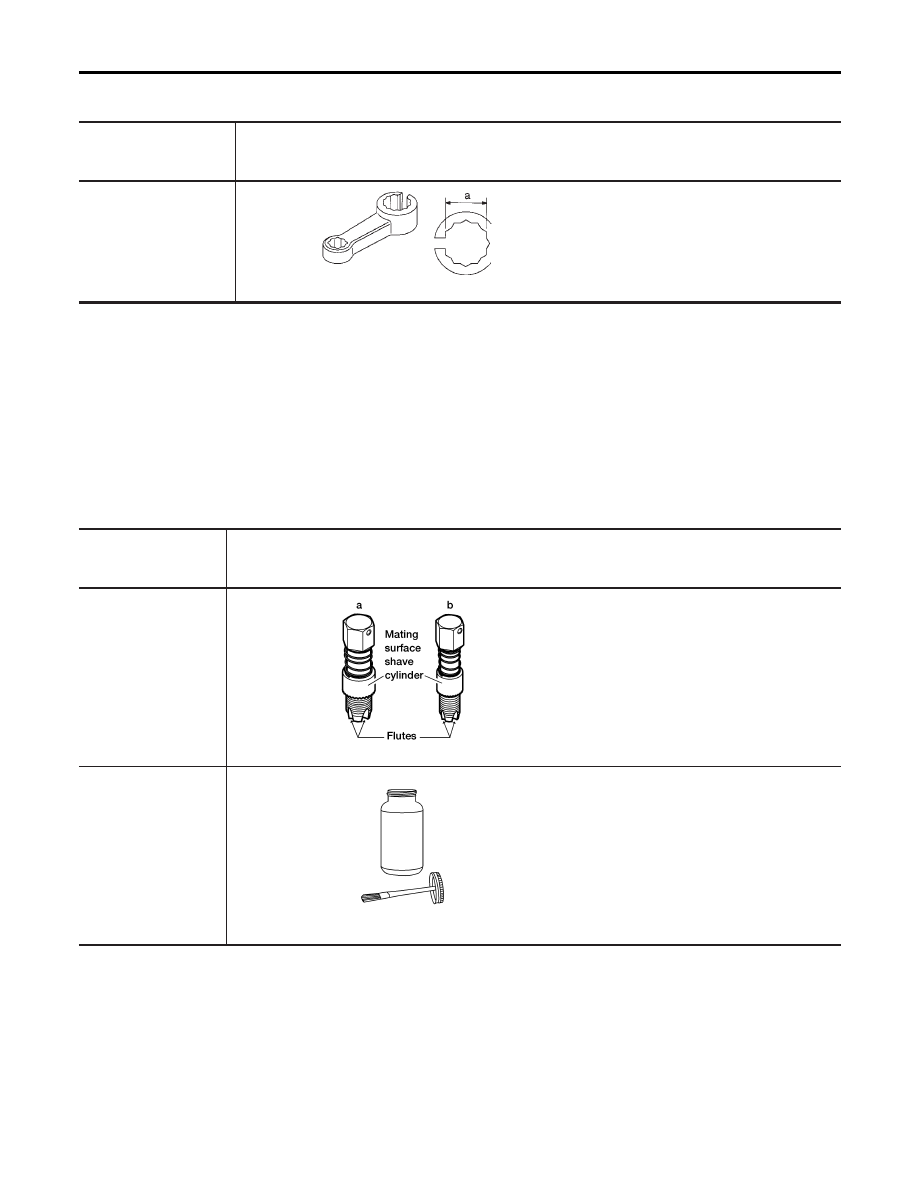

Special Service Tool

NCFE0006

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV10114400
(J-38365)
Heated oxygen sensor
wrench

NT636

Loosening or tightening front and rear
heated oxygen sensors
a: 22 mm (0.87 in)

Commercial Service Tools

NCFE0007

Tool number
(Kent-Moore No.)
Tool name

Description

(J-43897–18)
(J-43897–12)
Oxygen sensor thread
cleaner

AEM488

Reconditioning the exhaust system threads
before installing a new oxygen sensor (Use
with anti-seize lubricant shown below.)
a: J-43897-18 [18 mm (0.71 in) dia.] for
zirconia oxygen sensor
b: J-43897-12 [12 mm (0.47 in) dia.] for
titania oxygen sensor

Anti-seize lubricant
(Permatex 133AR or
equivalent meeting MIL
specification MIL-A-
907)

AEM489

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

PREPARATION

Special Service Tool

FE-2

Removal and Installation

NCFE0002

CAUTION:

I

When removing accelerator wire, make a mark to indicate lock nut’s initial position.

I

Check that throttle valve opens fully when accelerator pedal is fully depressed. Also check that it
returns to idle position when pedal is released.

I

Check accelerator control parts for improper contact with any adjacent parts.

I

When connecting accelerator wire, be careful not to twist or scratch its inner wire.

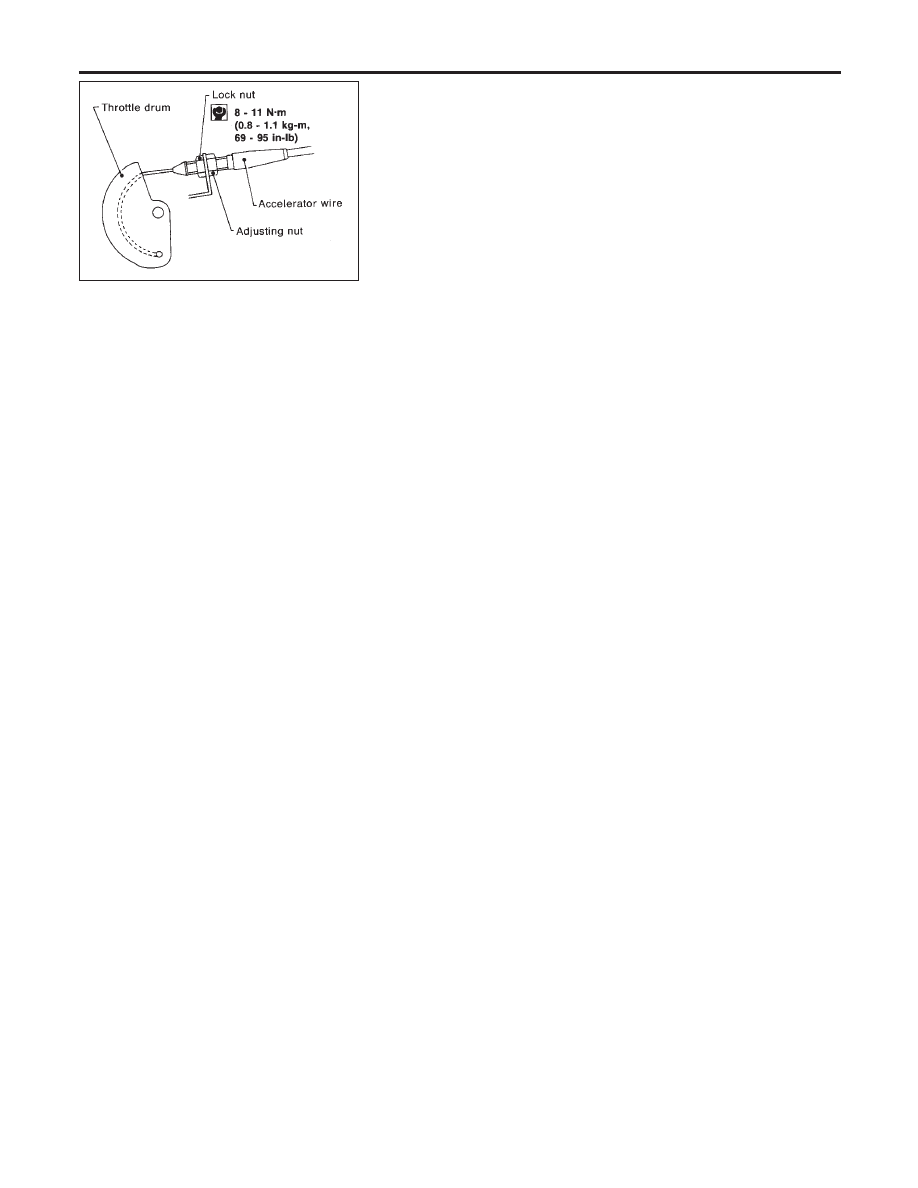

SFE533A
