Infiniti G20 (P11). Manual - part 267





3

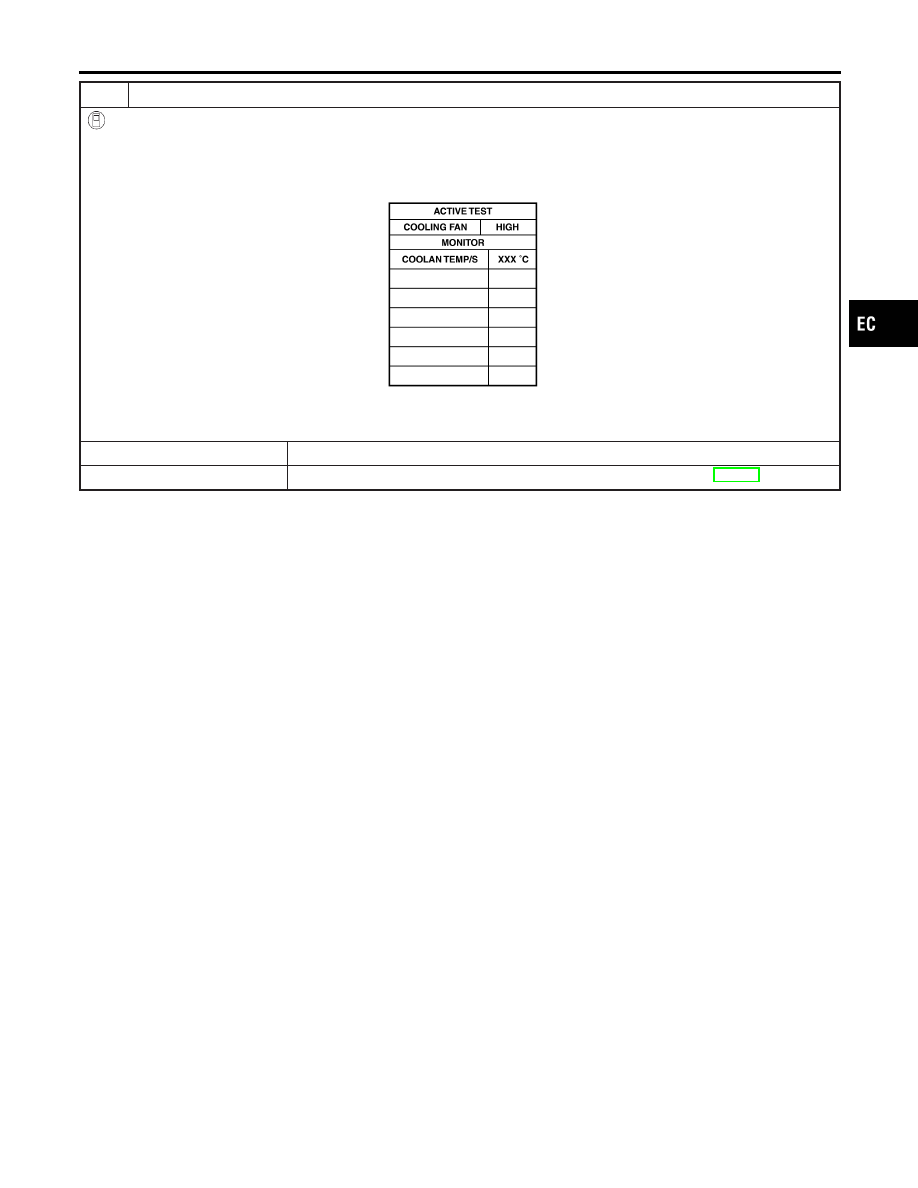

CHECK COOLING FAN HIGH SPEED OPERATION

With CONSULT-II

1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relay-2.
3. Turn ignition switch “ON”.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-II.

SEF785Z

5. Make sure that cooling fan-1 operate at higher speed than low speed and cooling fan-2 operate at low speed.

OK or NG

OK

©

GO TO 6.

NG

©

Check cooling fan high speed control circuit. (Go to PROCEDURE B, EC-488.)

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1217 ENGINE OVER TEMPERATURE (OVERHEAT)

Diagnostic Procedure (M/T Models) (Cont’d)

EC-479

4

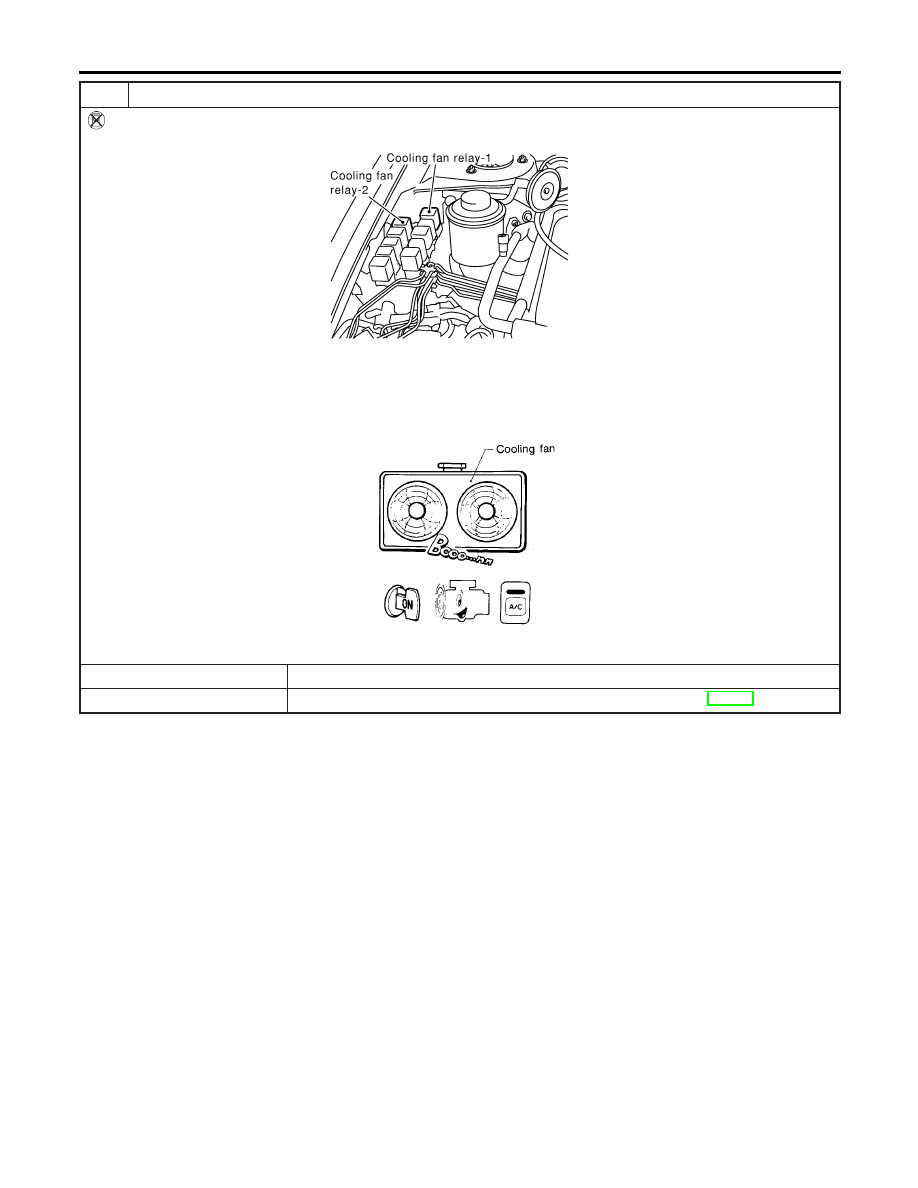

CHECK COOLING FAN LOW SPEED OPERATION

Without CONSULT-II

1. Disconnect cooling fan relay-2.

SEC573C

2. Start engine and let it idle.
3. Set temperature lever at full cold position.
4. Turn air conditioner switch “ON”.
5. Turn blower fan switch “ON”.
6. Make sure that cooling fans-1 and -2 operate at low speed.

SEC163BA

OK or NG

OK

©

GO TO 5.

NG

©

Check cooling fan low speed control circuit. (Go to PROCEDURE A, EC-484.)

DTC P1217 ENGINE OVER TEMPERATURE (OVERHEAT)

Diagnostic Procedure (M/T Models) (Cont’d)

EC-480

5

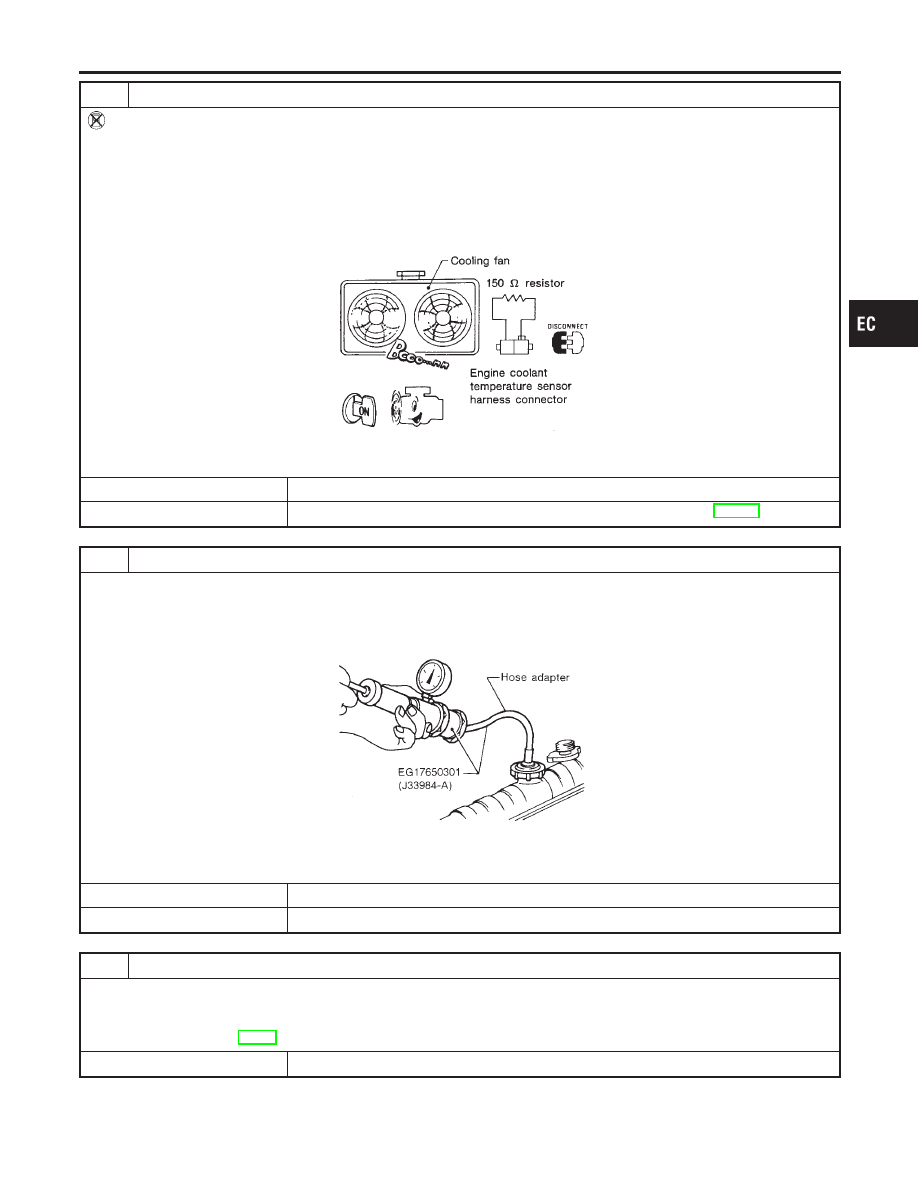

CHECK COOLING FAN HIGH SPEED OPERATION

Without CONSULT-II

1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relay-2.
3. Turn air conditioner switch and blower fan switch “OFF”.
4. Disconnect engine coolant temperature sensor harness connector.
5. Connect 150

resistor to engine coolant temperature sensor harness connector.

6. Restart engine and make sure that cooling fan-1 operate at higher speed than low speed and cooling fan-2 operate at

low speed.

MEF613EA

OK or NG

OK

©

GO TO 6.

NG

©

Check cooling fan high speed control circuit. (Go to PROCEDURE B, EC-488.)

6

CHECK COOLING SYSTEM FOR LEAK

Apply pressure to the cooling system with a tester, and check if the pressure drops.

Testing pressure: 157 kPa (1.6 kg/cm

2

, 23 psi)

CAUTION:

Higher than the specified pressure may cause radiator damage.

SLC754A

Pressure should not drop.

OK or NG

OK

©

GO TO 8.

NG

©

GO TO 7.

7

DETECT MALFUNCTIONING PART

Check the following for leak.

I

Hose

I

Radiator

I

Water pump (Refer to LC-10, “Water Pump”.)

©

Repair or replace.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1217 ENGINE OVER TEMPERATURE (OVERHEAT)

Diagnostic Procedure (M/T Models) (Cont’d)

EC-481

8

CHECK RADIATOR CAP

Apply pressure to cap with a tester and check radiator cap relief pressure.

SLC755A

Radiator cap relief pressure:

59 - 98 kPa (0.6 - 1.0 kg/cm

2

, 9 - 14 psi)

OK or NG

OK

©

GO TO 9.

NG

©

Replace radiator cap.

9

CHECK THERMOSTAT

1. Remove thermostat.
2. Check valve seating condition at normal room temperatures.

It should seat tightly.

3. Check valve opening temperature and valve lift.

SLC343

Valve opening temperature:

82°C (180°F) [standard]

Valve lift:

More than 8 mm/95°C (0.31 in/203°F)

4. Check if valve is closed at 5°C (9°F) below valve opening temperature. For details, refer to LC-12, “Thermostat”.

OK or NG

OK

©

GO TO 10.

NG

©

Replace thermostat

DTC P1217 ENGINE OVER TEMPERATURE (OVERHEAT)

Diagnostic Procedure (M/T Models) (Cont’d)

EC-482
