Infiniti G20 (P11). Manual - part 205





SEF648Y

SEF011X

Without CONSULT-II

1)

Start engine and warm it up to normal operating temperature.

2)

Set voltmeter probes between ECM terminal 62 [Heated oxy-
gen sensor 1 (front) signal] and engine ground.

3)

Check the following with engine speed held at 2,000 rpm con-
stant under no load.

I

The voltage fluctuates between 0 to 0.3V and 0.6 to 1.0V more
than five times within 10 seconds.
1 time: 0 - 0.3V

0.6 - 1.0V

0 - 0.3V

2 times: 0 - 0.3V

0.6 - 1.0V

0 - 0.3V

0.6 - 1.0V

0

- 0.3V

I

The maximum voltage is over 0.6V at least one time.

I

The minimum voltage is below 0.3V at least one time.

I

The voltage never exceeds 1.0V.

CAUTION:

I

Discard any heated oxygen sensor which has been
dropped from a height of more than 0.5 m (19.7 in) onto a
hard surface such as a concrete floor; use a new one.

I

Before installing new oxygen sensor, clean exhaust sys-
tem threads using Oxygen Sensor Thread Cleaner tool
J-43897-18 or J-43897-12 and approved anti-seize lubri-
cant.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0134 HEATED OXYGEN SENSOR 1 (FRONT) (HIGH VOLTAGE)

Component Inspection (Cont’d)

EC-231

Description

NCEC0136

SYSTEM DESCRIPTION

NCEC0136S01

Sensor

Input Signal to ECM

ECM func-

tion

Actuator

Camshaft position sensor

Engine speed

Heated
oxygen
sensor 1
heater
(front) con-
trol

Heated oxygen sensor 1 heater
(front)

The ECM performs ON/OFF control of the heated oxygen sensor 1 heater (front) corresponding to the engine
operating condition.

OPERATION

NCEC0136S02

Engine speed

Front heated oxygen sensor heater

Above 3,200 rpm

OFF

Below 3,200 rpm

ON

CONSULT-II Reference Value in Data Monitor
Mode

NCEC0137

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S1 HTR (B1)

I

Engine speed: Below 3,200 rpm

ON

I

Engine speed: Above 3,200 rpm

OFF

ECM Terminals and Reference Value

NCEC0138

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

4

OR

Heated oxygen sensor 1
heater (front)

[Engine is running]

I

Engine speed is below 3,200 rpm.

Approximately 0V

[Engine is running]

I

Engine speed is above 3,200 rpm.

BATTERY VOLTAGE
(11 - 14V)

On Board Diagnosis Logic

NCEC0139

DTC No.

Malfunction is detected when ...

Check Items (Possible Cause)

P0135

I

The current amperage in the heated oxygen sensor 1
heater (front) circuit is out of the normal range.
[An improper voltage drop signal is sent to ECM through
the heated oxygen sensor 1 heater (front).]

I

Harness or connectors
[The heated oxygen sensor 1 heater (front) cir-
cuit is open or shorted.]

I

Heated oxygen sensor 1 heater (front)

DTC P0135 HEATED OXYGEN SENSOR 1 HEATER (FRONT)

Description

EC-232

DTC Confirmation Procedure

NCEC0140

NOTE:
If “DTC Confirmation Procedure” has been previously conducted,
always turn ignition switch “OFF” and wait at least 10 seconds
before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that bat-
tery voltage is between 10.5V and 16V at idle.

SEF058Y

With CONSULT-II

1)

Turn ignition switch “ON” and select “DATA MONITOR” mode
with CONSULT-II.

2)

Start engine and run it for at least 6 seconds at idle speed.

3)

If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-235.

With GST

1)

Start engine and run it for at least 6 seconds at idle speed.

2)

Turn ignition switch “OFF” and wait at least 10 seconds.

3)

Start engine and run it for at least 6 seconds at idle speed.

4)

Select “MODE 3” with GST.

5)

If DTC is detected, go to “Diagnostic Procedure”, EC-235.

I

When using GST, “DTC Confirmation Procedure” should
be performed twice as much as when using CONSULT-II
because GST cannot display MODE 7 (1st trip DTC) con-
cerning this diagnosis. Therefore, using CONSULT-II is
recommended.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0135 HEATED OXYGEN SENSOR 1 HEATER (FRONT)

DTC Confirmation Procedure

EC-233

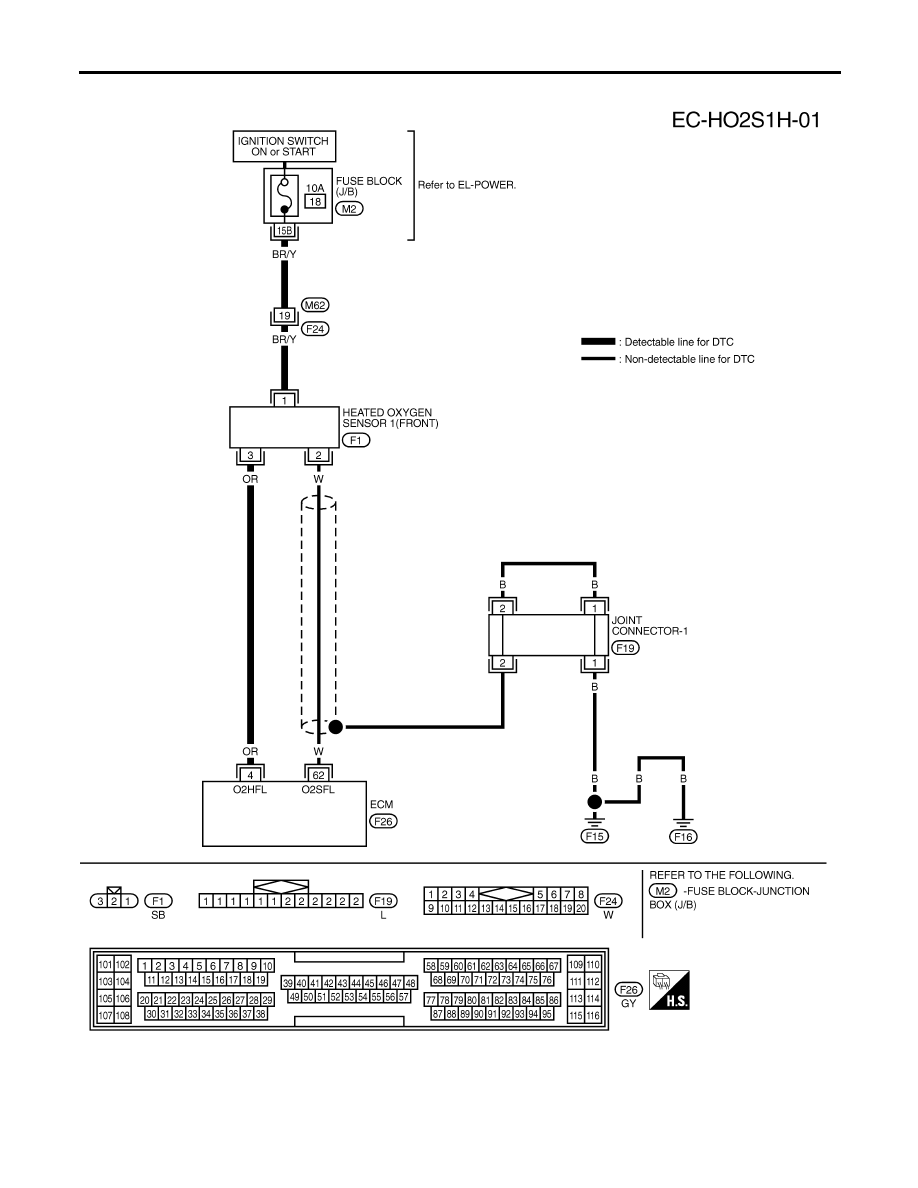

Wiring Diagram

NCEC0141

TEC838

DTC P0135 HEATED OXYGEN SENSOR 1 HEATER (FRONT)

Wiring Diagram

EC-234
