The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driv-
ing habits, etc.
Zone A refers to the range where the time required, for the diagnosis under normal conditions*, is the
shortest.
Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed
within zone A.

*: Normal conditions refer to the following:

Sea level

Flat road

Ambient air temperature: 20 - 30°C (68 - 86°F)

Diagnosis is performed as quickly as possible under normal conditions.
Under different conditions [For example: ambient air temperature other than 20 - 30°C (68 - 86°F)], diag-
nosis may also be performed.

Pattern 1:

I

The engine is started at the engine coolant temperature of −10 to 35°C (14 to 95°F)
(where the voltage between the ECM terminal 70 and ground is 3.0 - 4.3V).

I

The engine must be operated at idle speed until the engine coolant temperature is greater than 70°C
(158°F) (where the voltage between the ECM terminal 70 and ground is lower than 1.4V).

I

The engine is started at the fuel tank temperature of warmer than 0°C (32°F) (where the voltage
between the ECM terminal 82 and ground is less than 4.1V).

Pattern 2:

I

When steady-state driving is performed again even after it is interrupted, each diagnosis can be conducted.
In this case, the time required for diagnosis may be extended.

Pattern 3:

I

The driving pattern outlined in *2 must be repeated at least 3 times.

Pattern 4:

I

Tests are performed after the engine has been operated for at least 17 minutes.

I

The accelerator pedal must be held very steady during steady-state driving.

I

If the accelerator pedal is moved, the test must be conducted all over again.

*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal
and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h
(56 MPH) again.

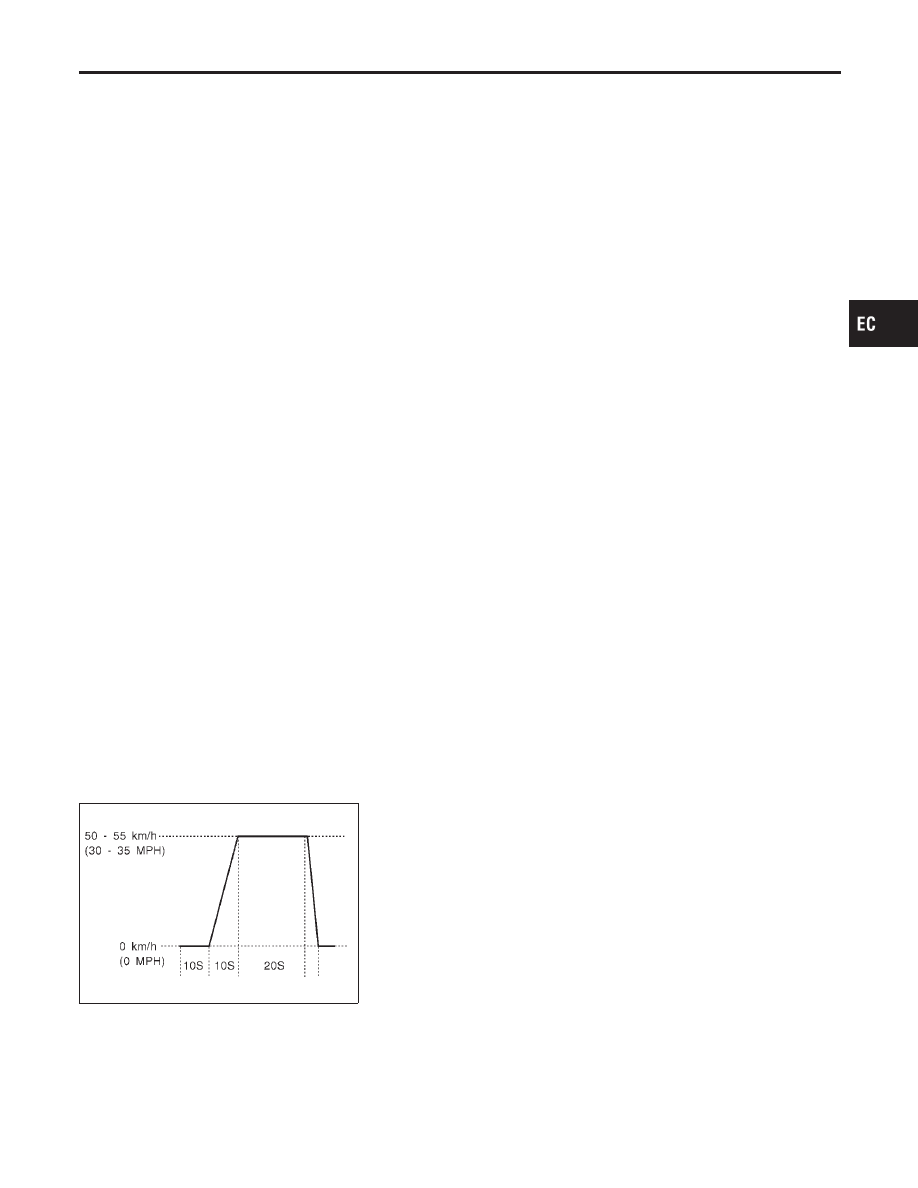

*2: Operate the vehicle in the following driving pattern.
1) Decelerate vehicle to 0 km/h (0 MPH) and let engine idle.
2) Repeat driving pattern shown below at least 10 times.

I

During acceleration, hold the accelerator pedal as steady as possible.

3) Repeat steps 1 and 2 until the EGR system SRT is set.

SEF414S

*3: Checking the vehicle speed with GST is advised.
Suggested Transmission Gear Position for A/T Models
Set the selector lever in the “D” position with the overdrive switch turned ON.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Emission-related Diagnostic Information (Cont’d)

EC-75

Suggested upshift speeds for M/T models
Shown below are suggested vehicle speeds for shifting into a higher gear. These suggestions relate to fuel
economy and vehicle performance. Actual upshift speeds will vary according to road conditions, the weather
and individual driving habits.

For normal acceleration in low altitude

areas

[less than 1,219 m (4,000 ft)]:

For quick acceleration in low altitude areas and high
altitude areas
[over 1,219 m (4,000 ft)]:

Gear change

ACCEL shift point

km/h (MPH)

km/h (MPH)

1st to 2nd

24 (15)

25 (15)

2nd to 3rd

40 (25)

40 (25)

3rd to 4th

65 (40)

65 (40)

4th to 5th

75 (45)

75 (45)

Suggested Maximum Speed in Each Gear
Downshift to a lower gear if the engine is not running smoothly, or if you need to accelerate.
Do not exceed the maximum suggested speed (shown below) in any gear. For level road driving, use the
highest gear suggested for that speed. Always observe posted speed limits and drive according to the road
conditions to ensure safe operation. Do not over-rev the engine when shifting to a lower gear as it may cause
engine damage or loss of vehicle control.

Gear

km/h (MPH)

1st

55 (35)

2nd

95 (60)

3rd

135 (85)

4th

5th

TEST VALUE AND TEST LIMIT (GST ONLY — NOT APPLICABLE TO CONSULT-II)

NCEC0031S04

The following is the information specified in Mode 6 of SAE J1979.
The test value is a parameter used to determine whether a system/circuit diagnostic test is “OK” or “NG” while
being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the
maximum or minimum value and is compared with the test value being monitored.
Items for which these data (test value and test limit) are displayed are the same as SRT code items (9 test
items).
These data (test value and test limit) are specified by Test ID (TID) and Component ID (CID) and can be dis-
played on the GST screen.

X: Applicable

—: Not applicable

SRT item

Self-diagnostic test item

Test value (GST display)

Test limit

Application

TID

CID

CATALYST

Three way catalyst function

01H

01H

Max.

X

02H

81H

Min.

X

EVAP SYSTEM

EVAP control system

(Small leak)

05H

03H

Max.

X

EVAP control system purge

flow monitoring

06H

83H

Min.

X

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Emission-related Diagnostic Information (Cont’d)

EC-76

SRT item

Self-diagnostic test item

Test value (GST display)

Test limit

Application

TID

CID

O2 SENSOR

Heated oxygen sensor 1

(front)

09H

04H

Max.

X

0AH

84H

Min.

X

0BH

04H

Max.

X

0CH

04H

Max.

X

0DH

04H

Max.

X

Heated oxygen sensor 2

(rear)

19H

86H

Min.

X

1AH

86H

Min.

X

1BH

06H

Max.

X

1CH

06H

Max.

X

O2 SENSOR HEATER

Heated oxygen sensor 1

heater (front)

29H

08H

Max.

X

2AH

88H

Min.

X

Heated oxygen sensor 2

heater (rear)

2DH

0AH

Max.

X

2EH

8AH

Min.

X

EGR SYSTEM

EGR function

31H

8CH

Min.

X

32H

8CH

Min.

X

33H

8CH

Min.

X

34H

8CH

Min.

X

35H

0CH

Max.

X

EMISSION-RELATED DIAGNOSTIC INFORMATION ITEMS

NCEC0031S05

X: Applicable

—: Not applicable

Items

(CONSULT-II screen terms)

DTC*1

SRT code

Test value/ Test

limit

(GST only)

1st trip DTC*1

Reference page

NO DTC IS DETECTED. FUR-
THER TESTING MAY BE
REQUIRED.

P0000

MAF SEN/CIRCUIT

P0100

X

EC-154

ABSL PRES SEN/CIRC

P0105

X

EC-163

AIR TEMP SEN/CIRC

P0110

X

EC-165

COOLANT T SEN/CIRC

P0115

X

EC-171

THRTL POS SEN/CIRC

P0120

X

EC-177

*COOLAN T SEN/CIRC

P0125

X

EC-190

HO2S1 (B1)

P0130

X

X

X*2

EC-196

HO2S1 (B1)

P0131

X

X

X*2

EC-204

HO2S1 (B1)

P0132

X

X

X*2

EC-210

HO2S1 (B1)

P0133

X

X

X*2

EC-217

HO2S1 (B1)

P0134

X

X

X*2

EC-226

HO2S1 HTR (B1)

P0135

X

X

X*2

EC-232

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Emission-related Diagnostic Information (Cont’d)

EC-77

Items

(CONSULT-II screen terms)

DTC*1

SRT code

Test value/ Test

limit

(GST only)

1st trip DTC*1

Reference page

HO2S2 (B1)

P0137

X

X

X*2

EC-237

HO2S2 (B1)

P0138

X

X

X*2

EC-245

HO2S2 (B1)

P0139

X

X

X*2

EC-253

HO2S2 (B1)

P0140

X

X

X*2

EC-261

HO2S2 HTR (B1)

P0141

X

X

X*2

EC-267

FUEL SYS-LEAN/BK1

P0171

X

EC-272

FUEL SYS-RICH/BK1

P0172

X

EC-279

FUEL TEMP SEN/CIRC

P0180

X

EC-286

ENG OVER TEMP

P0217

X

EC-291

MULTI CYL MISFIRE

P0300

X

EC-322

CYL 1 MISFIRE

P0301

X

EC-322

CYL 2 MISFIRE

P0302

X

EC-322

CYL 3 MISFIRE

P0303

X

EC-322

CYL 4 MISFIRE

P0304

X

EC-322

KNOCK SEN/CIRC-B1

P0325

EC-329

CKP SEN/CIRCUIT

P0335

X

EC-333

CMP SEN/CIRC

P0340

X

EC-339

EGR SYSTEM

P0400

X

X

X*2

EC-347

EGR VOL CONT/V CIR

P0403

X

EC-357

TW CATALYST SYS-B1

P0420

X

X

X*2

EC-364

EVAP SMALL LEAK

P0440

X

X

X*2

EC-368

PURG VOLUME CONT/V

P0443

X

EC-382

VENT CONTROL VALVE

P0446

X

EC-389

EVAPO SYS PRES SEN

P0450

X

EC-396

EVAP GROSS LEAK

P0455

X

X*2

EC-409

FUEL LEV SE SLOSH

P0460

X

EC-420

FUEL LEVEL SENSOR

P0461

X

EC-425

FUEL LEVL SEN/CIRC

P0464

X

EC-427

VEH SPEED SEN/CIRC

P0500

X

EC-432

IACV/AAC VLV/CIRC

P0505

X

EC-436

CLOSED TP SW/CIRC

P0510

X

EC-445

A/T COMM LINE

P0600

EC-453

ECM

P0605

X

EC-456

PNP SW/CIRC

P0705

X

AT-107

ATF TEMP SEN/CIRC

P0710

X

AT-113

VEH SPD SEN/CIR AT

P0720

X

AT-119

ENGINE SPEED SIG

P0725

X

AT-124
