Clips and fasteners in BT section correspond to the following numbers and symbols.

I

Replace any clips and/or fasteners which are damaged during removal or installation.

Symbol

No.

Shapes

Removal & Installation

C101

SBF302H

SBF367BA

C103

SBT095

SBF423H

C203

SBF258G

SBF708E

C205

MBT080A

SBF638CA

CE103

SBF104B

SBF147B

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

CLIP AND FASTENER

Description

BT-11

Symbol

No.

Shapes

Removal & Installation

CE117

SBF174D

SBF175DA

CF118

SBF151D

SBF259G

CR103

SBF768B

SBF770B

CS101

SBF078B

SBF992G

CLIP AND FASTENER

Description (Cont’d)

BT-12

Removal and Installation

NCBT0004

I

When removing or installing hood, place a cloth or other padding on the front fender panels and cowl top.
This prevents vehicle body from being scratched.

I

Bumper fascia is made of plastic. Do not use excessive force and be sure to keep oil away from it.

I

Hood adjustment: Adjust at hinge portion.

I

Hood lock adjustment: After adjusting, check hood lock control operation. Apply a coat of grease to hood
locks engaging mechanism.

I

Hood opener: Do not attempt to bend cable forcibly. Doing so increases effort required to unlock hood.

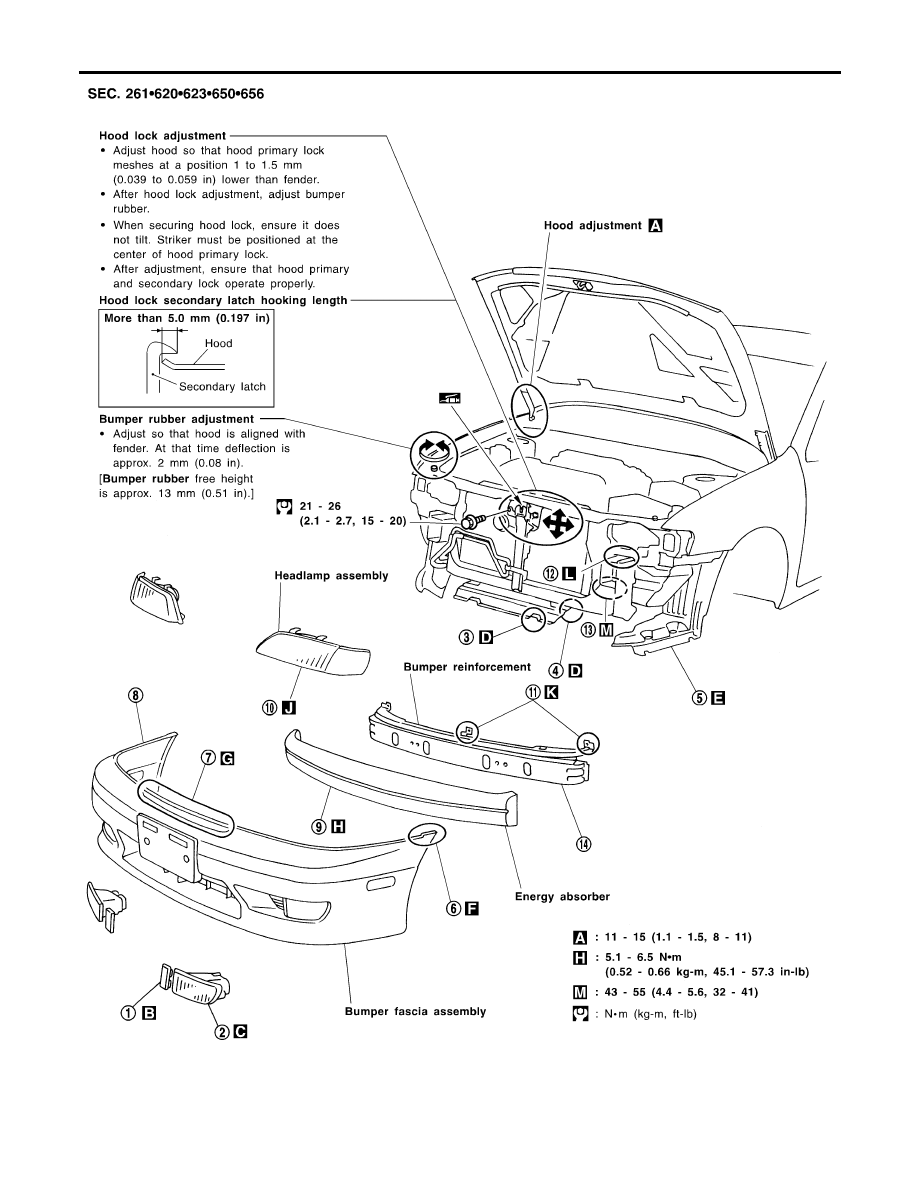

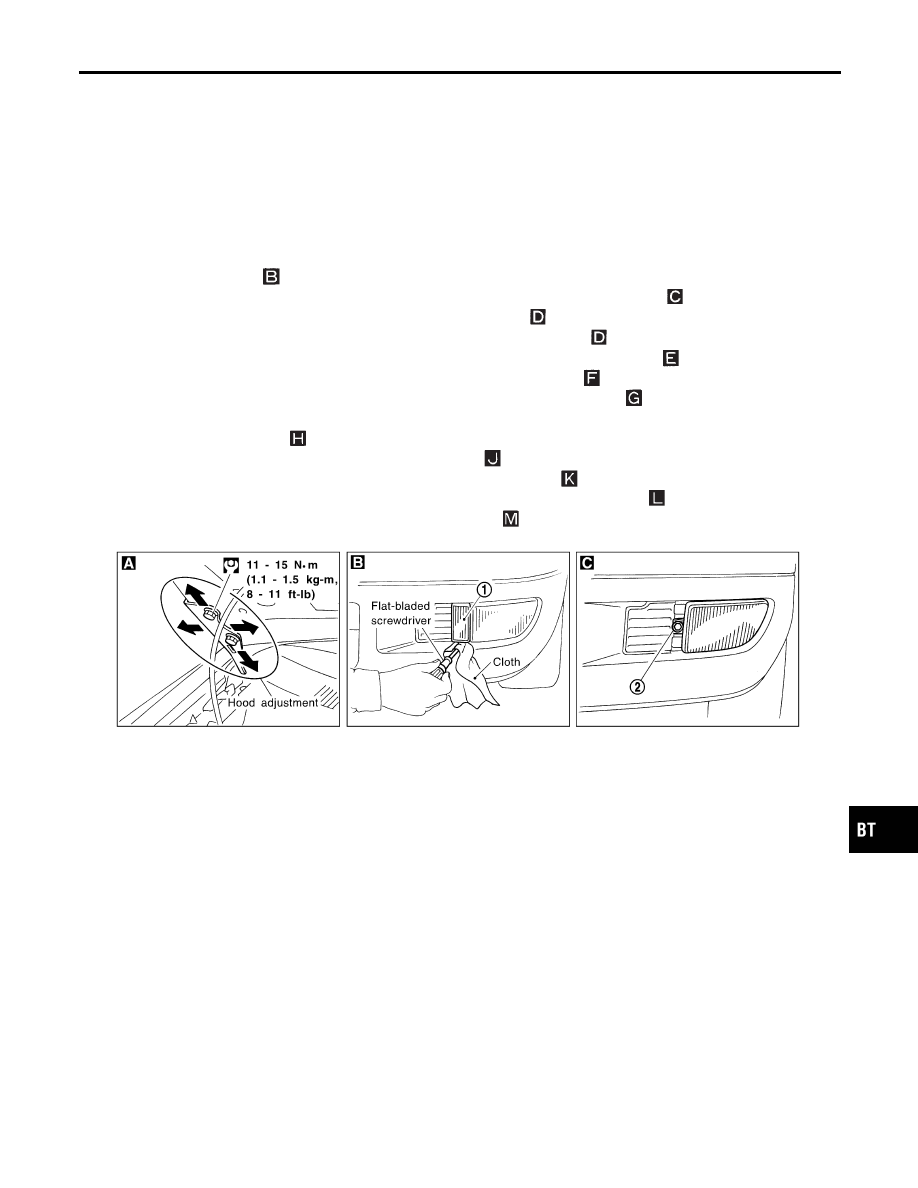

FRONT BUMPER ASSEMBLY

NCBT0004S01

1. Remove fog lamp rim.
2. Remove bolt securing fog lamp assembly. Then disconnect fog lamp connector.
3. Remove clips securing bumper fascia to engine undercover.
4. Remove bolts securing bumper fascia to radiator core lower support.
5. Remove screws and clips securing left and right sides of front fender protector.
6. Remove bolts securing left and right front fenders to bumper fascia.
7. Remove clips securing bumper reinforcement assembly to bumper fascia.
8. Extract bumper fascia assembly.
9. Remove energy absorber.
10. Remove bolts and nuts securing headlamp assembly.
11. Remove bolt and nuts securing bumper reinforcement assembly.
12. Remove the pin from the bolts which fix the bumper reinforcement assembly.
13. Remove bolts securing bumper reinforcement assembly.
14. Extract bumper reinforcement assembly.
