Infiniti G20 (P11). Manual - part 119





Preliminary Check

NCBR0095

1

CHECK BRAKE FLUID LEVEL

Check brake fluid level in reservoir tank.
Low fluid level may indicate brake pad wear or leakage from brake line.

SBR451D

Is brake fluid filled between MAX and MIN lines on reservoir tank and/or has brake fluid been contaminated?

Yes

©

GO TO 2.

No

©

Repair. GO TO 2.

2

CHECK BRAKE LINE

Check brake line for leakage.

SBR389C

Is leakage present at or around brake lines, tubes or hoses or are any of these parts cracked or damaged?

Yes

©

GO TO 3.

No

©

Repair. GO TO 3.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — BASIC INSPECTION

ABS

Preliminary Check

BR-51

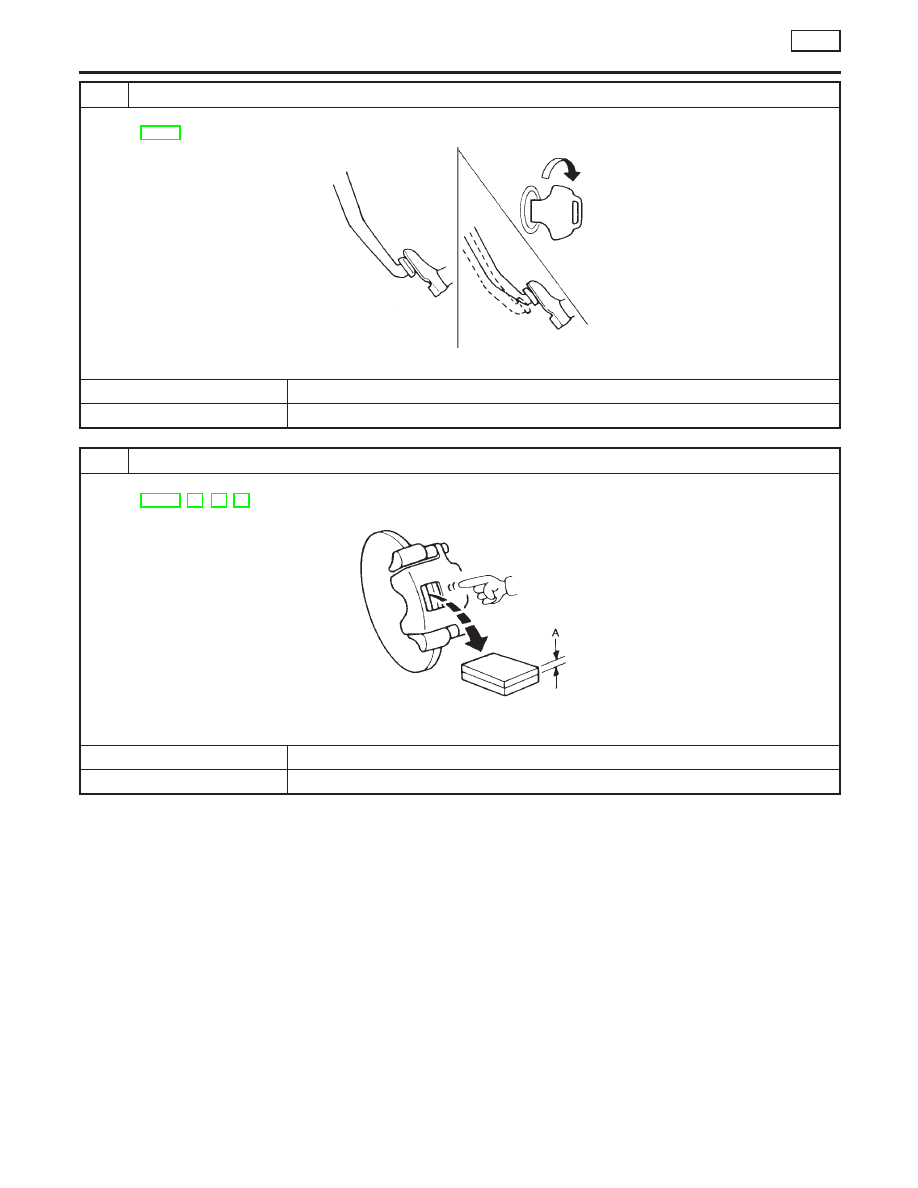

3

CHECK BRAKE BOOSTER OPERATION

Check brake booster for operation and air tightness.
Refer to BR-17.

SBR058C

Is brake booster airtight and functioning properly?

Yes

©

GO TO 4.

No

©

Replace. GO TO 4.

4

CHECK BRAKE PAD AND ROTOR

Check brake pad and rotor.
Refer to BR-20, 22, 24, 28.

SBR059C

Are brake pads and rotors functioning properly?

Yes

©

GO TO 5.

No

©

Replace.

TROUBLE DIAGNOSIS — BASIC INSPECTION

ABS

Preliminary Check (Cont’d)

BR-52

5

RECHECK BRAKE FLUID LEVEL

Check brake fluid level in reservoir tank again.

SBR451D

Is brake fluid filled between MAX and MIN lines on reservoir tank and/or has brake fluid been contaminated?

Yes

©

GO TO 6.

No

©

Fill up brake fluid.

6

CHECK WARNING LAMP ACTIVATION

Check warning lamp activation.

SBR860E

Does warning lamp turn on when ignition switch is turned “ON”?

Yes

©

GO TO 7.

No

©

Check fuse, warning lamp bulb and warning lamp circuit.

7

CHECK WARNING LAMP DEACTIVATION

Check warning lamp for deactivation after engine is started.

Does warning lamp turn off when engine is started?

Yes

©

GO TO 8.

No

©

Go to Self-diagnosis. Refer to BR-42, 44.

8

DRIVE VEHICLE

Drive vehicle at speeds over 30 km/h (19 MPH) for at least one minute.

Does warning lamp remain off after vehicle has been driven at 30 km/h (19 MPH) for at least one minute?

Yes

©

END

No

©

Go to Self-diagnosis. Refer to BR-42, 44.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — BASIC INSPECTION

ABS

Preliminary Check (Cont’d)

BR-53

SBR045EF

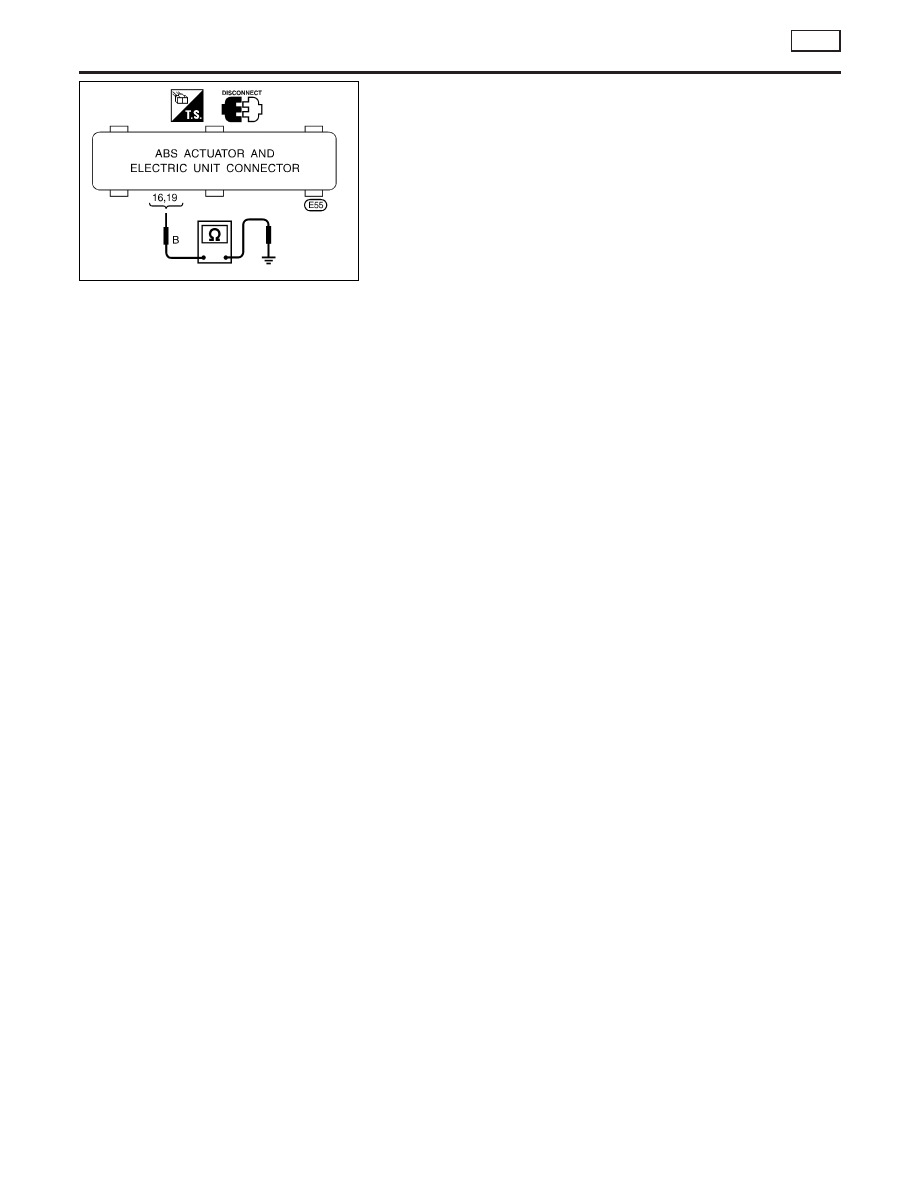

Ground Circuit Check

NCBR0096

ABS ACTUATOR AND ELECTRIC UNIT GROUND

NCBR0096S04

I

Check continuity between ABS actuator and electric unit con-
nector terminals and ground.

Continuity should exist.

TROUBLE DIAGNOSIS — BASIC INSPECTION

ABS

Ground Circuit Check

BR-54
