Infiniti G20 (P11). Manual - part 89





AAT538

7.

Press out reduction pinion gear bearing from reduction pinion
gear.

SAT651D

8.

Remove reduction pinion gear bearing outer race from trans-
mission case.

INSPECTION

NCAT0163

Output Shaft, Idler Gear and Reduction Pinion Gear

NCAT0163S01

I

Check shafts for cracks, wear or bending.

I

Check gears for wear, chips and cracks.

SPD715

Bearing

NCAT0163S02

I

Make sure bearings roll freely and are free from noise, cracks,
pitting or wear.

I

When replacing taper roller bearing, replace outer and
inner race as a set.

SAT652D

Seal Ring Clearance

NCAT0163S03

I

Install new seal rings to output shaft.

I

Measure clearance between seal ring and ring groove of out-
put shaft.

Standard clearance:

0.10 - 0.25 mm (0.0039 - 0.0098 in)

Allowable limit:

0.25 mm (0.0098 in)

I

If not within allowable limit, replace output shaft.

I

Install new seal rings to bearing retainer.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Output Shaft, Idler Gear, Reduction Pinion Gear and Bearing Retainer (Cont’d)

AT-353

I

Measure clearance between seal ring and ring groove of bear-
ing retainer.

Standard clearance:

0.10 - 0.25 mm (0.0039 - 0.0098 in)

Allowable limit:

0.25 mm (0.0098 in)

I

If not within allowable limit, replace bearing retainer.

AAT688

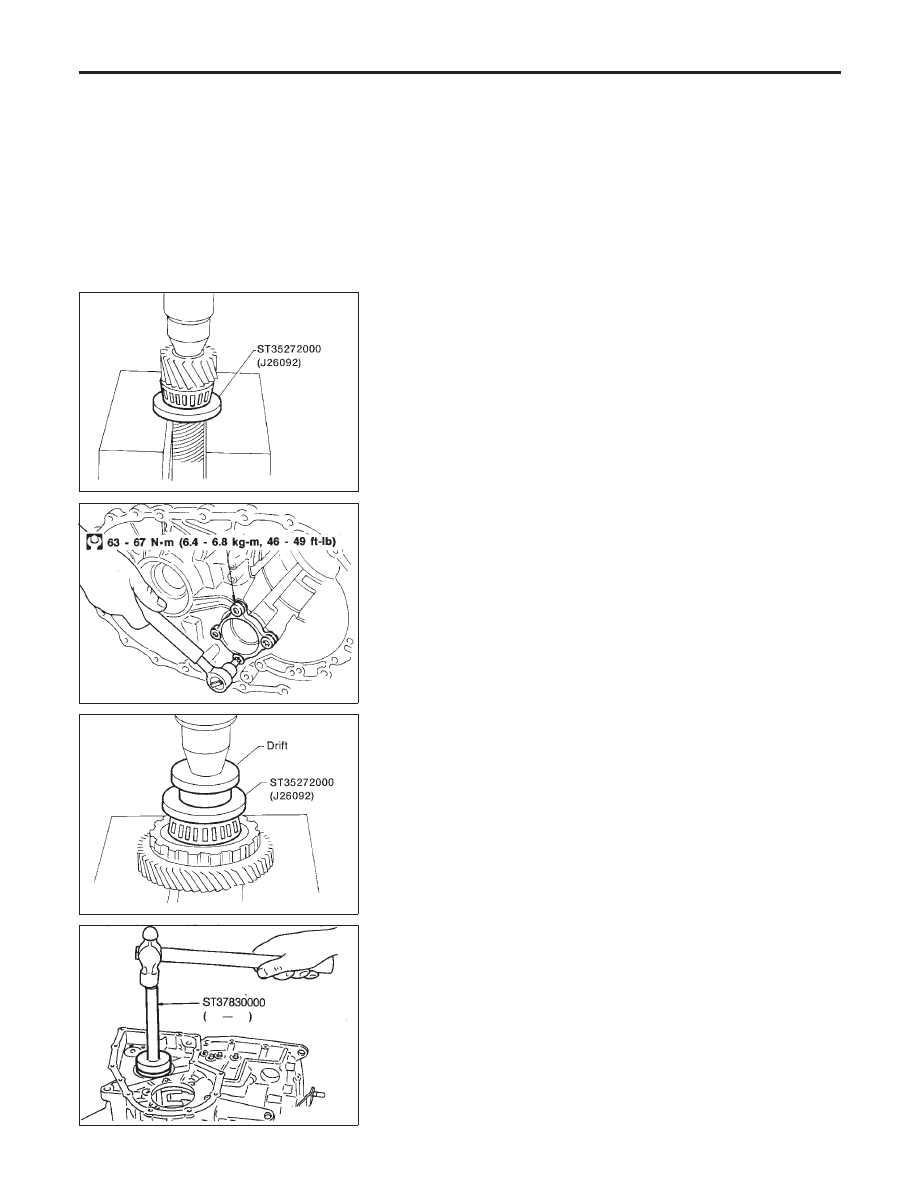

ASSEMBLY

NCAT0164

1.

Press reduction pinion gear bearing on reduction pinion gear.

SAT654D

2.

Install reduction pinion gear bearing outer race on transmis-
sion case.

AAT689

3.

Press idler gear bearing inner race on idler gear.

SAT901D

4.

Install idler gear bearing outer race on transmission case.

REPAIR FOR COMPONENT PARTS

Output Shaft, Idler Gear, Reduction Pinion Gear and Bearing Retainer (Cont’d)

AT-354

SAT939D

5.

Press output shaft bearing on output shaft.

SAT658D

6.

Press needle bearing on bearing retainer.

SAT659D

7.

Install snap ring to bearing retainer.

SAT660D

8.

After packing ring grooves with petroleum jelly, carefully install
new seal rings on output shaft and bearing retainer.

SAT661D

I

Roll paper around seal rings to prevent seal rings from
spreading.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Output Shaft, Idler Gear, Reduction Pinion Gear and Bearing Retainer (Cont’d)

AT-355

Band Servo Piston Assembly

COMPONENTS

NCAT0165

SAT098K

SAT288D

DISASSEMBLY

NCAT0166

1.

Remove band servo piston snap ring.

SAT289D

2.

Apply compressed air to oil hole in transmission case to
remove OD servo piston retainer and band servo piston
assembly.

I

Hold band servo piston assembly with a rag or nylon
waste.

SAT290DB

3.

Apply compressed air to oil hole in OD servo piston retainer to
remove OD servo piston from retainer.

I

Hold OD servo piston while applying compressed air.

REPAIR FOR COMPONENT PARTS

Band Servo Piston Assembly

AT-356
