Infiniti G20 (P11). Manual - part 87





SAT162D

Low & Reverse Brake Drive Plates

NCAT0155S02

I

Check facing for burns, cracks or damage.

I

Measure thickness of facing.

Thickness of drive plate:

Standard value: 2.0 mm (0.079 in)
Wear limit: 1.8 mm (0.071 in)

I

If not within wear limit, replace.

SAT235DA

ASSEMBLY

NCAT0156

1.

Install D-ring and oil seal on piston.

I

Take care with the direction of the oil seal.

I

Apply ATF to both parts.

SAT239D

2.

Stand transmission case.

3.

Install piston assembly on transmission case while turning it
slowly.

I

Apply ATF to inner surface of transmission case.

SAT241D

4.

Install return springs and spring retainer on piston.

AAT687

5.

Install snap ring while compressing return springs.

I

Set Tool directly above return springs.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

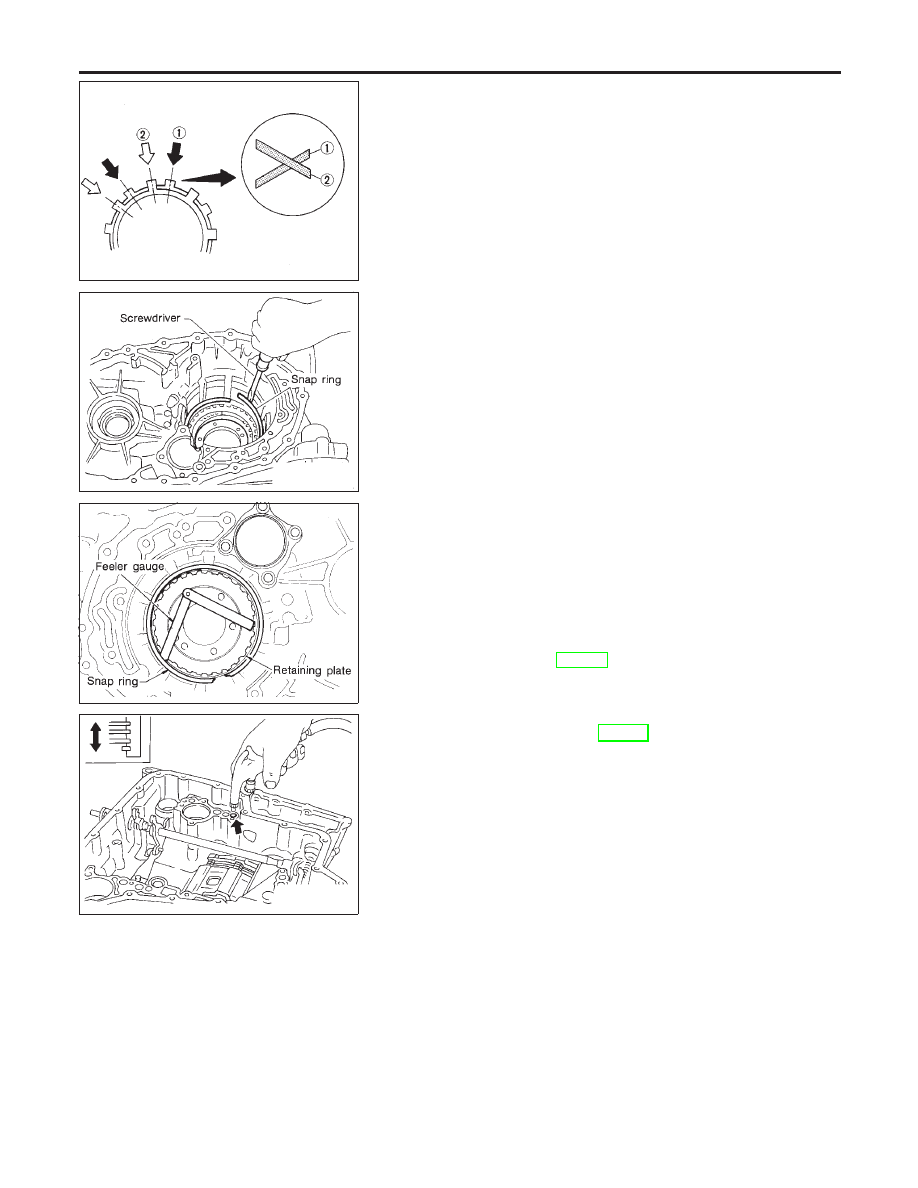

Low & Reverse Brake (Cont’d)

AT-345

SAT254E

6.

Install drive plates, driven plates, retaining plates and dished
plates.

I

Do not align the projections on the two dished plates.

I

Make sure to put the plates in the correct order and direc-
tion.

SAT231D

7.

Install snap ring.

SAT246D

8.

Measure clearance between retaining plate and snap ring. If
not within allowable limit, select proper retaining plate (front
side).

Specified clearance:

Standard: 1.4 - 1.8 mm (0.055 - 0.071 in)
Allowable limit:

2.8 mm (0.110 in)

Retaining plate:

Refer to SDS, AT-392.

SAT230D

9.

Check operation of low & reverse brake.
Refer to “DISASSEMBLY”, AT-343.

REPAIR FOR COMPONENT PARTS

Low & Reverse Brake (Cont’d)

AT-346

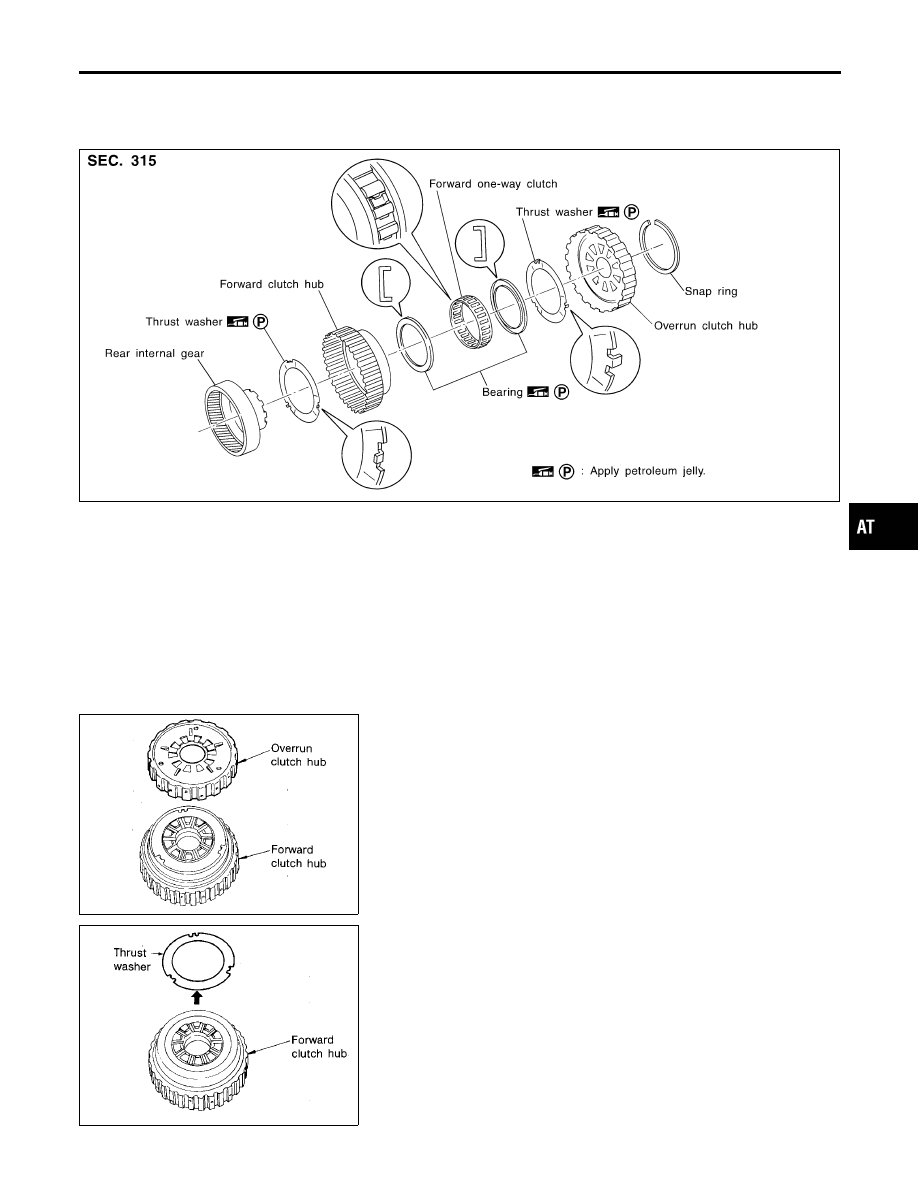

Rear Internal Gear, Forward Clutch Hub and
Overrun Clutch Hub

COMPONENTS

NCAT0157

SAT875J

SAT249D

DISASSEMBLY

NCAT0158

1.

Remove snap ring from overrun clutch hub.

2.

Remove overrun clutch hub from forward clutch hub.

SAT250D

3.

Remove thrust washer from forward clutch hub.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Rear Internal Gear, Forward Clutch Hub and Overrun Clutch Hub

AT-347

SAT251D

4.

Remove forward clutch hub from rear internal gear.

SAT252D

5.

Remove end bearing from rear internal gear.

SAT253D

6.

Remove thrust washer from rear internal gear.

SAT254D

7.

Remove end bearing from forward one-way clutch.

SAT255D

8.

Remove one-way clutch from forward clutch hub.

REPAIR FOR COMPONENT PARTS

Rear Internal Gear, Forward Clutch Hub and Overrun Clutch Hub (Cont’d)

AT-348
