Infiniti G20 (P11). Manual - part 75





SAT037DA

28. Remove brake band according to the following procedures.
a.

Loosen lock nut, then back off anchor end pin.

I

Do not reuse anchor end pin.

SAT038D

b.

Remove brake band from transmission case.

SAT039D

I

To prevent brake linings from cracking or peeling, do not
stretch the flexible band unnecessarily. When removing
the brake band, always secure it with a clip as shown in
the figure at left.
Leave the clip in position after removing the brake band.

SAT040D

c.

Check brake band facing for damage, cracks, wear or burns.

SAT041D

29. Remove input shaft assembly (high clutch) and reverse clutch

according to the following procedures.

a.

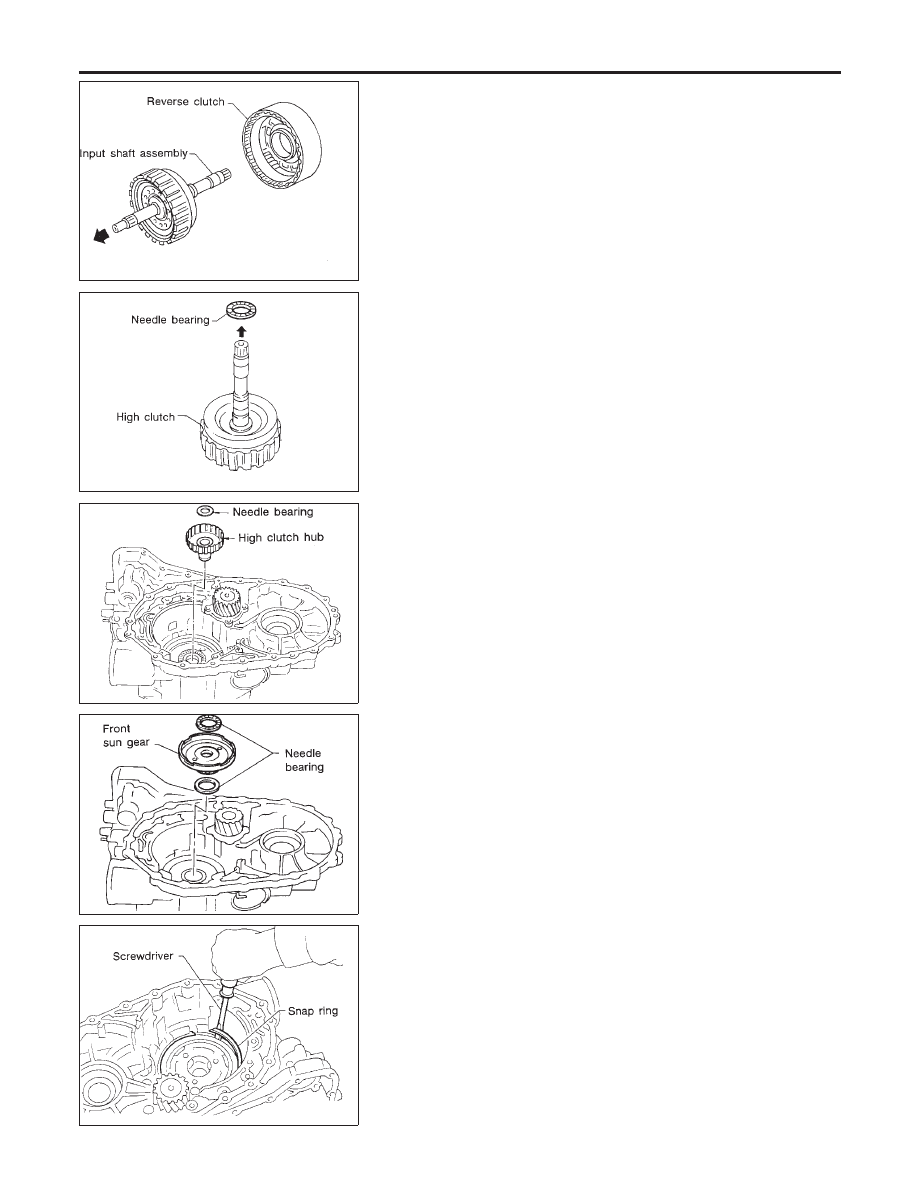

Remove input shaft assembly (high clutch) with reverse clutch.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DISASSEMBLY

AT-297

SAT042D

b.

Remove input shaft assembly (high clutch) from reverse
clutch.

SAT043D

c.

Remove needle bearing from high clutch drum.

d.

Check input shaft assembly and needle bearing for damage or
wear.

SAT044D

30. Remove high clutch hub and needle bearing from transmission

case.

31. Check high clutch hub and needle bearing for damage or wear.

SAT579D

32. Remove front sun gear and needle bearings from transmission

case.

33. Check front sun gear and needle bearings for damage or wear.

SAT046D

34. Remove front planetary carrier assembly and low one-way

clutch according to the following procedures.

a.

Remove snap ring using a screwdriver.

DISASSEMBLY

AT-298

SAT047D

b.

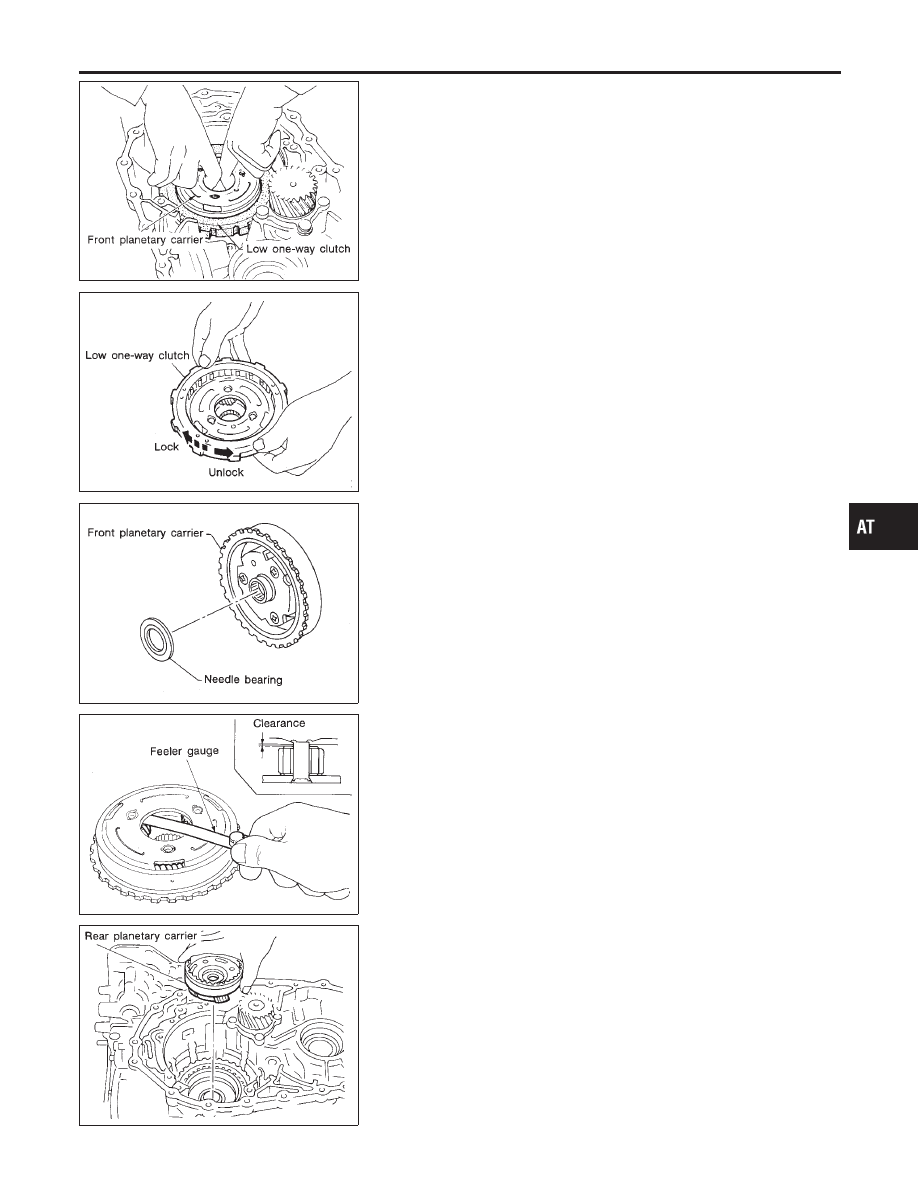

Remove front planetary carrier with low one-way clutch.

SAT048D

c.

Check that low one-way clutch rotates in the direction of the
arrow and locks in the opposite direction.

d.

Remove low one-way clutch from front planetary carrier by
rotating it in the direction of unlock.

SAT049D

e.

Remove needle bearing from front planetary carrier.

SAT050D

f.

Check front planetary carrier, low one-way clutch and needle
bearing for damage or wear.

g.

Check clearance between pinion washer and planetary carrier
using feeler gauge.

Standard clearance:

0.15 - 0.70 mm (0.0059 - 0.0276 in)

Allowable limit:

0.80 mm (0.0315 in)

Replace front planetary carrier if the clearance exceeds allow-
able limit.

SAT051D

35. Remove rear planetary carrier assembly and rear sun gear

according to the following procedures.

a.

Remove rear planetary carrier assembly from transmission
case.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DISASSEMBLY

AT-299

SAT052D

b.

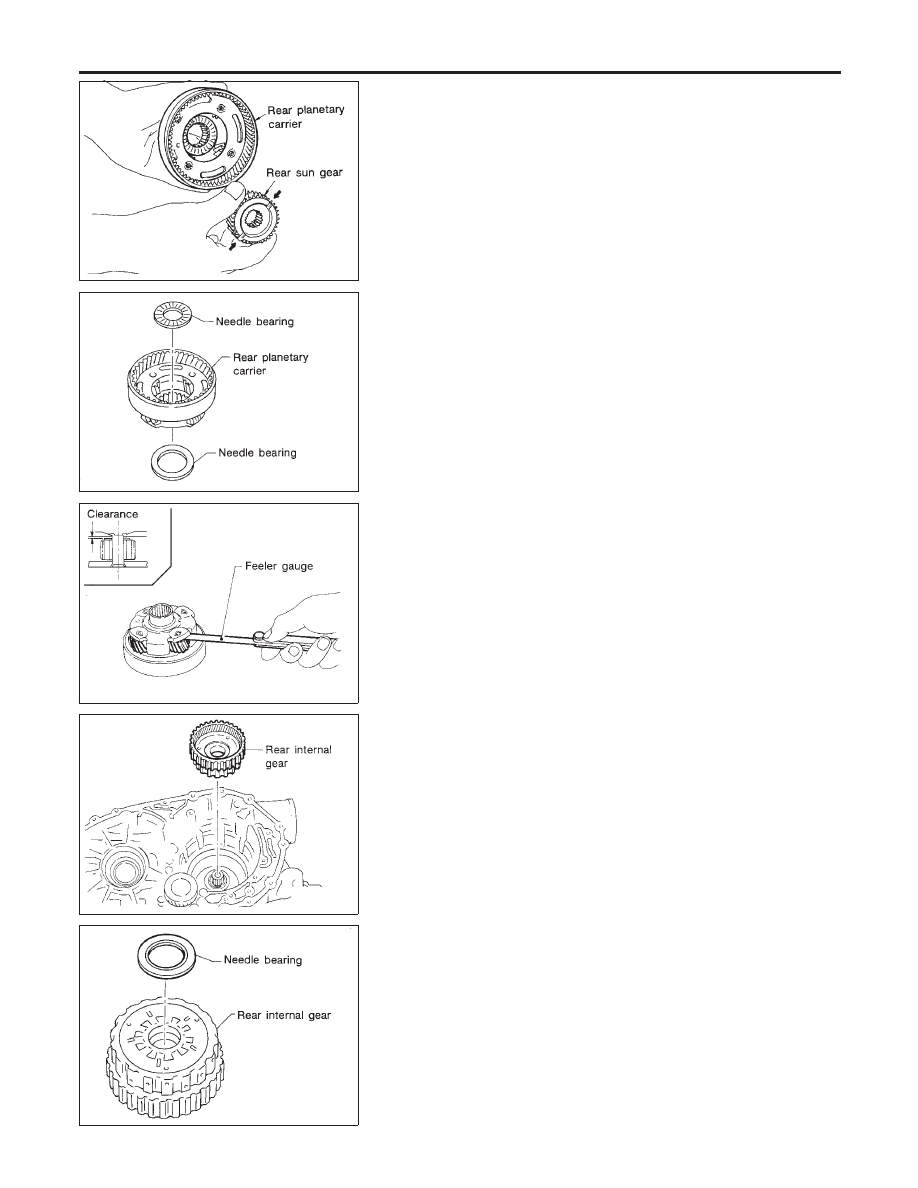

Remove rear sun gear from rear planetary carrier.

SAT053D

c.

Remove needle bearings from rear planetary carrier assembly.

SAT054D

d.

Check rear planetary carrier, rear sun gear and needle bear-
ings for damage or wear.

e.

Check clearance between pinion washer and rear planetary
carrier using feeler gauge.

Standard clearance:

0.15 - 0.70 mm (0.0059 - 0.0276 in)

Allowable limit:

0.80 mm (0.0315 in)

Replace rear planetary carrier if the clearance exceeds allow-
able limit.

SAT055D

36. Remove rear internal gear from transmission case.

SAT056D

37. Remove needle bearing from rear internal gear.

I

Check needle bearing for damage or wear.

DISASSEMBLY

AT-300
