Precaution for Procedure without Cowl Top Cover

INFOID:0000000001612917

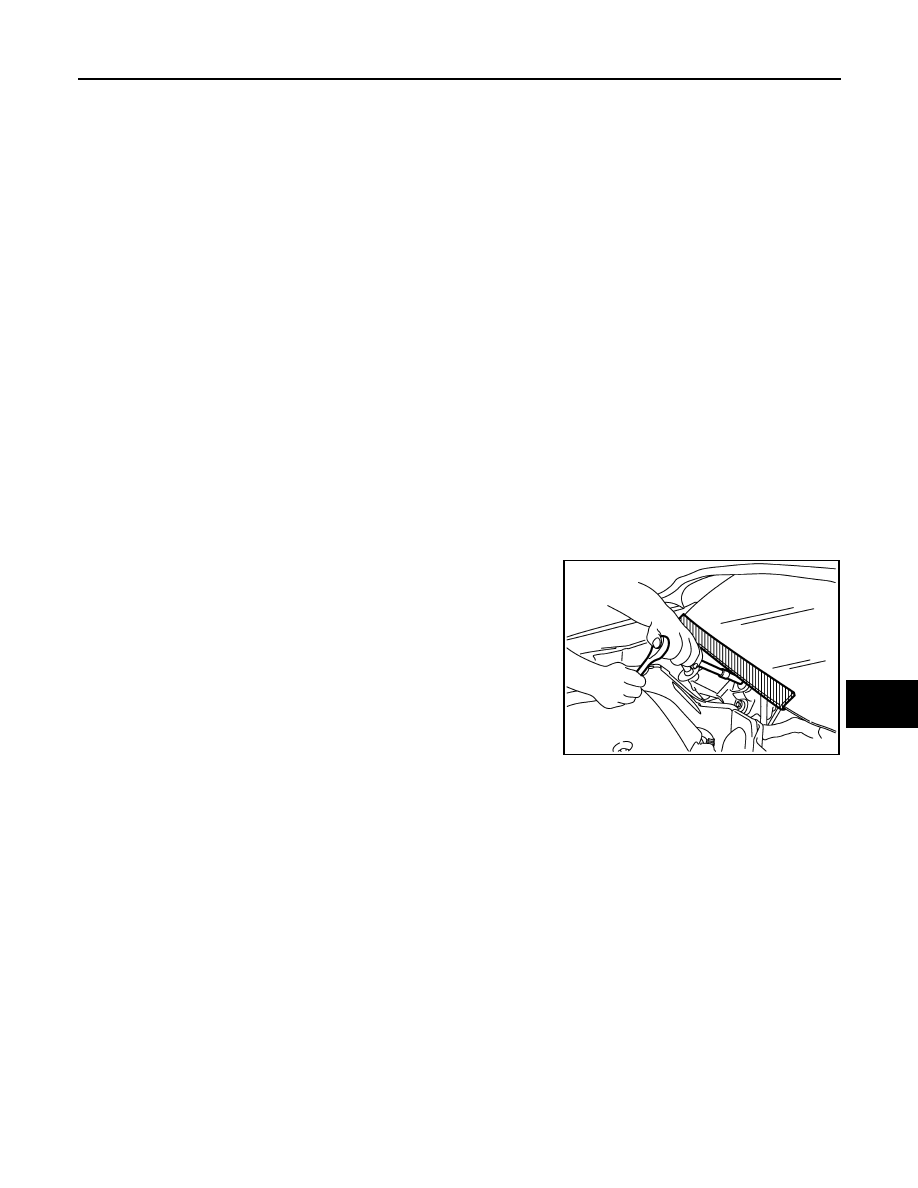

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

PIIB3706J

WW-4

< SERVICE INFORMATION >

FRONT WIPER AND WASHER SYSTEM

FRONT WIPER AND WASHER SYSTEM

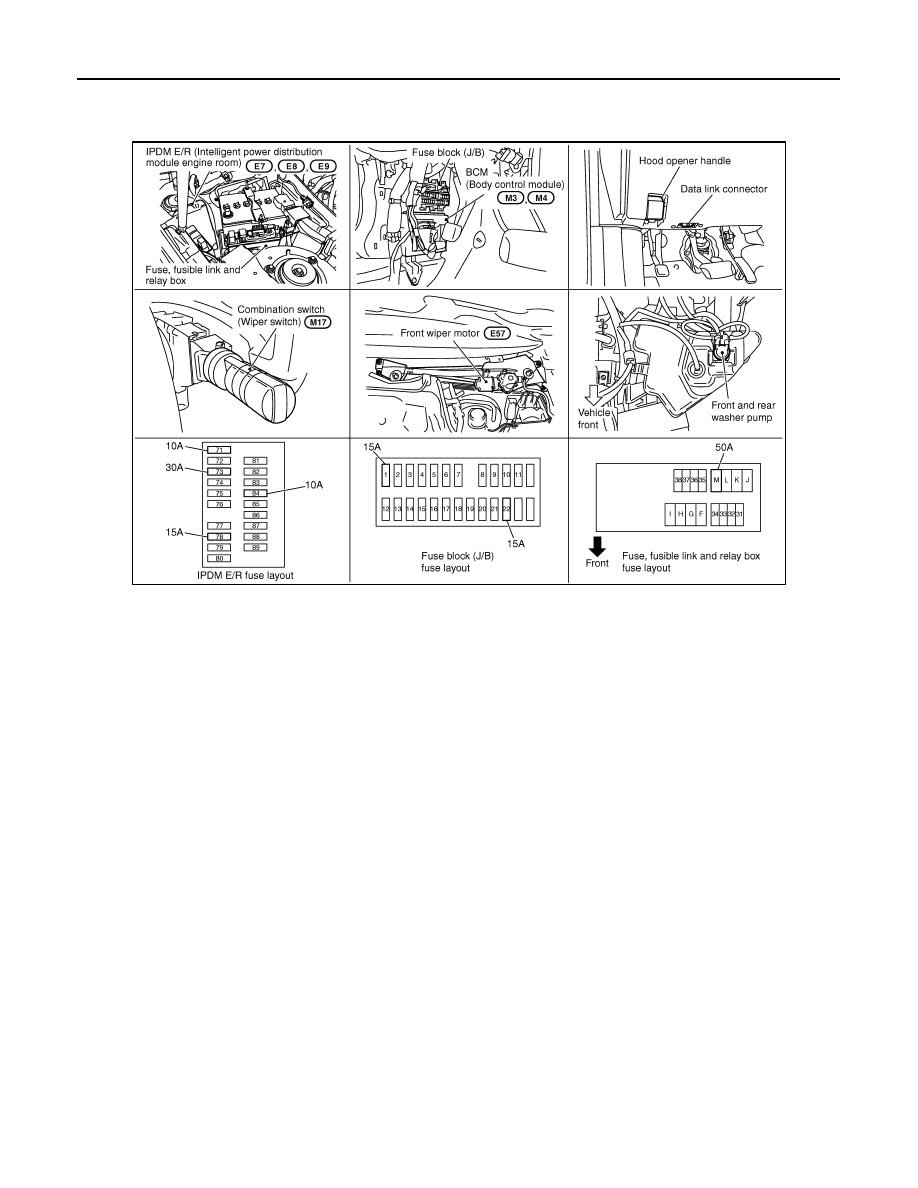

Component Parts and Harness Connector Location

INFOID:0000000001328542

System Description

INFOID:0000000001328543

• All front wiper relays (HI, LO) are included in IPDM E/R (intelligent power distribution module engine room).
• Wiper switch (combination switch) is composed of a combination of 5 output terminals and 5 input terminals.

Terminal combination status is read by BCM (body control module) when switch is turned ON.

• BCM controls front wiper LO, HI, and INT (intermittent) operation.
• IPDM E/R operates wiper motor according to CAN communication signals from BCM.

OUT LINE

Power is supplied at all times
• through 50 A fusible link (letter M, located in fuse, fusible link and relay box.)
• to BCM terminal 55,
• through 15 A fuse [No. 22, located in fuse block (J/B)]
• to BCM terminal 42,
• through 30 A fuse (No. 73, located in IPDM E/R)
• to front wiper relay, located in IPDM E/R,
• through 15 A fuse (No. 78, located in IPDM E/R) and
• through 10 A fuse (No. 71, located in IPDM E/R)
• to CPU located in IPDM E/R.
When the ignition switch is ON or START position, power is supplied
• to ignition relay located in IPDM E/R, from battery direct,
• through 15 A fuse [No. 1, located in fuse block (J/B)]
• to BCM terminal 38,
• through ignition relay, located in IPDM E/R
• to front wiper relay, located in IPDM E/R
• to front wiper high relay, located in IPDM E/R and
• to CPU located in IPDM E/R,
• through 10 A fuse (No. 84, located in IPDM E/R)
• through IPDM E/R terminal 44
• to combination switch terminal 14.
Ground is supplied

PKIC9701E

FRONT WIPER AND WASHER SYSTEM

WW-5

< SERVICE INFORMATION >

• to BCM terminals 49 and 52
• through grounds M35, M45 and M85,
• to IPDM E/R terminals 38 and 60
• through grounds E21, E50 and E51,
• to combination switch terminal 12
• through grounds M35, M45 and M85.

LOW SPEED WIPER OPERATION

When wiper switch is in LOW position, BCM detects low speed wiper ON signal by BCM wiper switch reading
function.
BCM sends front wiper request signal (LO) through CAN communication
• from BCM terminals 39 and 40
• to IPDM E/R terminals 48 and 49.
When IPDM E/R receives front wiper request signal (LO), it turns ON front wiper relay located in IPDM E/R,
power is supplied
• through front wiper relay
• through front wiper high relay
• through IPDM E/R terminal 21
• to front wiper motor terminal 1.
Ground is supplied
• to front wiper motor terminal 2
• through grounds E21, E50 and E51.
With power and ground supplied, the front wiper motor operates at low speed.

HIGH SPEED WIPER OPERATION

When wiper switch is in HI position, BCM detects high speed wiper ON signal by BCM wiper switch reading
function.
BCM sends front wiper request signal (HI) through CAN communication
• from BCM terminals 39 and 40
• to IPDM E/R terminals 48 and 49.
When IPDM E/R receives front wiper request signal (HI), it turns ON front wiper relay (located in IPDM E/R),
power is supplied
• through front wiper relay
• through front wiper high relay
• through IPDM E/R terminal 31
• to front wiper motor terminal 4.
Ground is supplied
• to front wiper motor terminal 2
• through grounds E21, E50 and E51.
With power and ground supplied, the front wiper motor operates at high speed.

INTERMITTENT OPERATION

Front wiper intermittent operation delay interval is determined from a combination of 3 switches (intermittent
operation dial position 1, 2, and 3) and vehicle speed signal.
Speed dependent wiper controlled mode can be changed by the function setting of CONSULT-III or display.
During each intermittent operation delay interval, BCM sends front wiper request signal to IPDM E/R.

Wiper Dial Position Setting

Example: For wiper intermittent dial position 1

Wiper intermittent dial position

Intermittent operation

interval

Combination switch

INT VOLUME 1

INT VOLUME 2

INT VOLUME 3

Short

↑

↓

Long

OFF
