REMOVAL AND INSTALLATION

WT-33

< SERVICE INFORMATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

REMOVAL AND INSTALLATION

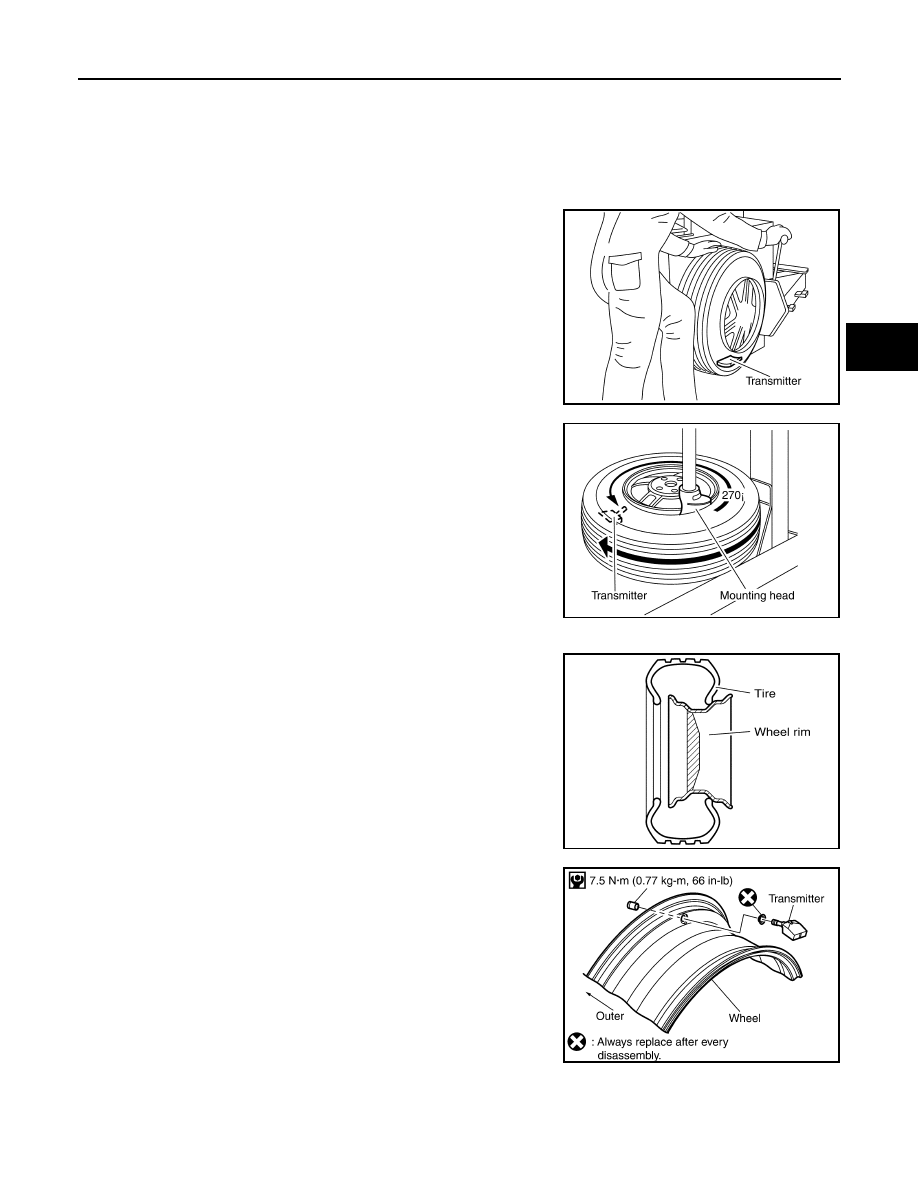

Transmitter

INFOID:0000000001327599

REMOVAL

1.

Deflate tire. Unscrew transmitter retaining nut and allow transmitter to fall into tire.

2.

Gently bounce tire so that transmitter falls to bottom of tire.
Place on tire changing machine and break both tire beads
ensuring that the transmitter remains at the bottom of the tire.

3.

Turn tire so that valve hole is at bottom and bounce so that
transmitter is near valve hole. Carefully lift tire onto turntable and
position valve hole (and transmitter) 270 degree from mounting/
dismounting head.

4.

Lubricate tire well and remove first side of the tire. Reach inside
the tire and remove the transmitter.

INSTALLATION

1.

Put first side of tire onto rim.

2.

Mount transmitter on rim and tighten nut.

SEIA0047E

SEIA0048E

SEIA0049E

SEIA0521E

WT-34

< SERVICE INFORMATION >

REMOVAL AND INSTALLATION

3.

Place wheel on turntable of tire machine. Ensure that transmitter
is 270 degree from mounting head when second side of tire is
fitted.
NOTE:
Do not touch transmitter at mounting head.

4.

Lubricate tire well and fit second side of tire as normal. Ensure
that tire does not rotate relative to rim.

5.

Inflate tire and fit to appropriate wheel position.

SEIA0048E

SERVICE DATA AND SPECIFICATIONS (SDS)

WT-35

< SERVICE INFORMATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

Road Wheel

INFOID:0000000001327600

Tire

INFOID:0000000001327601

Unit: kPa (kg/cm

2

, psi)

Kind of wheel

Aluminum

Steel (for emergency use)

Maximum radial runout limit

Lateral deflection

Less than 0.3 mm (0.012 in)

Less than 1.5 mm (0.059 in)

Vertical deflection

Less than 0.3 mm (0.012 in)

Less than 1.5 mm (0.059 in)

Maximum allowable unbalance

Dynamic (At rim flange)

Less than 5.0 g (0.2 oz) (one side)

Static (At rim flange)

Less than 20 g (0.7 oz)

Tire size

Air pressure

Front

Rear

P265/60R18 109V

220 (2.2, 32)

220 (2.2, 32)

P265/50R20 106V

220 (2.2, 32)

220 (2.2, 32)

T175/90D18 110M

420 (4.2, 60)

420 (4.2, 60)
