RF-18

< SERVICE INFORMATION >

SUNROOF

3.

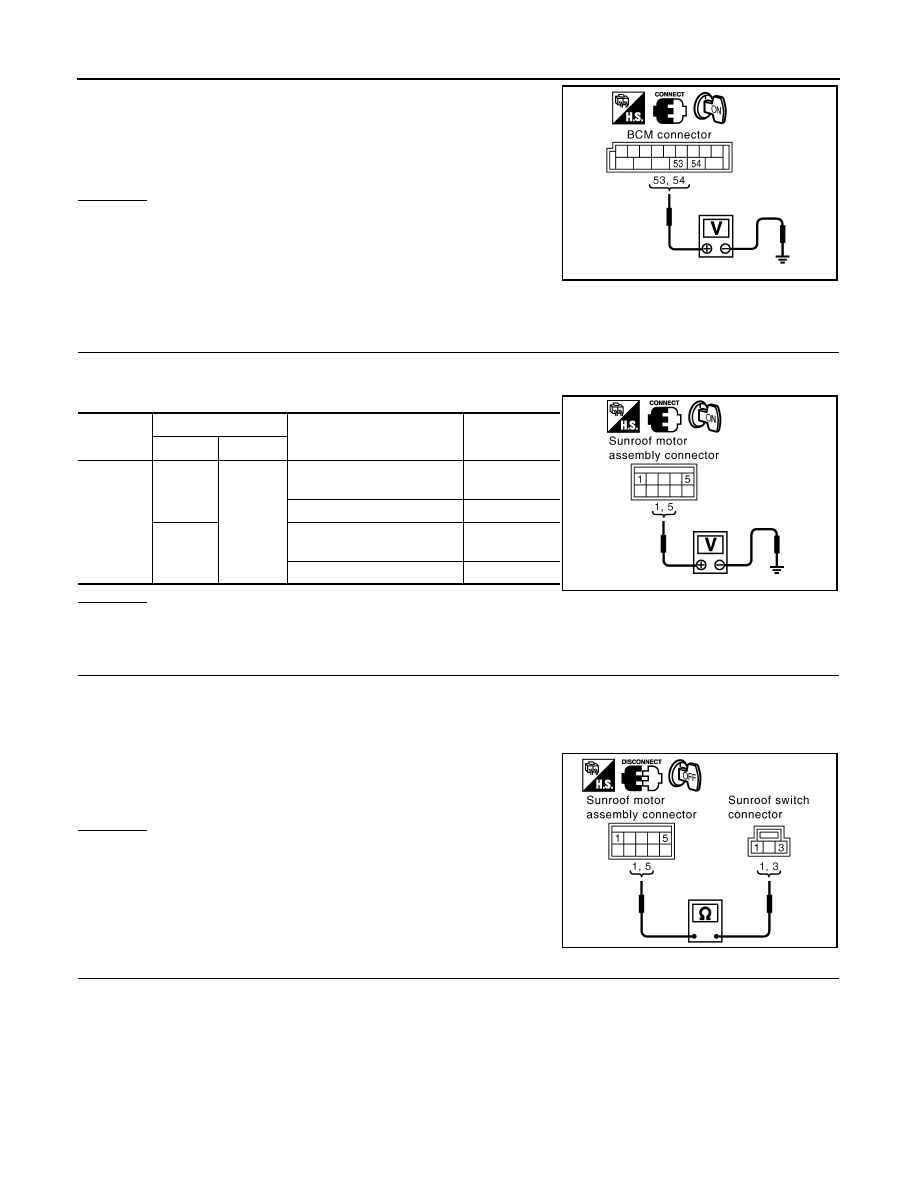

Check voltage between BCM connector M4 terminal 53, 54 and
ground.

OK or NG

OK

>> Check condition of harness and connector.

NG

>> Replace BCM.

Check Sunroof Switch System

INFOID:0000000001328045

1.

CHECK SUNROOF SWITCH INPUT SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between sunroof motor assembly connector and ground.

OK or NG

OK

>> Replace sunroof motor assembly.

NG

>> GO TO 2.

2.

CHECK SUNROOF SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect sunroof motor assembly and sunroof switch connector.

3.

Check continuity between sunroof motor assembly connector R5 terminal 1, 5 and sunroof switch connec-
tor R56 terminal 1, 3.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness between sunroof motor

assembly and sunroof switch.

3.

CHECK SUNROOF SWITCH GROUND CIRCUIT

Check continuity between sunroof switch connector R56 terminal 2 and ground.

53 (Y/B) – Ground

: Battery voltage

54 (W) – Ground

: Battery voltage

PIIA6154E

Connector

Terminals (Wire color)

Condition

Voltage (V)

(Approx.)

(+)

(–)

R5

1 (BR)

Ground

Sunroof switch is operated
TILT UP or SLIDE CLOSE

0

Other than above

Battery voltage

5 (LG)

Sunroof switch is operated
TILT DOWN or SLIDE OPEN

0

Other than above

Battery voltage

PIIA6155E

1 (BR) – 3 (BR)

: Continuity should exist.

5 (LG) – 1 (LG)

: Continuity should exist.

PIIA6156E

SUNROOF

RF-19

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

RF

N

O

P

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace harness.

4.

CHECK SUNROOF SWITCH

Check continuity between sunroof switch terminal 1, 3 and 2.

OK or NG

OK

>> Replace sunroof motor assembly.

NG

>> Replace sunroof switch.

Check Door Switch

INFOID:0000000001328046

1.

CHECK DOOR SWITCH INPUT SIGNAL

 With CONSULT-III

Check (“DOOR SW-DR” and “DOOR SW-AS”) in “DATA MONITOR” mode with CONSULT-III.

Without CONSULT-III

Check voltage between BCM connector M3, B14 terminals 12, 62 and ground.

OK or NG

OK

>> Door switch is OK.

NG

>> GO TO 2.

2.

CHECK DOOR SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2 (B) – Ground

: Continuity should exist.

PIIA3627E

Terminals

Condition

Continuity

1

2

Sunroof switch is operated
TILT DOWN or SLIDE OPEN

Yes

Other than above

No

3

Sunroof switch is operated
TILT UP or SLIDE CLOSE

Yes

Other than above

No

PIIA6157E

Monitor item

Condition

DOOR SW-DR

OPEN

: ON

CLOSE

: OFF

DOOR SW-AS

OPEN

: ON

CLOSE

: OFF

Item

Terminals (Wire color)

Condition

Voltage (V)

(Approx.)

(+)

(–)

Passenger side
door switch

12 (P/B)

Ground

OPEN

0

CLOSE

Battery voltage

Driver side door
switch

62 (W)

OPEN

0

CLOSE

Battery voltage

PIIA6158E

RF-20

< SERVICE INFORMATION >

SUNROOF

2.

Disconnect door switch and BCM connector.

3.

Check continuity between BCM connector M3, B14 terminal 12,
62 and door switch connector B26, B36 terminal 1.

4.

Check continuity between BCM connector M3, B14 terminals
12, 62 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

3.

CHECK DOOR SWITCH

Check continuity between door switches terminal 1 and ground part
of door switch.

OK or NG

OK

>> GO TO 4.

NG

>> Replace malfunction door switch.

4.

CHECK BCM OUTPUT SIGNAL

1.

Connect BCM connector.

2.

Check voltage between BCM connector M3, B14 terminal 12, 62
and ground.

OK or NG

OK

>> Further inspection is necessary. Refer to

RF-15, "Trou-

ble Diagnosis Chart by Symptom"

.

NG

>> Replace BCM.

Driver side door

62 (W) – 1 (W)

: Continuity should exist.

Passenger side door

12 (P/B) – 1 (SB)

: Continuity should exist.

12 (P/B) – Ground

: Continuity should not exist.

62 (W) – Ground

: Continuity should not exist.

PIIA6159E

Terminal

Door switch

Continuity

1

Ground part of

door switch

Pushed (close)

No

Released (open)

Yes

PIIA3351E

12 (P/B) – Ground

: Battery voltage

62 (W) – Ground

: Battery voltage

PIIA6158E

SUNROOF

RF-21

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

RF

N

O

P

Wind Deflector Inspection

INFOID:0000000001328047

1.

Make sure the wind deflector is properly raised by manual. If a
malfunction is detected, remove and visually check it. If it is
damaged, replace it with a new one. If no damage is found, rein-
stall it properly.

Link and Wire Assembly

INFOID:0000000001328048

NOTE:
Before replacing a suspect part, carefully ensure it is the source of noise being experienced.
1.

Check link to determine if coated film has peeled off to such an extent that substrate is visible. Check also
to determine if link is the source of noise. If it is, replace it.

2.

Visually check to determine if a sufficient amount of grease has been applied to wire or rail groove. If not,
add grease as required.

3.

Check wire for any damage or deterioration. If any damage is found, replace wire.

Fitting Adjustment

INFOID:0000000001328049

LID WEATHERSTRIP OVERLAP ADJUSTMENT AND SURFACE MISMATCH ADJUSTMENT

1.

Tilt up glass lid.

PIIA5061E
