PREPARATION

RAX-3

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

PREPARATION

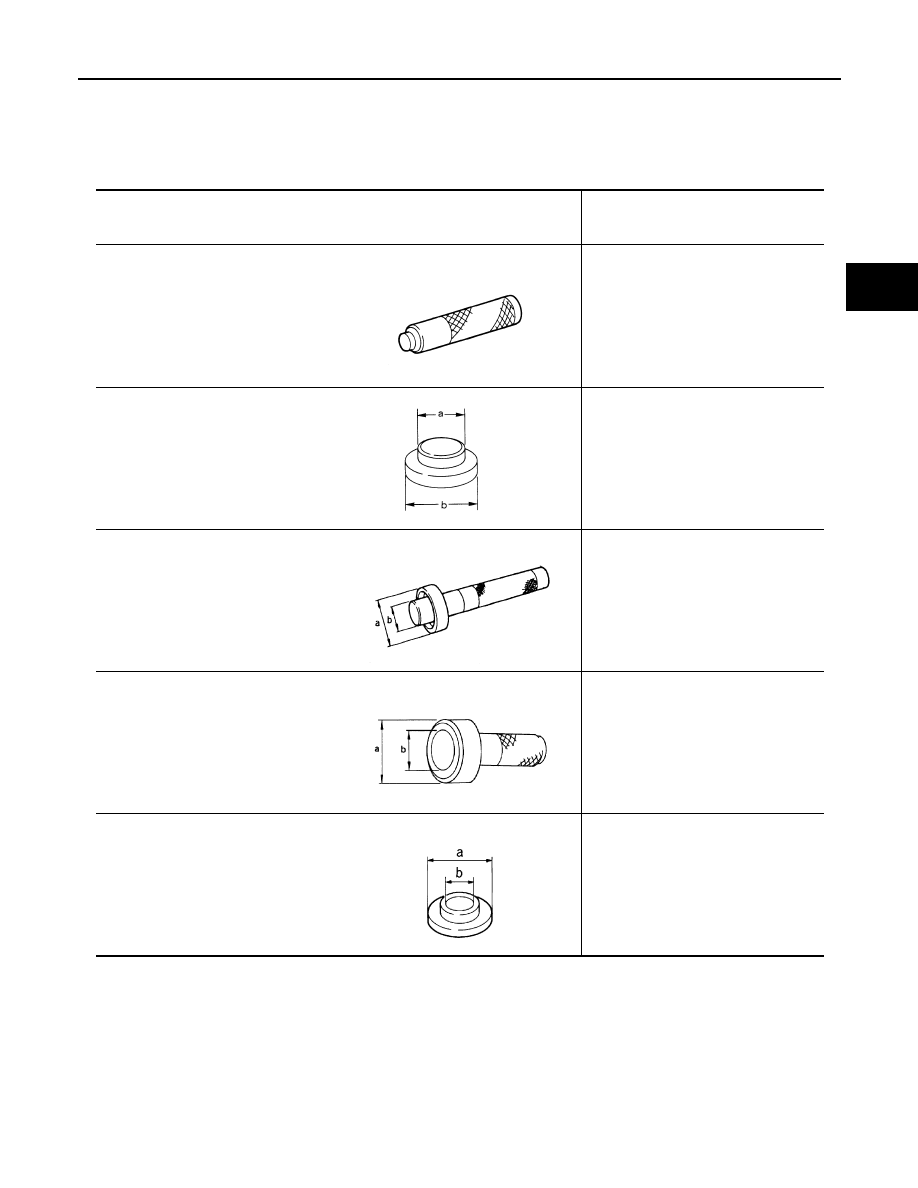

Special Service Tool

INFOID:0000000001327523

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
 (Kent-Moore No.)
Tool name

Description

ST33251000
(      —       )
Drift

• Removing wheel hub
• Removing wheel bearing outer side

inner race

• Installing wheel hub
• Inspection of wheel bearing rotating

torque

ST35300000
(      —       )
Drift
a: 45 mm (1.77 in) dia.
b: 59 mm (2.32 in) dia.

• Installing wheel hub
• Inspection of wheel bearing rotating

torque

KV40100900
(      —        )
Drift
a: 52 mm (2.05 in) dia.
b:       —

Wheel bearing rotating torque inspec-
tion

KV38100500
(      —       )
Drift
a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia.

Installing drive shaft plug

KV38102200
(       —        )
Drift
a: 90 mm (3.54 in) dia.
b: 31 mm (1.22 in) dia.

Installing drive shaft plug

ZZA0982D

ZZA0881D

ZZA0539D

ZZA0701D

ZZA0920D

RAX-4

< SERVICE INFORMATION >

PREPARATION

Commercial Service Tool

INFOID:0000000001327524

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

RAX-5

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000001327525

Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

RAX-

10

RA

X

-6

NVH in PR

section

NVH in RFD

section

NVH in RAX

and RSU

section

Re

fe

r to

 REAR AXL

E i

n

 t

h

is cha

rt.

NVH in WT

section

NVH in WT

section

Ref

e

r t

o

 DRIV

E SHAFT

 in

 th

is ch

art

.

NVH in BR

section

NVH in PS

section

Possible cause and SUSPECTED PARTS

Ex

ce

ss

iv

e j

oi

nt

 an

gl

e

Jo

in

t s

lid

in

g res

ist

an

ce

Imb

al

anc

e

Im

p

rop

er i

n

s

ta

lla

tio

n

lo

os

en

es

s

P

a

rt

s interference

PR

OP

EL

LE

R

 S

H

A

F

T

DIFFERENTIAL

REA

R

 AXLE AND REAR S

U

SPENSION

REA

R

 AXLE

TI

RE

ROAD W

H

EEL

DRIV

E SHAFT

BR

AK

E

S

T

EERING

Symptom

DRIVE
SHAFT

Noise

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

REAR AXLE

Noise

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

Judder

×

×

×

×

×

×

Poor quality ride or handling

×

×

×

×

×

RAX-6

< SERVICE INFORMATION >

REAR WHEEL HUB AND KNUCKLE

REAR WHEEL HUB AND KNUCKLE

On-Vehicle Inspection

INFOID:0000000001327526

Make sure the mounting conditions (looseness, back lash) of each component and component status (wear,
damage) are normal.

WHEEL BEARING INSPECTION

With the vehicle raised, inspect the following.
• Move wheel hub in the axial direction by hand. Check that there is no looseness of front wheel bearing.

• Rotate wheel hub and make sure there is no unusual noise or other irregular conditions. If there are any

irregular conditions, replace wheel hub and bearing assembly.

Removal and Installation

INFOID:0000000001327527

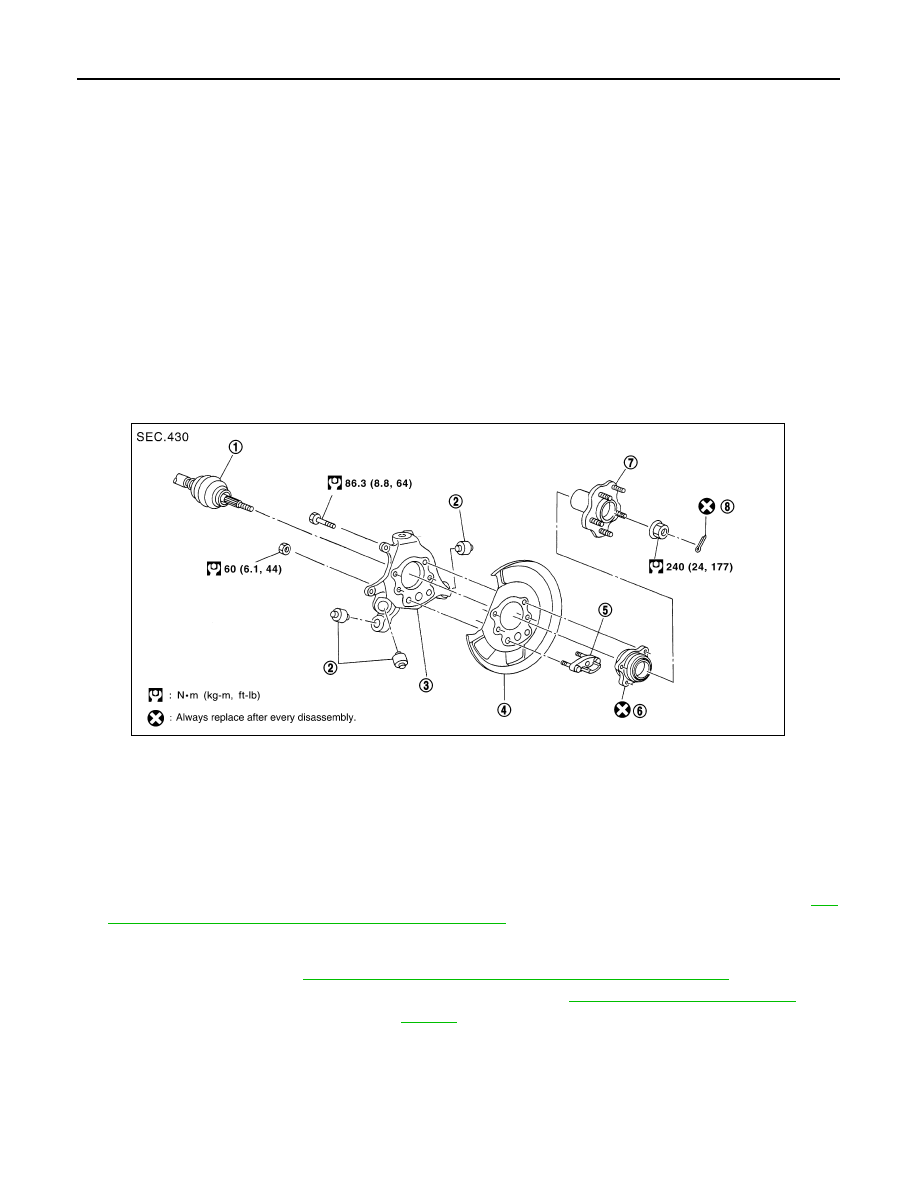

COMPONENTS

REMOVAL

1.

Remove tires from vehicle with power tool.

2.

Remove cotter pin. Then remove lock nut from drive shaft.

3.

Remove brake caliper with power tool. Hang it in a place where it will not interfere with work. Refer to

BR-

25, "Removal and Installation of Brake Caliper Assembly"

.

NOTE:
• Avoid depressing brake pedal while brake caliper is removed.

4.

Remove disc rotor. Refer to

BR-25, "Removal and Installation of Brake Caliper Assembly"

.

5.

Remove parking cable and parking shoe from back plate. Refer to

PB-4, "Removal and Installation"

.

6.

Remove wheel sensor from axle. Refer to

BRC-52

.

CAUTION:

Do not pull on wheel sensor harness.

7.

Separate drive shaft from wheel hub and bearing assembly by lightly tapping the end with a suitable ham-
mer and wood block. If it is hard to separate, use a suitable puller.

8.

Remove fixing bolts of wheel hub and bearing assembly with power tool, then remove wheel hub and
bearing assembly from axle.

Axial end play

: 0.05 mm (0.002 in) or less

1.

Drive shaft

2.

Bushing

3.

Axle

4.

Back plate

5.

Anchor block

6.

Wheel bearing

7.

Wheel hub

8.

Cotter pin

SDIA1481E
