Infiniti FX35 / FX45. Manual - part 874

PS-38

< SERVICE INFORMATION >

HYDRAULIC LINE

VQ35DE AWD MODEL

JSGIA0177GB

1.

Reservoir tank

2.

Reservoir tank bracket

3.

Suction hose

4.

High pressure hose

5.

Power steering oil pump

6.

Steering gear assembly

7.

Oil cooler

8.

Clamp

9.

Eye bolt

10. Copper washer

11.

Eye bolt

12. Copper washer

13. Oil pressure sensor

Refer to

GI-8, "Component"

 and the followings for the symbols in the figure.

: Apply power steering fluid.

HYDRAULIC LINE

PS-39

< SERVICE INFORMATION >

C

D

E

F

H

I

J

K

L

M

A

B

PS

N

O

P

VK45DE AWD MODEL

Removal and Installation

INFOID:0000000001327724

VQ35DE MODELS

• Refer to

PS-37, "Component"

 for tightening torque. Install in the reverse order of removal.

NOTE:
Refer to component parts location and do not reuse non-reusable parts.

JSGIA0219GB

1.

Reservoir tank

2.

Suction hose

3.

High pressure hose

4.

Oil cooler

5.

Pressure sensor

6.

Steering gear assembly

7.

Clamp

8.

Eye bolt

9.

Copper washer

10. Reservoir tank bracket

11.

Eye bolt

Refer to

GI-8, "Component"

 and the followings for the symbols in the figure.

: Apply power steering fluid.

PS-40

< SERVICE INFORMATION >

HYDRAULIC LINE

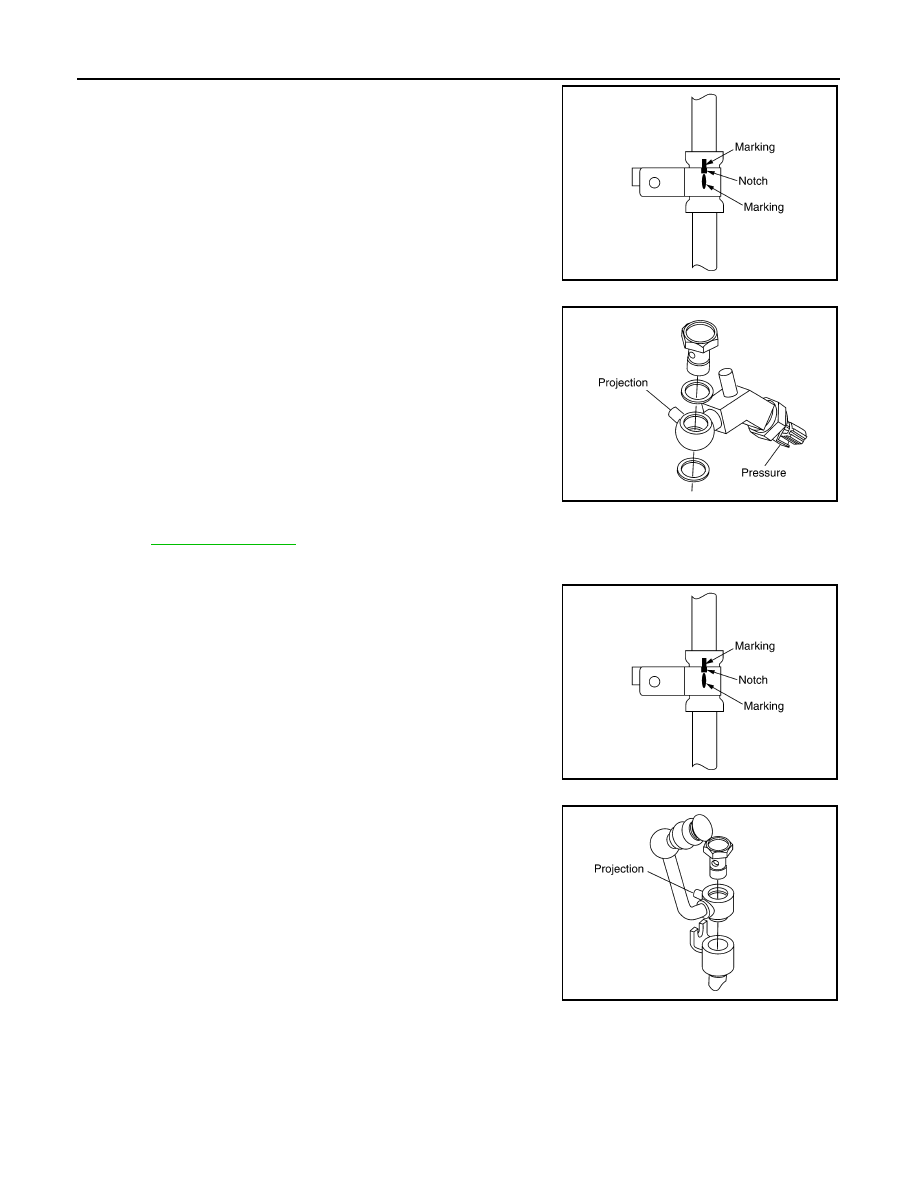

• Confirm with mating marking that if it is in phase with hose and

clamp, then correct if needs.

• To install eye joint, join projection of eye joint into notch of power

steering pump, and attach eye joint to power steering pump prop-
erly. Then, tighten eye bolt by hands fully, and tighten it with a
specified torque.

• Connect harness connector into pressure sensor securely.

VK45DE MODELS

• Refer to

PS-37, "Component"

 for tightening torque. Install in the reverse order of removal.

NOTE:
Refer to component parts location and do not reuse non-reusable parts.

• Confirm with mating marking that if it is in phase with hose and

clamp, then correct if needs.

• To install eye joint, join projection of eye joint into notch of power

steering pump, and attach eye joint to power steering pump prop-
erly. Then, tighten eye bolt by hands fully, and tighten it with a
specified torque.

SGIA0563E

SGIA0533E

SGIA0563E

SGIA0537E

SERVICE DATA AND SPECIFICATIONS (SDS)

PS-41

< SERVICE INFORMATION >

C

D

E

F

H

I

J

K

L

M

A

B

PS

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

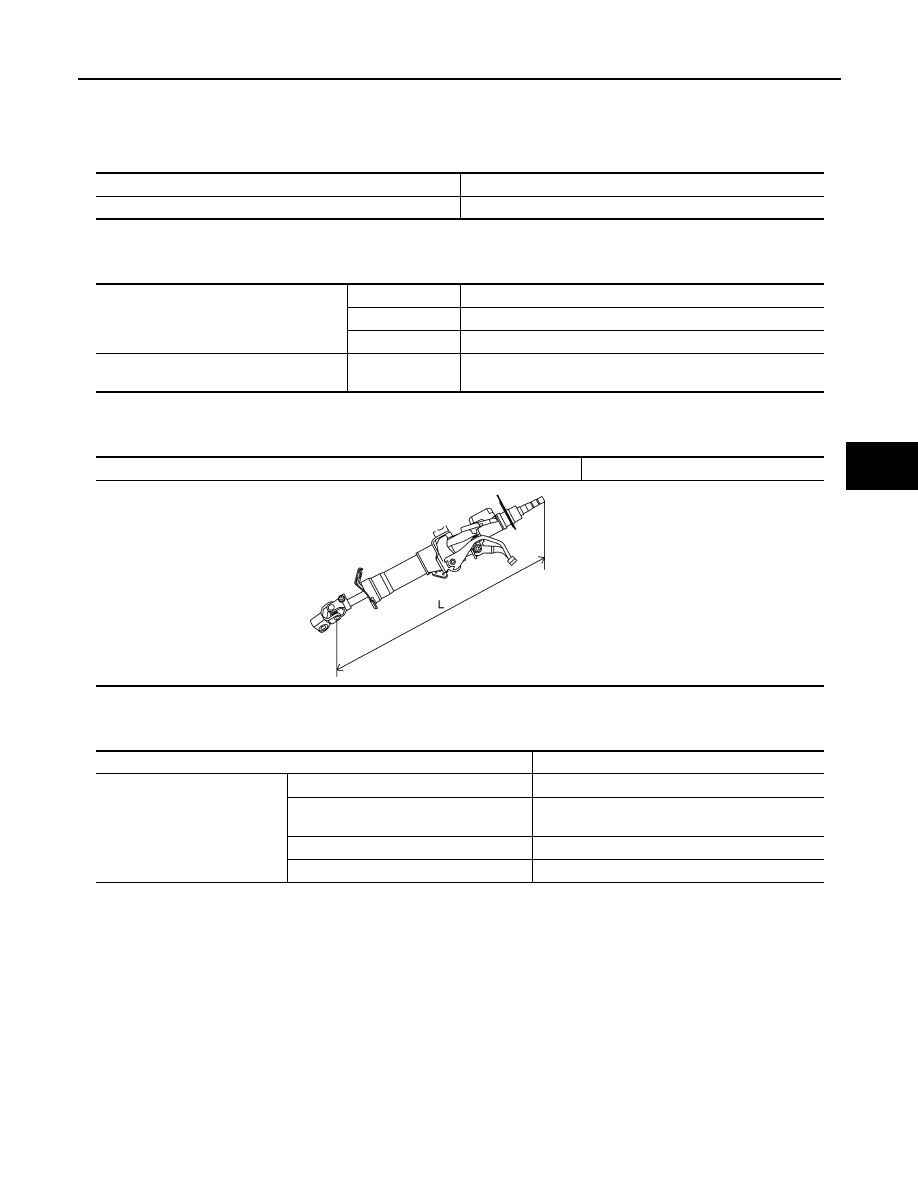

Steering Wheel

INFOID:0000000001327725

Steering Angle

INFOID:0000000001327726

Steering Column

INFOID:0000000001327727

Steering Outer Socket and Inner Socket

INFOID:0000000001327728

End play of the axle direction for steering wheel

0 mm (0 in)

Steering wheel play on the outer circumference

0

−

 35 mm (0

−

 1.38 in)

Inner wheel
Degree minute (Decimal degree)

Minimum

32

°

00

′

 (32.0

°

)

Nominal

35

°

00

′

 (35.0

°

)

Maximum

36

°

00

′

 (36.0

°

)

Outer wheel
Degree minute (Decimal degree)

Nominal

30

°

00

′

 (30.0

°

)

Steering column length “ L1 ”

572 mm (22.52 in)

SGIA0556E

Steering gear type

PR26AM

Tie-rod ball joint outer socket

Swinging torque

0.3

−

 2.9 N·m (0.03

−

 0.29 kg-m, 3

−

 25 in-lb)

Measurement on spring balance
• Measuring point: cotter pin hole of stud

4.84

−

 46.7 N (0.5

−

 4.8 kg, 1.0

−

 10 lb)

Rotating torque

0.3

−

 2.9 N·m (0.03

−

 0.29 kg-m, 3

−

 25 in-lb)

Axial end play

0.5 mm (0.02 in) or less
