ILLUMINATION

LT-179

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

LT

N

O

P

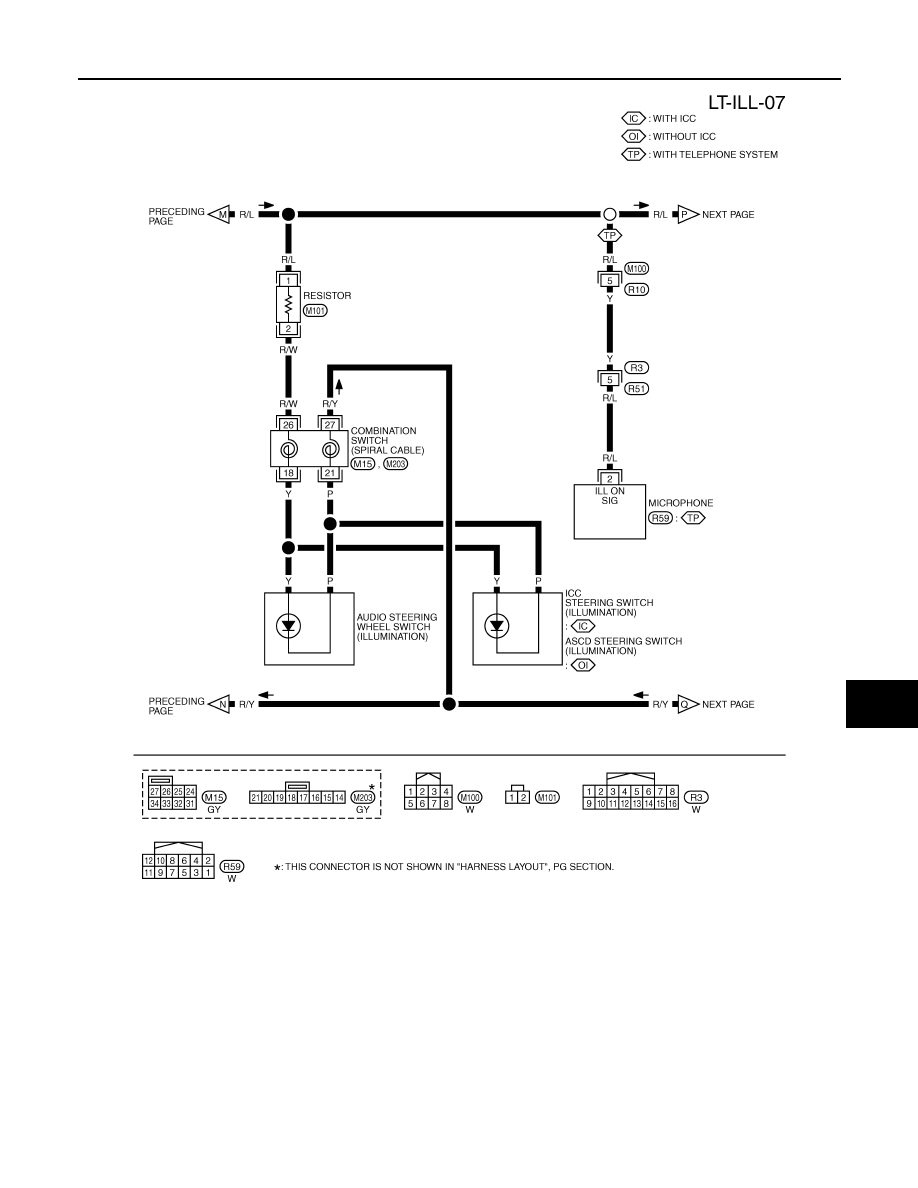

TKWM4335E

LT-180

< SERVICE INFORMATION >

ILLUMINATION

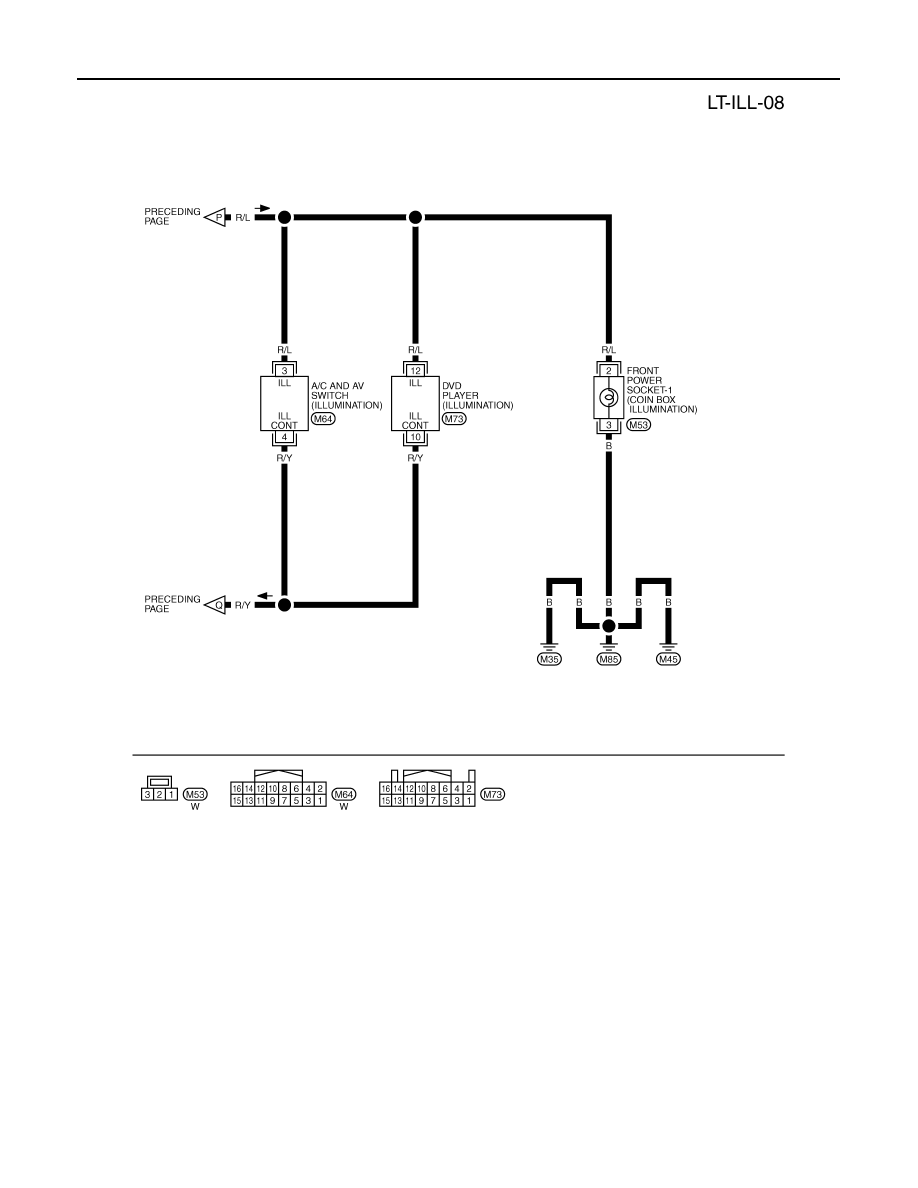

TKWM4336E

ILLUMINATION

LT-181

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

LT

N

O

P

Bulb Replacement

INFOID:0000000001328427

GLOVE BOX LAMP

1.

Remove instrument passenger lower panel. Refer to

IP-16, "Disassembly and Assembly"

.

TKWM4337E

LT-182

< SERVICE INFORMATION >

ILLUMINATION

2.

Turn bulb socket left to release lock and remove it.

3.

Installation is the reverse order of removal.

A/T DEVICE ILLUMINATION

1.

Remove A/T console finisher. Refer to

IP-10

.

2.

Turn bulb socket left to release lock and remove it.

3.

Installation is the reverse order of removal.

COIN BOX ILLUMINATION

1.

Remove instrument clock finisher. Refer to

IP-10

.

2.

Turn bulb socket left to release lock and remove it.

3.

Installation is the reverse order of removal.

Removal and Installation

INFOID:0000000001328428

ILLUMINATION CONTROL SWITCH

Refer to

DI-24, "Removal and Installation of Odo/Trip Meter and Illumination Control Switch"

.

Glove box lamp

: 12 V - 1.4 W

PKIB3636E

A/T device illumination

: 12 V - 1.4 W

PKIC9699E

Coin box illumination

: 12 V - 1.4 W

PKIC9698E
