STOP LAMP

LT-115

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

LT

N

O

P

1.

Remove cap from back door finisher and remove nuts. Refer to

EI-47, "Component Parts Location"

.

2.

Disconnect high-mounted stop lamp connector.

3.

Remove washer tube from high-mounted stop lamp, and
remove high-mounted stop lamp from the rear air spoiler.

4.

Remove seal packing from the rear air spoiler.

5.

Installation is the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

Stop Lamp

INFOID:0000000001328377

BULB REPLACEMENT

Refer to

LT-137, "Bulb Replacement"

.

REMOVAL AND INSTALLATION

Refer to

LT-137, "Removal and Installation"

.

Rear Combination Lamp Control Unit

INFOID:0000000001328378

REMOVAL AND INSTALLATION

Refer to

LT-95, "Removal and Installation of Rear Combination Lamp Control Unit"

.

High-mounted stop lamp

: LED

SKIA5562E

LT-116

< SERVICE INFORMATION >

BACK-UP LAMP

BACK-UP LAMP

Wiring Diagram - BACK/L -

INFOID:0000000001328379

TKWM4313E

BACK-UP LAMP

LT-117

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

LT

N

O

P

Bulb Replacement

INFOID:0000000001328380

1.

Remove rear combination lamp (back door side).

2.

Turn bulb socket counterclockwise and unlock it.

3.

Remove bulb.

Removal and Installation

INFOID:0000000001328381

1.

Remove back door finisher. Refer to

EI-47, "Component Parts

Location"

.

2.

Disconnect rear combination lamp connector.

3.

Remove rear combination lamp mounting nuts.

4.

Remove rear combination lamp from back door.

5.

Remove seal packing from back door.

Back-up lamp

: 12 V - 18 W

PKIB3634E

PKIB3635E

LT-118

< SERVICE INFORMATION >

PARKING, LICENSE PLATE AND TAIL LAMPS

PARKING, LICENSE PLATE AND TAIL LAMPS

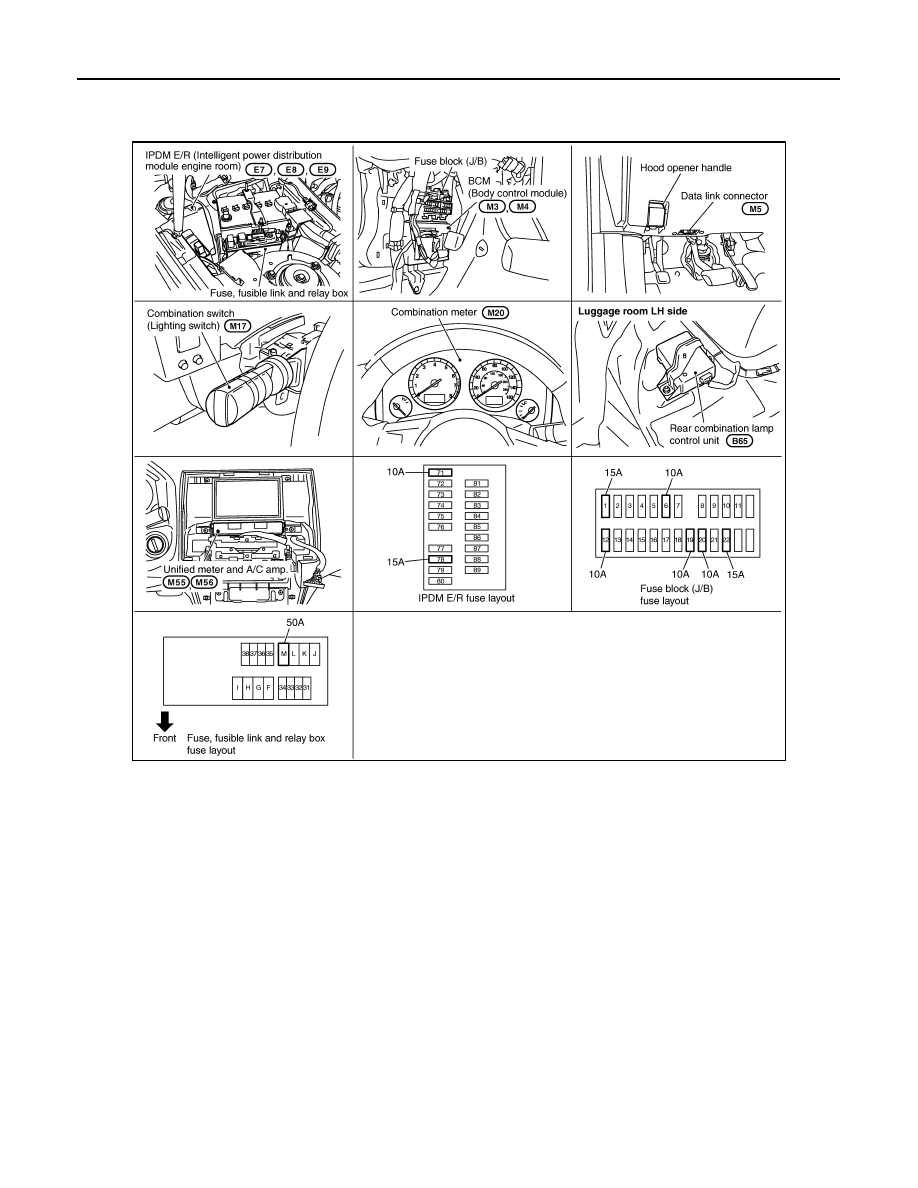

Component Parts and Harness Connector Location

INFOID:0000000001328382

System Description

INFOID:0000000001328383

Control of the parking, license plate, side marker and tail lamp operation is dependent upon the position of the
lighting switch (combination switch). When the lighting switch is placed in the 1ST position, the BCM (body
control module) receives input signal requesting the parking, license plate, side marker and tail lamps to illumi-
nate. This input signal is communicated to the IPDM E/R (intelligent power distribution module engine room)
through the CAN communication lines. CPU (central processing unit) located in the IPDM E/R controls the tail
lamp relay coil. This relay, when energized, directs power to the parking, license plate, side marker and tail
lamps, which then illuminate.
The current that flows by Rear combination lamp control unit is controlled, and a tail lamp (LED) is made to
turn ON.

OUT LINE

Power is supplied at all times
• to ignition relay, located in IPDM E/R, from battery direct,
• through 10A fuse (No. 71, located in IPDM E/R)
• to tail lamp relay, located in IPDM E/R and
• to CPU located in IPDM E/R,
• through 15A fuse (No. 78, located in IPDM E/R)
• to CPU located in IPDM E/R.
• through 50A fusible link (letter M, located in fuse, fusible link and relay box)

PKIC9694E
