Infiniti FX35 / FX45. Manual - part 612





EI-12

< SERVICE INFORMATION >

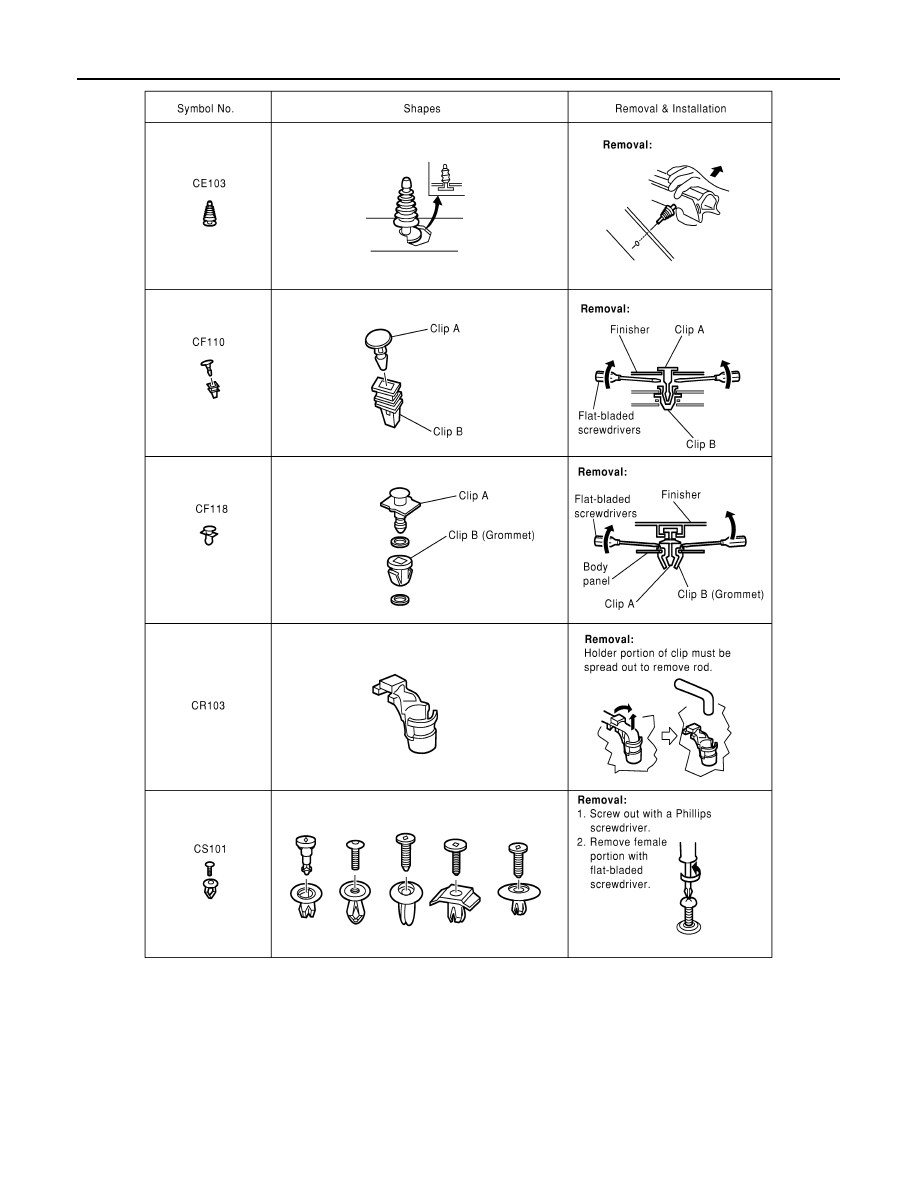

CLIP AND FASTENER

SIIA0316E

CLIP AND FASTENER

EI-13

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

EI

N

O

P

SIIA0317E

EI-14

< SERVICE INFORMATION >

FRONT BUMPER

FRONT BUMPER

Component Parts Location

INFOID:0000000001328060

1.

Bumper stay

2.

Front bumper guard bar

3.

Bumper reinforcement

4.

Energy absorber

5.

Bumper fascia

6.

License plate bracket

7.

Bumper center molding

8.

Bumper clamp

9.

Fillet molding

: Pawl

PIIB8942E

FRONT BUMPER

EI-15

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

EI

N

O

P

Removal and Installation

INFOID:0000000001529395

CAUTION:

Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.

REMOVAL

1.

Remove front grille. Refer to

EI-22, "Removal and Installation"

.

2.

Remove front fillet molding assembly. Only the place connected
with a front bumper fascia is removed.

3.

Remove bolts and clips of front undercover.

4.

Remove screws and clips of right/left fender protectors on front
side. Refer to

EI-24, "Removal and Installation"

.

5.

Remove bolts of right/left fender.

6.

Insert driver rolled with cloth between bumper fascia and “S”
type clips, and remove bumper fascia.

7.

Disconnect harness connector of fog lamps.

8.

Remove bumper fascia assembly.

CAUTION:

When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

9.

Remove bumper energy absorber.

10. Remove bolts and nuts of bumper reinforcement, and remove bumper reinforcement. Remove bolts and

nuts with power tool.

11. Remove ICC sensor with bracket. Refer to Refer to

ACS-65

.

PIIA4350E

PIIA4338E

PIIA4331E
